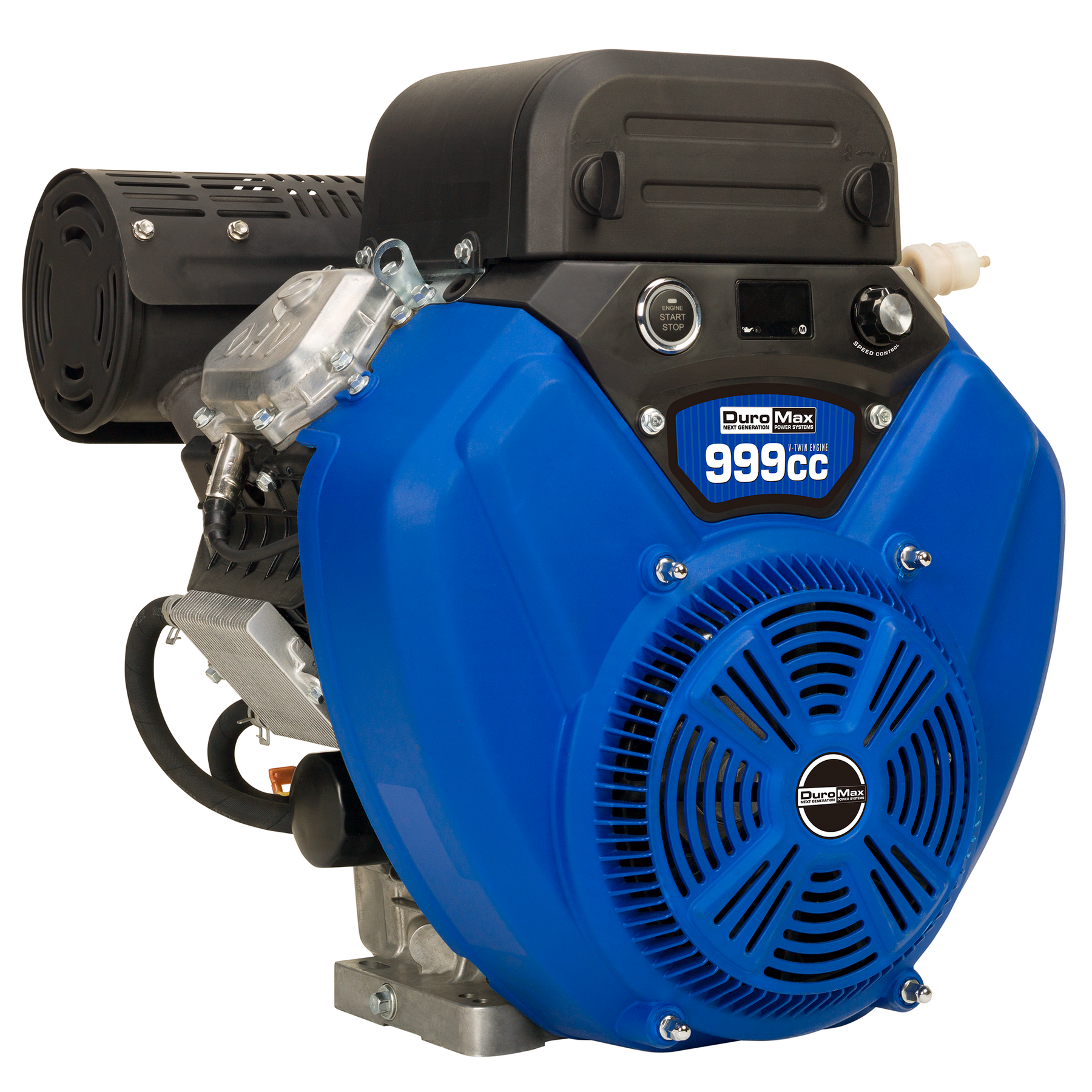

999cc 1-7/16-Inch Shaft V-Twin Electric Start Gasoline Engine

DuroMax XP35HPE
MSRPRegular price $1,999.00
/

Available at these Retailers

See All Retailers

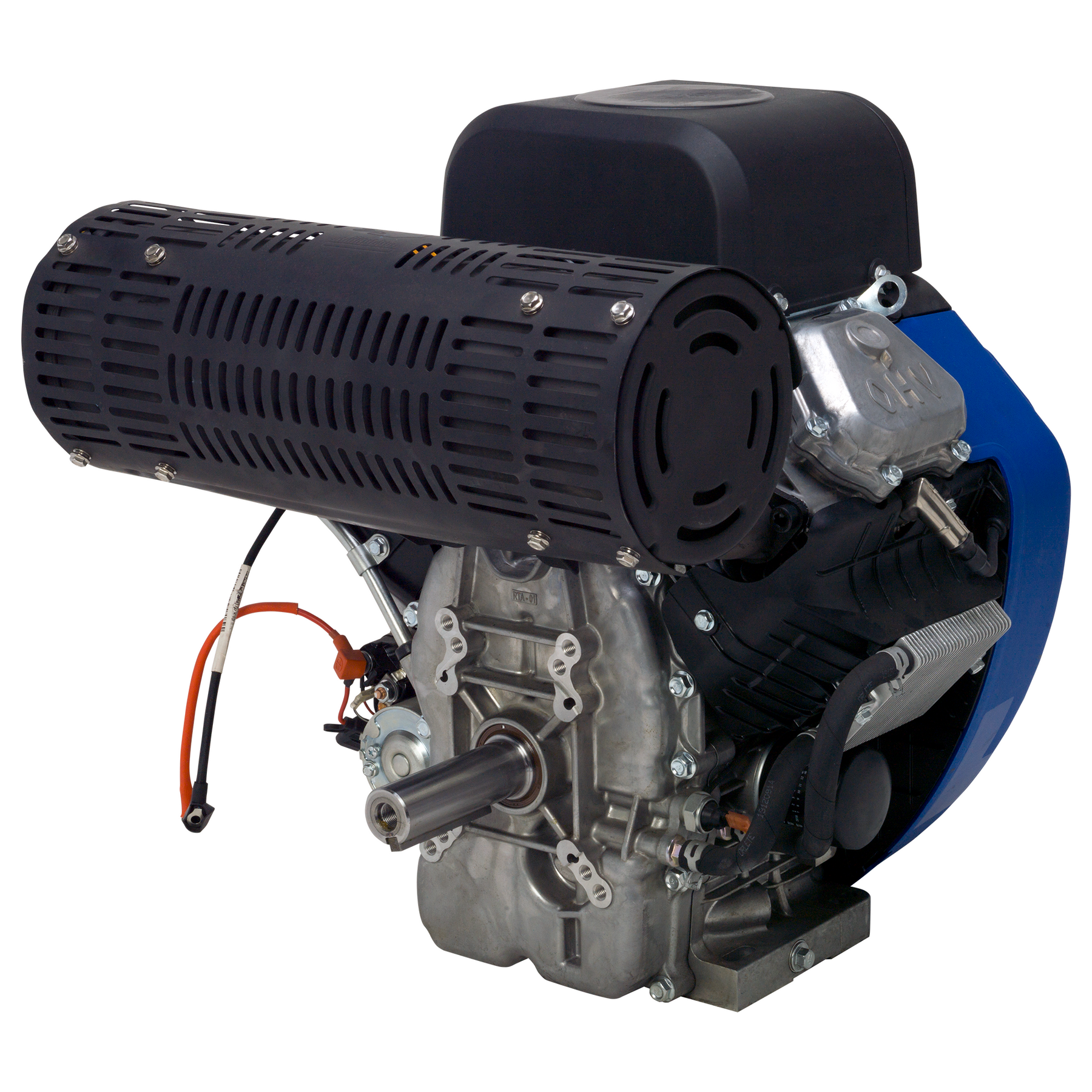

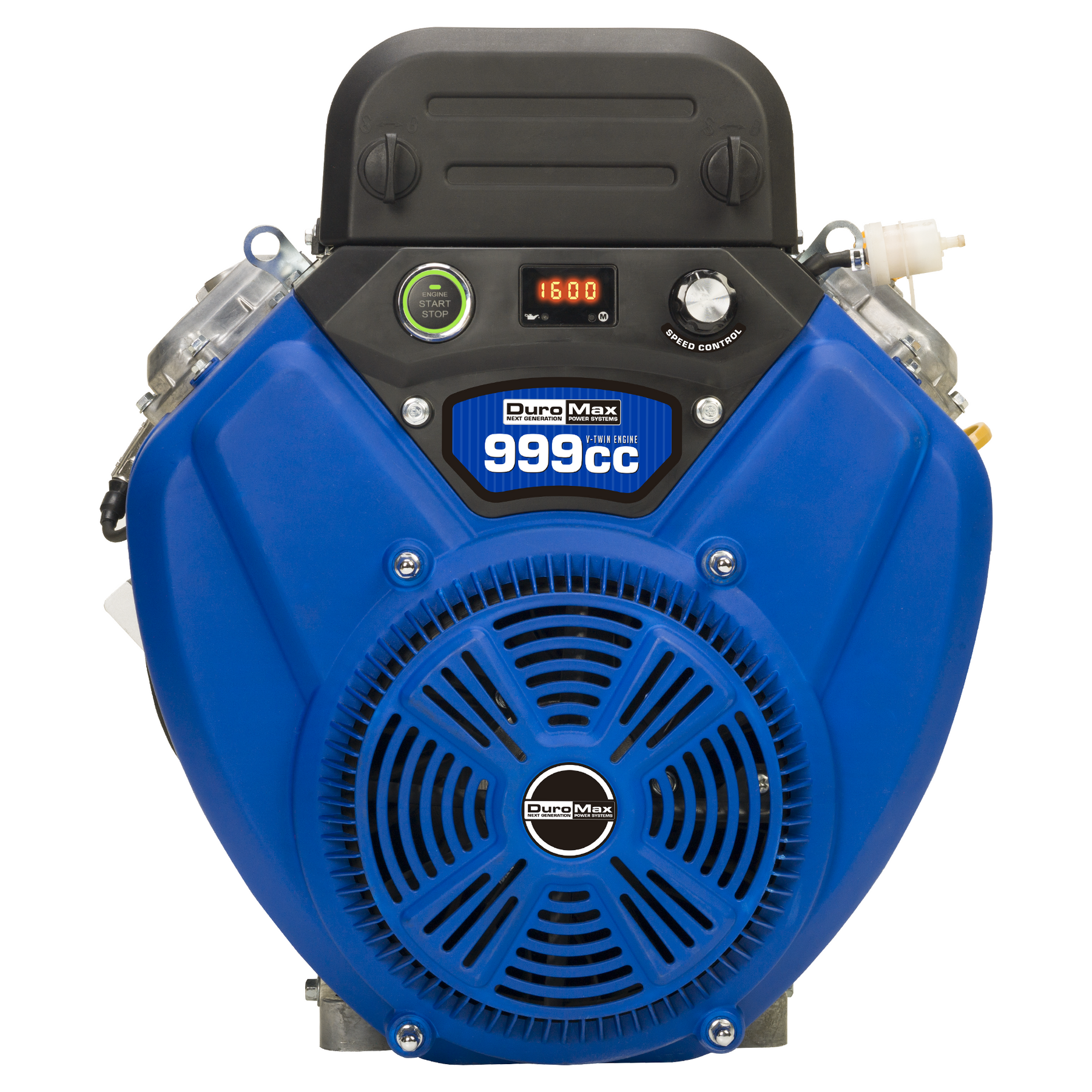

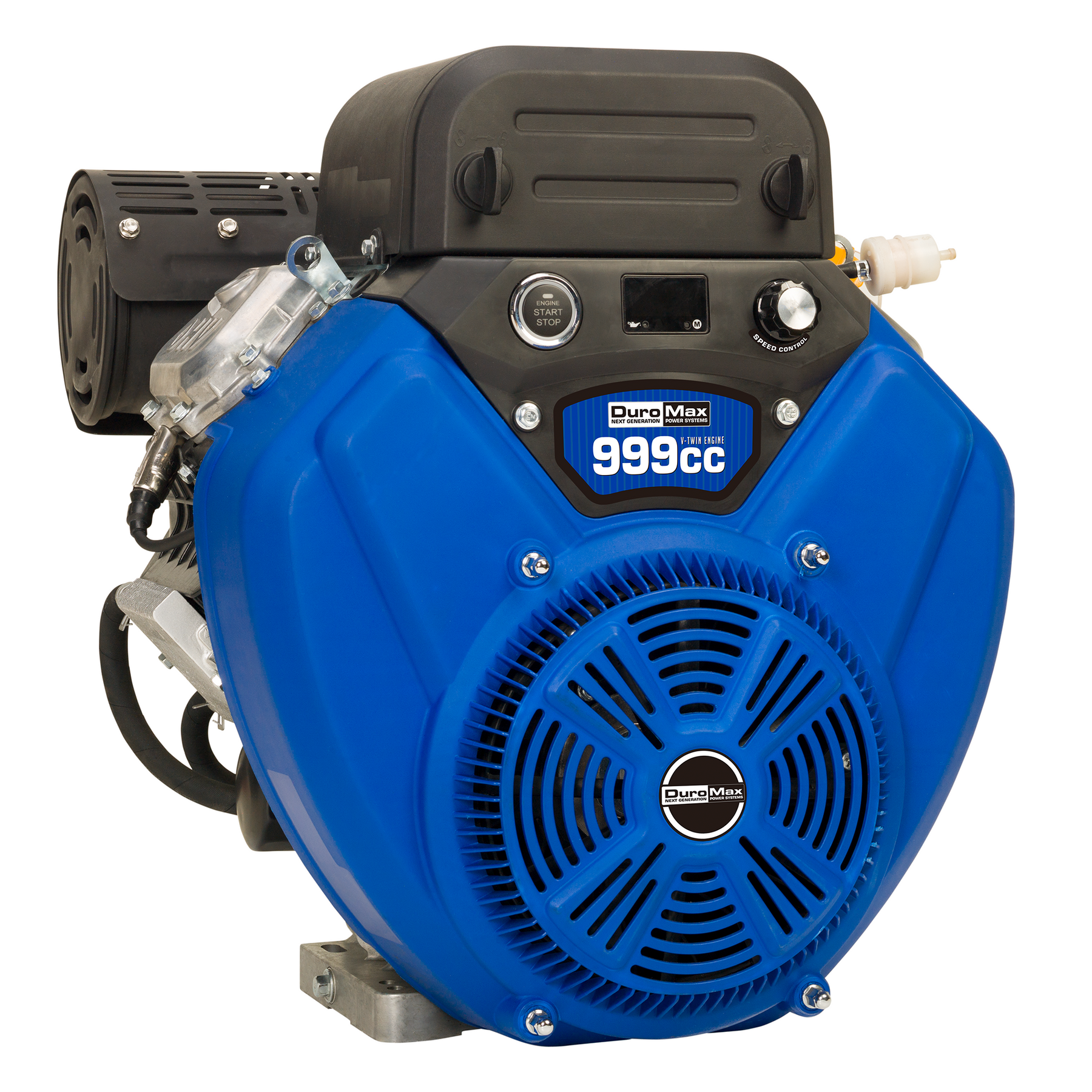

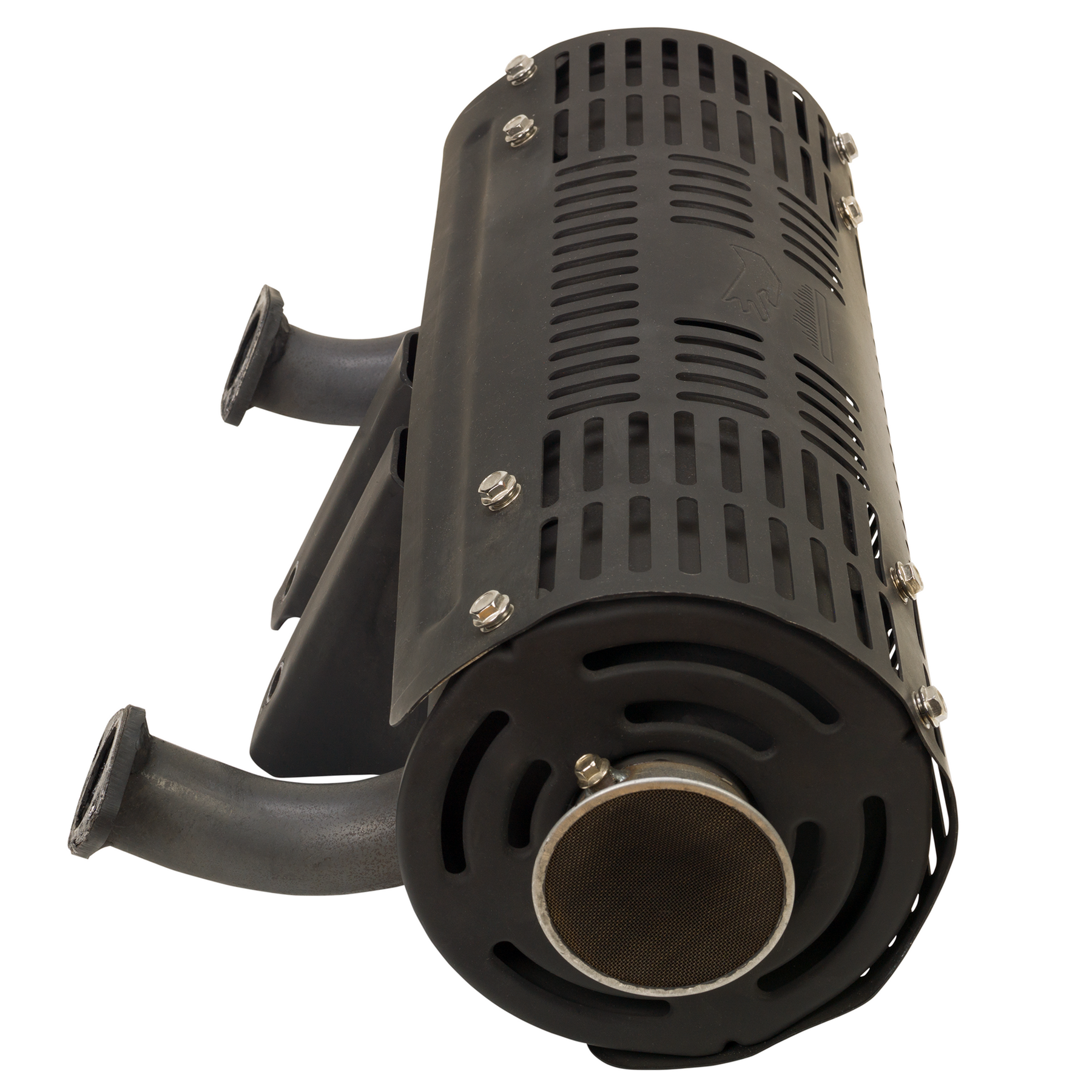

Introducing the most POWERFUL engine in our lineup: The DuroMax XP35HPE 999cc V-Twin Engine. This 4-stroke OHV powerhouse features a quick push button start, electronic speed control, and digital RPM display. Runs on standard 87 octane gasoline, and comes equipped with an oil cooler and muffler. Perfect for your go karts, ATVs, boats, and any project that demands serious POWER!
  • Features
  • Specifications
  • Specs
  • Support
  • Reviews

Electric Start

999cc V-Twin 4-Stroke OHV Engine

The most powerful engine in our lineup. Perfect for projects that demand serious power.



XP35HPE Specifications

Specifications
Manufacturer DuroMax Power Equipment
Part # XP35HPE
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 999cc
Bore 90mm
Stroke 78.5mm
Compression Ratio 8.6:1
Max Output 4000 RPM
Max Torque 58 ft-lbs (78 N.m.)@ 2500RPM
Shaft Orientation Horizontal

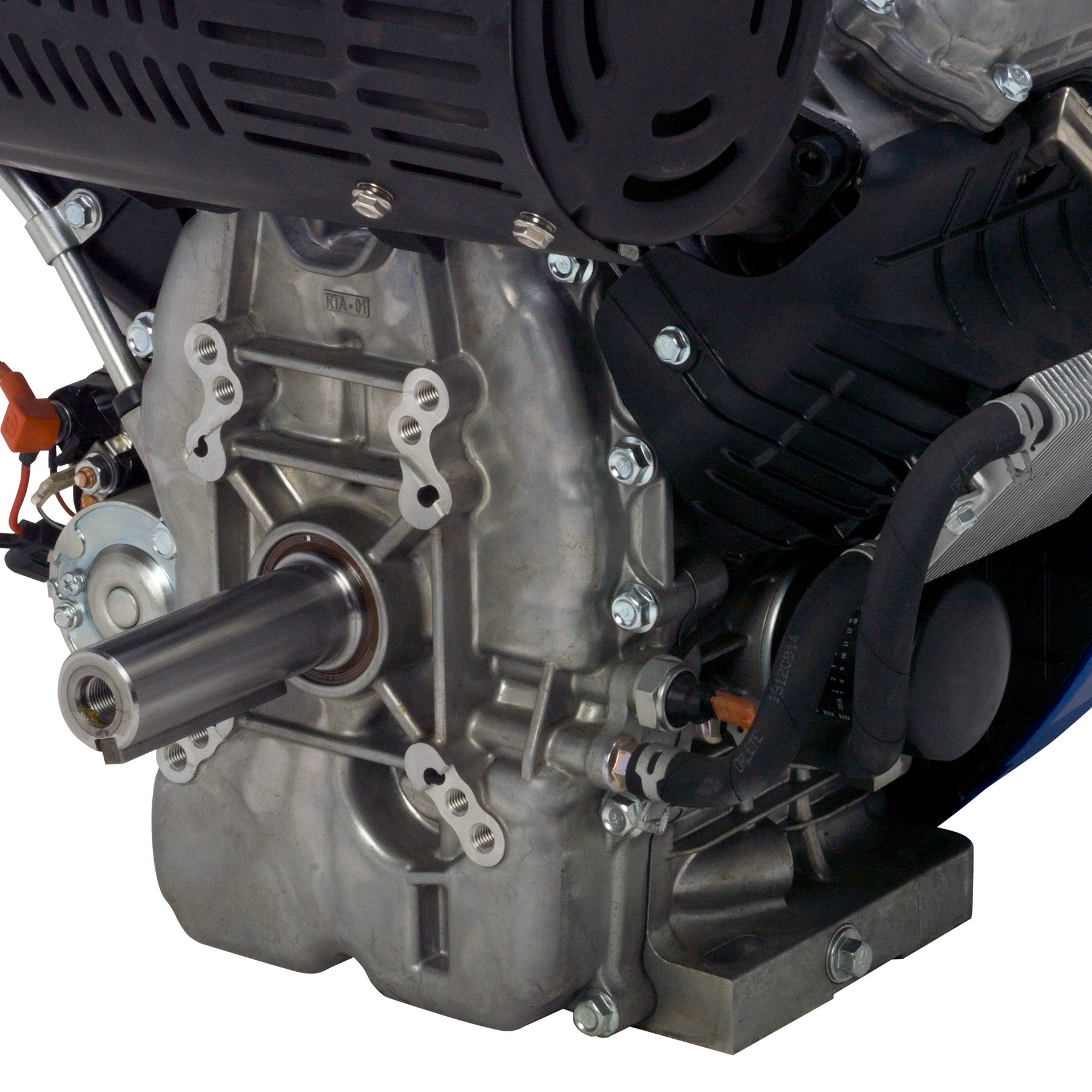

Shaft Size 1-7/16" Diameter, 4.6" Long, 3/8" x 3.5" Keyway
Shaft End 5/8” 18UNF-2B
Shaft Rotation Counter Clockwise
Measurement from Center of Shaft to Base 6.1"
Fuel Types Gasoline
Fuel Delivery System Carburetor
Starting Type Push Button Start
Electric Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Needle Bearings
Oil Cooling Type Pressure and Splash
Oil Capacity 83.2 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic

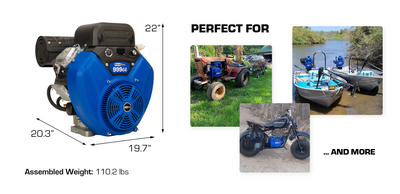

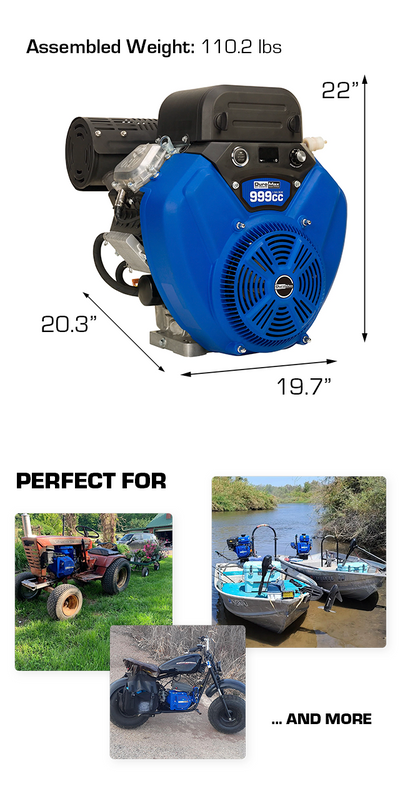

Product Dimensions 19.7"-Long x 20.3"-Wide x 22"-High
Product Weight 110.23-lbs
UPC 811640016463
Warranty 3 Year
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes

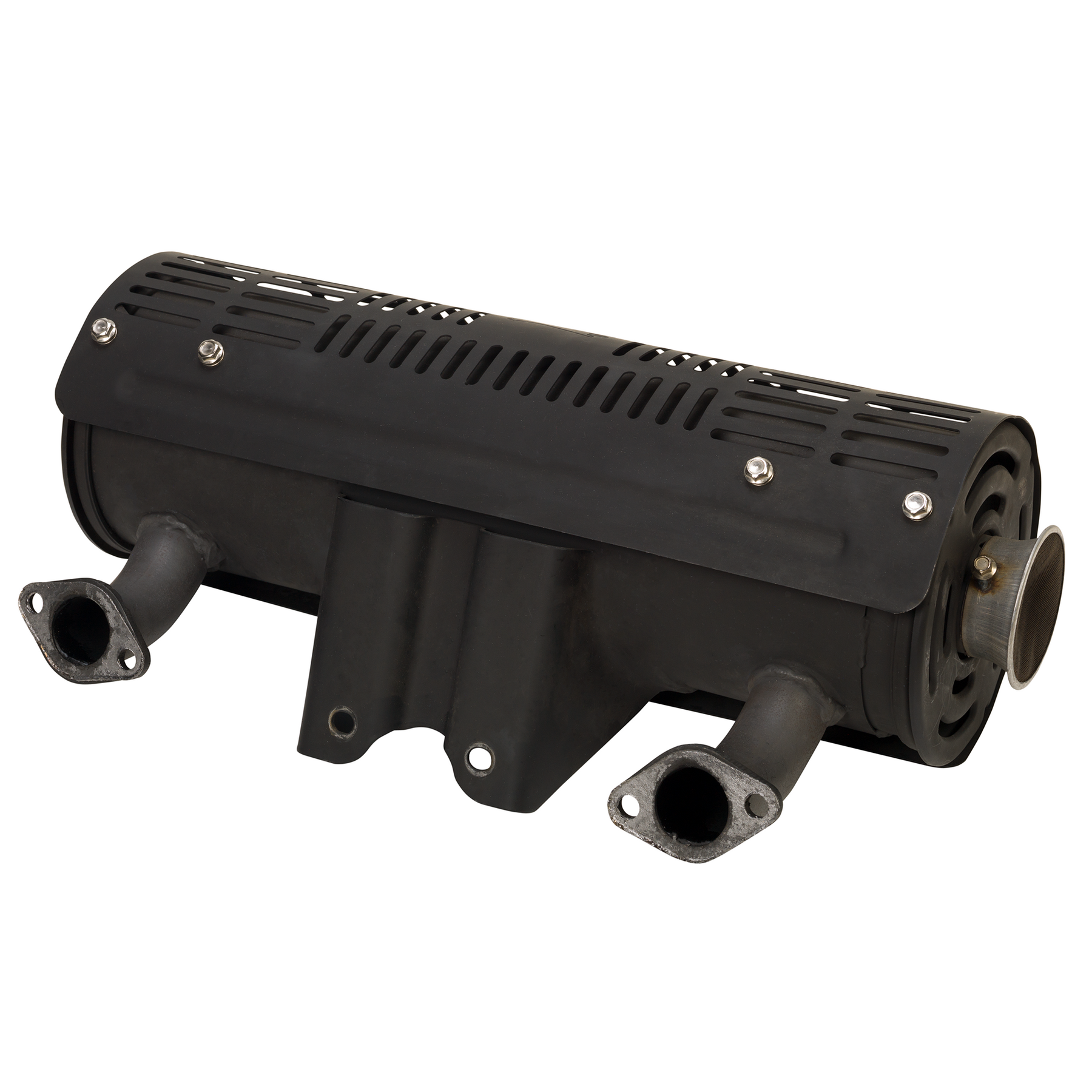

What's in the Box? DuroMax XP35HPE Engine, Compatible Muffler, and Owner's Manual


Mounting Diagrams

Measured in millimeters (mm)

Bottom

Shaft

Side

Related Items

Horizontal Engines

View all

XP35HPE Specifications

Specifications
Manufacturer DuroMax Power Equipment
Part # XP35HPE
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 999cc
Bore 90mm
Stroke 78.5mm
Compression Ratio 8.6:1
Max Output 4000 RPM
Max Torque 58 ft-lbs (78 N.m.)@ 2500RPM
Shaft Orientation Horizontal
Shaft Size 1-7/16" Diameter, 4.6" Long, 3/8" x 3.5" Keyway
Shaft End 5/8” 18UNF-2B
Shaft Rotation Counter Clockwise
Measurement from Center of Shaft to Base 6.1"
Fuel Types Gasoline
Fuel Delivery System Carburetor
Starting Type Push Button Start
Electric Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Needle Bearings
Oil Cooling Type Pressure and Splash
Oil Capacity 83.2 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic
Product Dimensions 19.7"-Long x 20.3"-Wide x 22"-High
Product Weight 110.23-lbs
UPC 811640016463
Warranty 3 Year
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes
What's in the Box? DuroMax XP35HPE Engine, Compatible Muffler, and Owner's Manual

Warranty Information

DuroMax stands behind this product with a 3 Year parts and technical service warranty. Our USA based teams are available to help walk-through, troubleshoot or diagnose. Nationwide service centers fix any issues - DuroMax has you covered!
