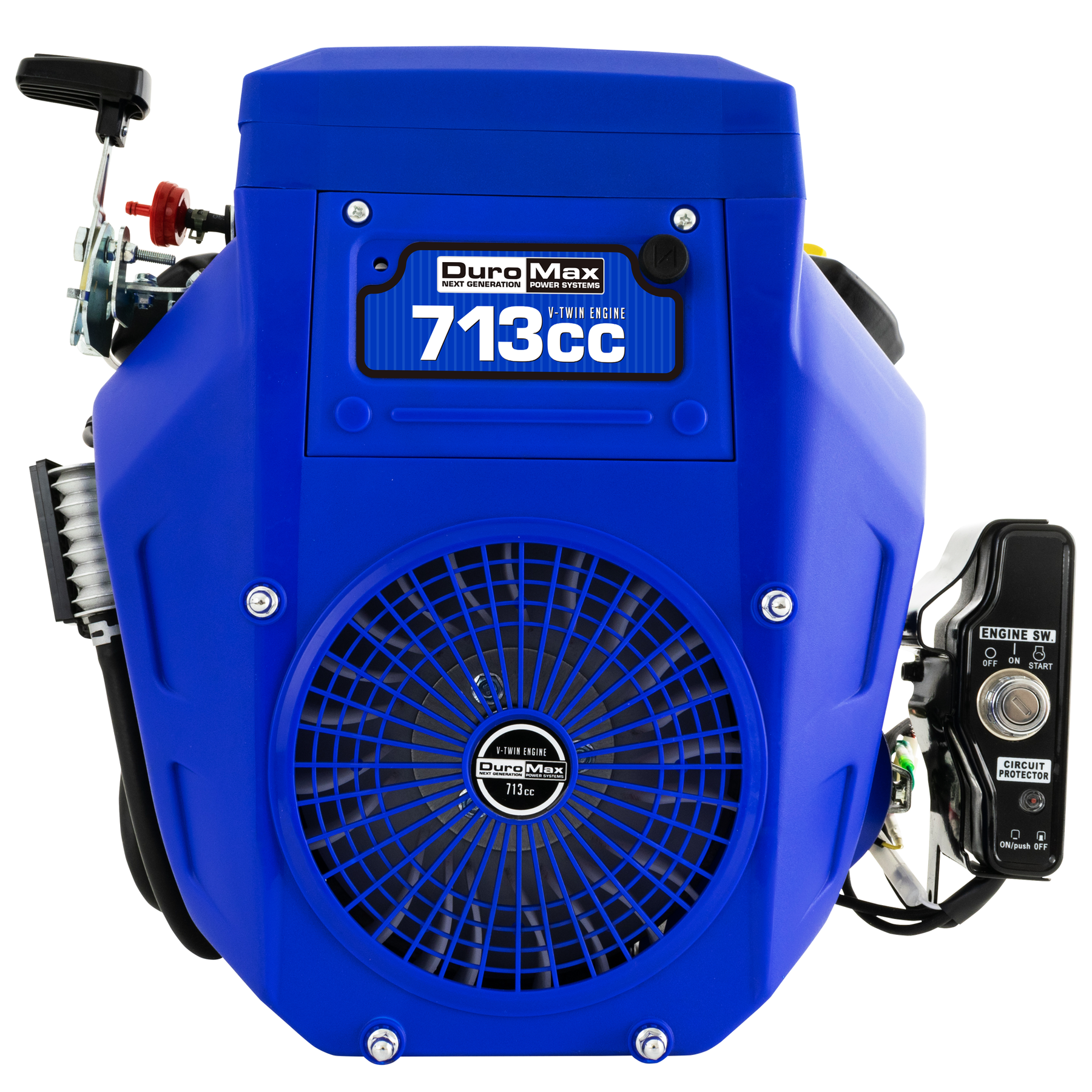

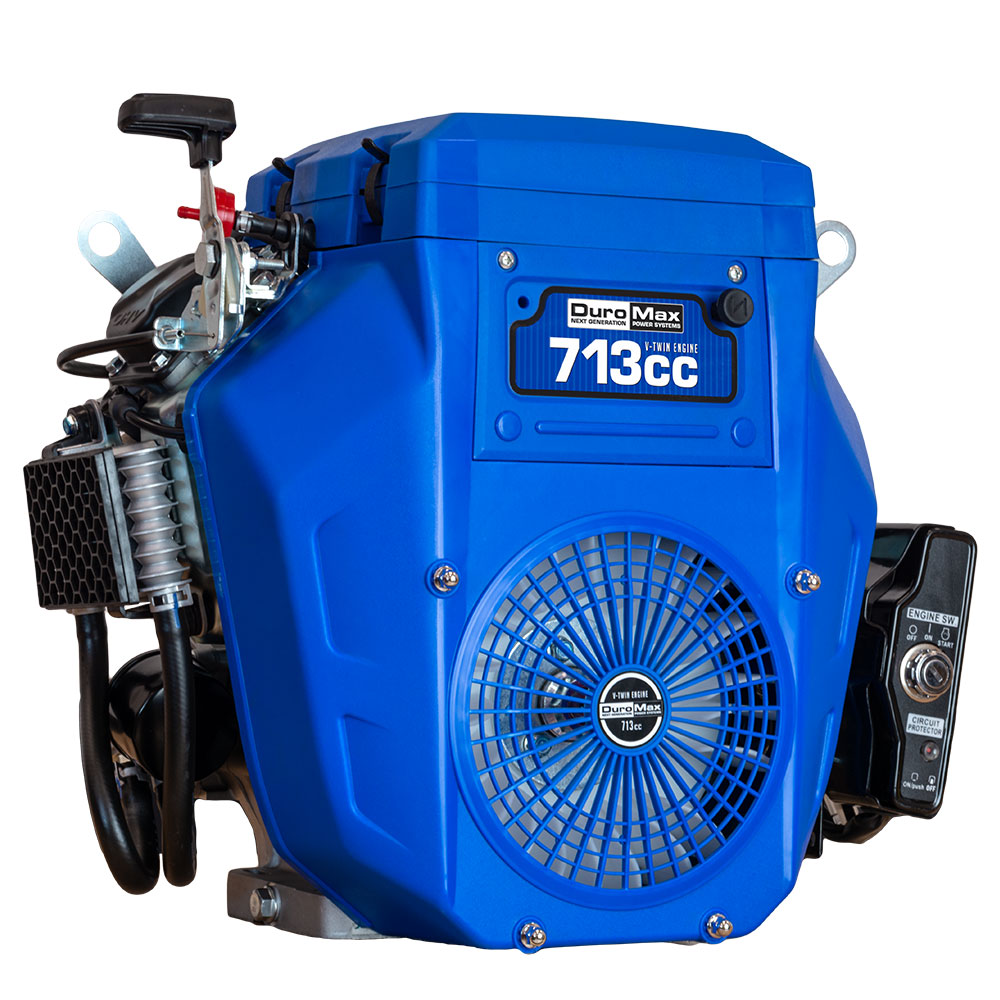

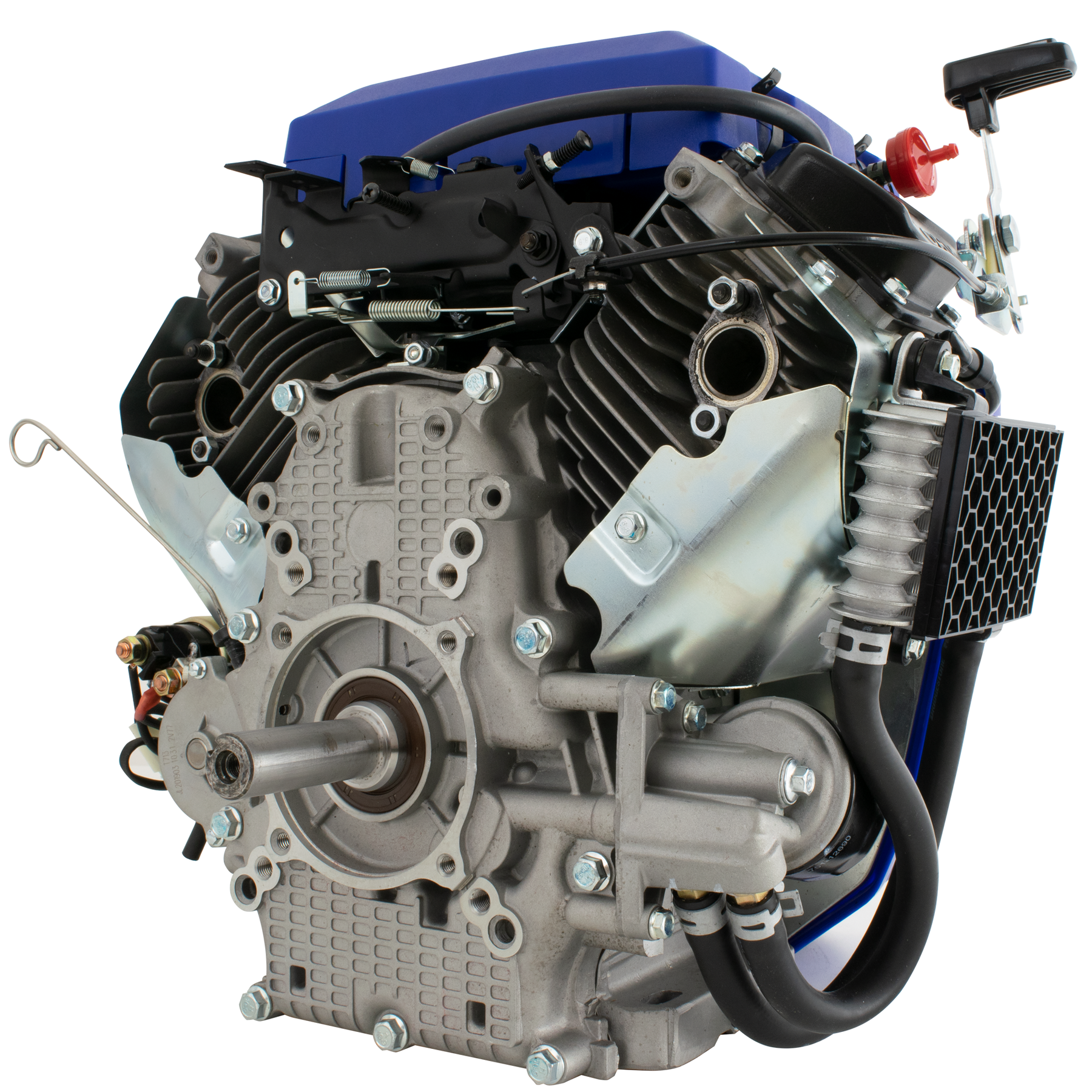

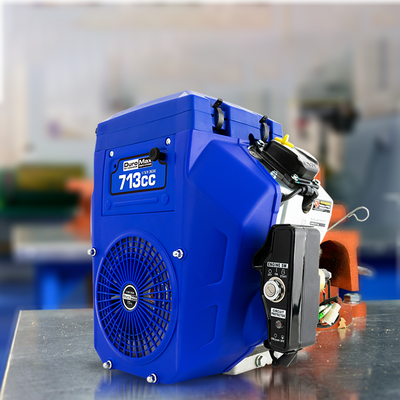

DuroMax XP23HPE 713cc 23-Hp V-Twin Electric Start Engine

XP23HPE

Features
  • Powerful 713cc 23HP V-Twin Engine

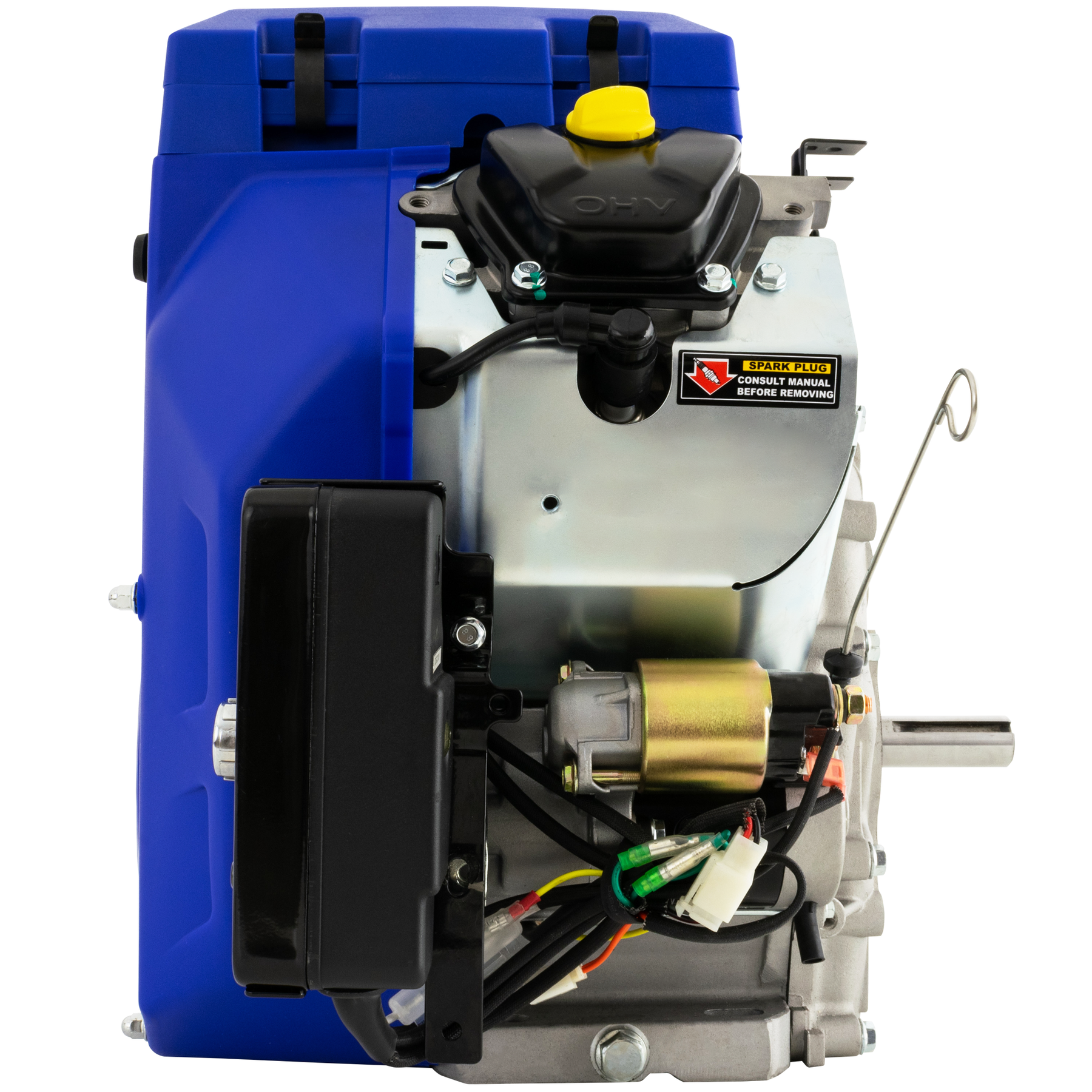

  • Electric Start Key Switch Box
  • Runs on Standard 87 Octane Gasoline
  • Full EPA and CARB Compliance allows for operation in all 50 States
  • Air Cleaner: Dual, Semi-dry, Oil Bath
What's in The Box
  • 23 Horsepower Electric Start Engine w/ Key Switch Box
  • Owner's Manual
Warranty
  • 3 Year Warranty
    Specifications
    Displacement: 713cc
    Dimensions: 19.3”x18.3”x14.0” (490x465x355mm)
    Dry Weight:
    103.6 lbs (47kg)
    Maximum Torque:
    31.72 ft-lbs (43 N.m.)@ 2500RPM
    Maximum RPM:
    4000 RPM
    Compression Ratio:
    8.5:1
    Bore X Stroke:
    80mm x 71mm
    Fuel Type:
    87+ Octane Gasoline
    Engine Oil Capacity:
    1.58 qt (1.5 L)
    Bearing Type
    Stainless Steel Ball Bearing

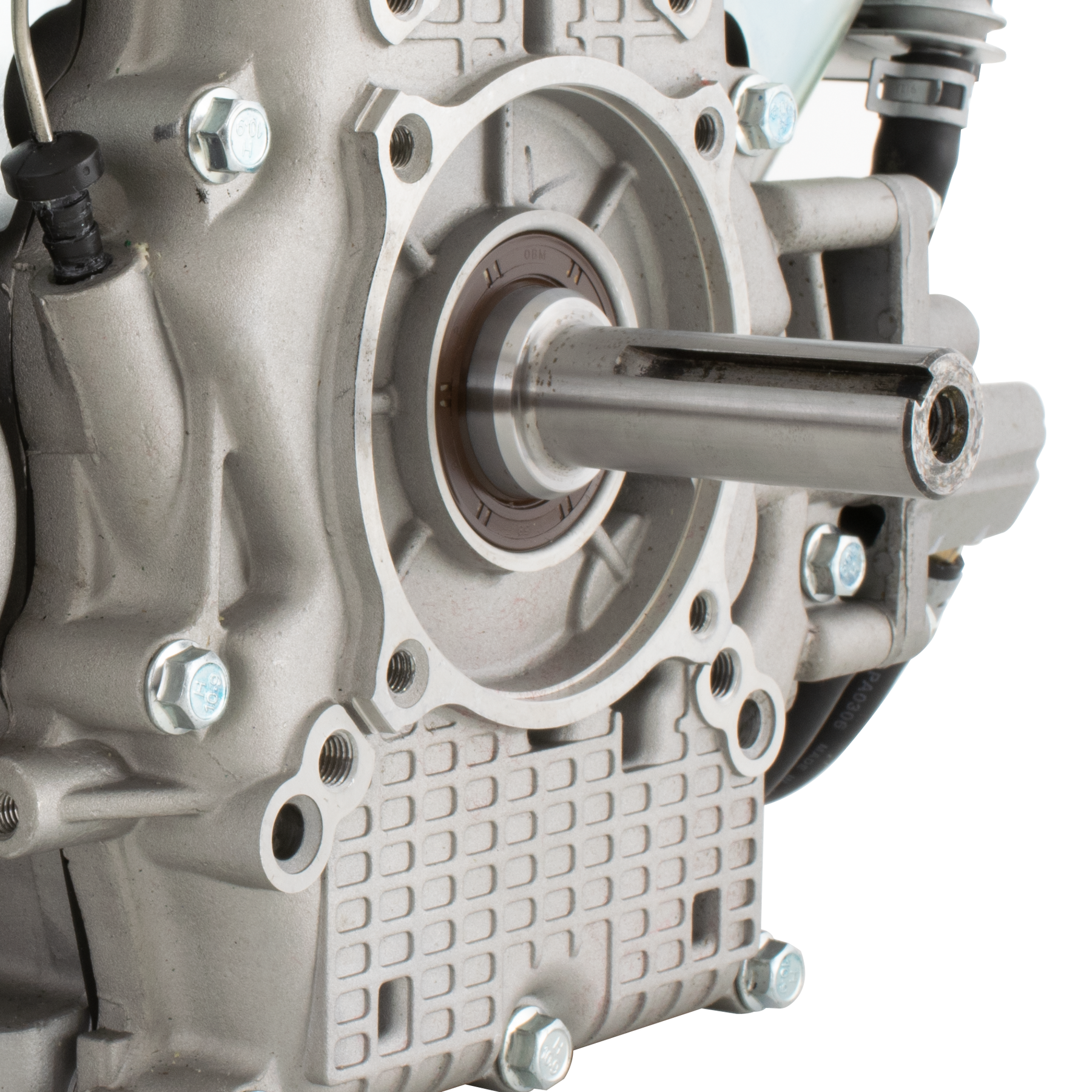

    PTO Shaft Diameter: 1” (25.4mm)
    PTO Shaft Length 3.01” (76.6mm)
    PTO Shaft Height 5.29” (134.3mm)
    PTO Shaft Keyway 1/4” x 2” (6.3mm x 50mm)
    Shaft End Tapped 3/8” 24UNF-2B
    Shaft Rotation Counter Clockwise

    *Note:Muffler not included

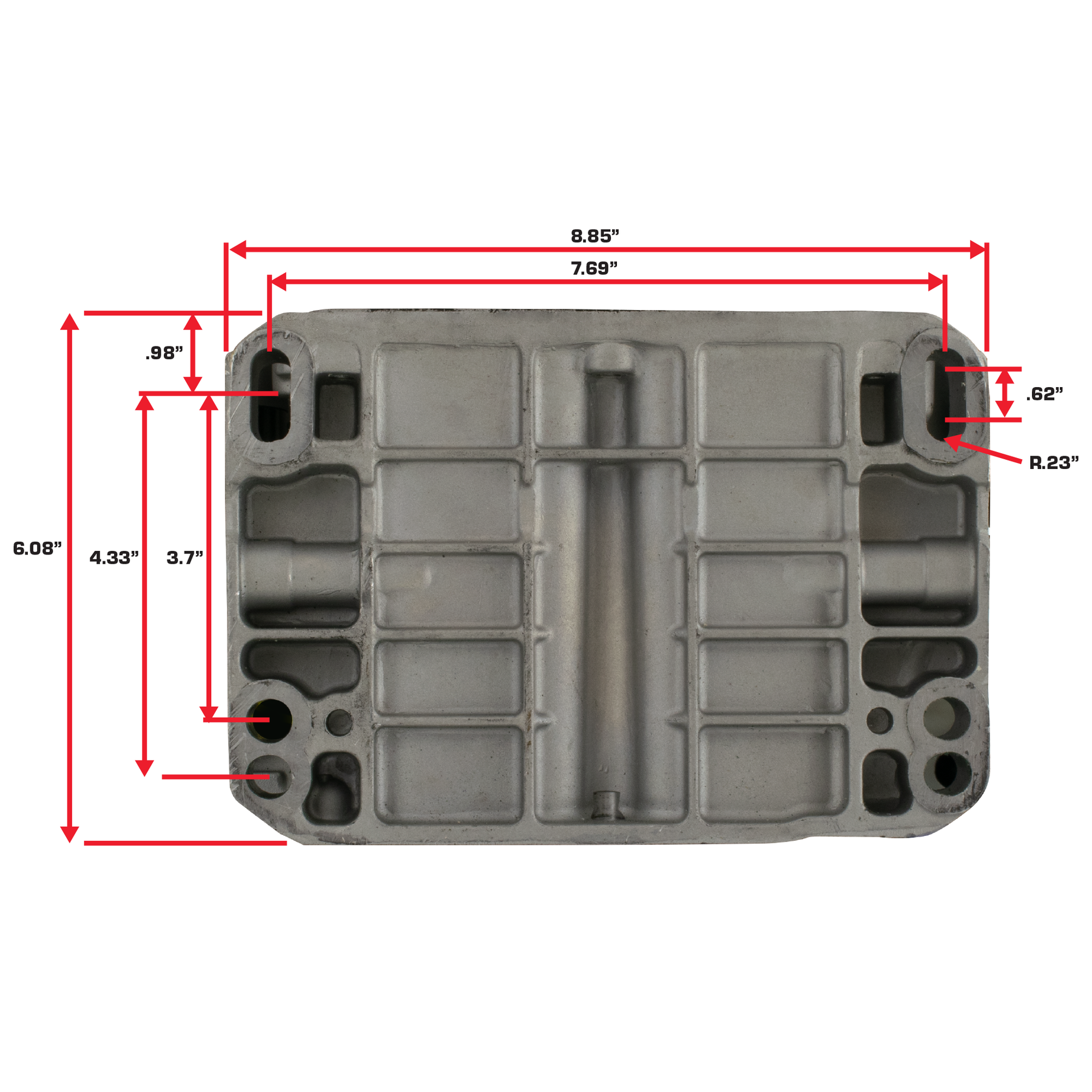

    You can download the mounting diagram here

    You can download the product documentation here
