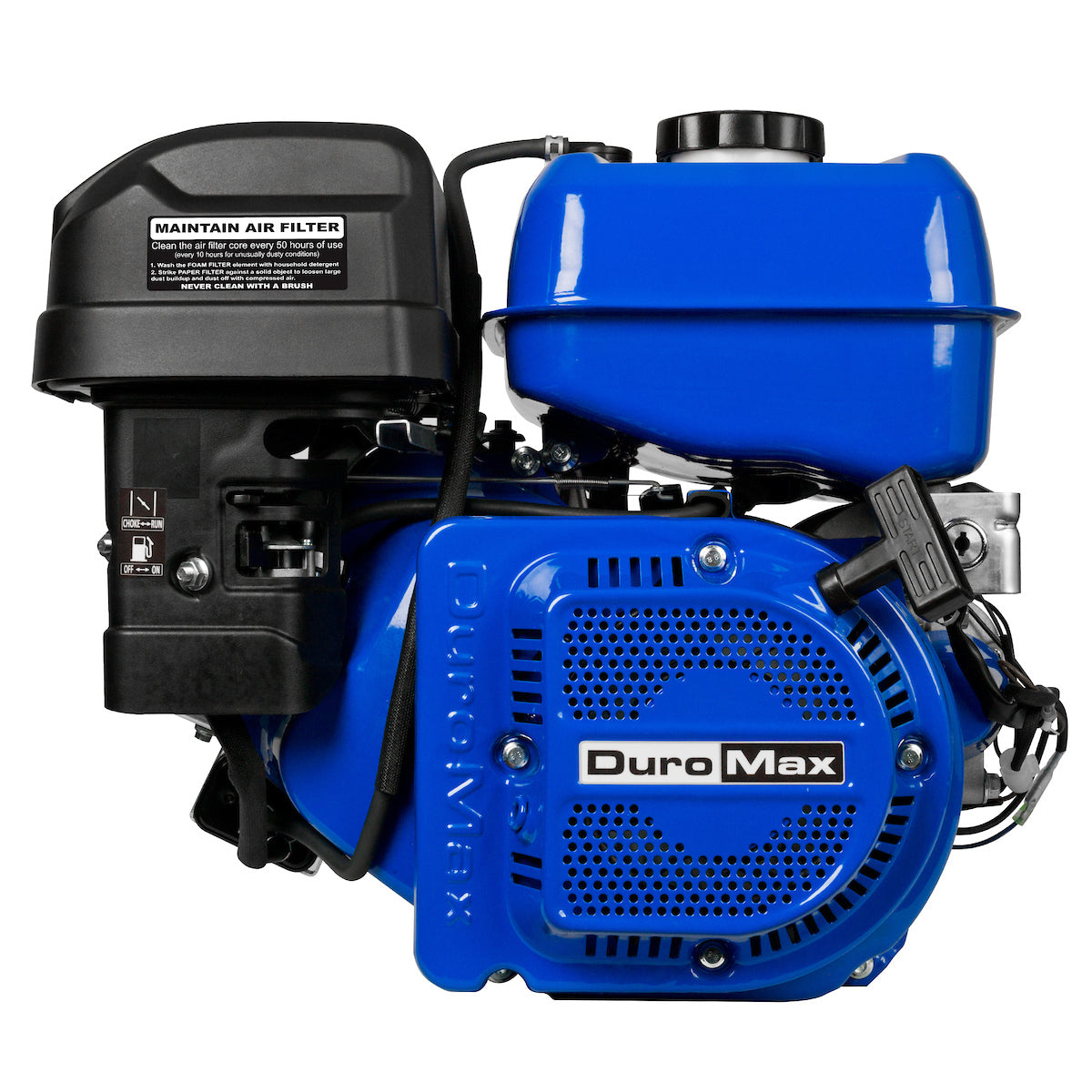

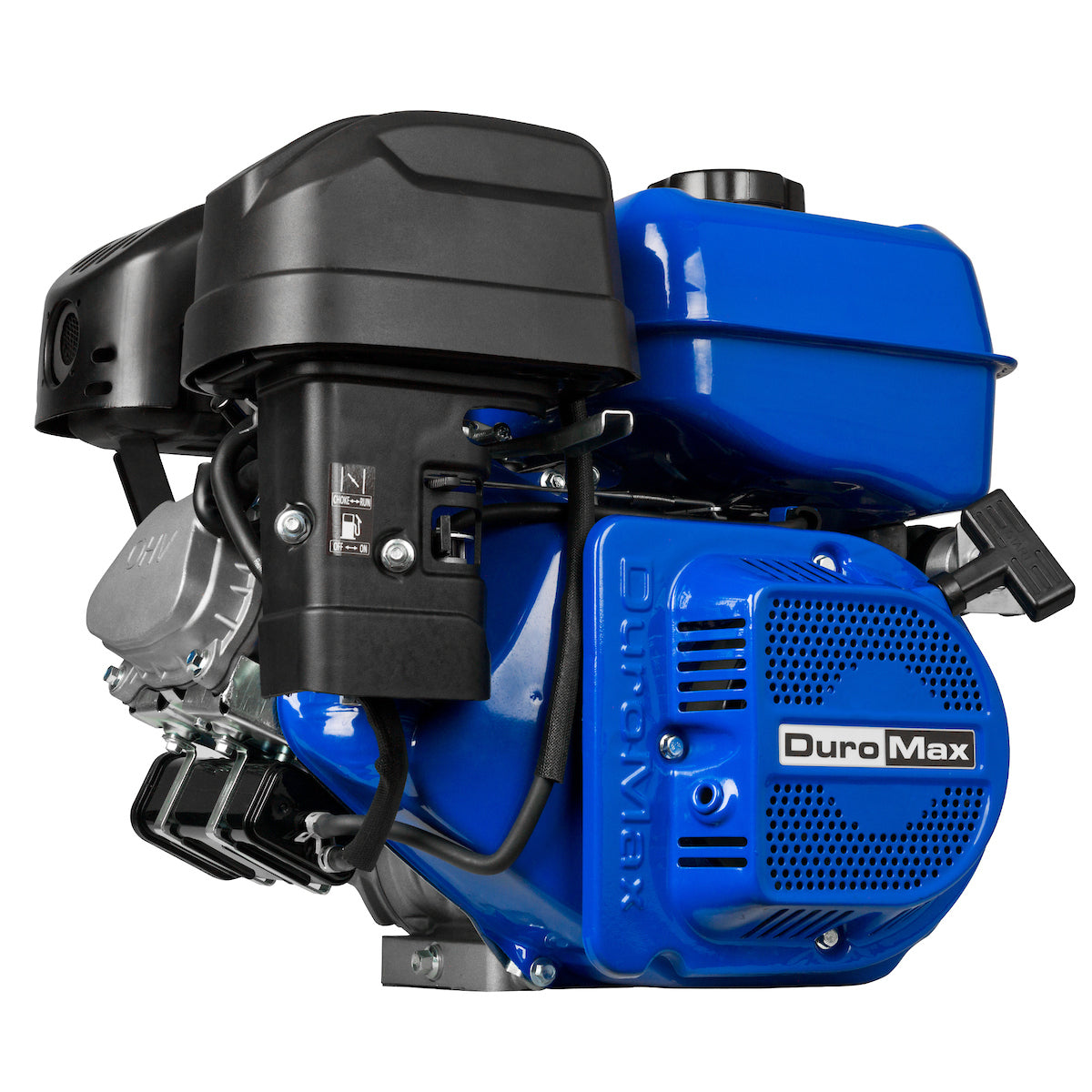

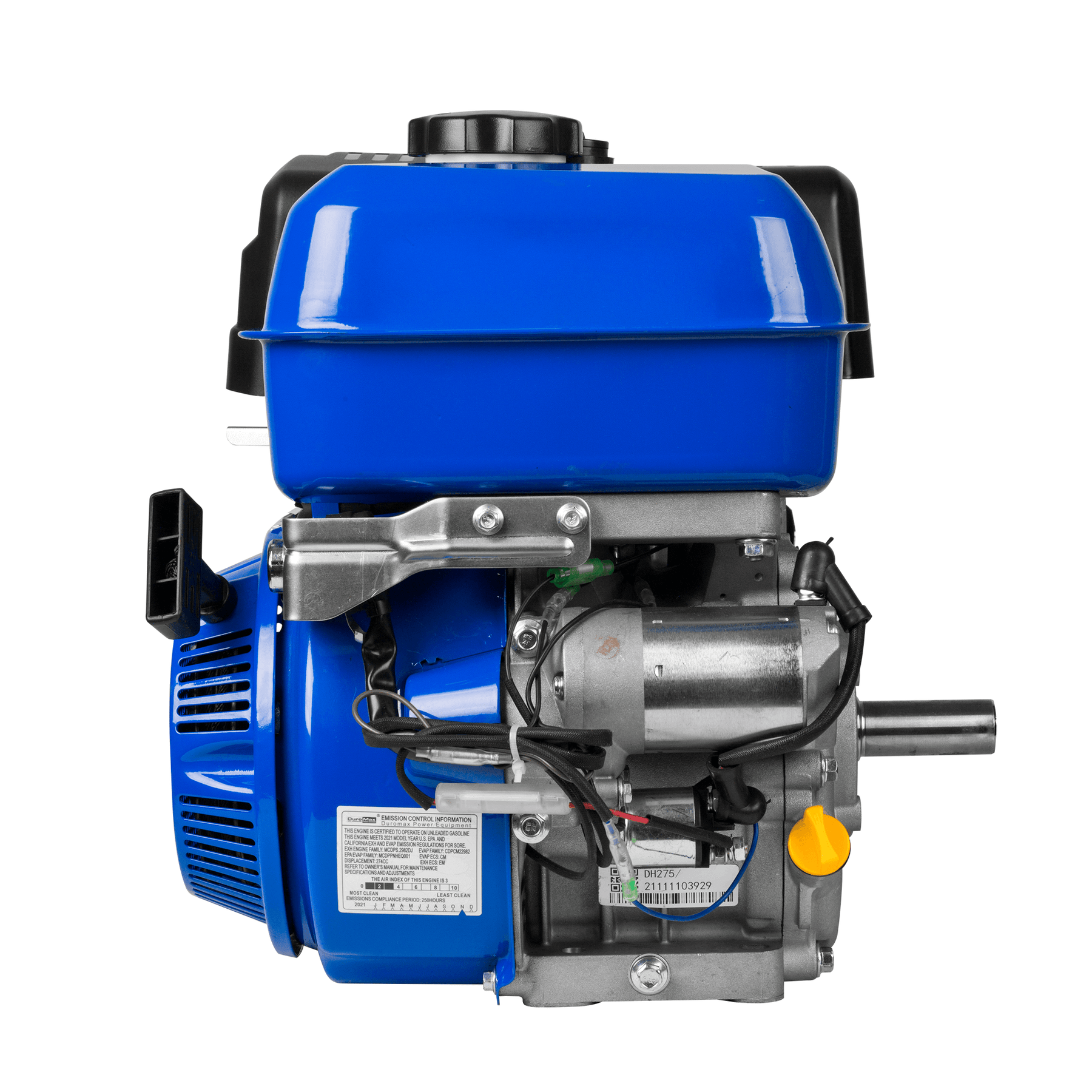

274cc 25mm Shaft Recoil/Electric Start Gasoline Engine

DuroMax XP9HPE
MSRP Regular price $349.00
Write a review
/

or Shop From These Authorized Retailers

See All Retailers

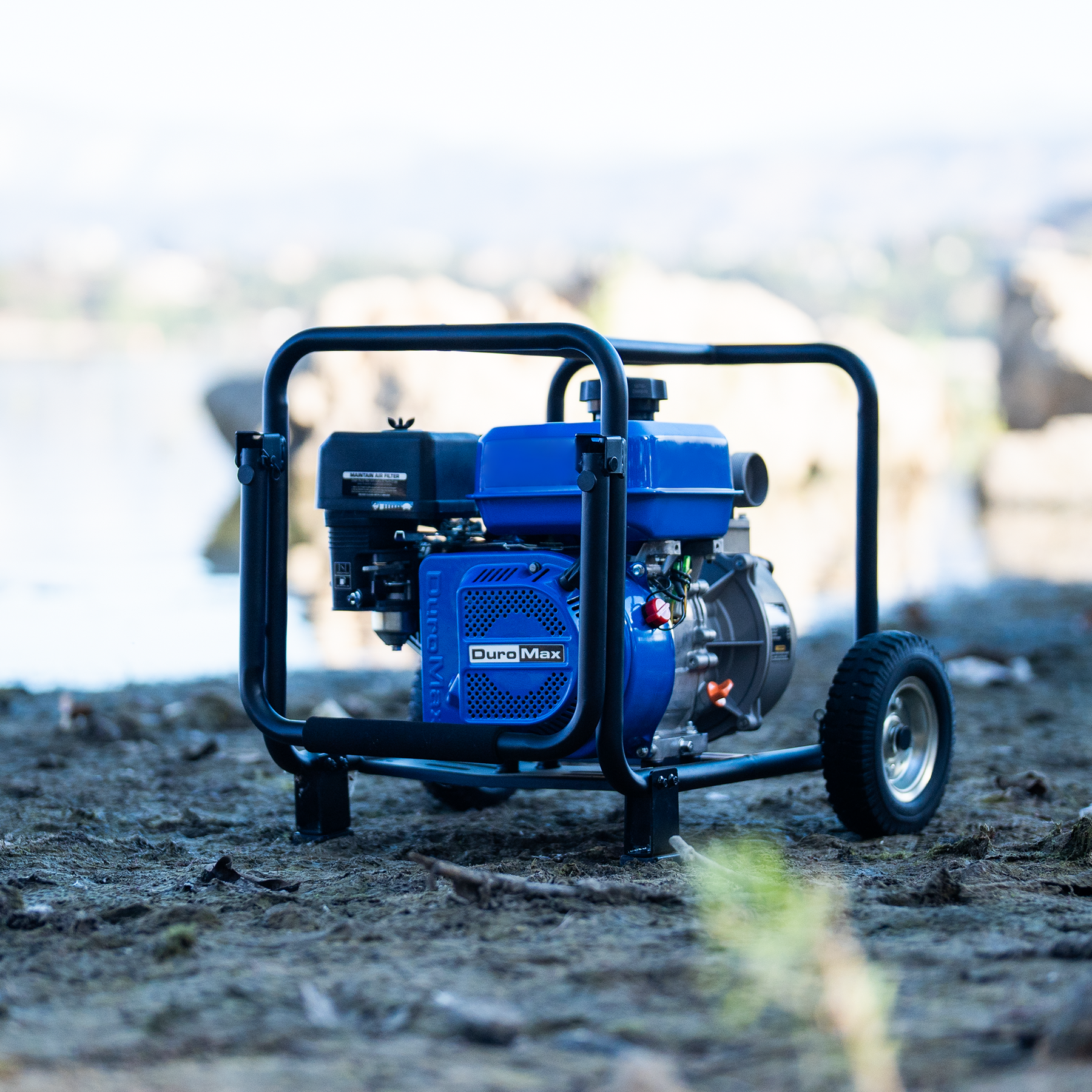

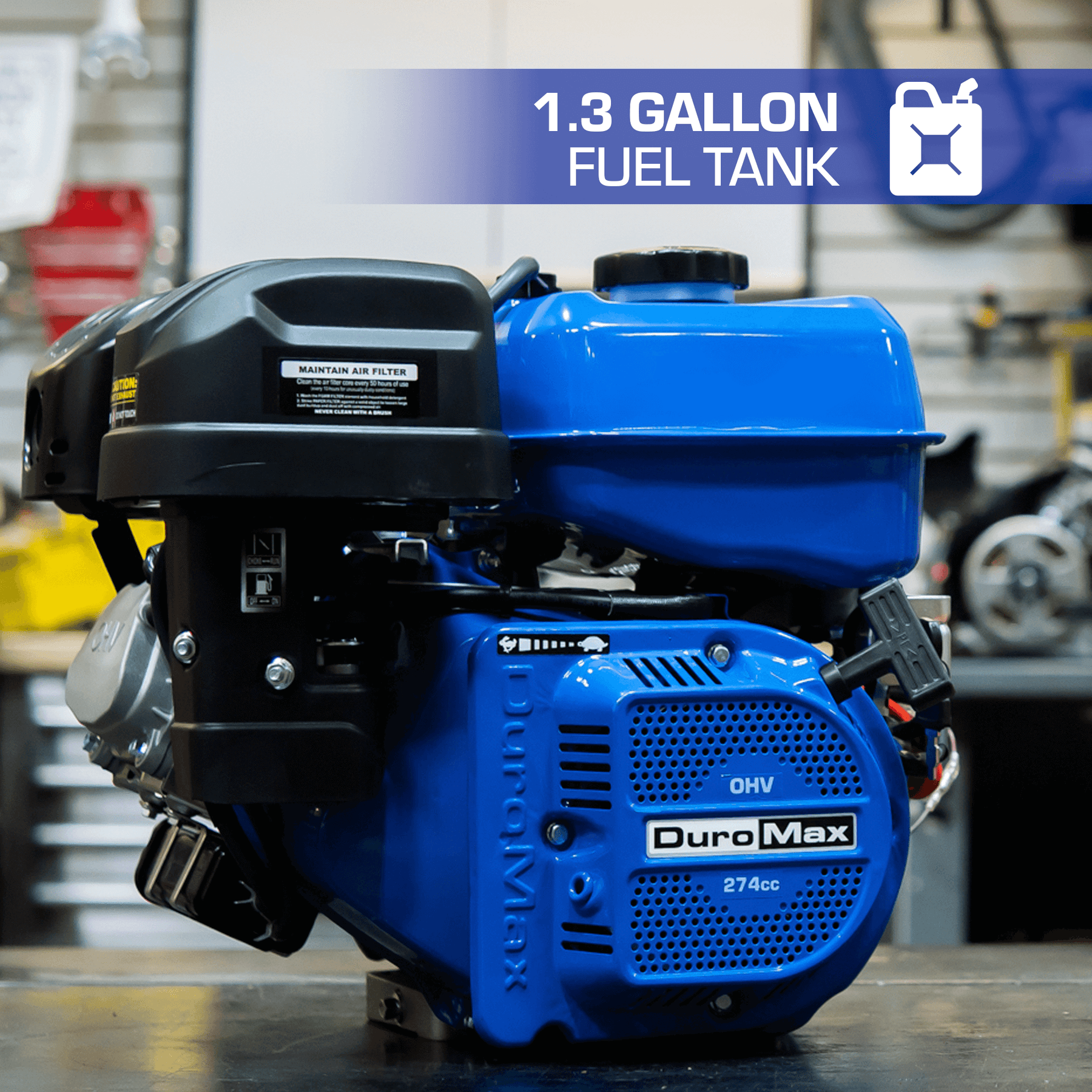

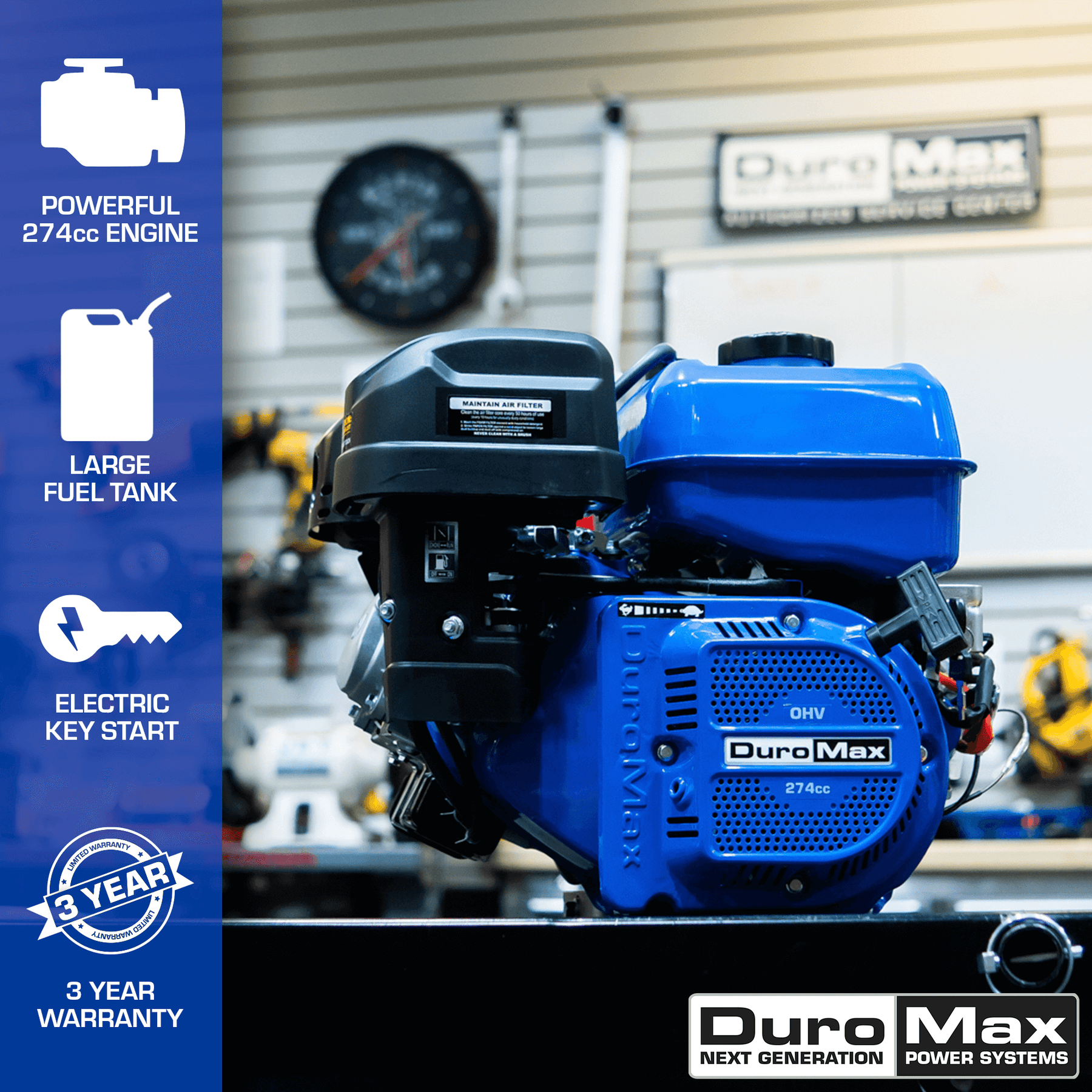

The DuroMax XP9HPE is one of our most compact and lightweight engines available, but don’t let the size fool you. This powerful 274 cc 4-stroke OHV engine has plenty of power for multiple light duty applications including go karts, pressure washers, trailer-mounted mobile carwashes, log splitters, rototillers, cultivators, and water/trash transfer pumps. The XP9HPE is equipped with convenient features such as a large 1.3-gallon gas tank for longer runtimes, a quick and easy electric start, and an E-Z pull recoil starter for startup flexibility. This engine is EPA and CARB approved for safe mandated use.
  • Features
  • Specifications
  • Specs
  • Support
  • Reviews

ALL-NEW

274cc 4-Stroke OHV Engine

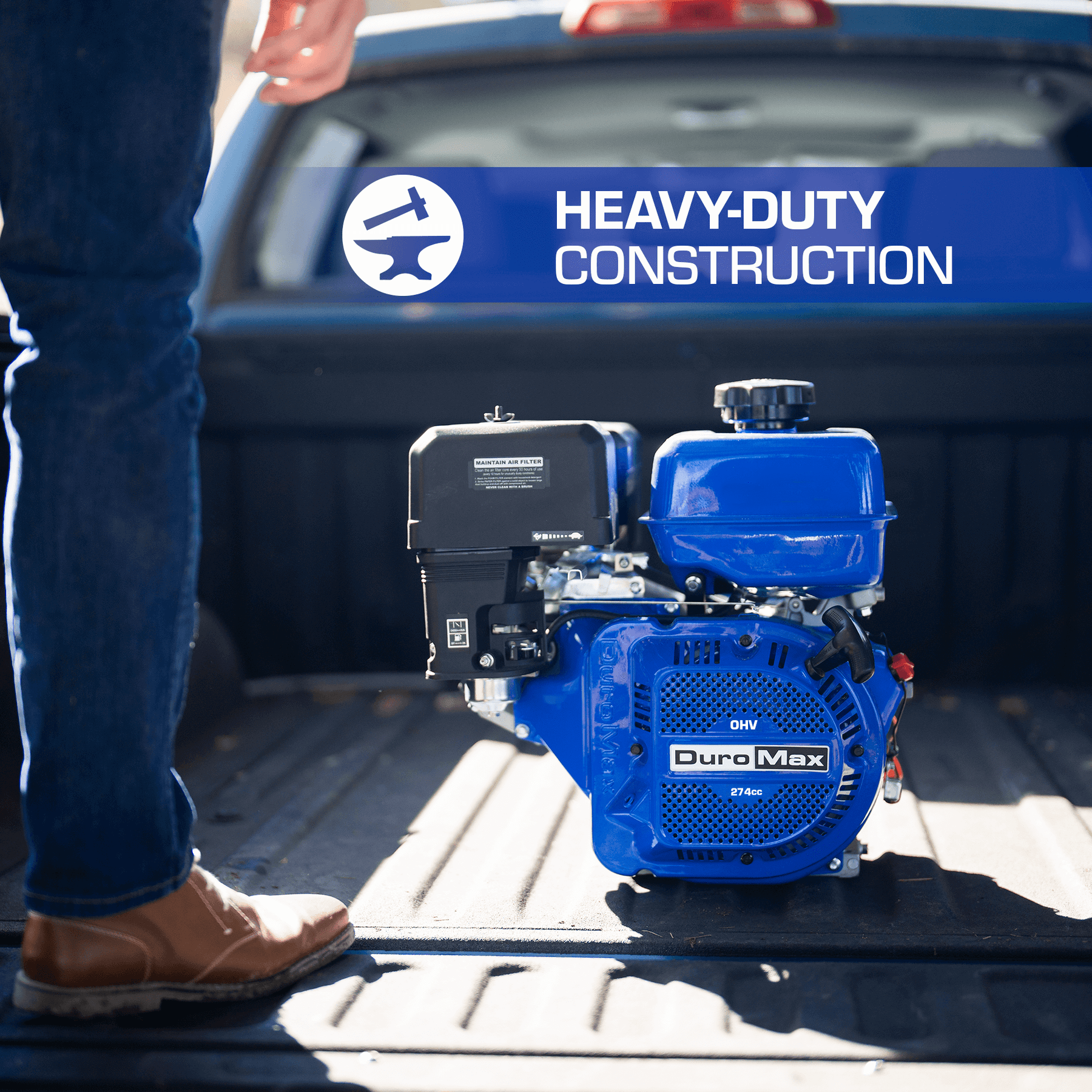

Compact, heavy-duty, and perfect for projects that demand serious power.

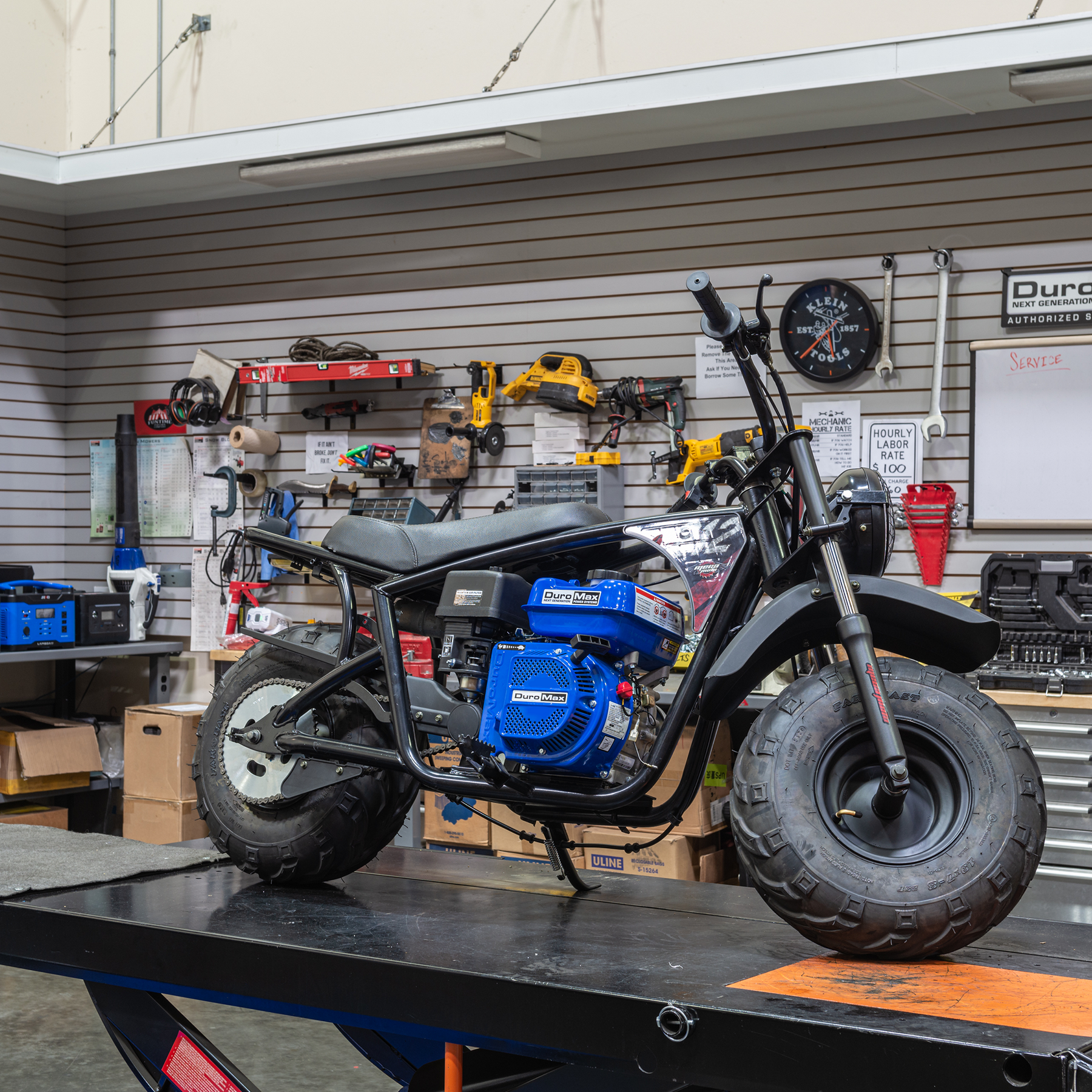

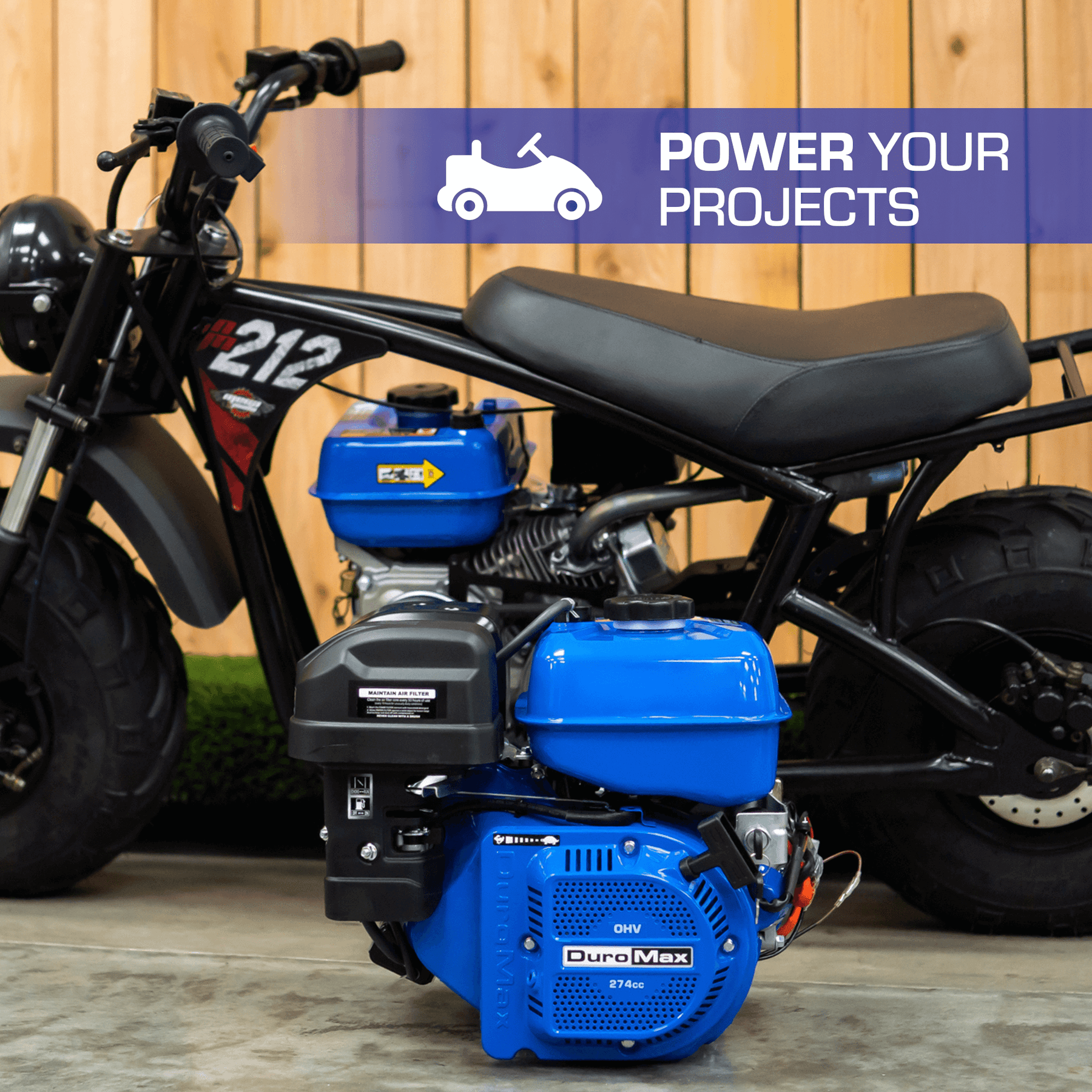

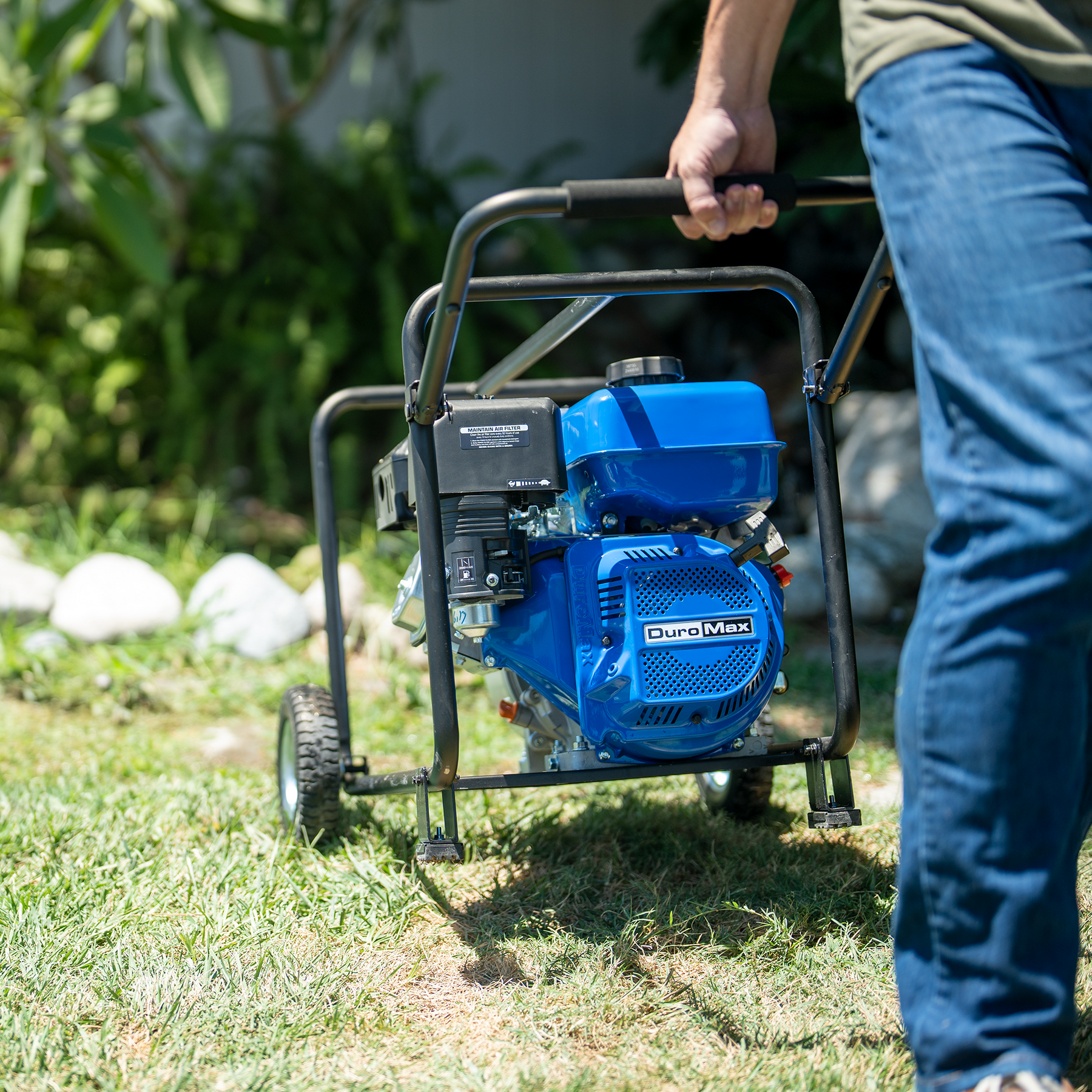

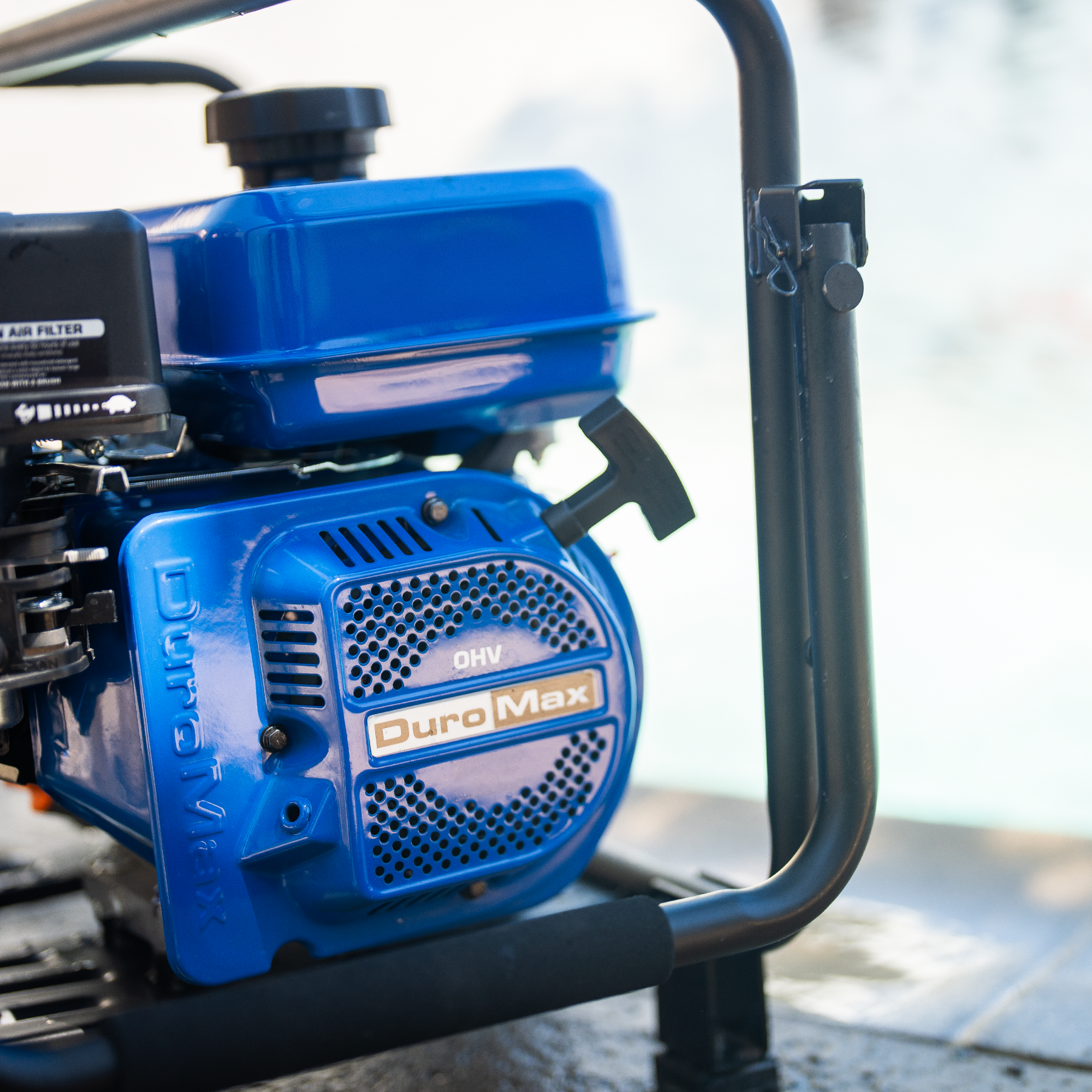

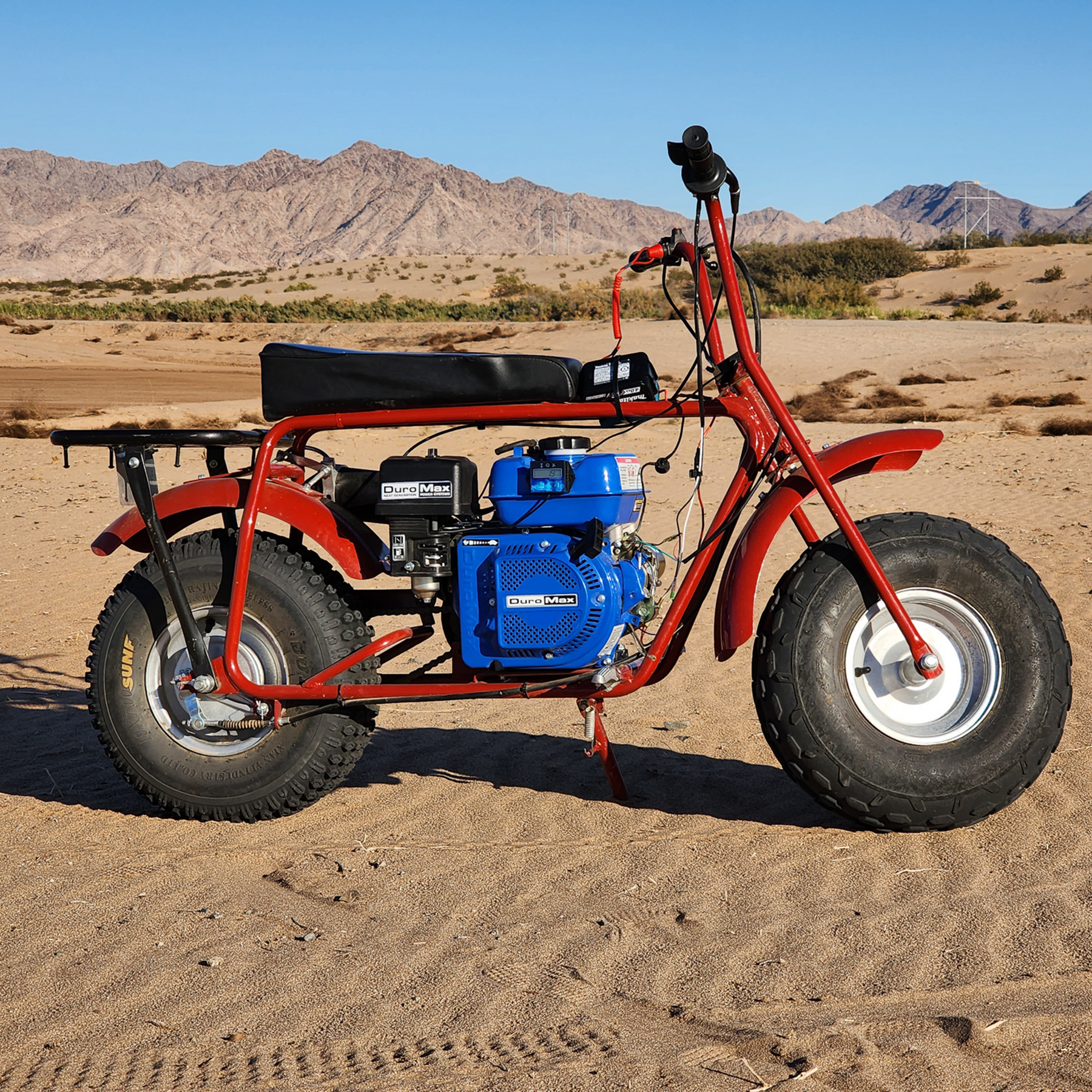

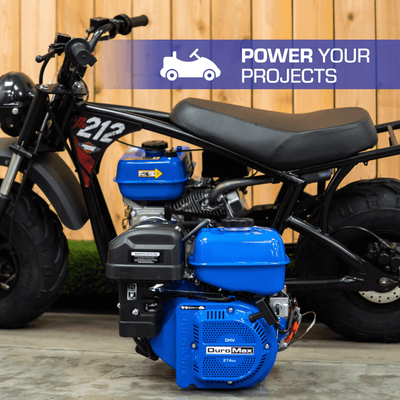

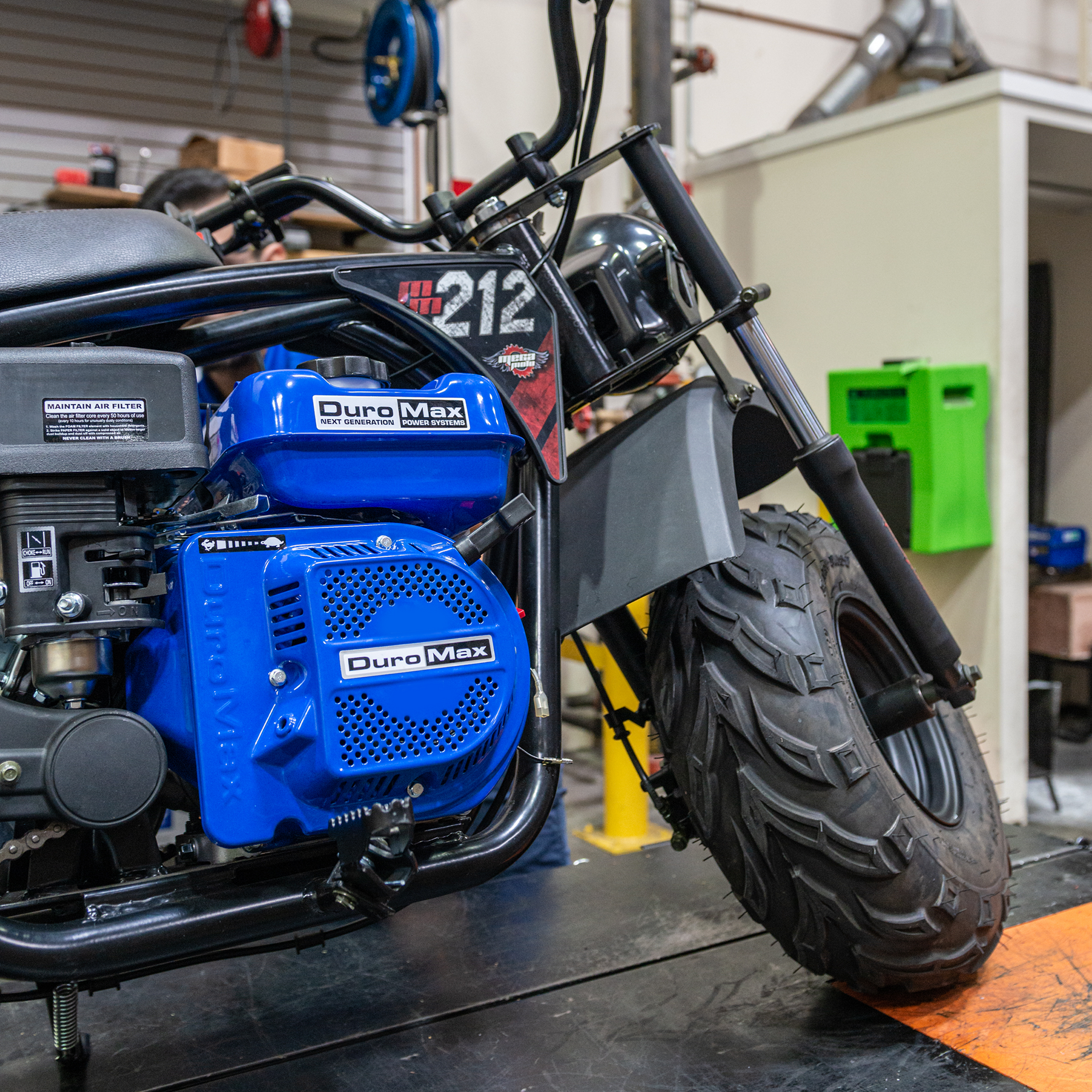

See How Our Customers Use Their DuroMax Engines!

XP9HPE Specifications

Specifications
Manufacturer DuroMax Power Equipment
Part # XP9HPE
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 274 cc
Bore 75 mm
Stroke 62 mm
Max Output 3600 rpm
Max Torque 16.5 N·m @ 2500 rpm
Shaft Orientation Horizontal
Shaft Size 0.984” diameter, 2.48” long, 0.276” keyway
Shaft End M10 x 1.25 - drilled and tapped
Shaft Rotation Counter-Clockwise
Measurement from Center of Shaft to Base 4.175”
Fuel Tank Capacity 1.3 gallons
Fuel Types Gasoline
Fuel Delivery System Carburetor
Average runtime on gasoline 2.35 hours
Starting type Key Switch/ Recoil Start

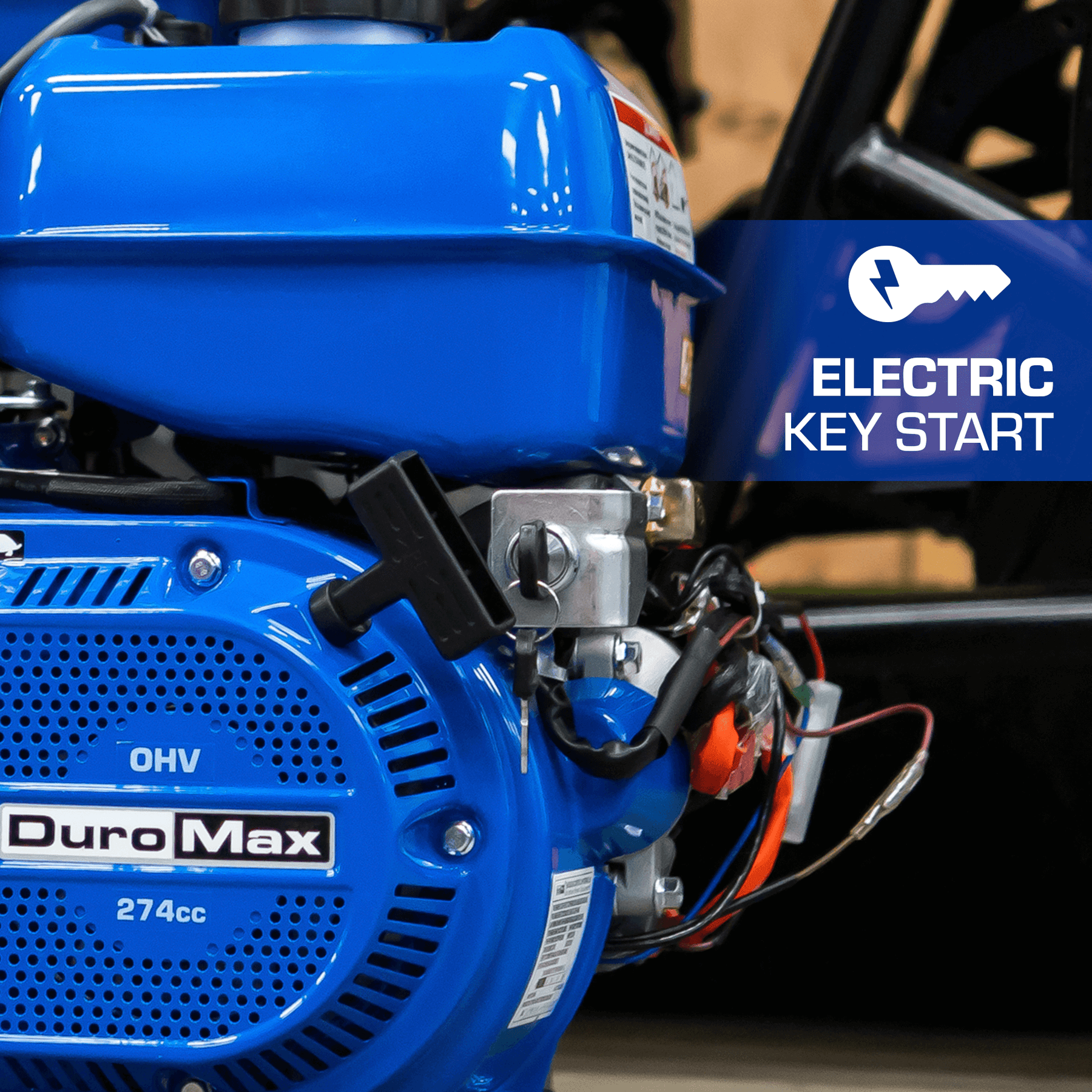

Electric Start Yes
Recoil Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Ball Bearing
Oil Cooling Type Splash
Oil Capacity 23.67 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic

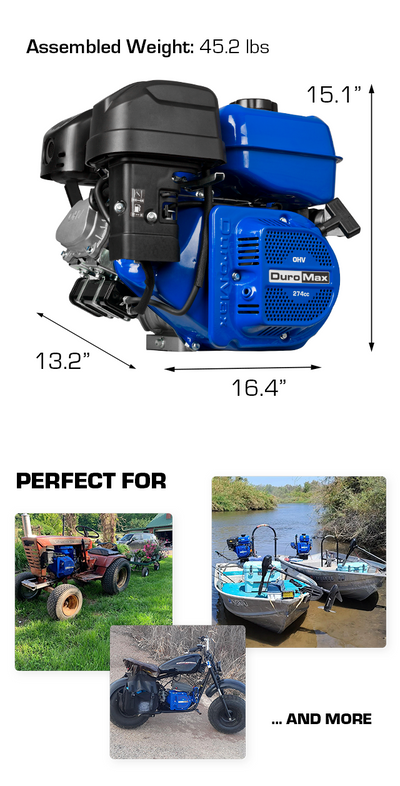

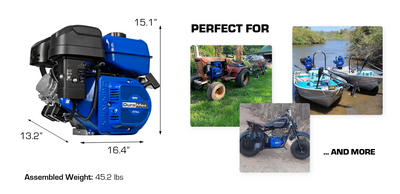

Product Dimensions 16.4” L x 13.2” W x 15.1” H
Weight 45.2 lbs
UPC 811640016838
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes
Warranty 3 Year
What's in the Box? DuroMax XP9HPE Engine, 12V Battery Leads, Spark Plug Wrench, Keys, Oil Funnel, and Owner’s Manual

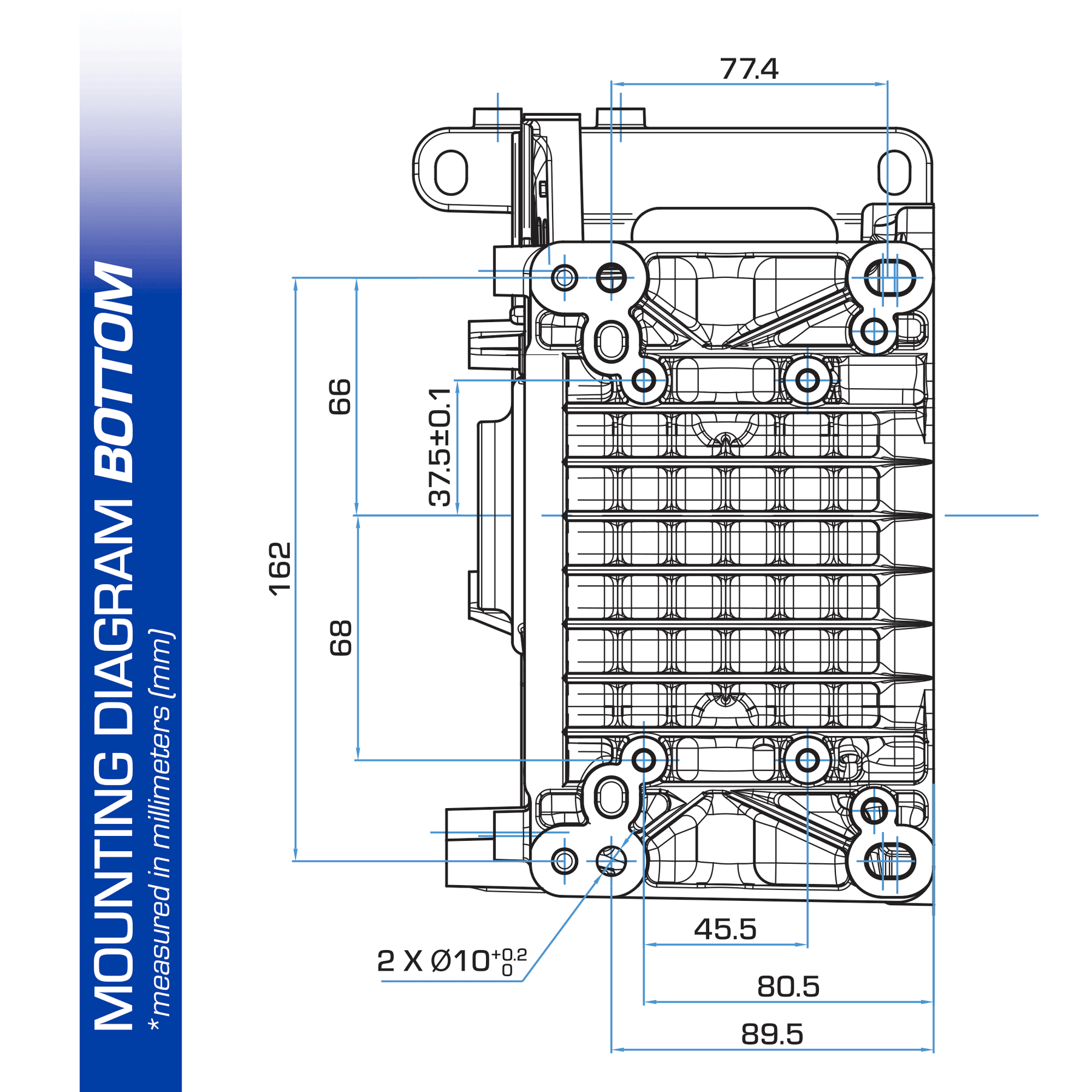

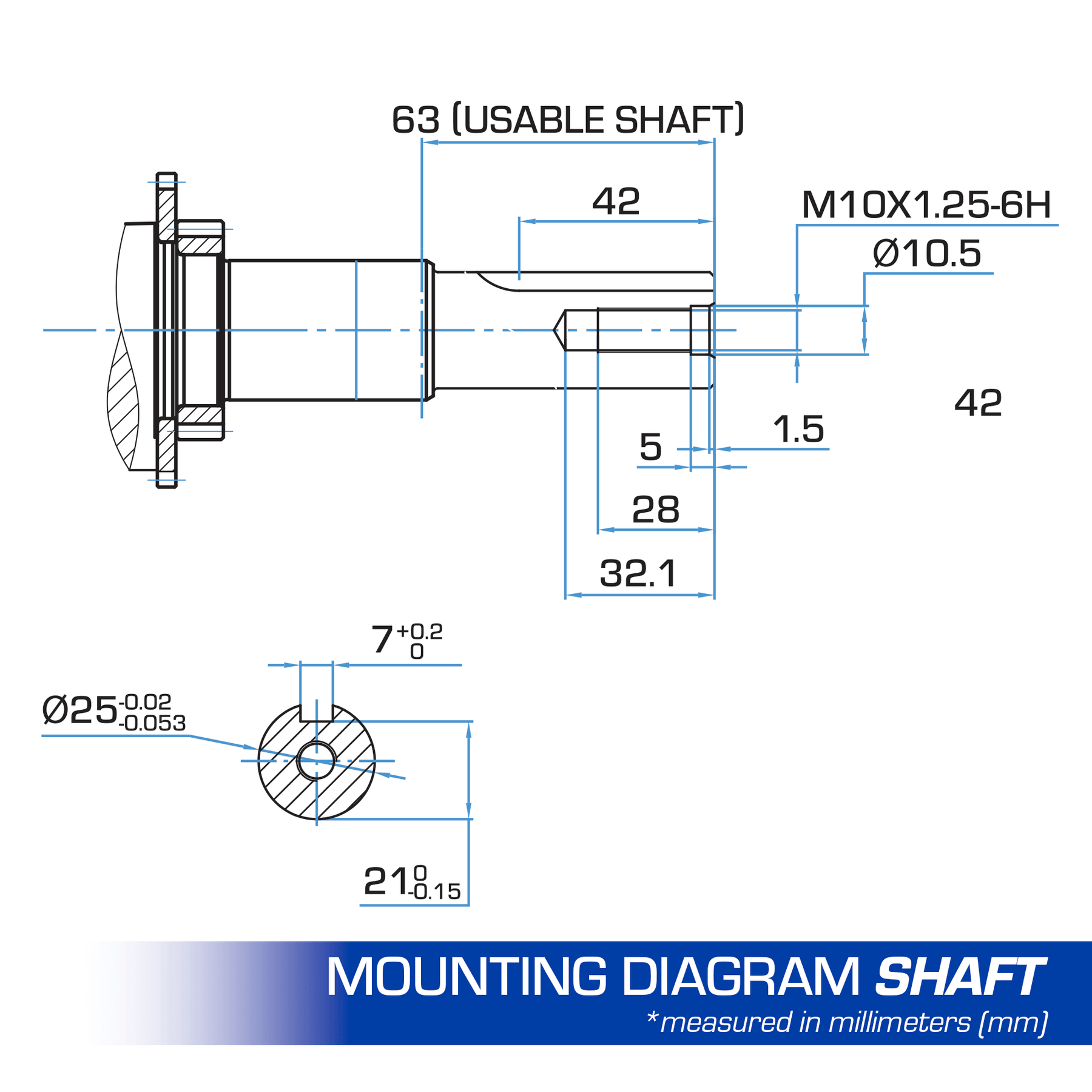

Mounting Diagrams

Measured in millimeters (mm)

Bottom

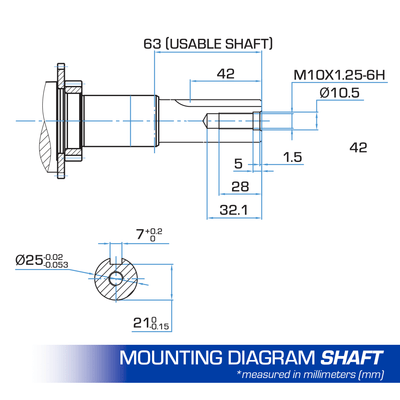

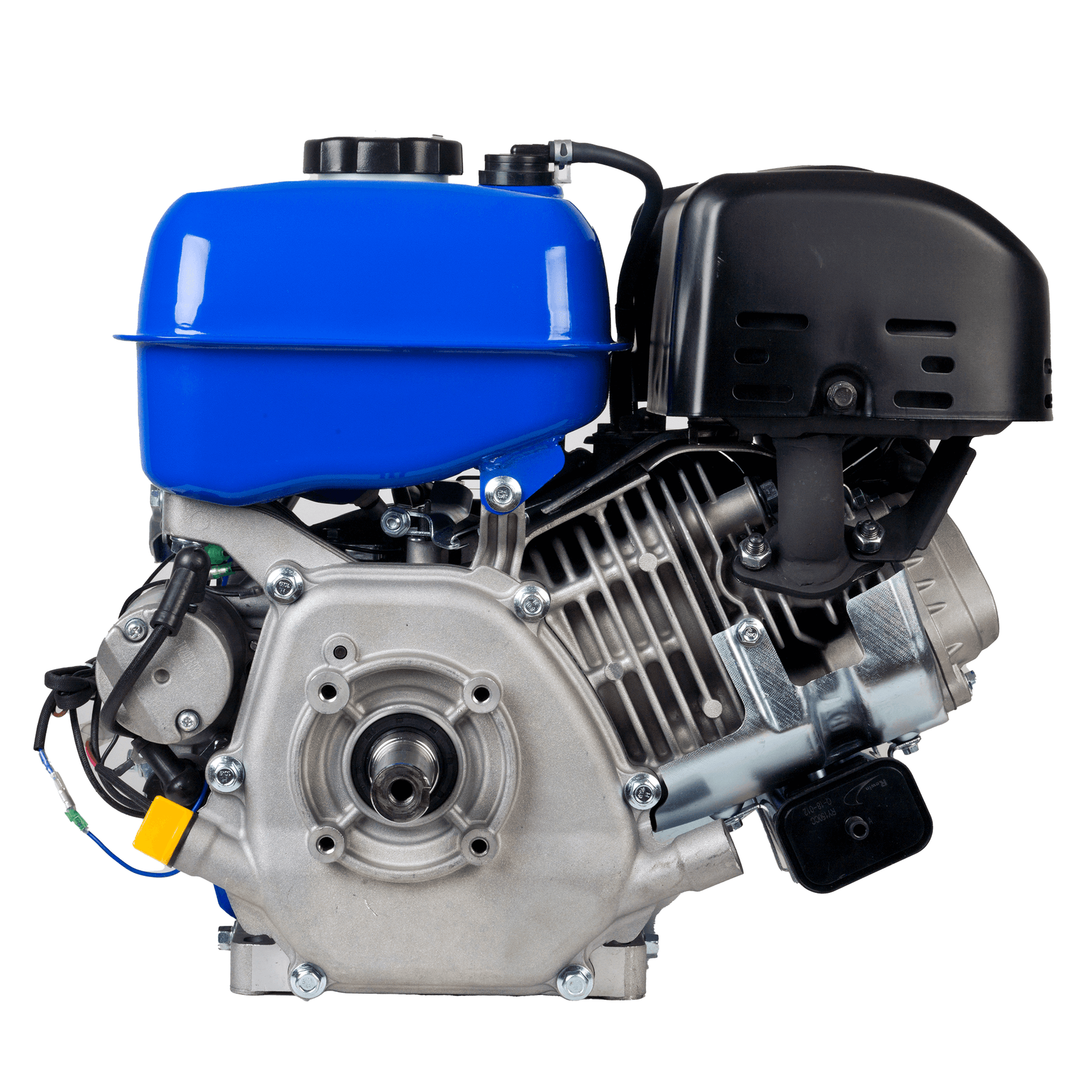

Shaft

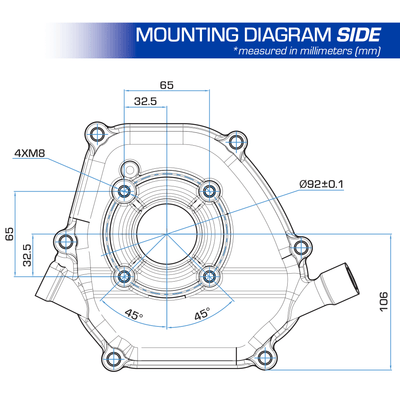

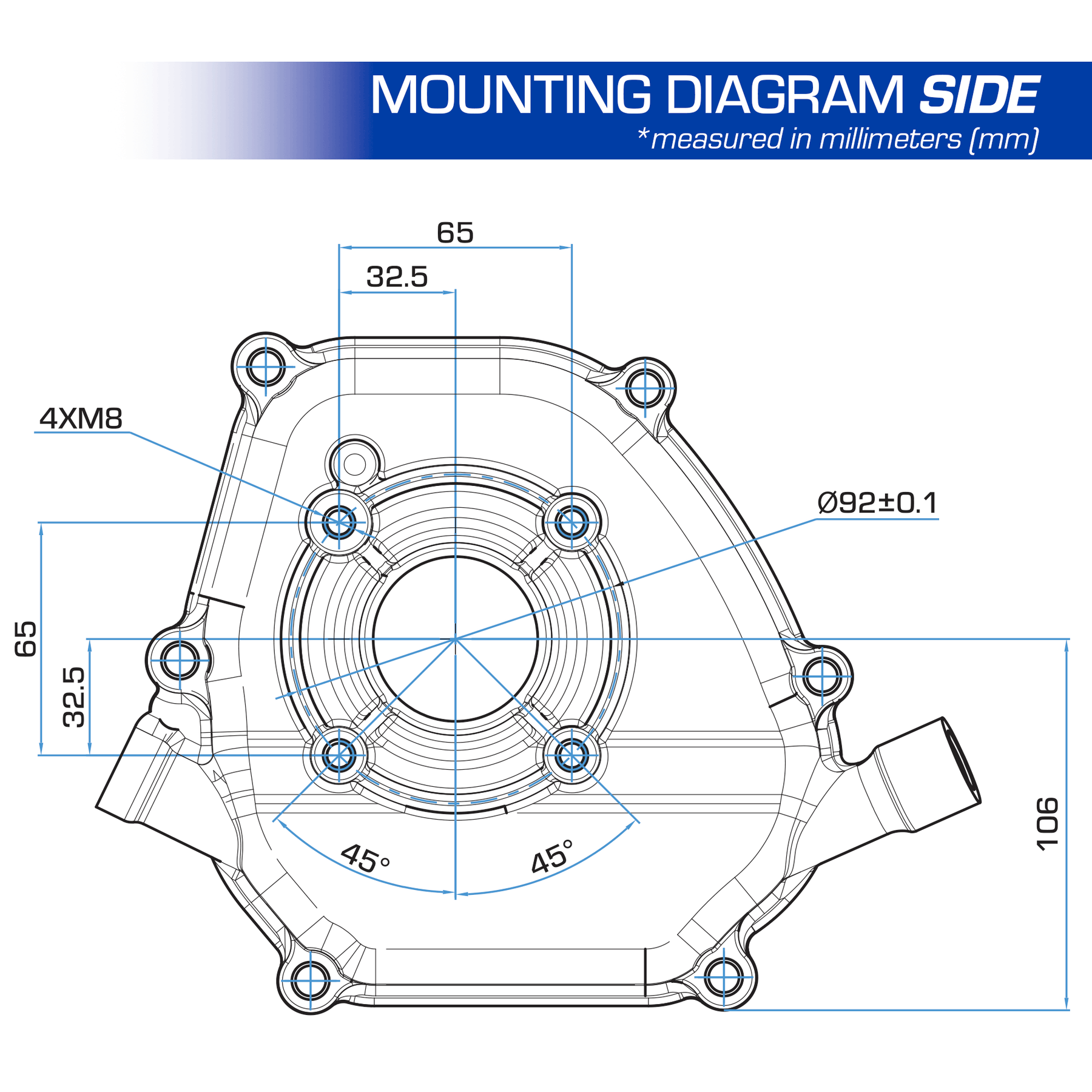

Side

Related Items

Horizontal Engines

View all

XP9HPE Specifications

Specifications
Manufacturer DuroMax Power Equipment
Part # XP9HPE
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 274 cc
Bore 75 mm
Stroke 62 mm
Max Output 3600 rpm
Max Torque 16.5 N·m @ 2500 rpm
Shaft Orientation Horizontal
Shaft Size 0.984” diameter, 2.48” long, 0.276” keyway
Shaft End M10 x 1.25 - drilled and tapped
Shaft Rotation Counter-Clockwise
Measurement from Center of Shaft to Base 4.175”
Fuel Tank Capacity 1.3 gallons
Fuel Types Gasoline
Fuel Delivery System Carburetor
Average runtime on gasoline 2.35 hours
Starting type Key Switch/ Recoil Start
Electric Start Yes
Recoil Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Ball Bearing
Oil Cooling Type Splash
Oil Capacity 23.67 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic
Product Dimensions 16.4” L x 13.2” W x 15.1” H
Weight 45.2 lbs
UPC 811640016838
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes
Warranty 3 Year
What's in the Box? DuroMax XP9HPE Engine, 12V Battery Leads, Spark Plug Wrench, Keys, Oil Funnel, and Owner’s Manual

Warranty Information

DuroMax stands behind this product with a 3 Year parts and technical service warranty. Our USA based teams are available to help walk-through, troubleshoot or diagnose. Nationwide service centers fix any issues - DuroMax has you covered!
