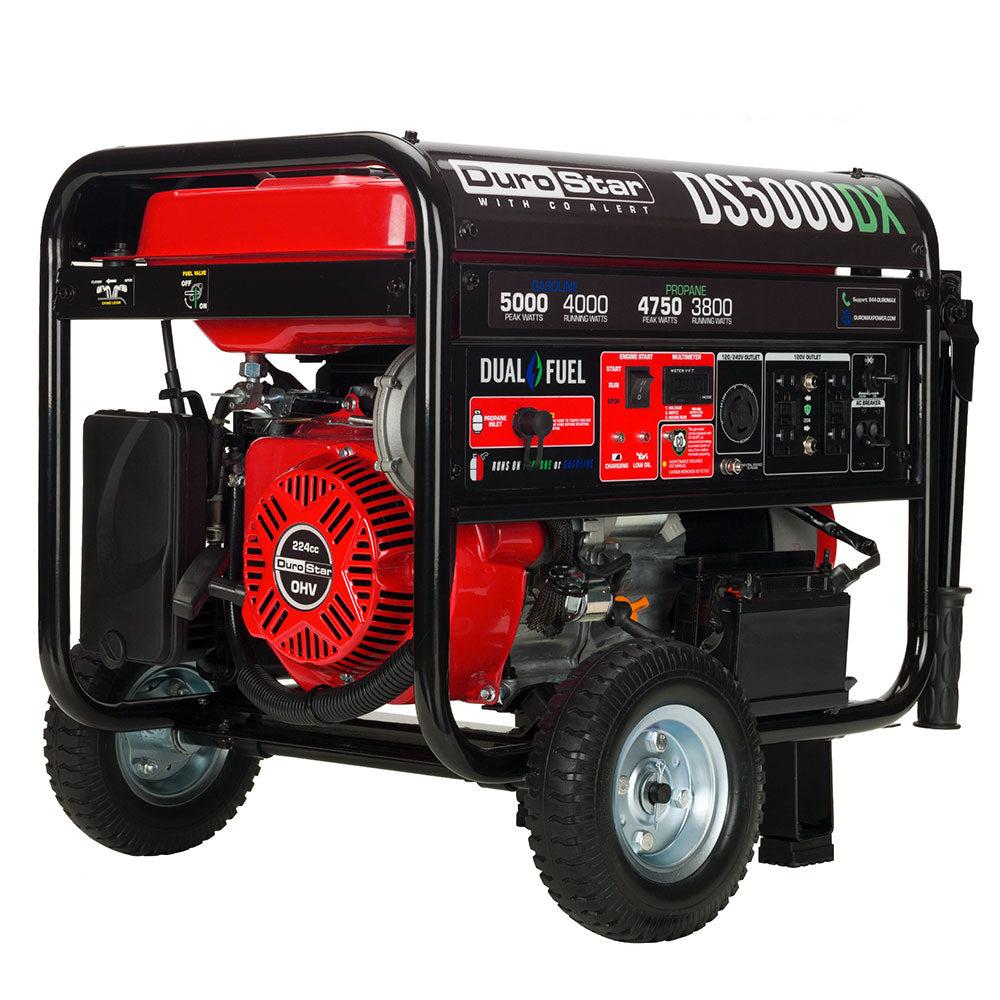

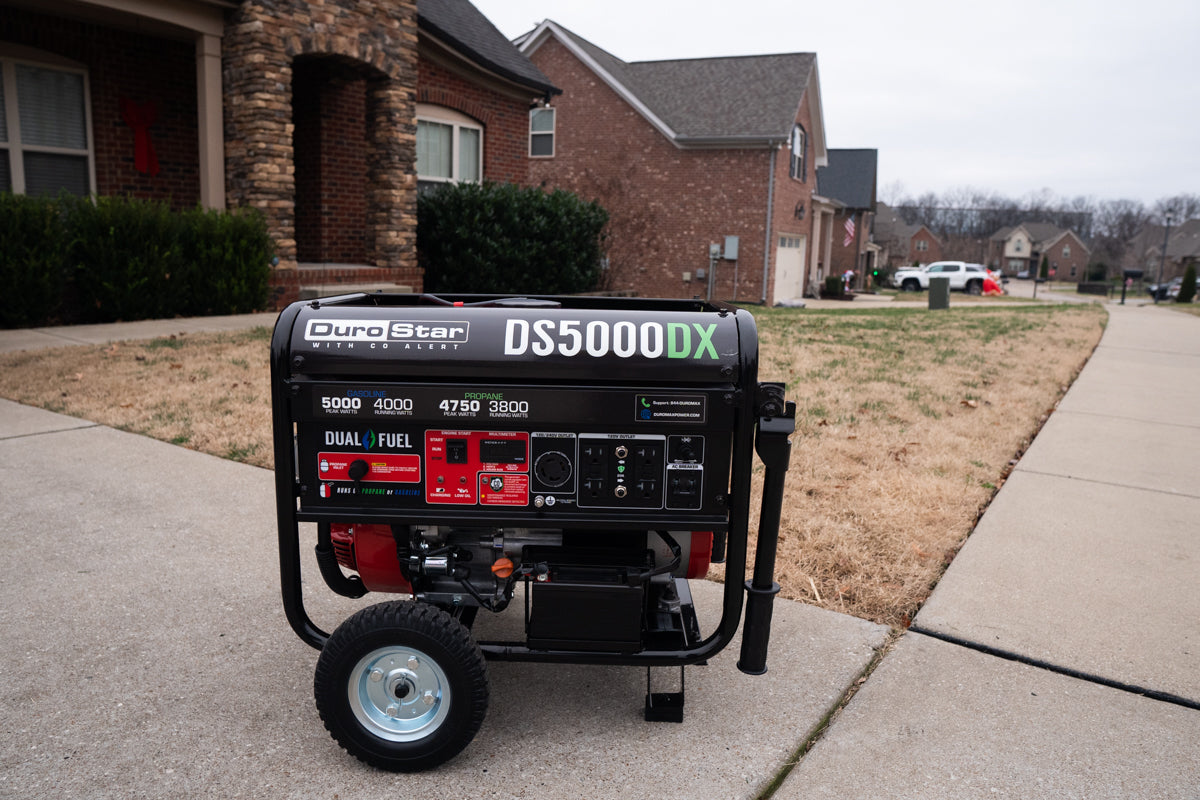

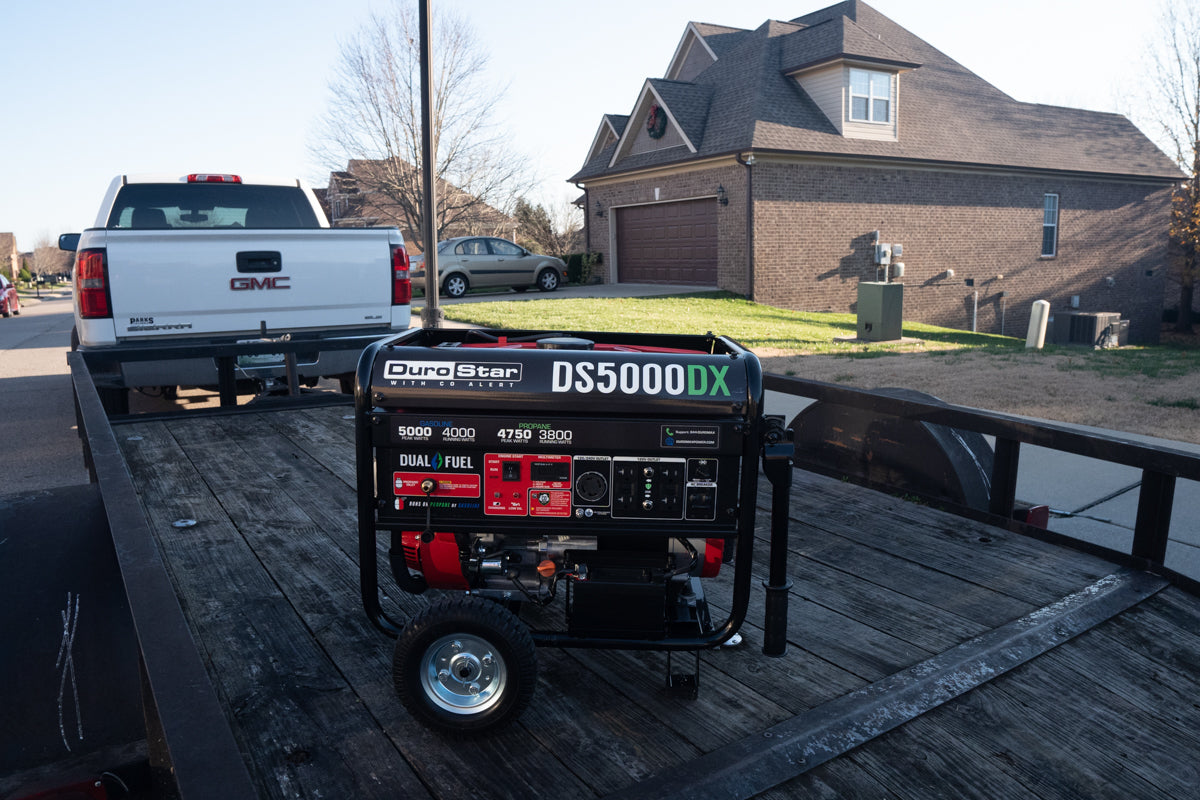

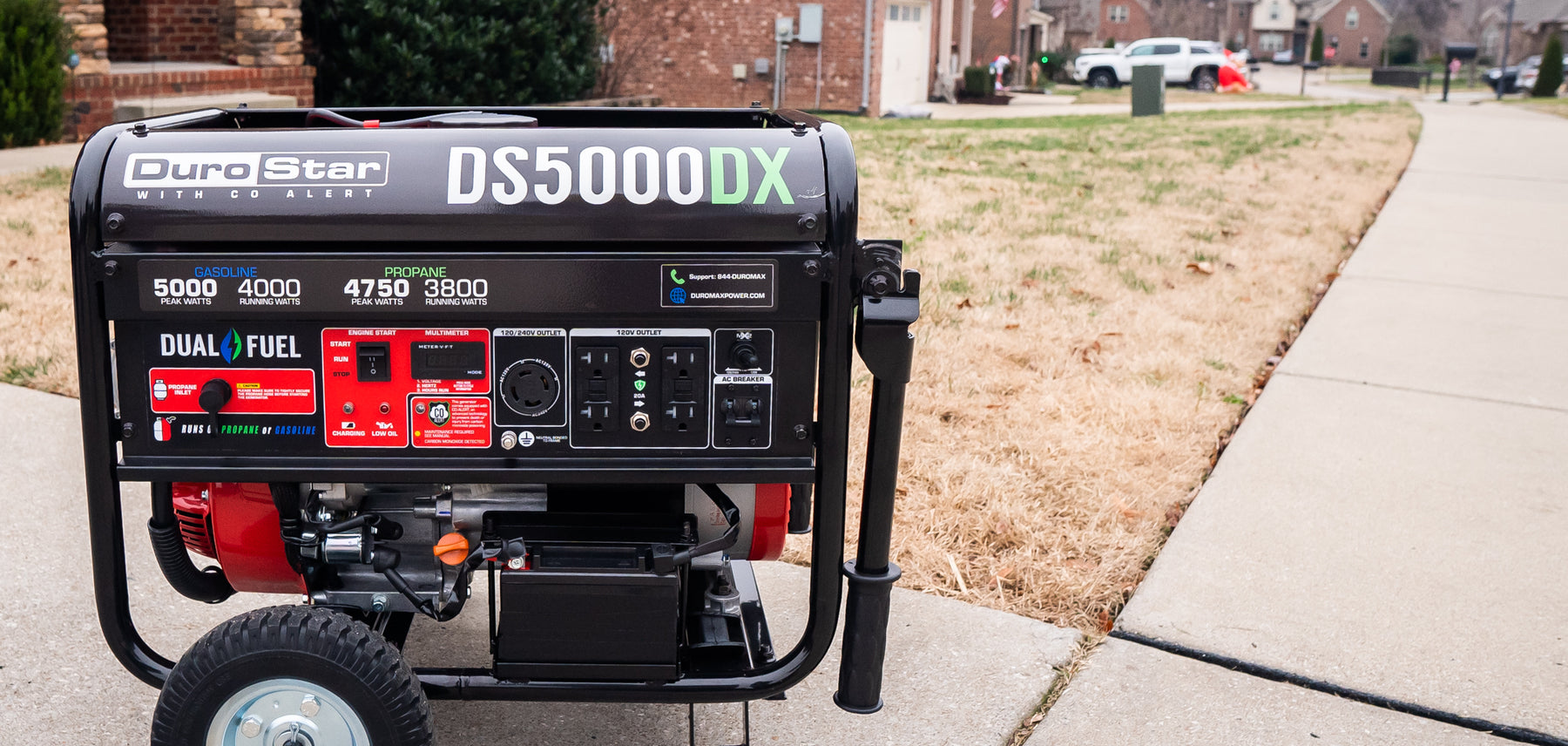

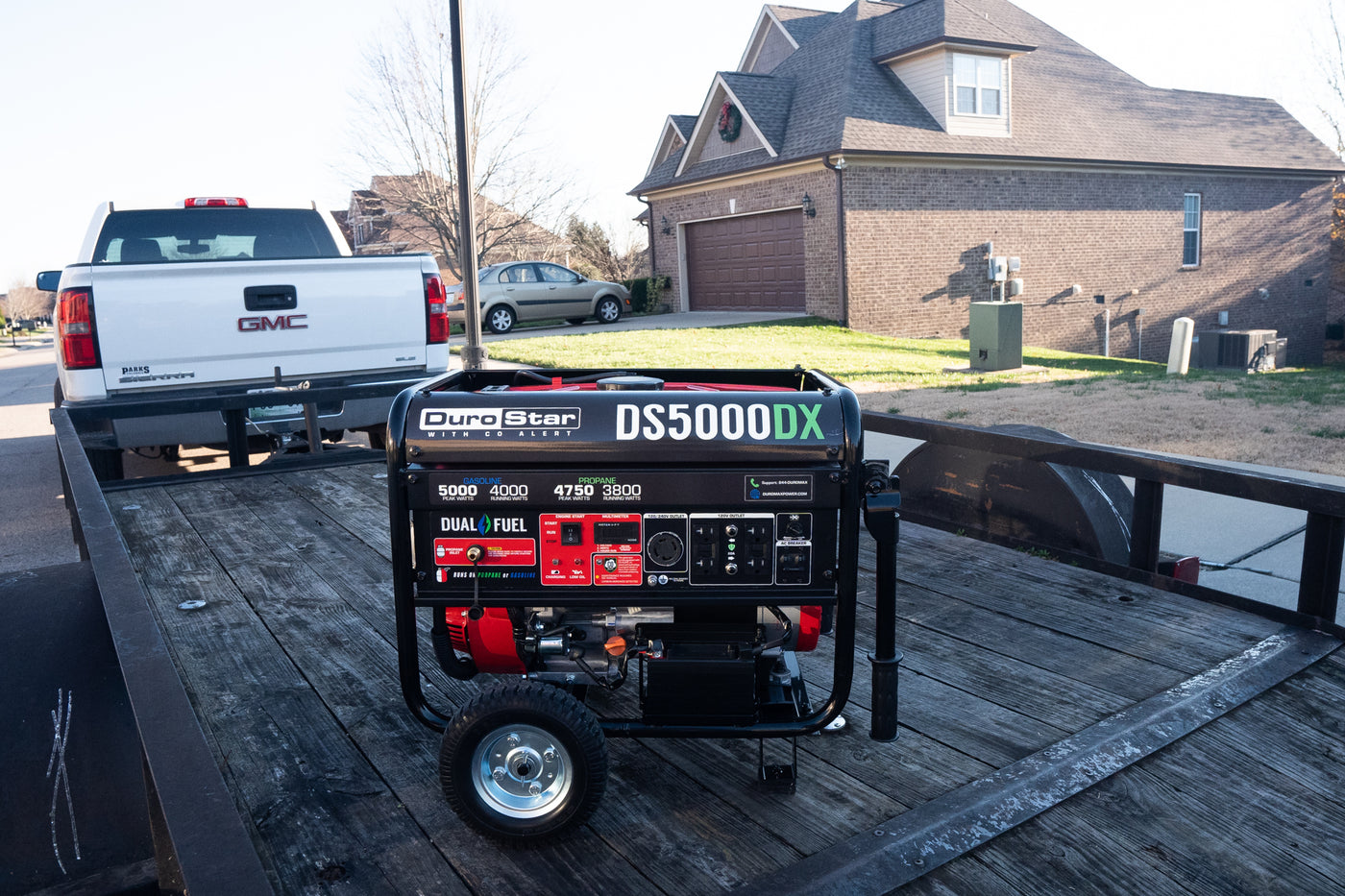

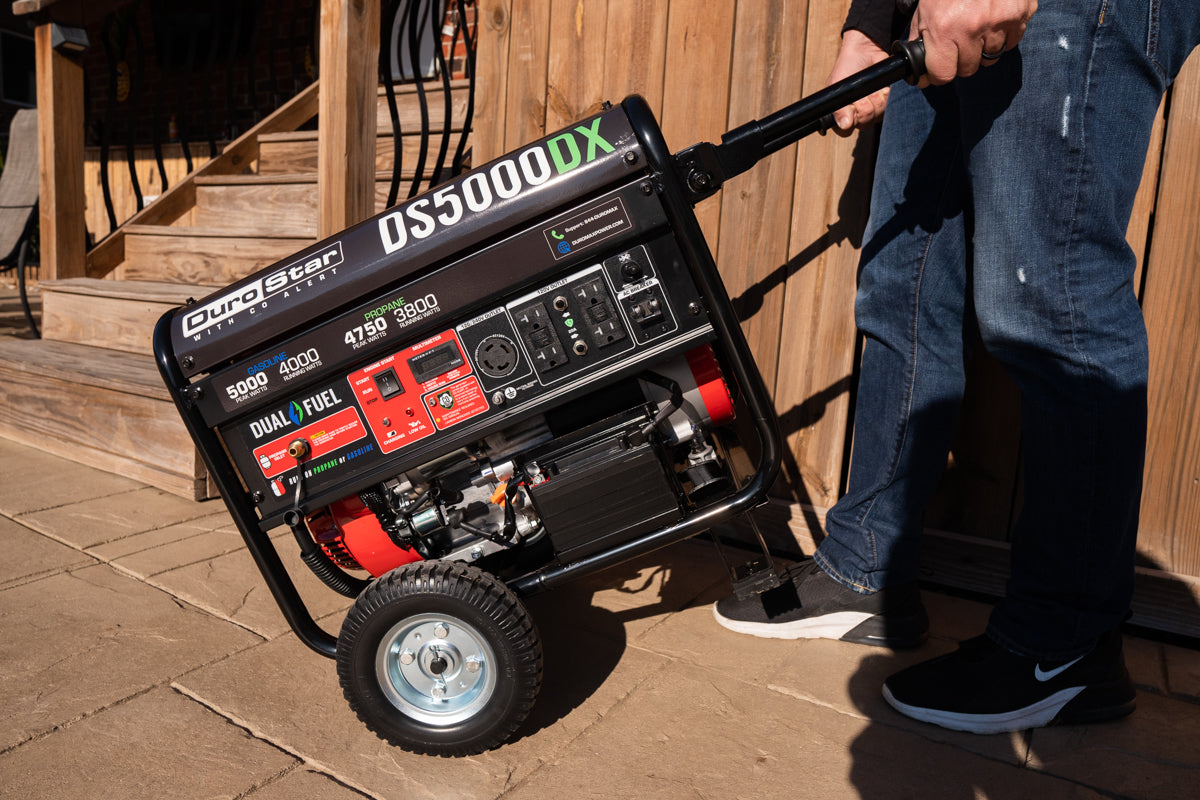

DuroStar DS5000DX 5,000-Watt 224cc Dual Fuel Gas Propane Portable Generator with CO Alert

DS5000DX

×

DuroMax Retailers

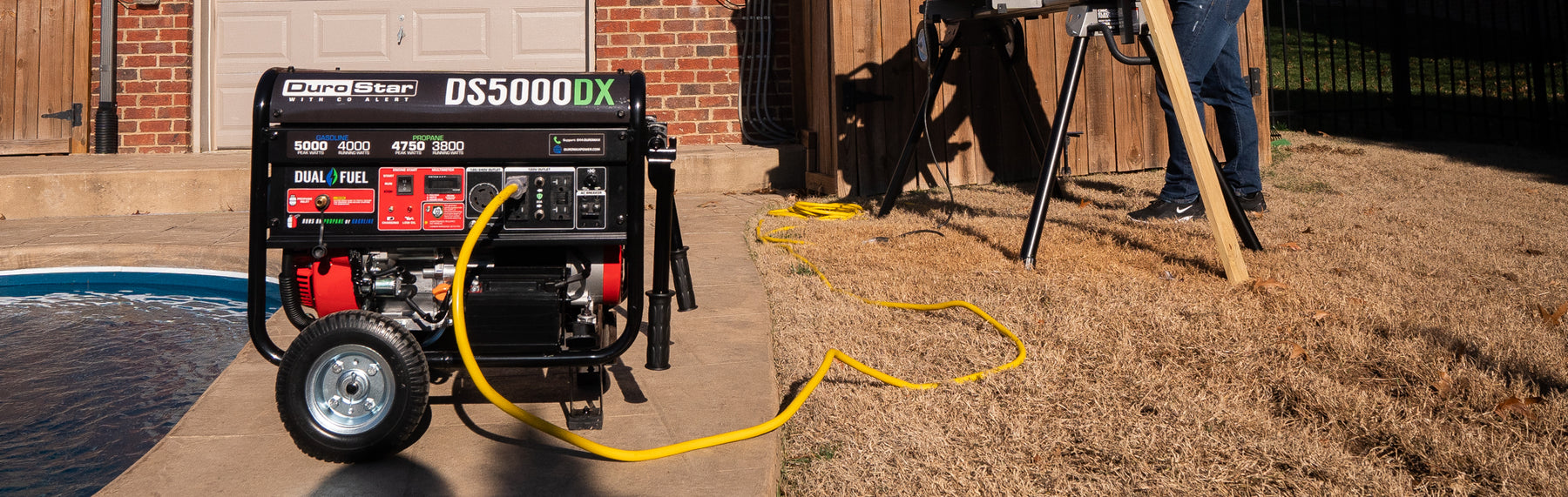

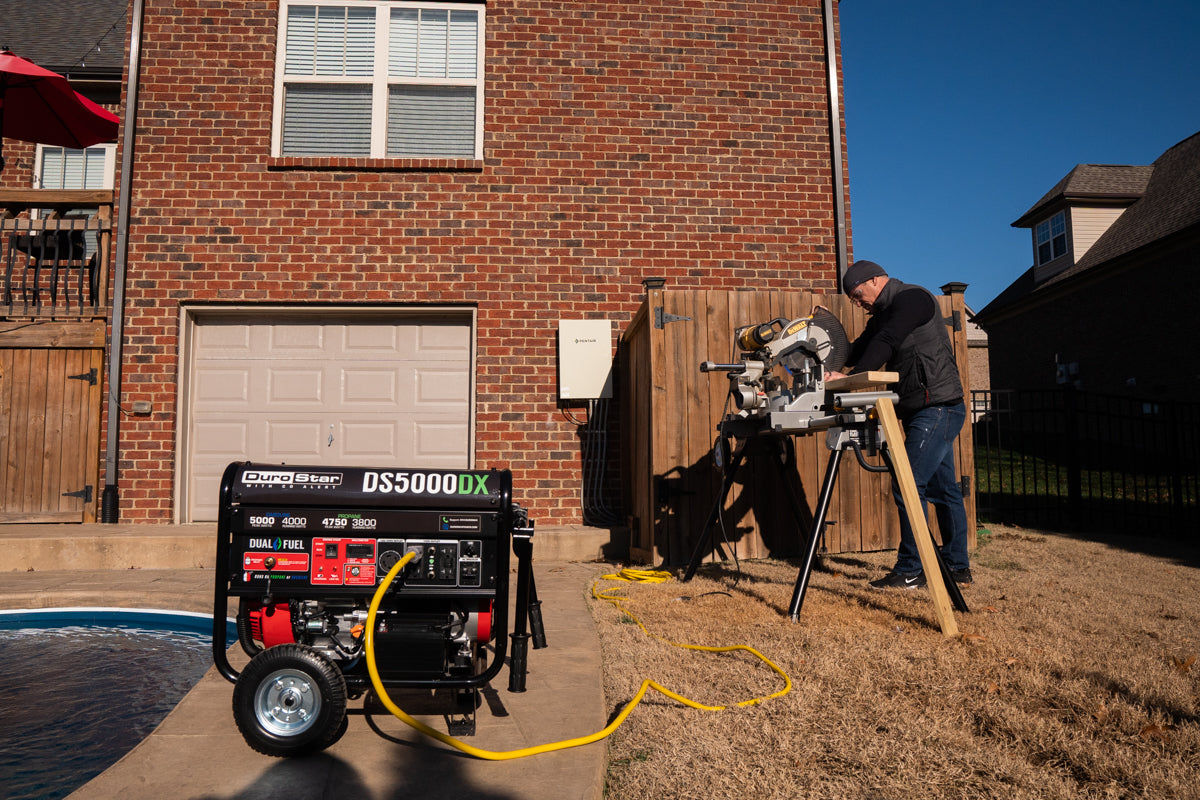

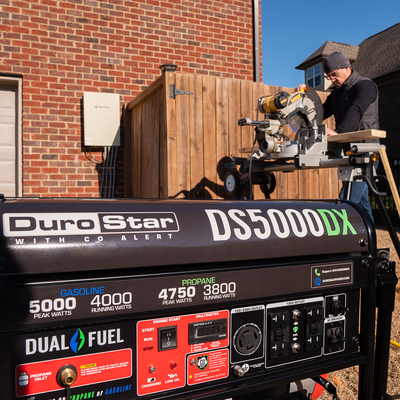

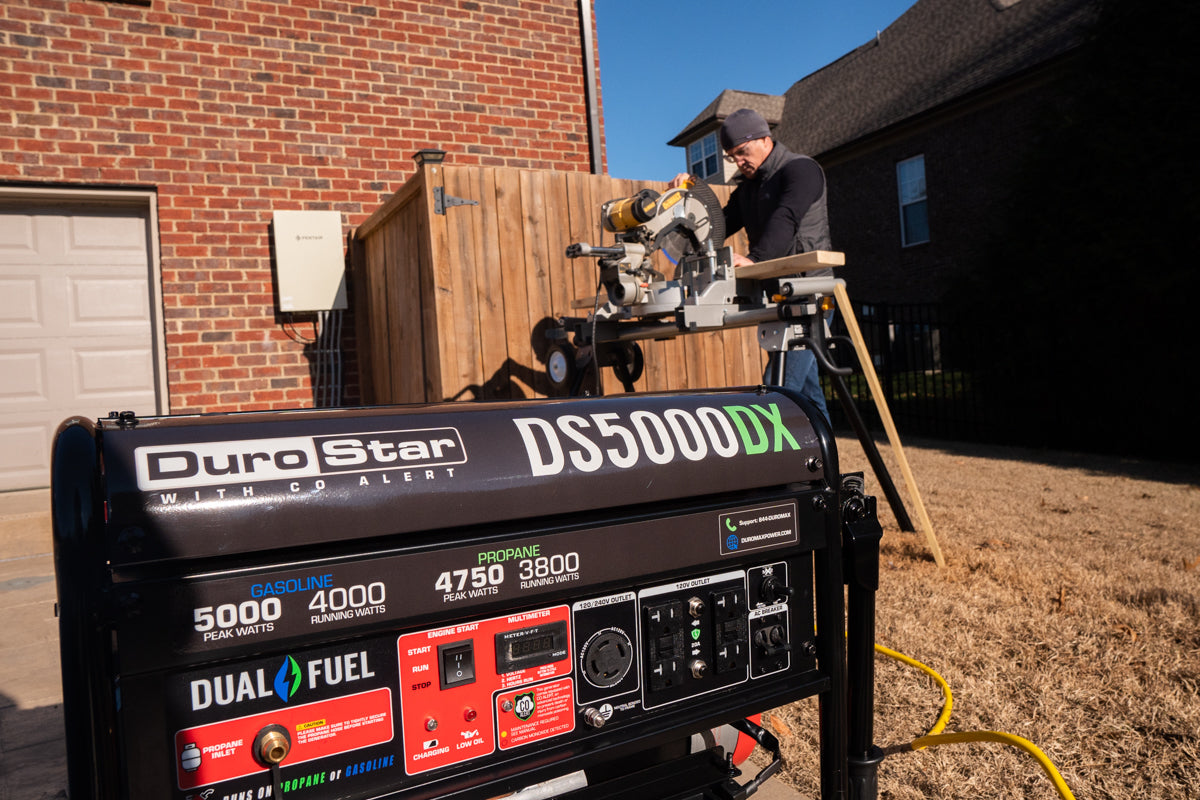

The DS5000DX generator is perfect for power at home and on-the-go, with 5,000 peak watts and 4,000 running watts of compact Dual Fuel power. Powered by our 224cc DuroMax engine, this generator is excellent for camping, RVs, power on the jobsite, and will run various household essentials such as lights and appliances when the power goes out.

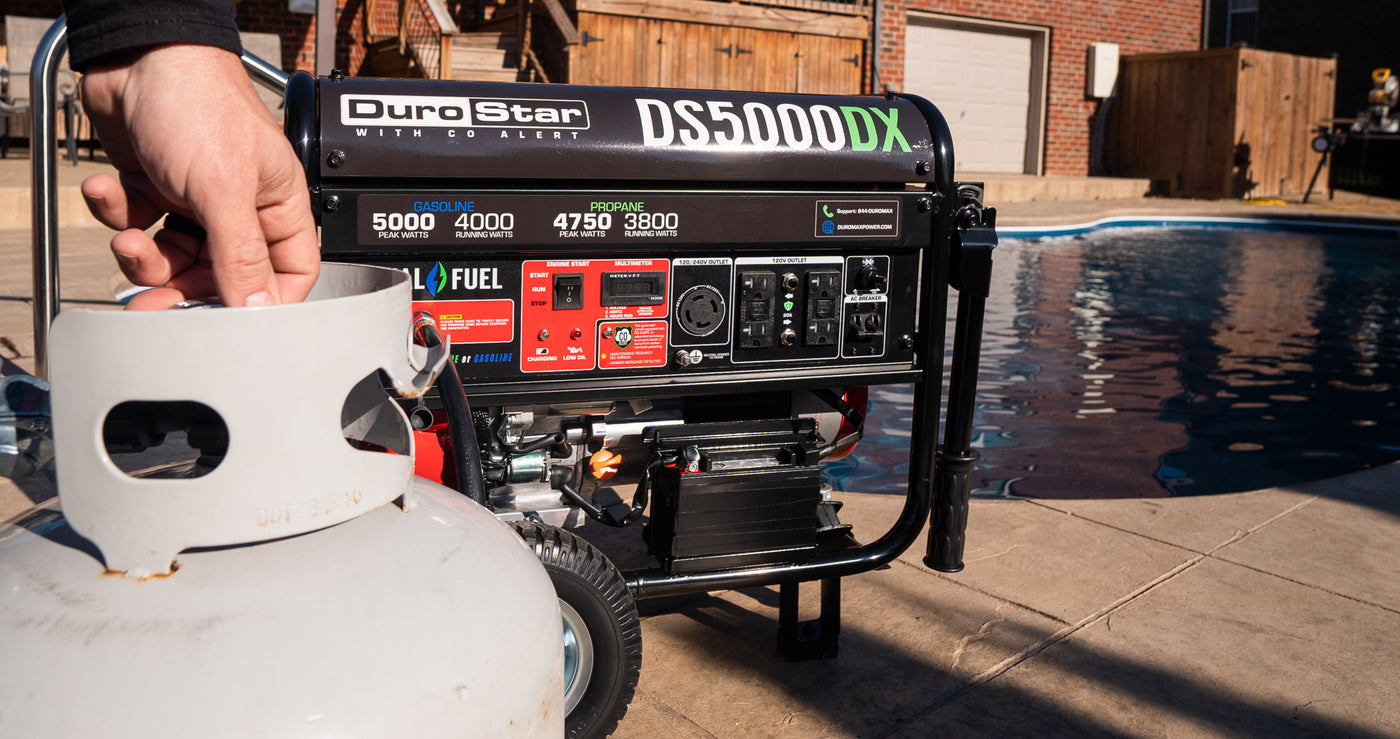

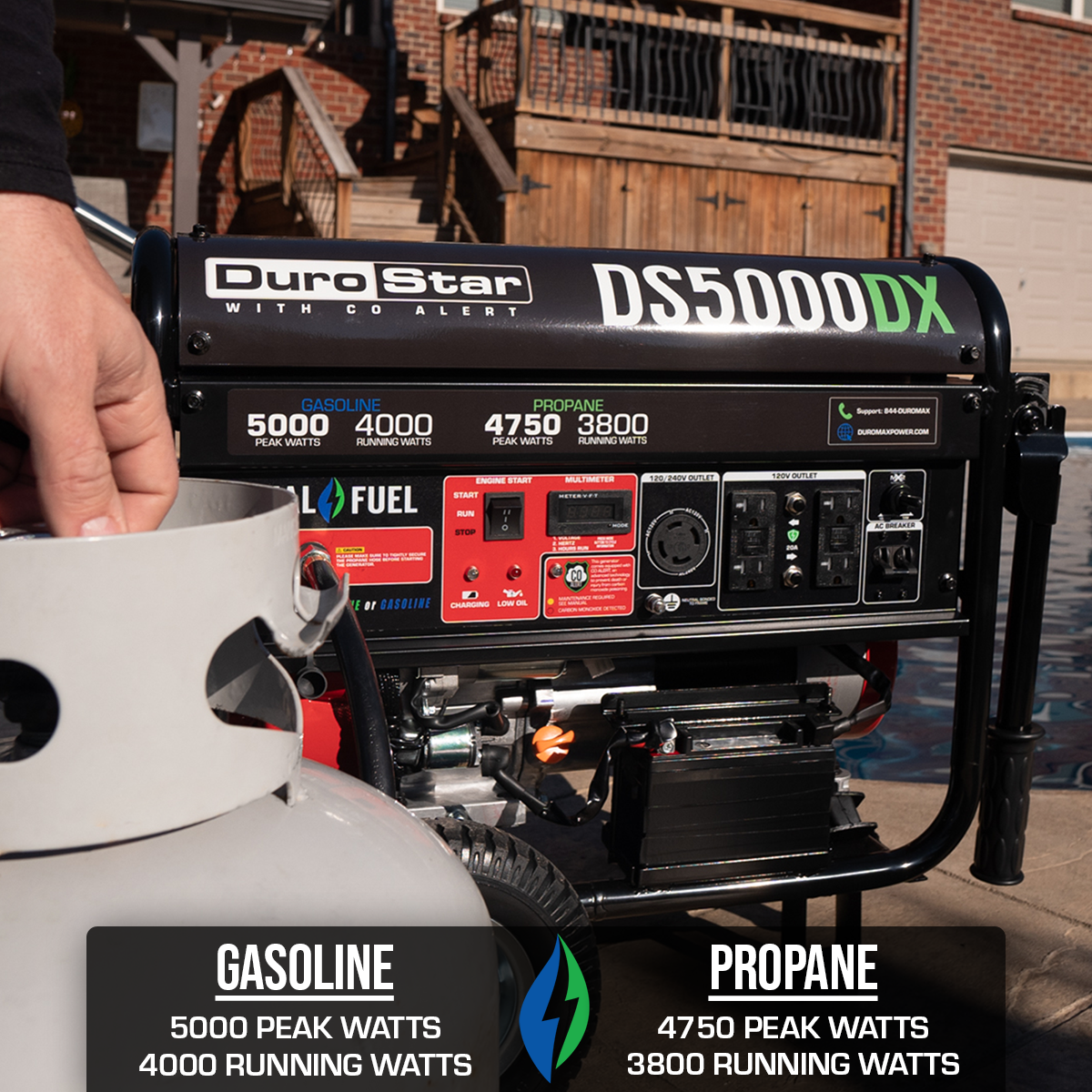

RUNS ON GAS OR PROPANE

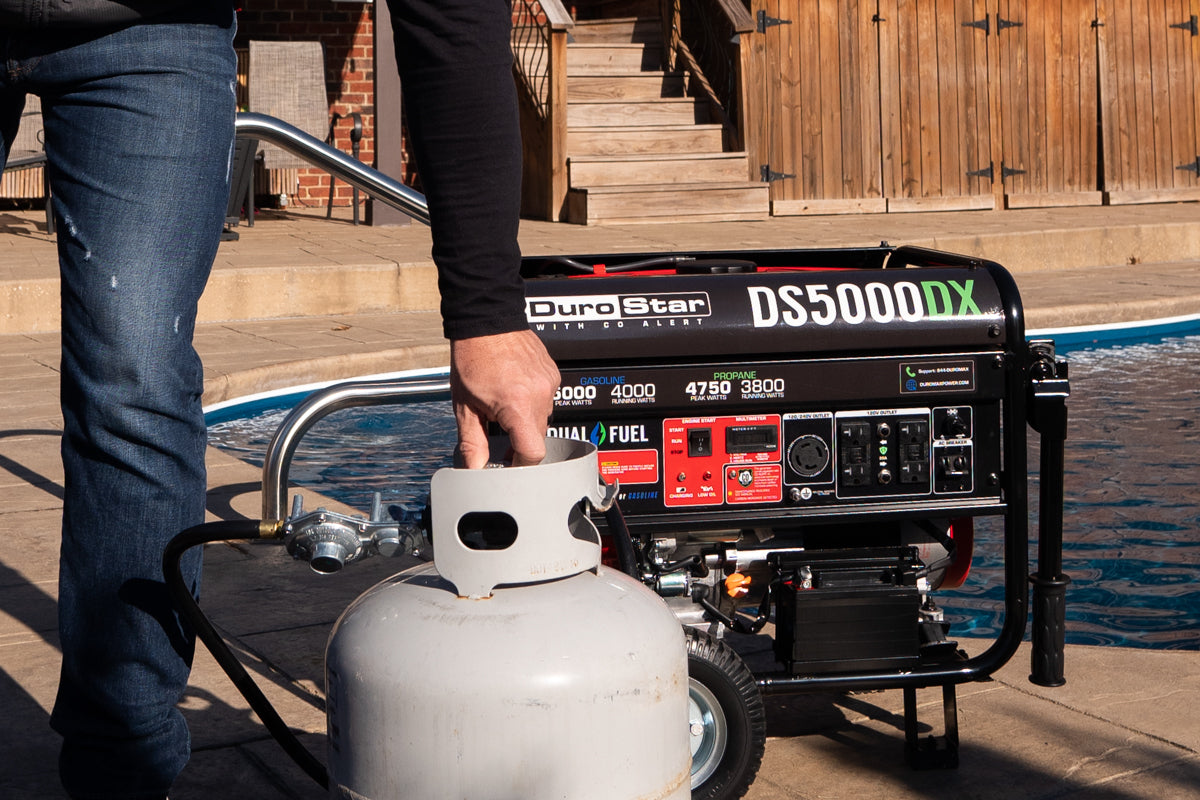

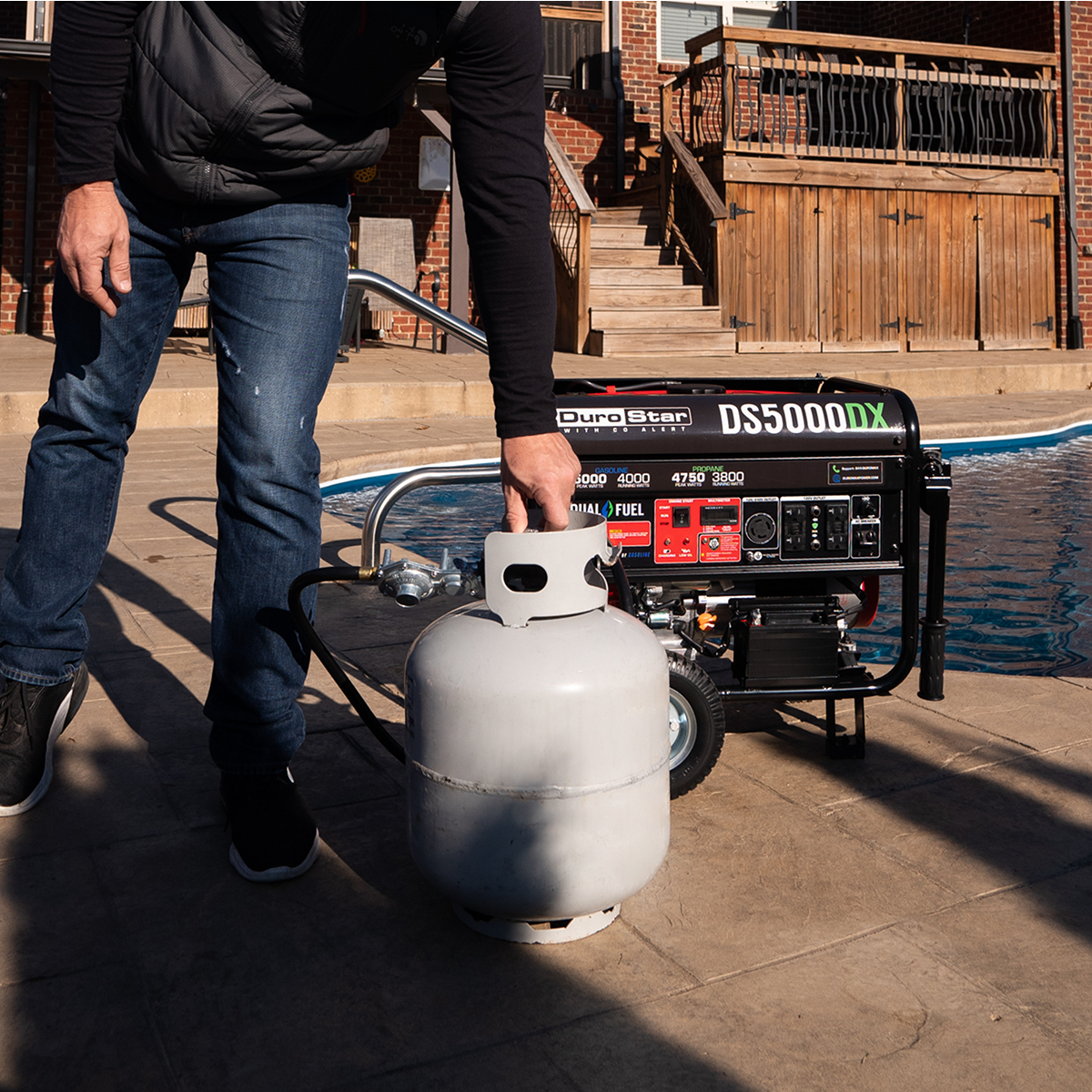

Runs on gasoline or liquid propane, offering the freedom and flexibility of fuel choice.

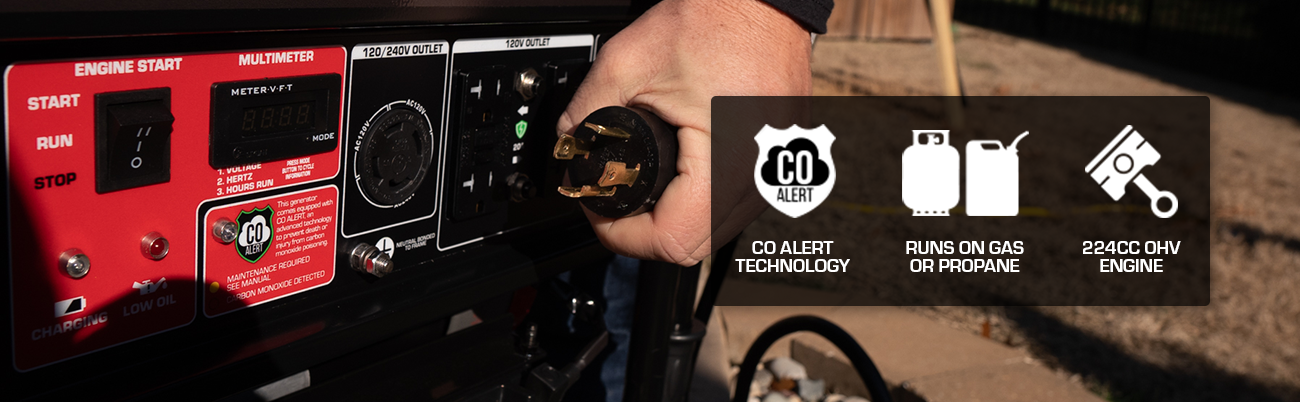

EQUIPPED WITH CO ALERT
An advanced technology to keep your family safe and sound from harmful engine fumes.

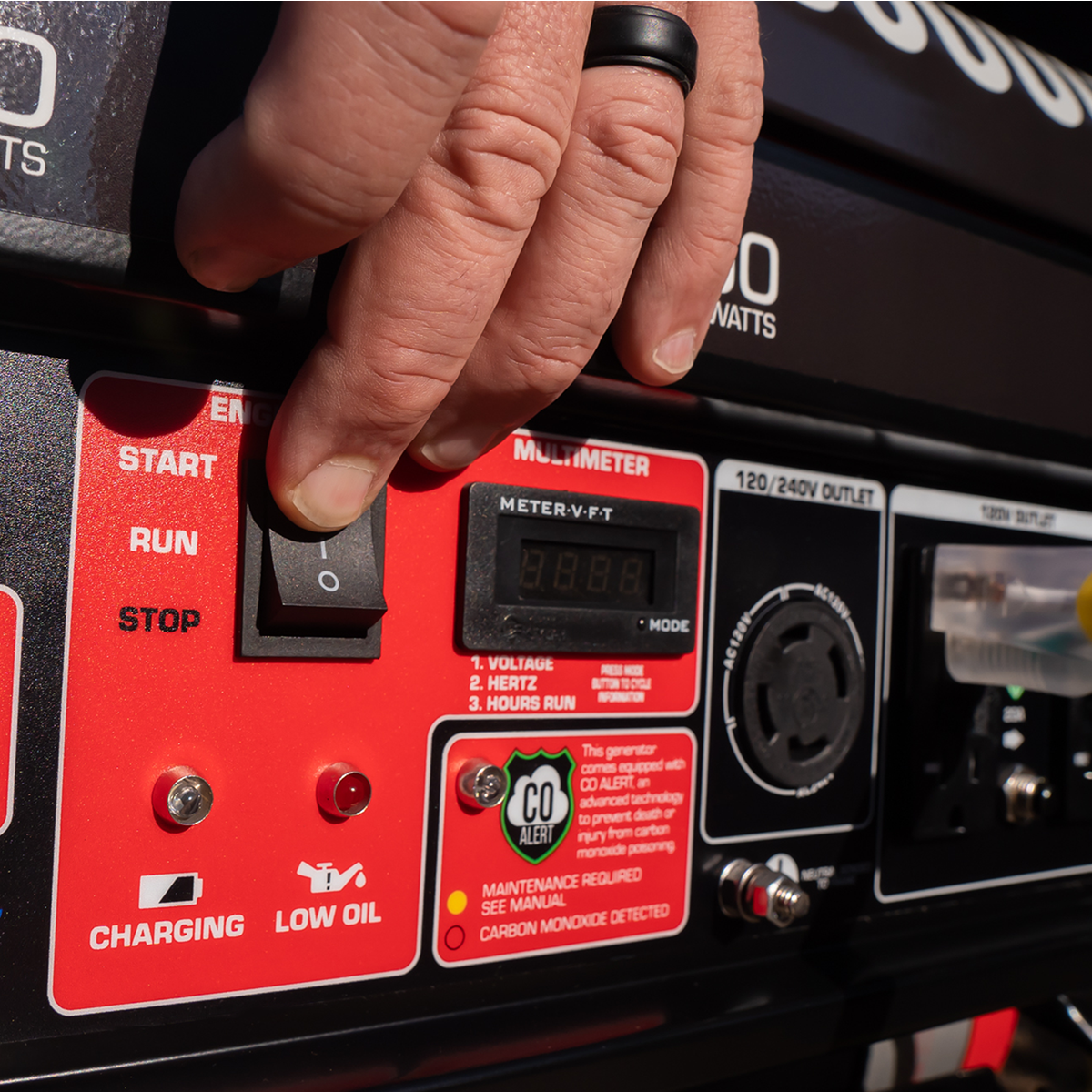

DIGITAL CONTROL CENTER
Track voltage output, operating frequency, and maintenance hours.

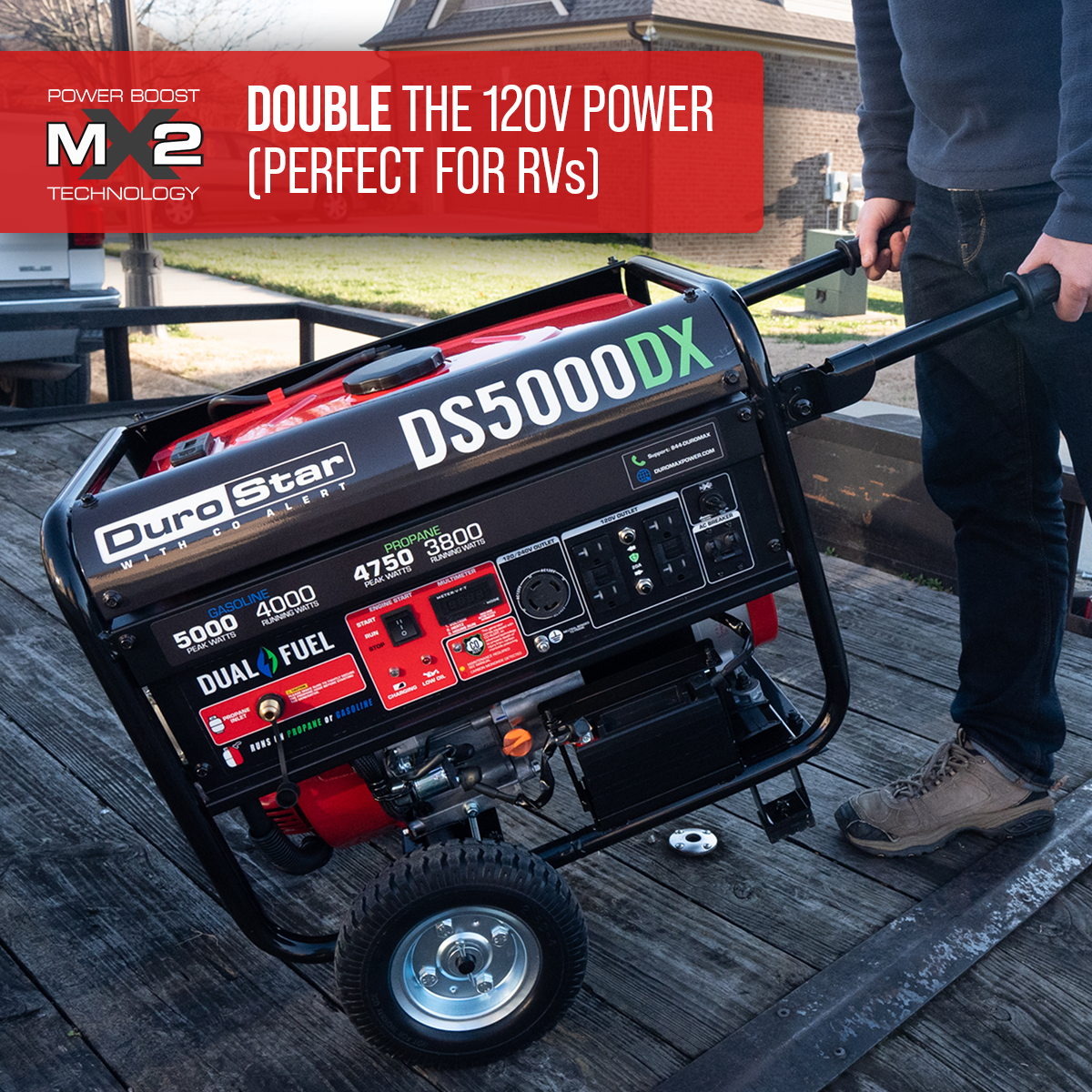

MX2 TECHNOLOGY
Double the 120V power for appliances and RVs.

FEATURES

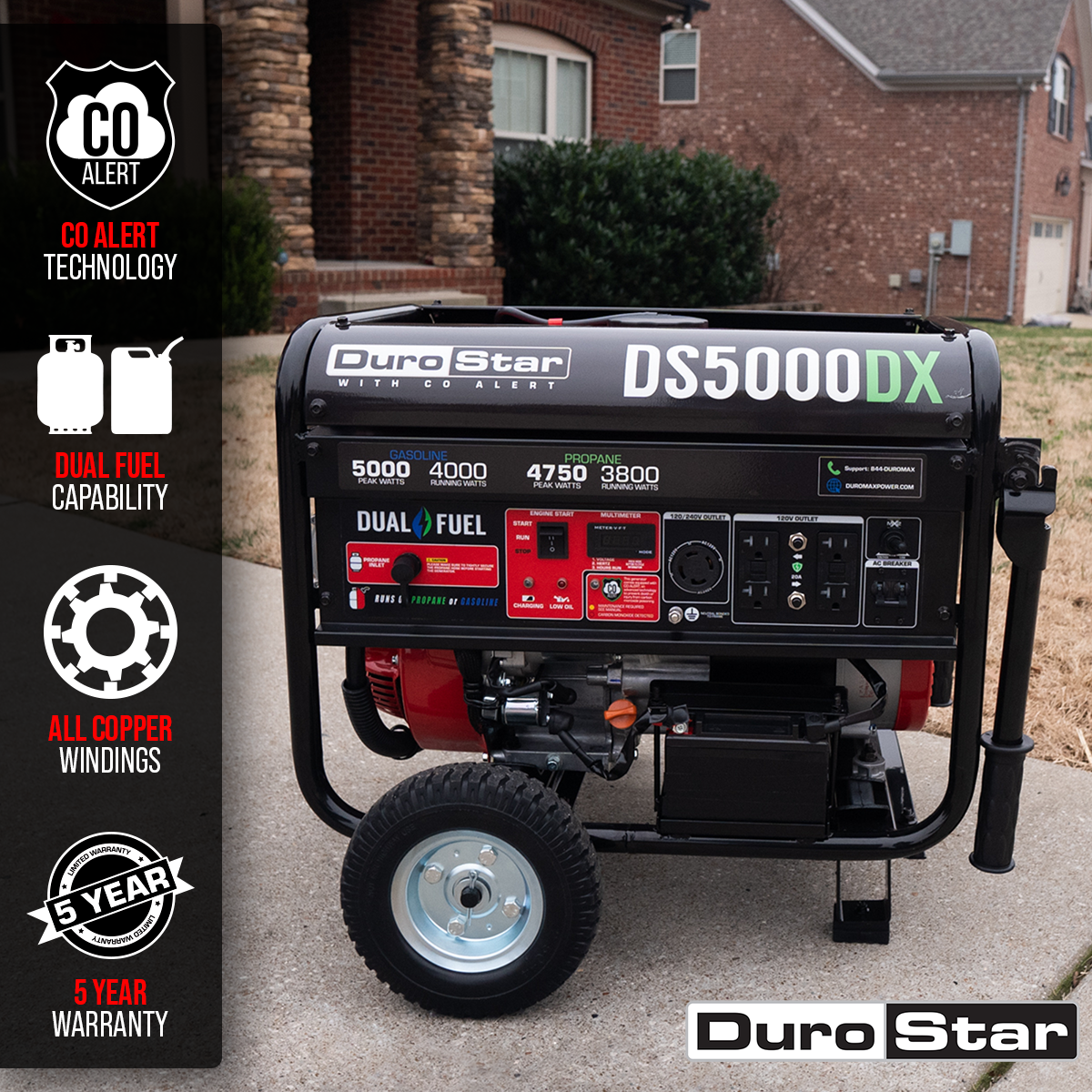

• DUAL FUEL TECHNOLOGY: Runs on gasoline or propane, offering the freedom and flexibility of fuel choice.

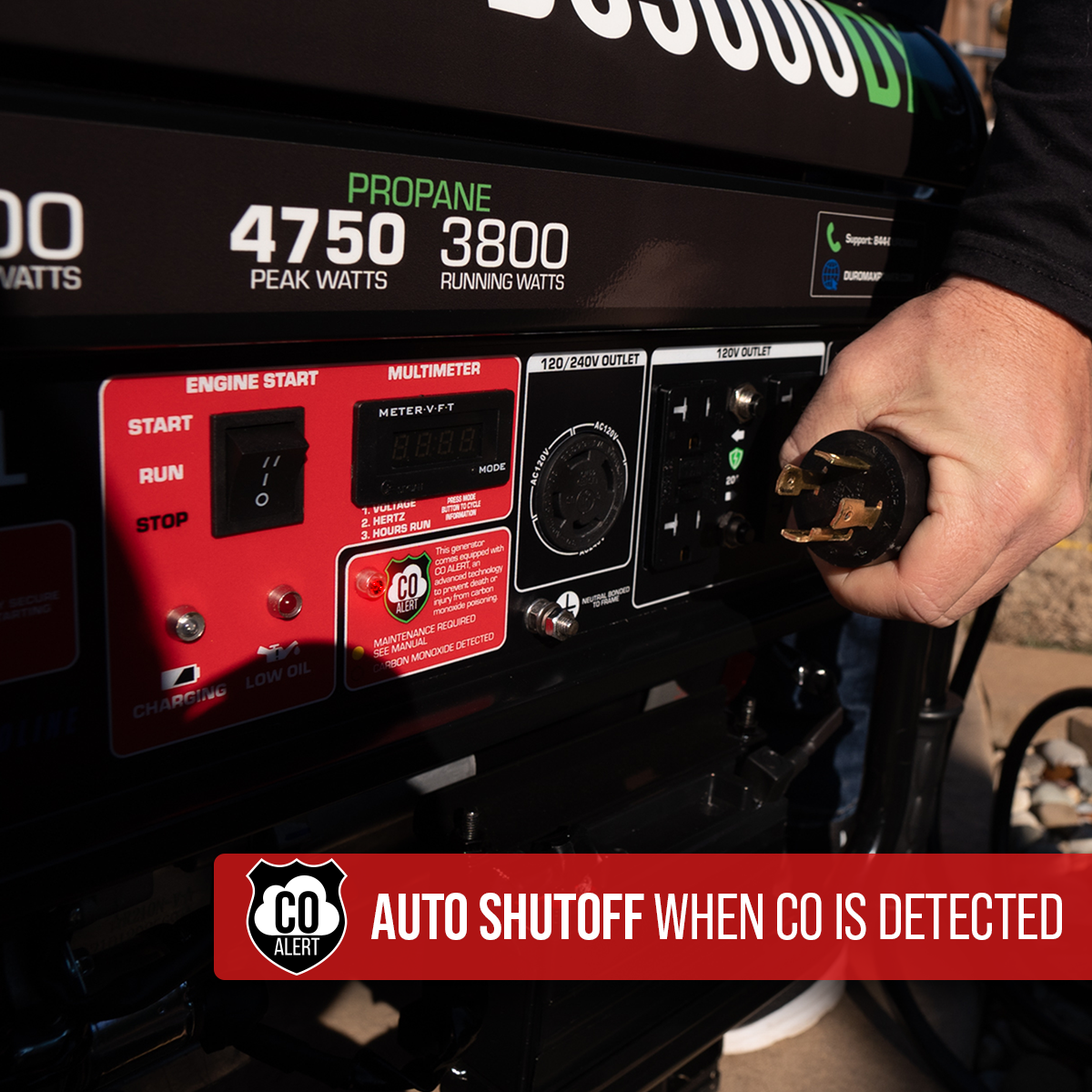

• EQUIPPED WITH CO ALERT: Protects you from harmful engine fumes by automatically shutting down the generator when an unsafe level of carbon monoxide is detected.

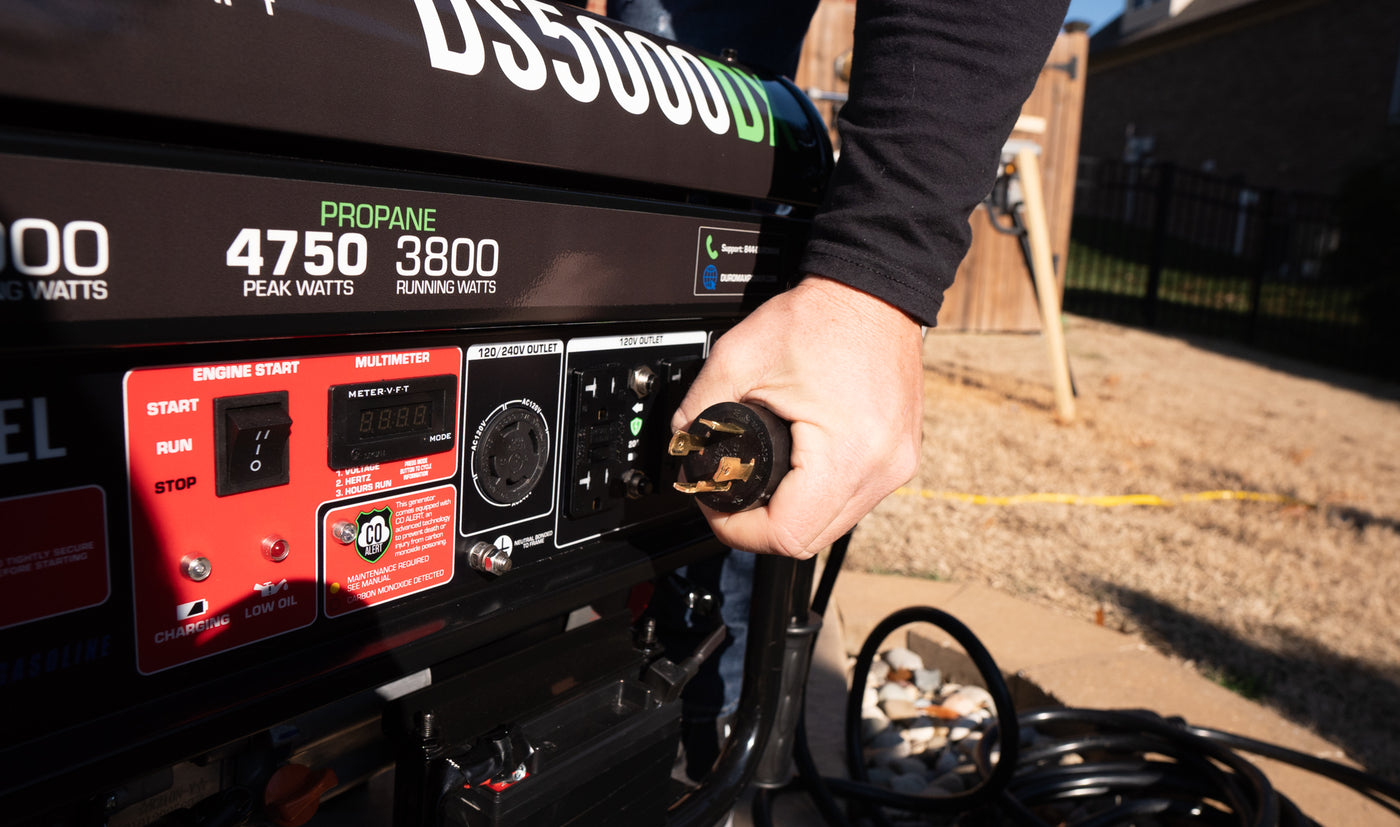

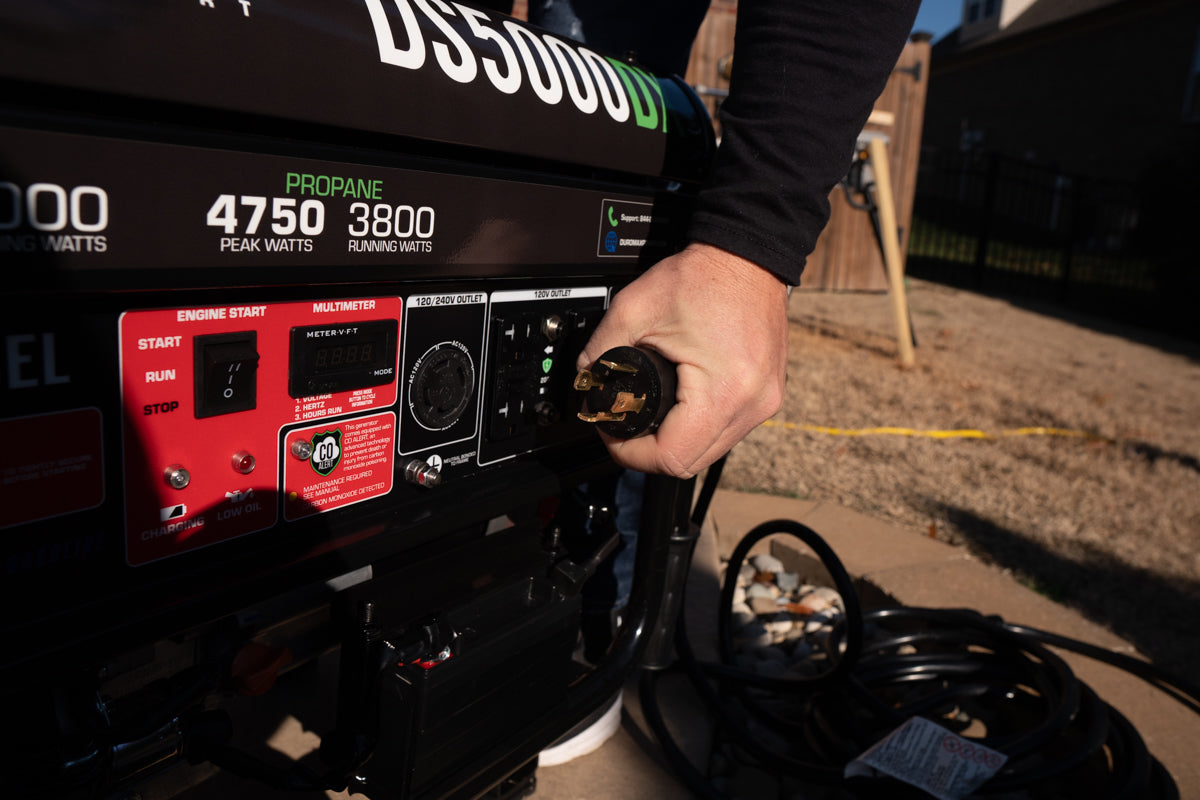

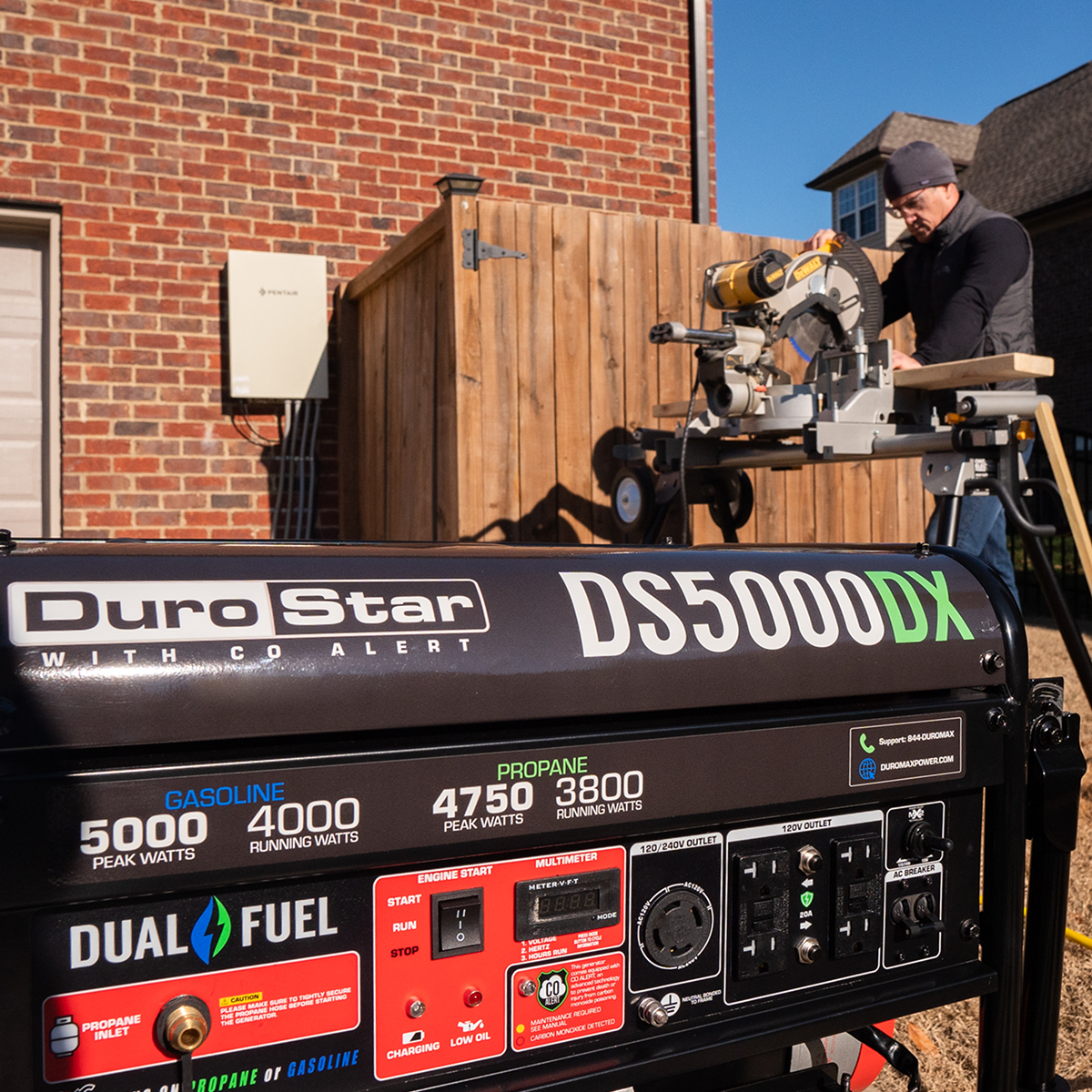

• FULLY LOADED POWER PANEL: This generator comes equipped with a fully loaded power panel with several outlets, including four 120 Volt 20 Amp GFCI outlets and one 120 / 240 Volt 30 Amp twist lock. The panel also includes individual circuit breakers, and low oil sensor.

• MX2 SWITCH: Harness the generator's full power by combining the two 120-volt circuits into one powerhouse circuit. Perfect for RVs and on a job site.

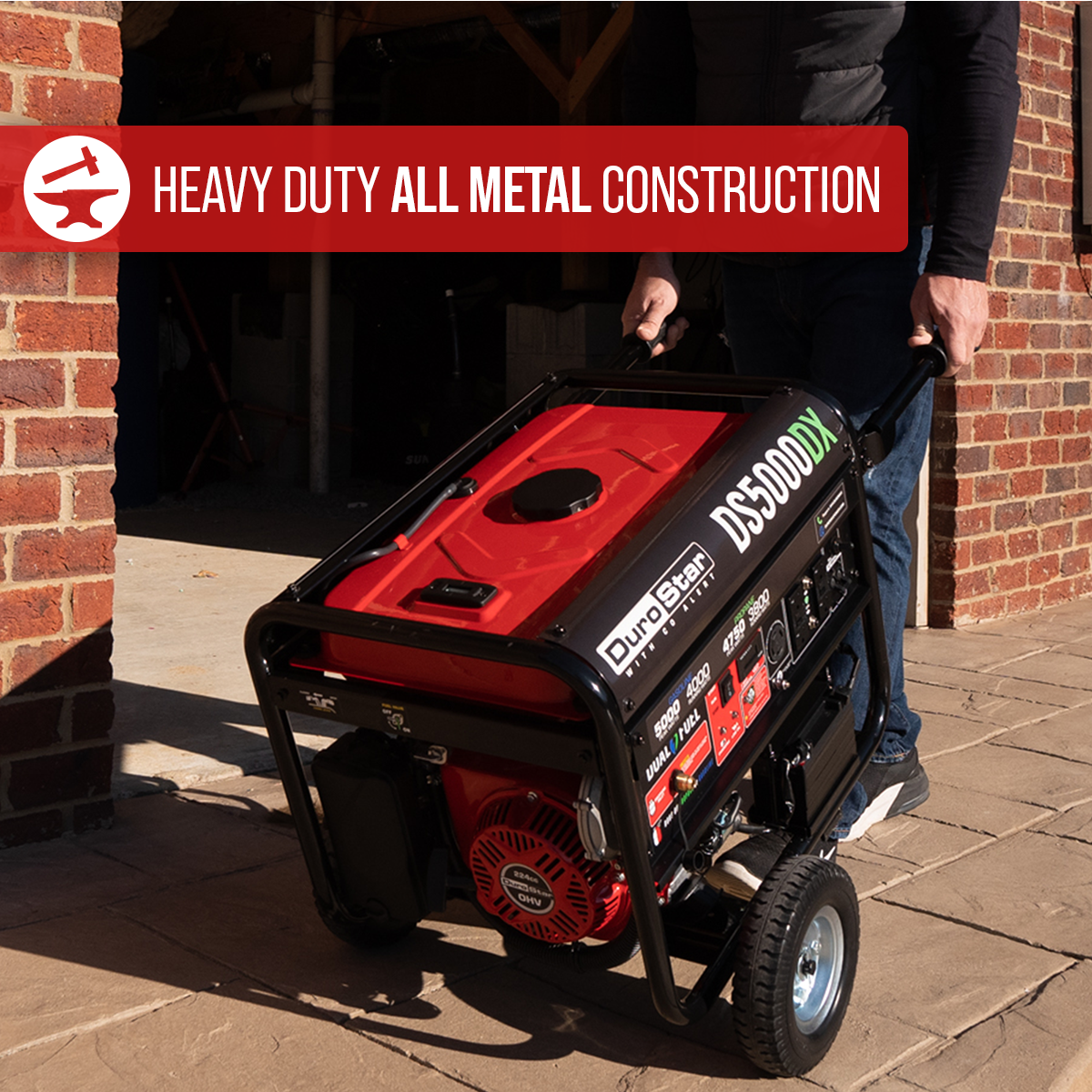

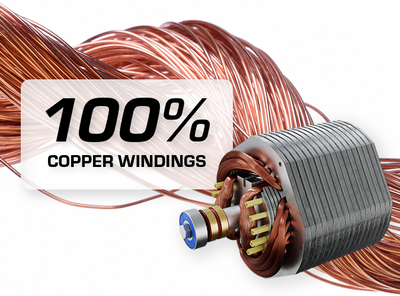

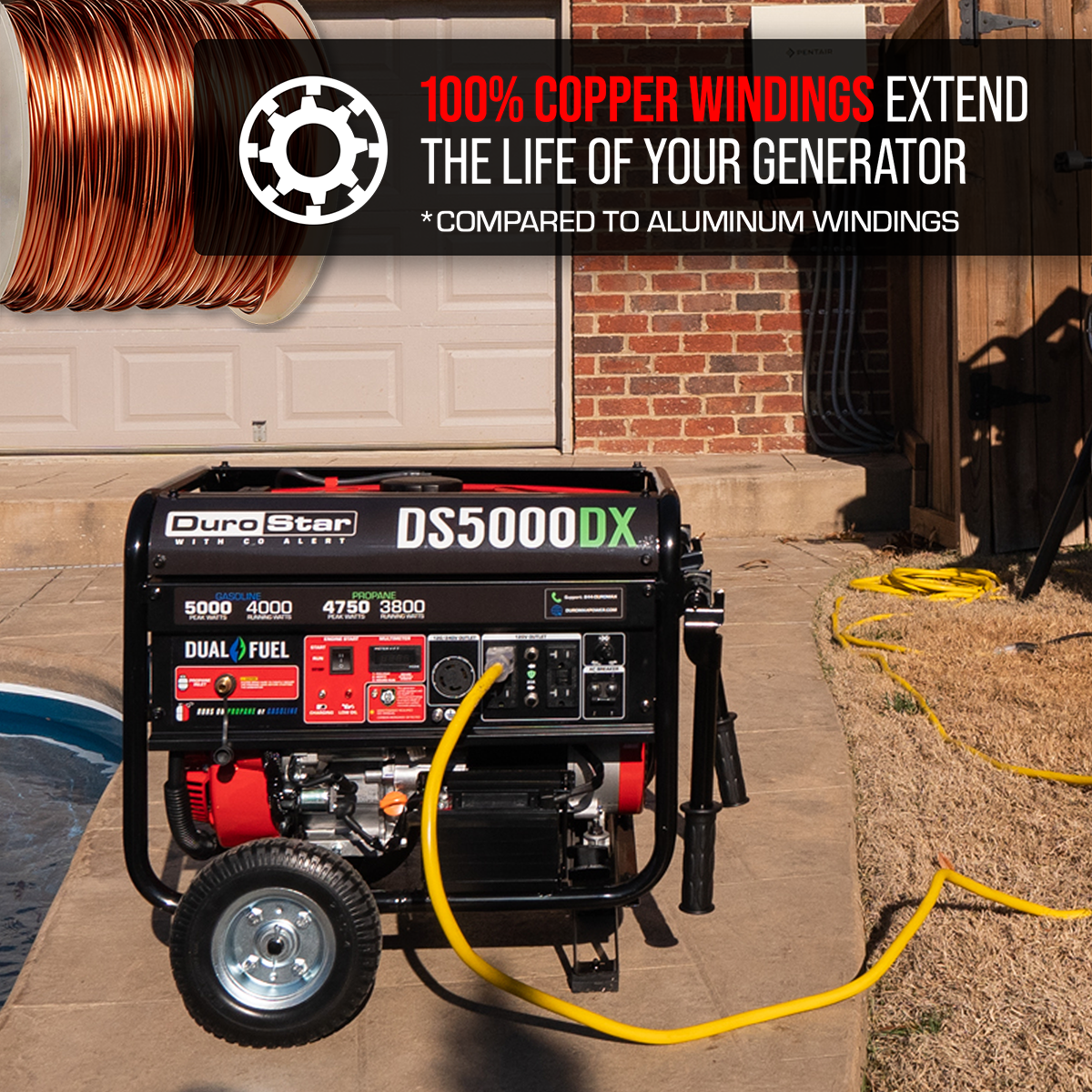

• 100% COPPER WINDINGS & ALL-METAL CONSTRUCTION: Designed with high quality and durability in mind. Unlike aluminum windings, premium copper windings double the life of your generator, ensuring it lasts you for years.

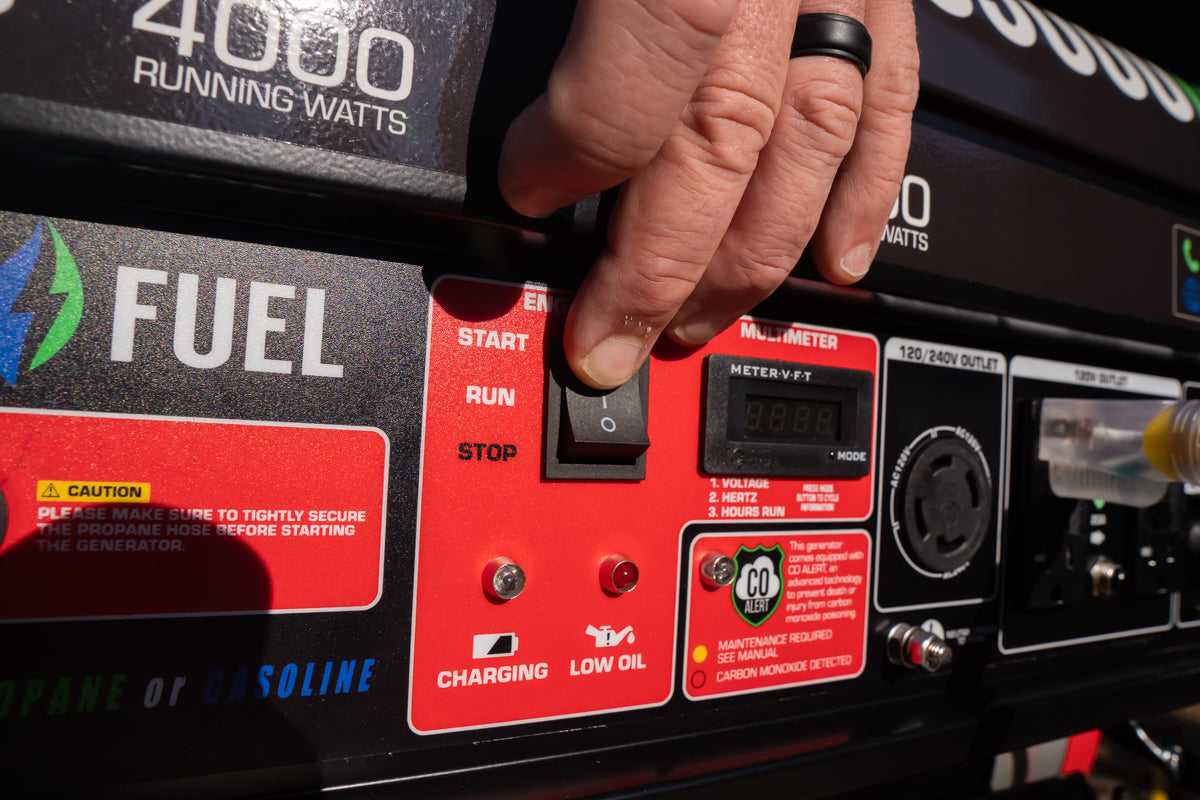

• DIGITAL CONTROL CENTER: Allows you to track voltage output, operating frequency, and maintenance hours at a glance.

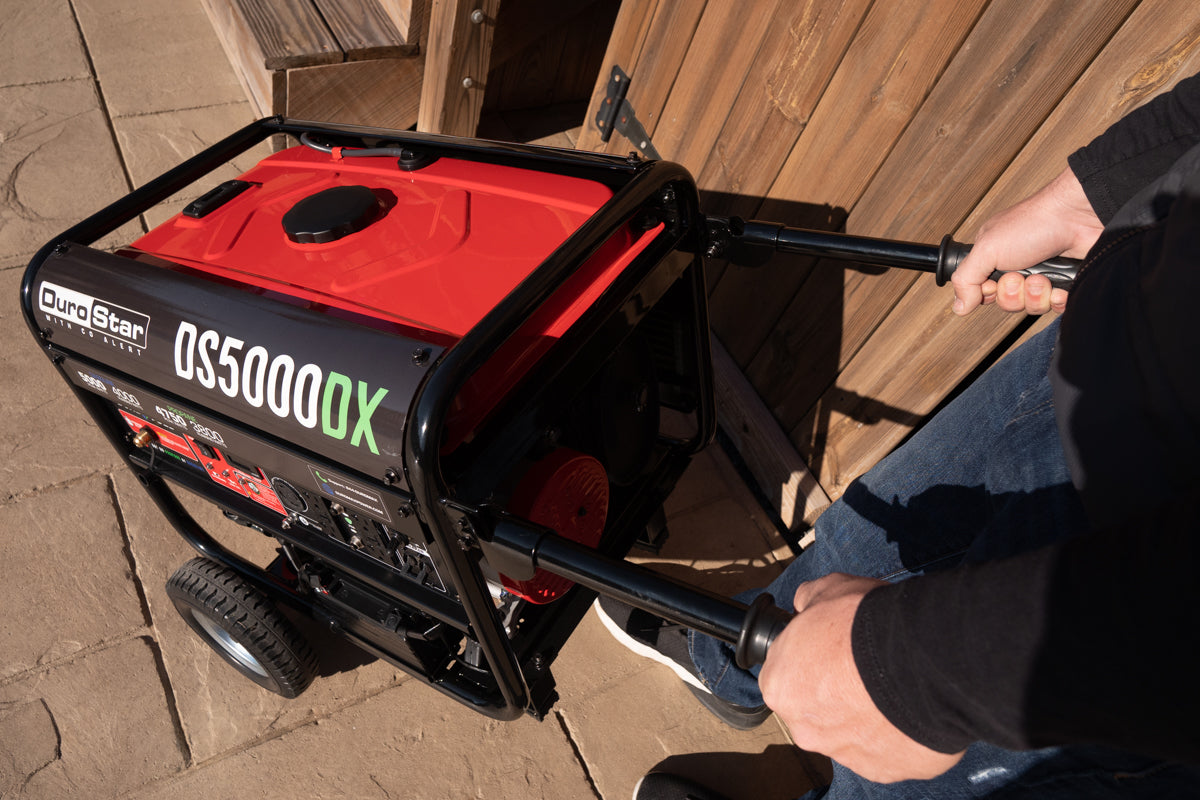

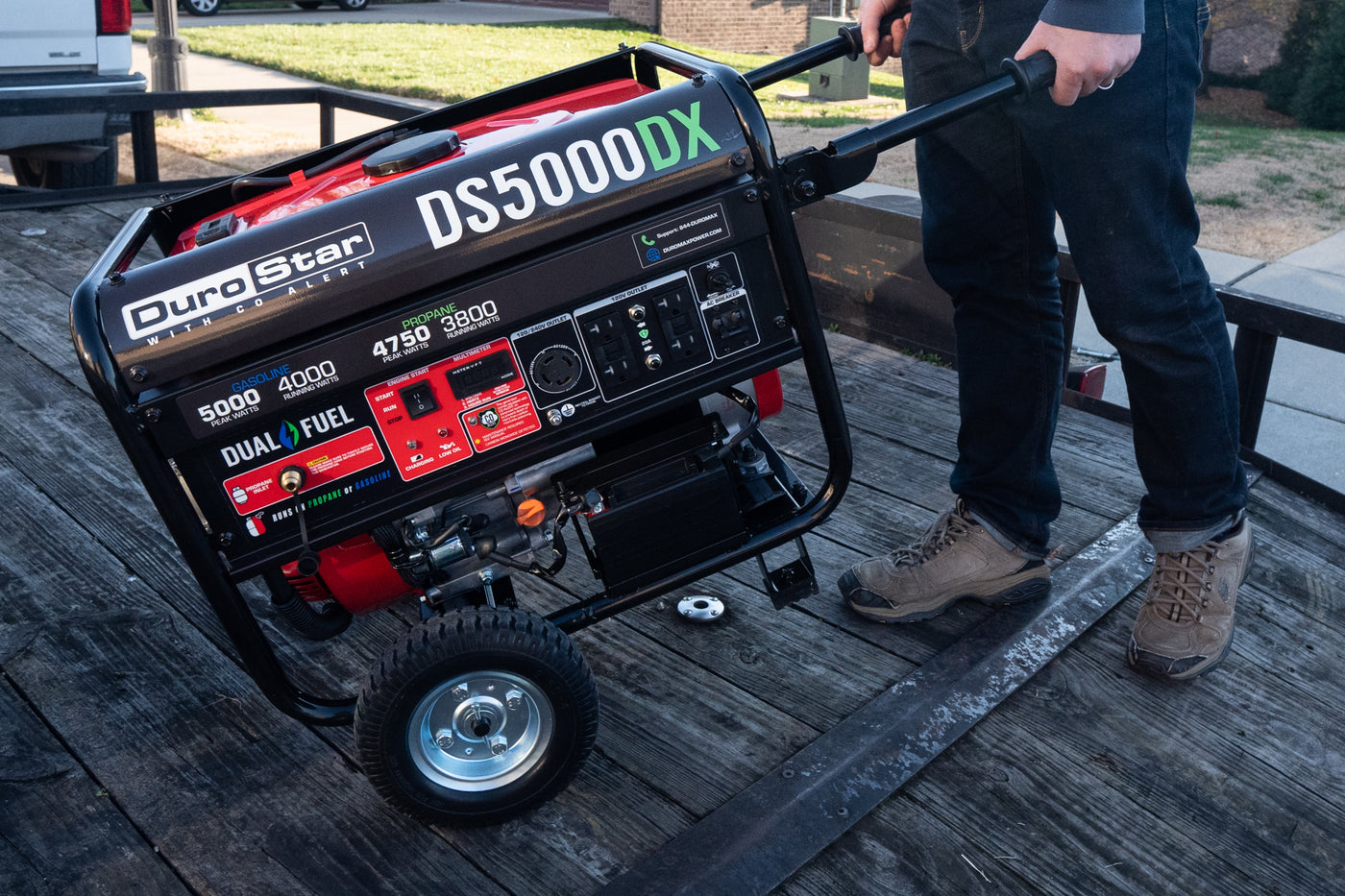

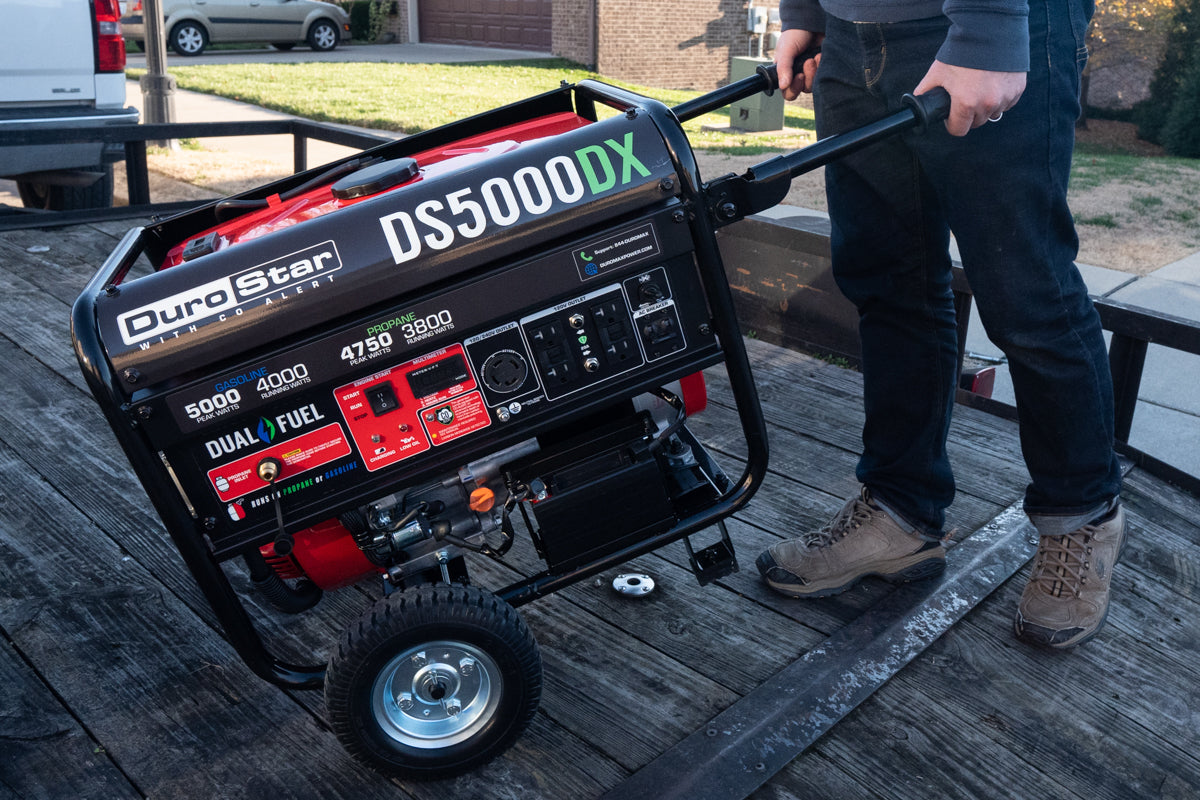

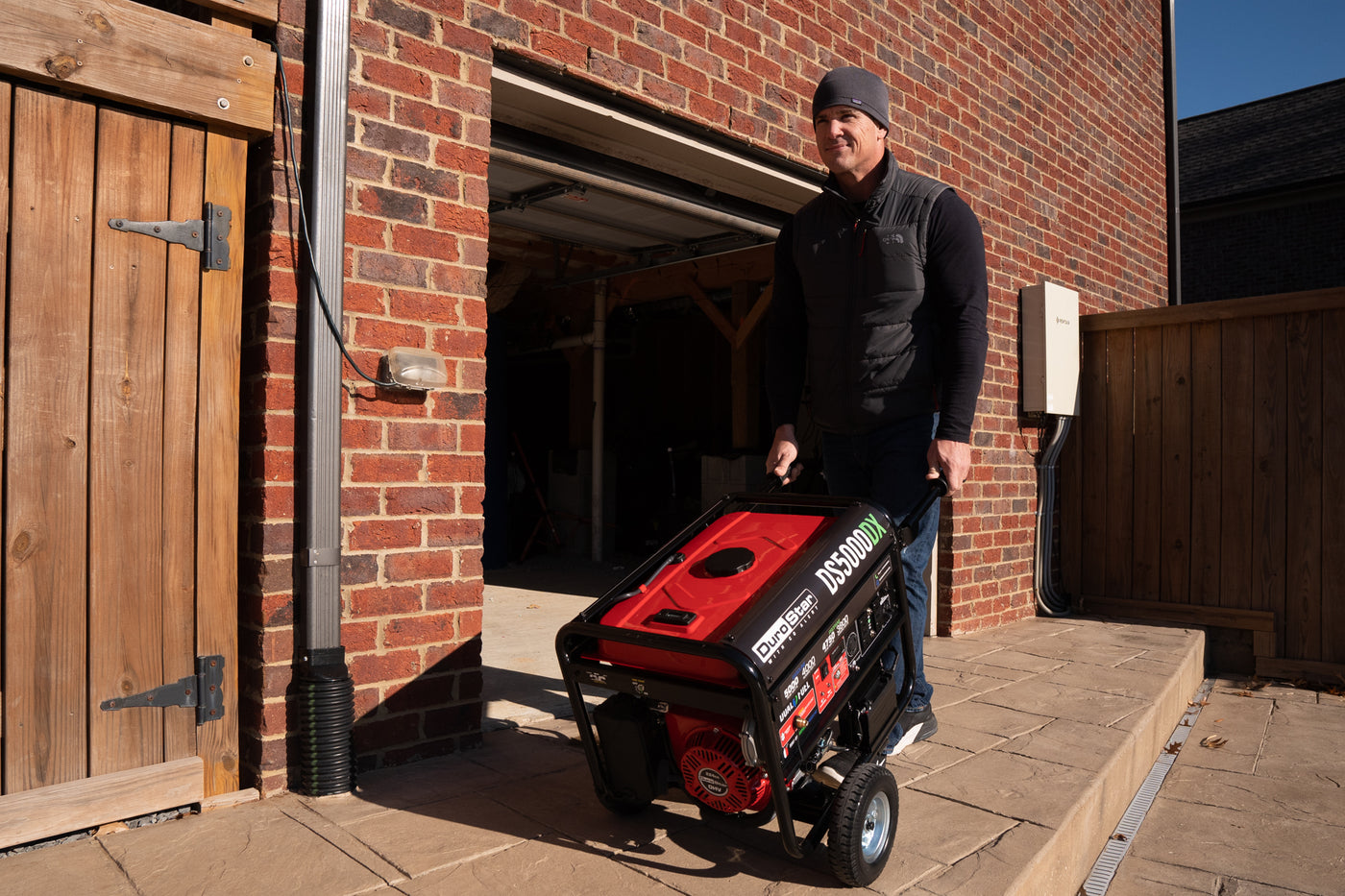

• WHEEL AND HANDLE KIT: This portable generator is easily transported over any terrain, providing power whenever and wherever you need it.

• EPA AND CARB CERTIFIED: Approved for use in all 50 states.

• 5 YEAR WARRANTY: DuroStar DX and X Series generators come with an industry-leading 5 Year Residential Warranty and lifetime customer support.

• INCLUDED IN THE BOX: Oil funnel, plug wrench, tool set, wheel kit, propane regulator, user manual.

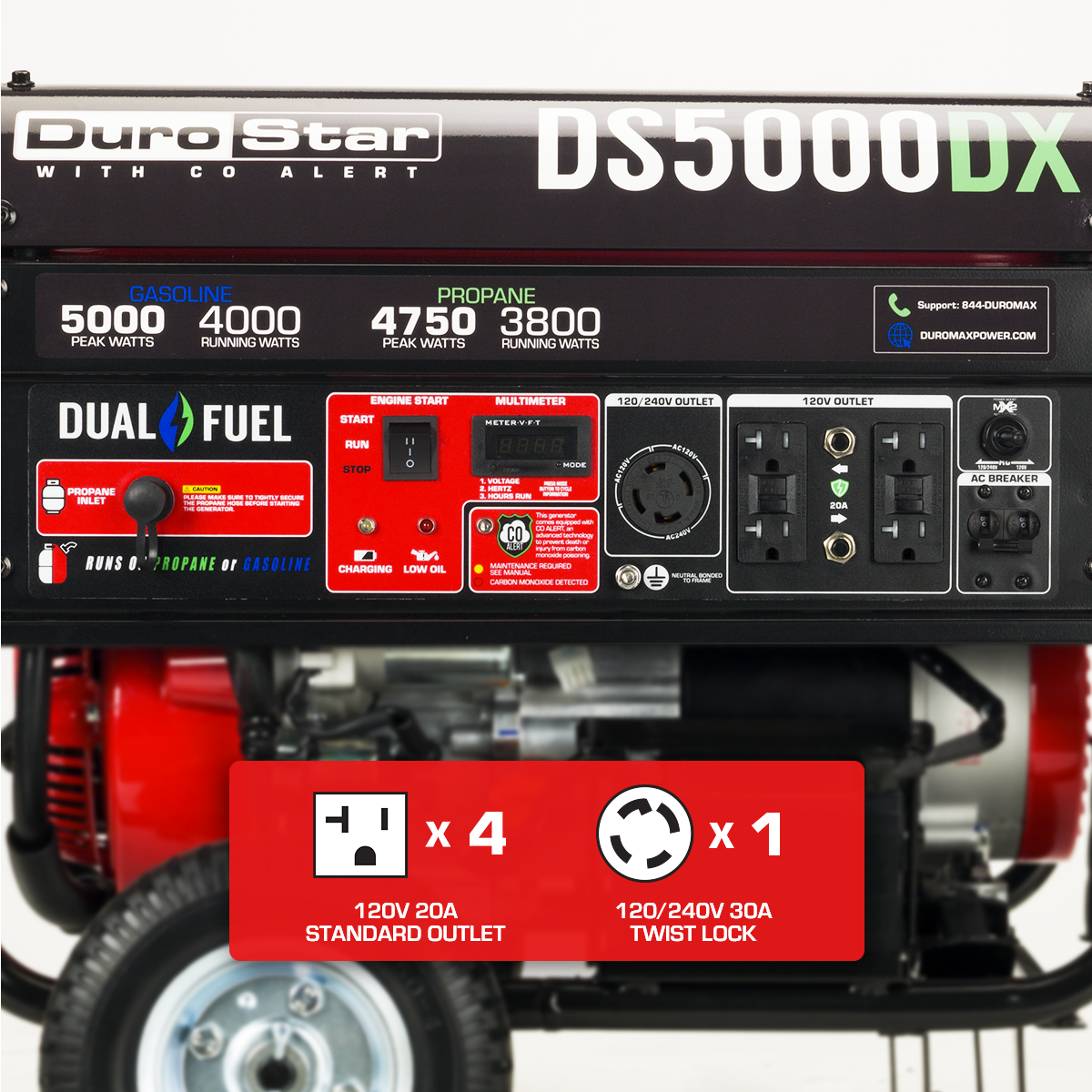

OUTLETS

X4

120V 20A
GFCI Outlet

X1

120/240V 30A
Twist Lock

POWER SPECIFICATIONS
GASOLINE
Peak Watts
5,000
Running Watts
4,000
Peak Amps @ 120V
41.67
Running Amps @ 120V
33.33
Peak Amps @ 240V
20.83
Running Amps @ 240V
16.67
PROPANE
Peak Watts
4,750
Running Watts
3,800
Peak Amps @ 120V
39.58
Running Amps @ 120V
31.67
Peak Amps @ 240V
19.79
Running Amps @ 240V
15.83

Not sure how much power you need or what these numbers mean? CLICK HERE to download our power calculator to determine your power needs

PRODUCT SPECIFICATIONS
Amperage
33.33A / 16.67A
Voltage
120V / 240VAC
Frequency
60 Hz

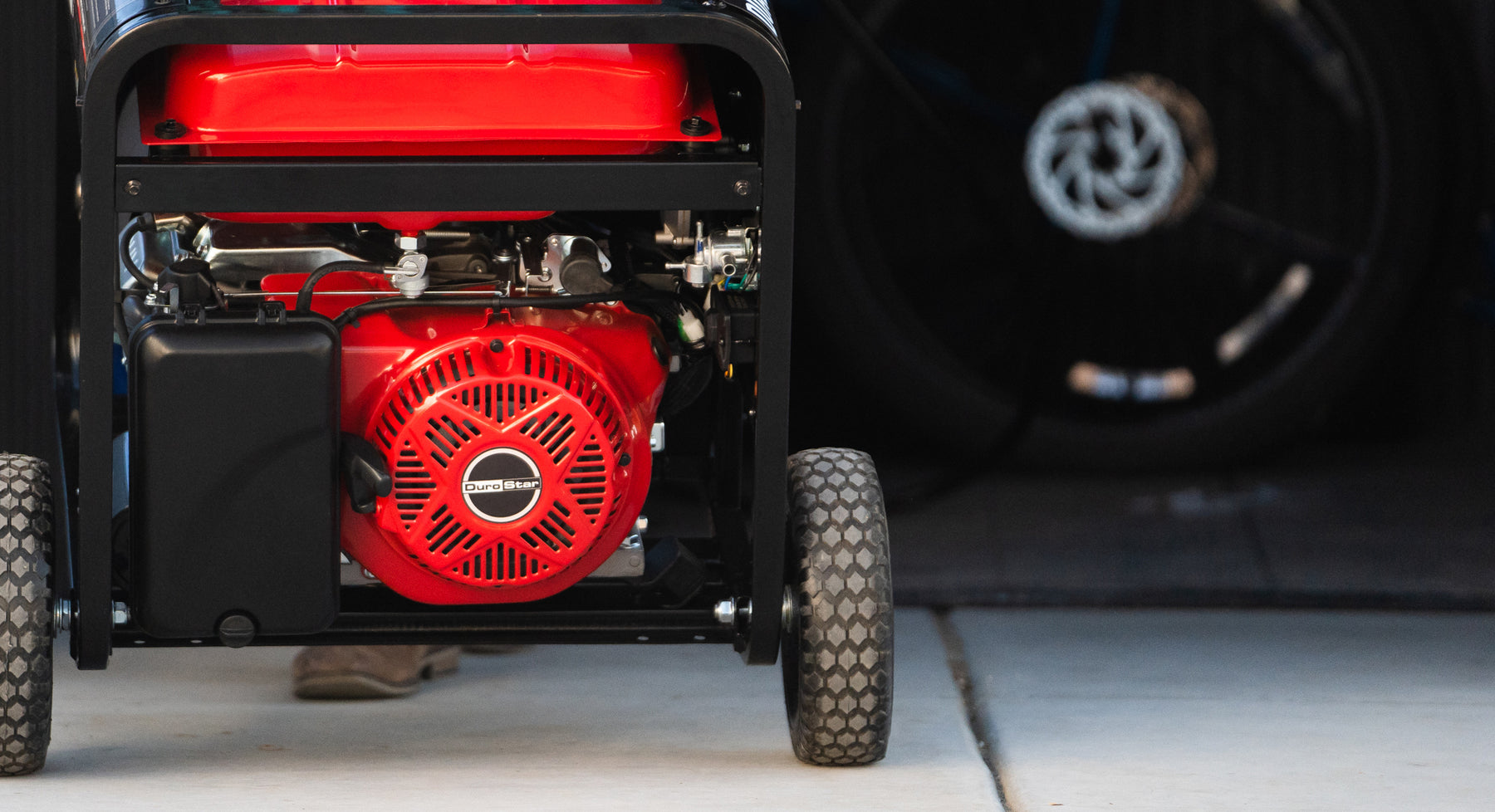

Engine Size
224 cc
Engine Type
4-Cycle Air-Cooled Spark-Ignition
Engine Speed
3600 rpm
Fuel Type
Gasoline / Propane
Fuel Tank Capacity (Gasoline)
4 gal
Suggested Tank Size (Propane)
20 lbs
Runtime (Gasoline) at 50% Load
8.92 hrs
Runtime (Propane) at 50% Load
7.63 hrs
Start Type
Electric / Recoil
Volume Level
69 dB
EPA Certified
Yes
CARB Certified
Yes
Product Dimensions
25" L x 23" W x 22" H
Product Weight
135 lbs
UPC
811640016708

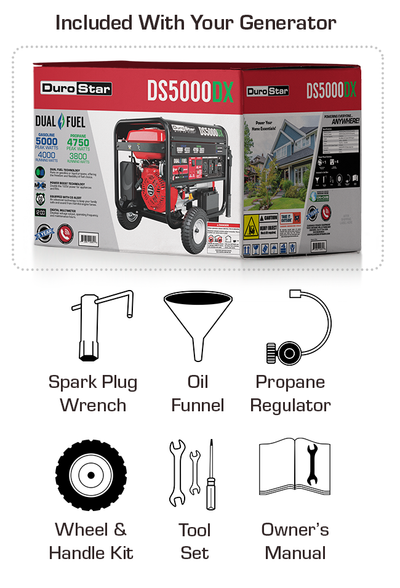

INCLUDED IN THE BOX

Oil Funnel

Spark Plug Wrench

Tool Set

Wheel & Handle Kit

Propane Regulator

Owner's Manual
DOWNLOAD PDF
