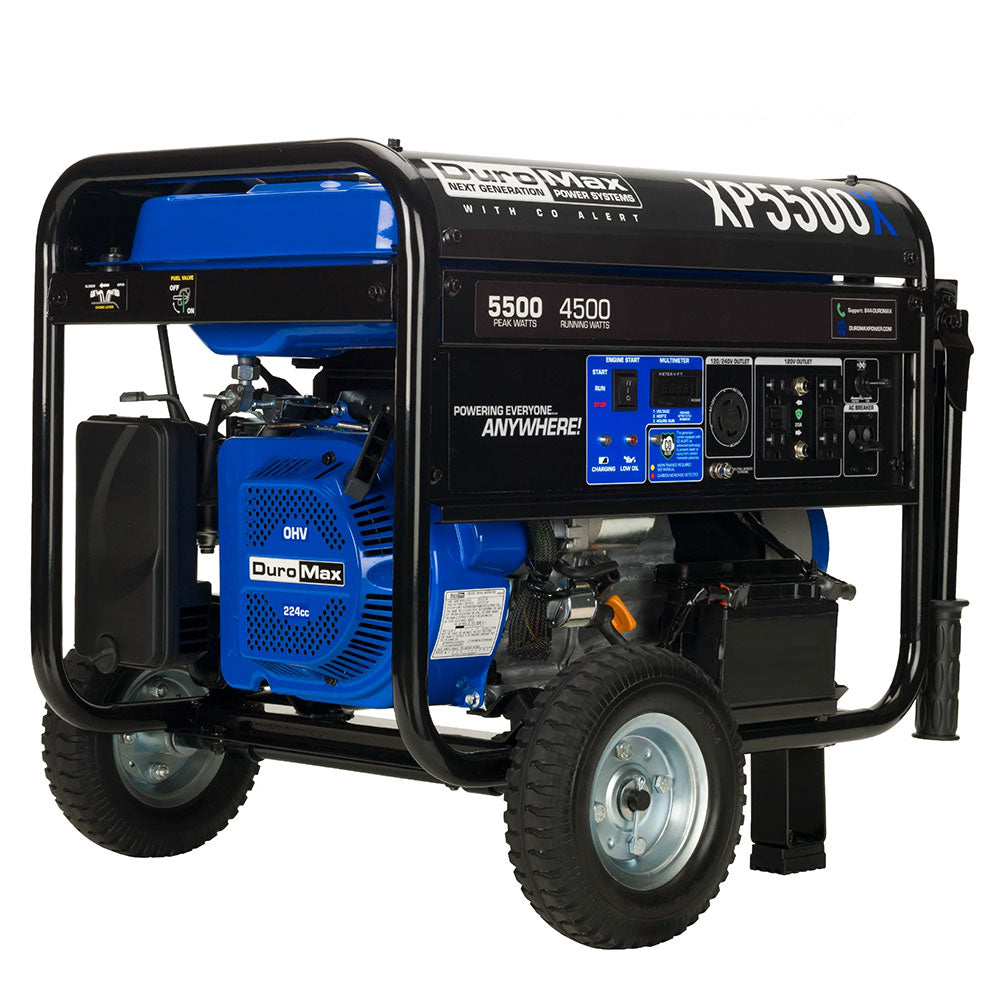

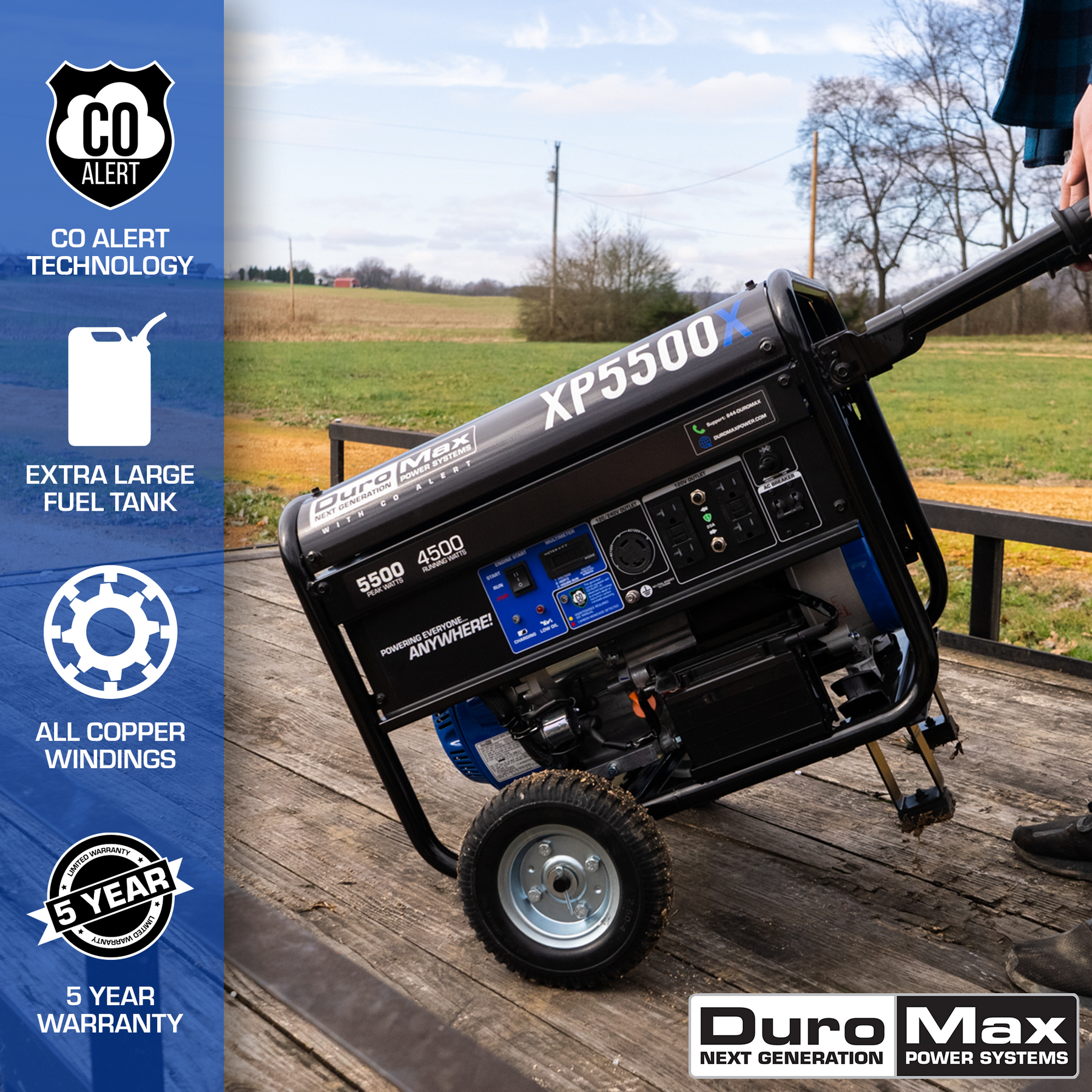

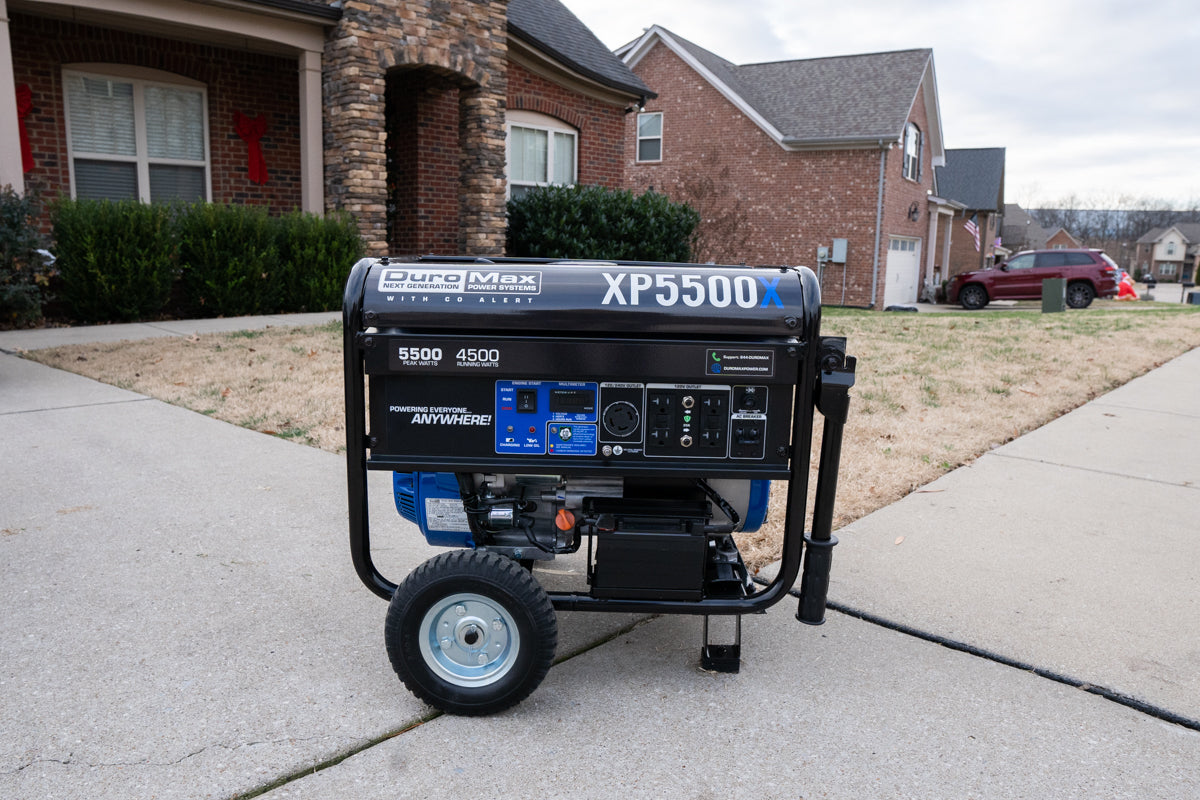

DuroMax XP5500X 5,500-Watt 224cc Gas Portable Generator with CO Alert

XP5500X

×

DuroMax Retailers

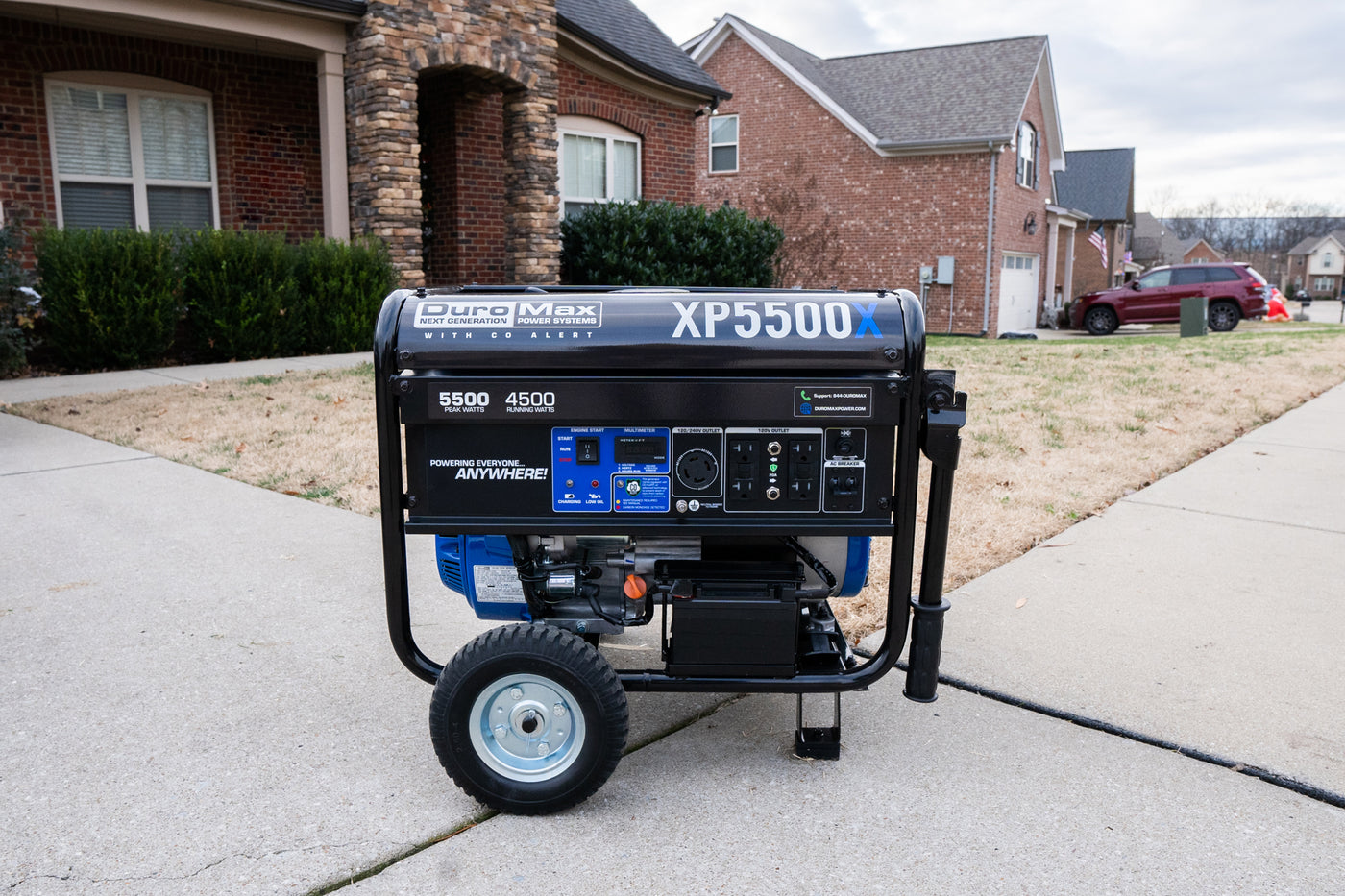

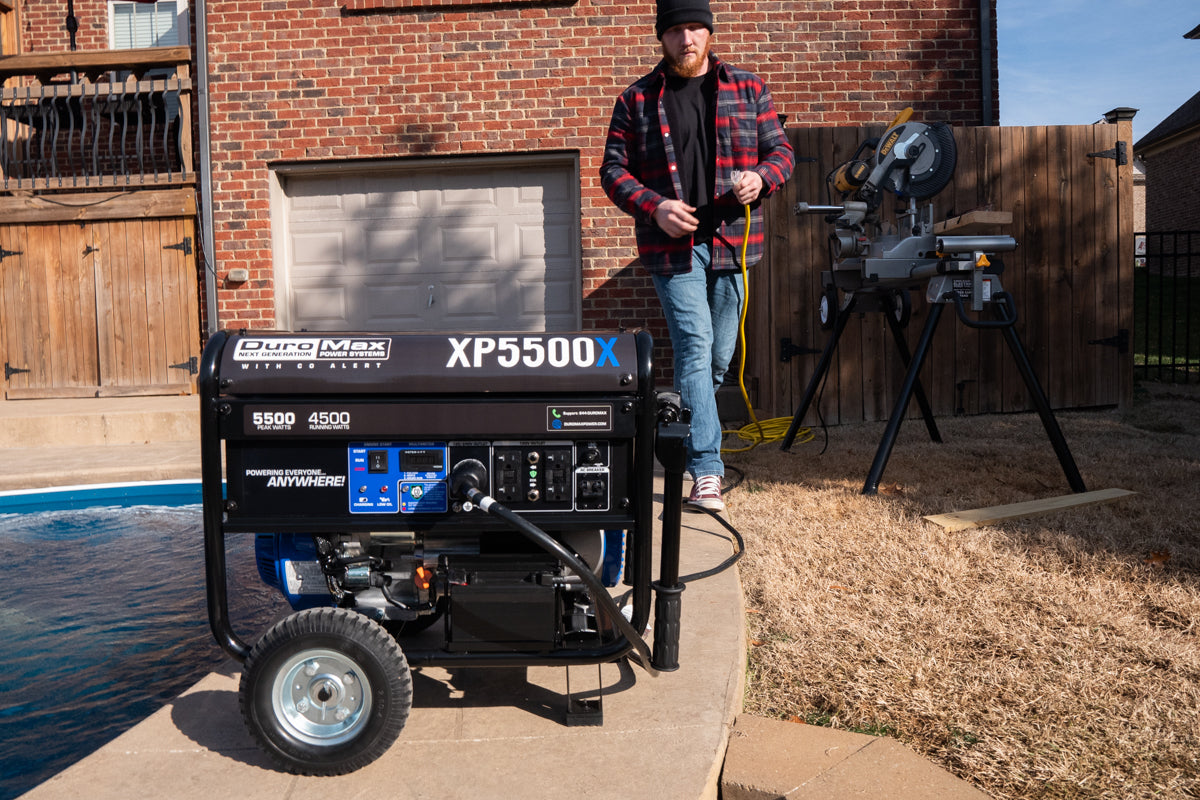

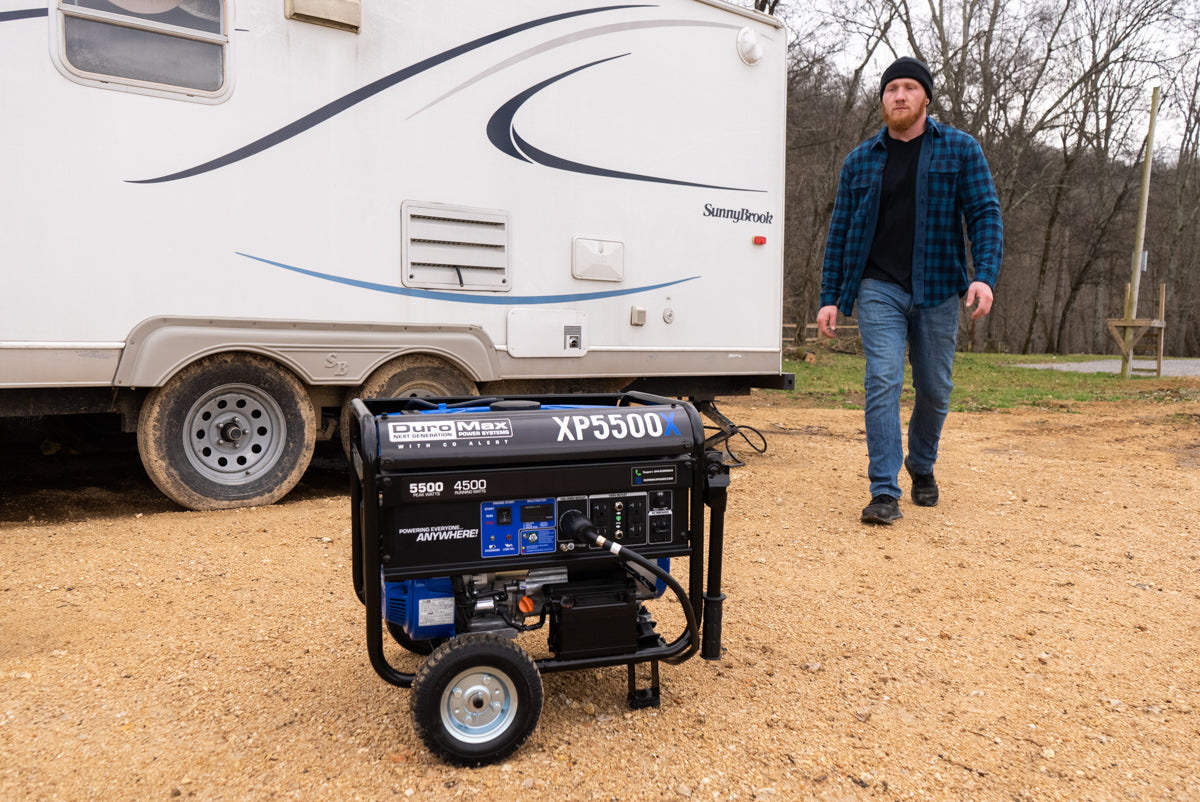

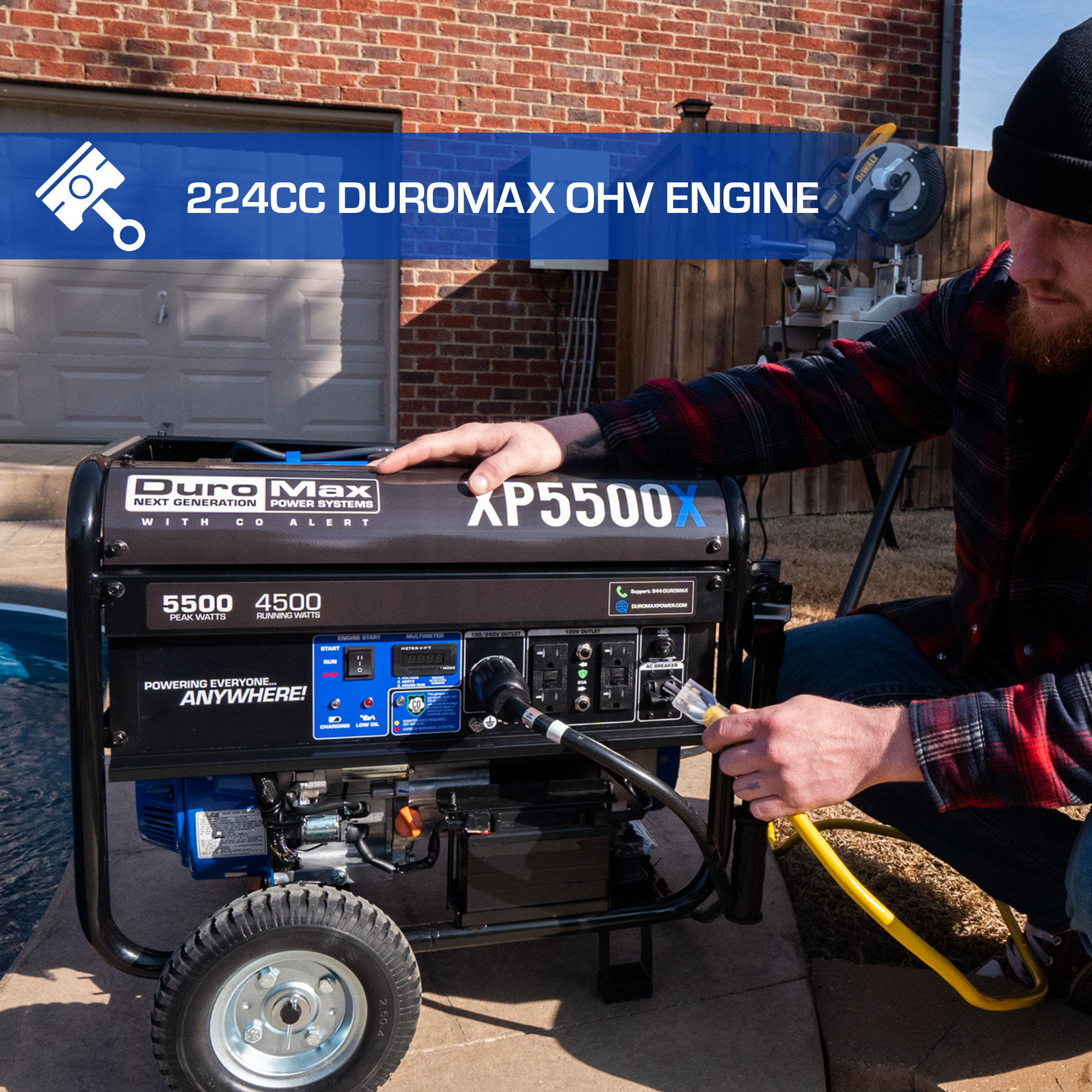

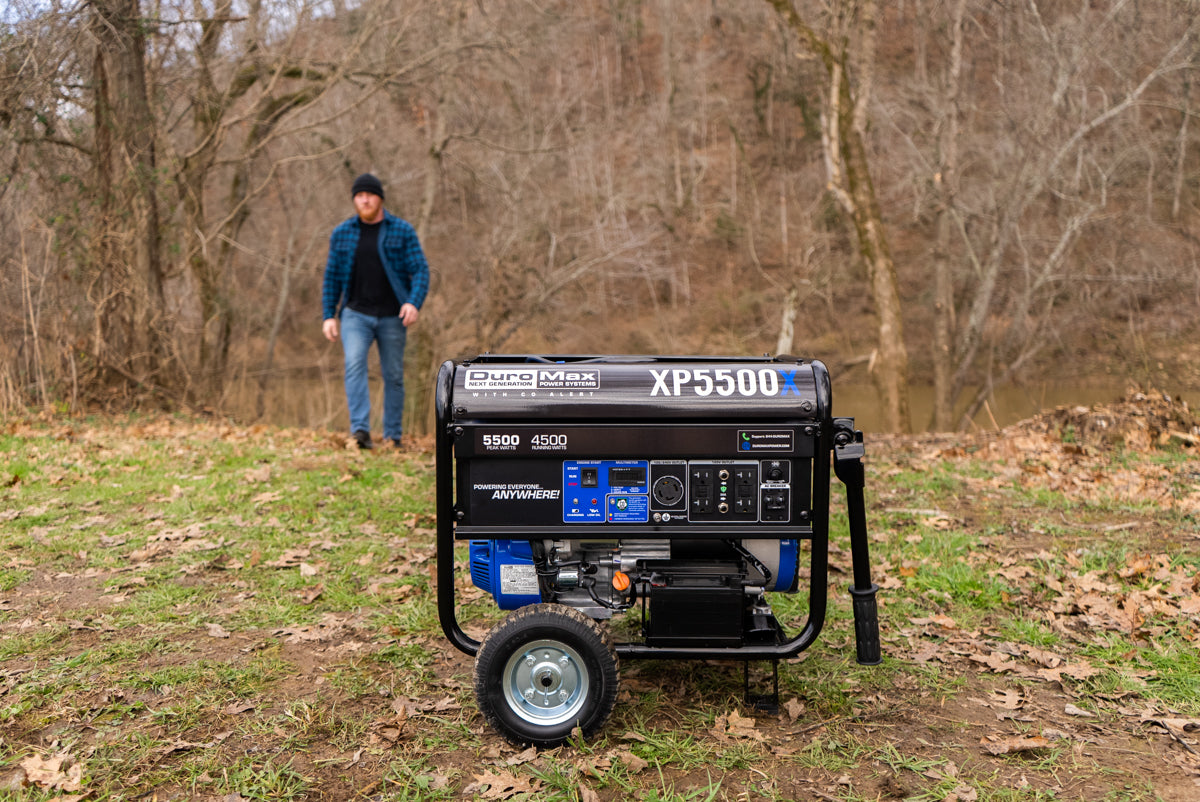

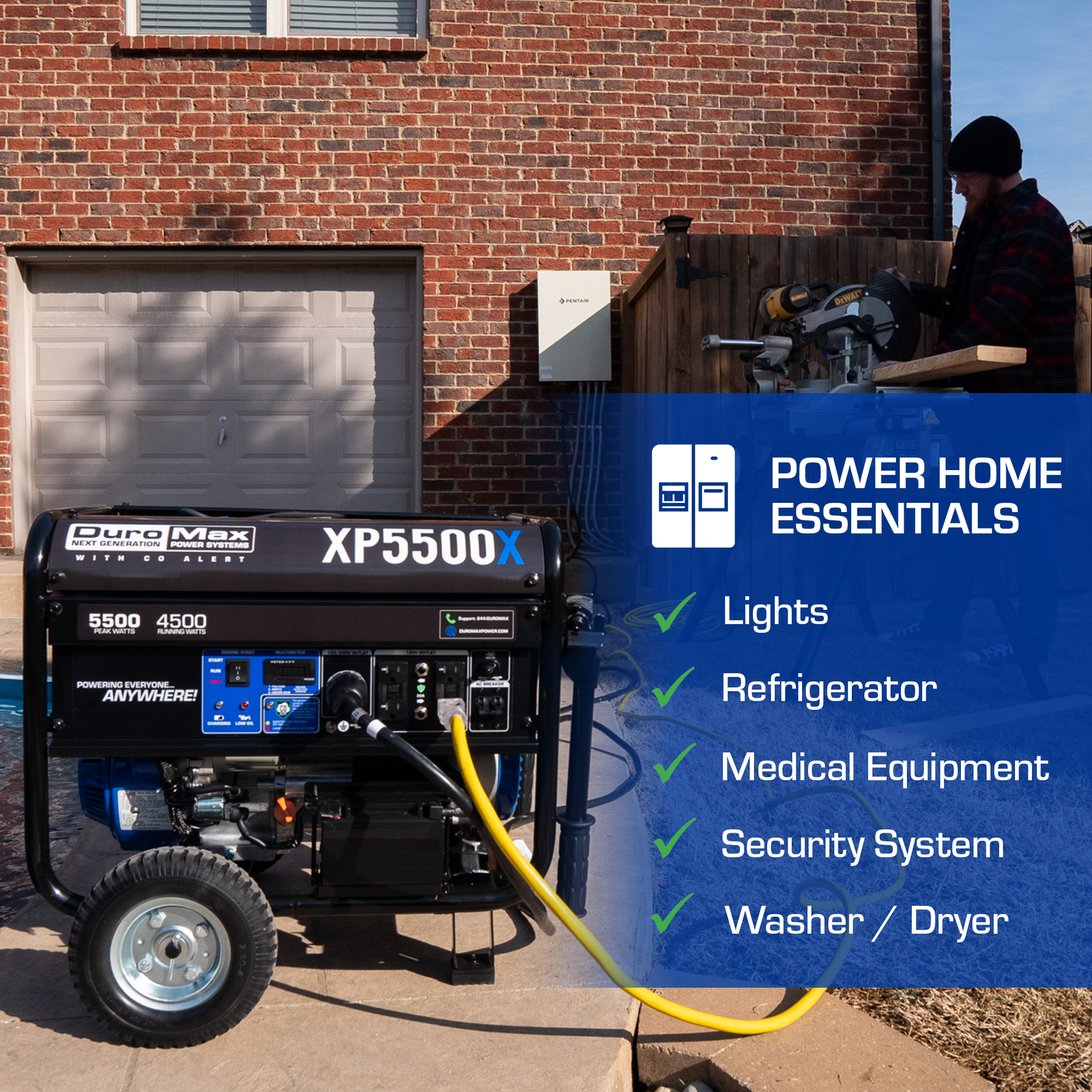

The XP5500X delivers the most power in its class, with 5,500 peak watts and 4,500 running watts. Powered by our 224cc DuroMax OHV engine, this generator is excellent for camping, RVs, power on the jobsite, and will run various household essentials such as lights and appliances when the power goes out.

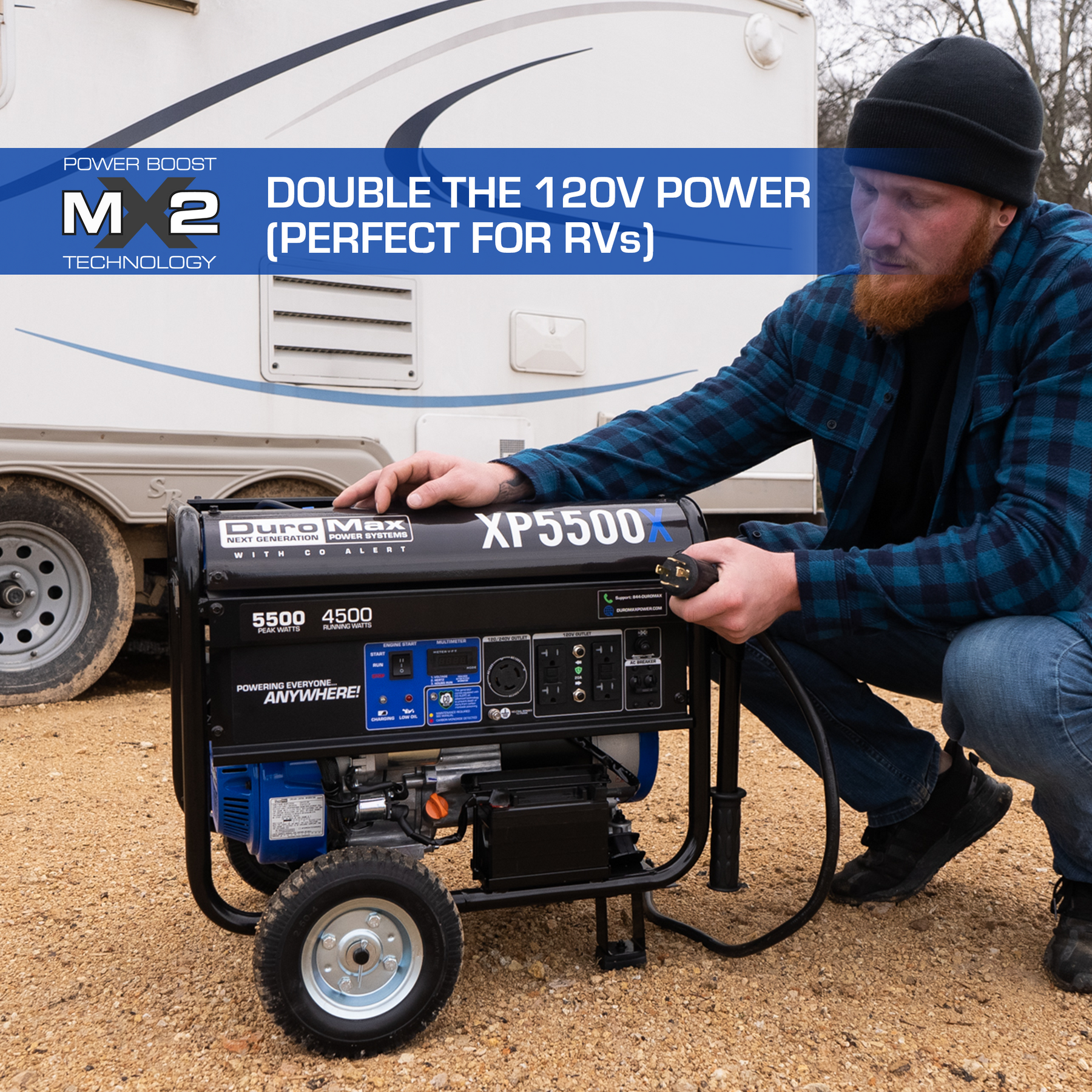

MX2 POWER BOOST
Double the 120V power for appliances & RVs.

SURGE-ARREST
Protects your generator from power surges.

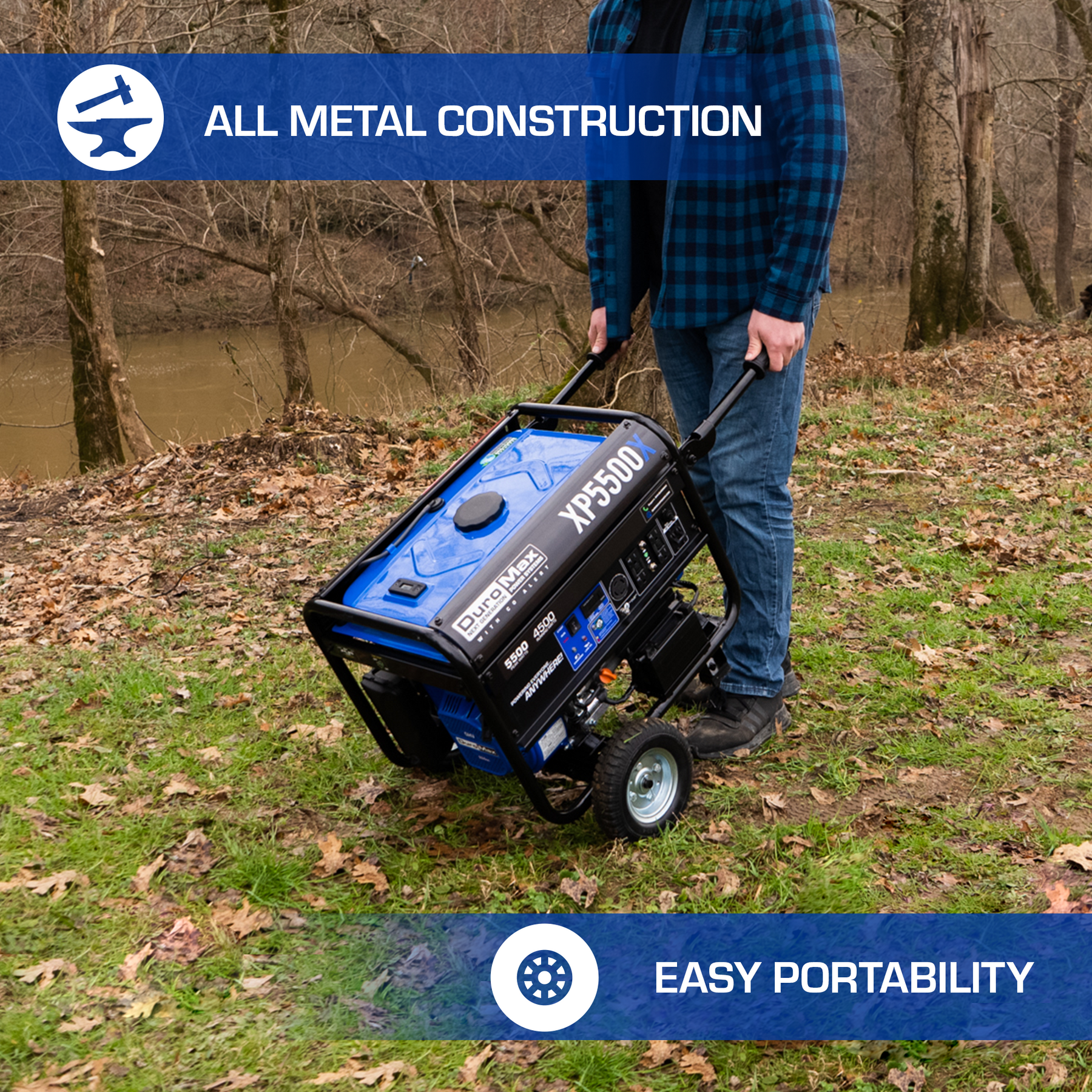

ALL METAL CONSTRUCTION
Built tough to last even on the roughest job sites.

EXTENDED RUNTIME
Up to 9 hours on a full tank of gasoline.

FEATURES

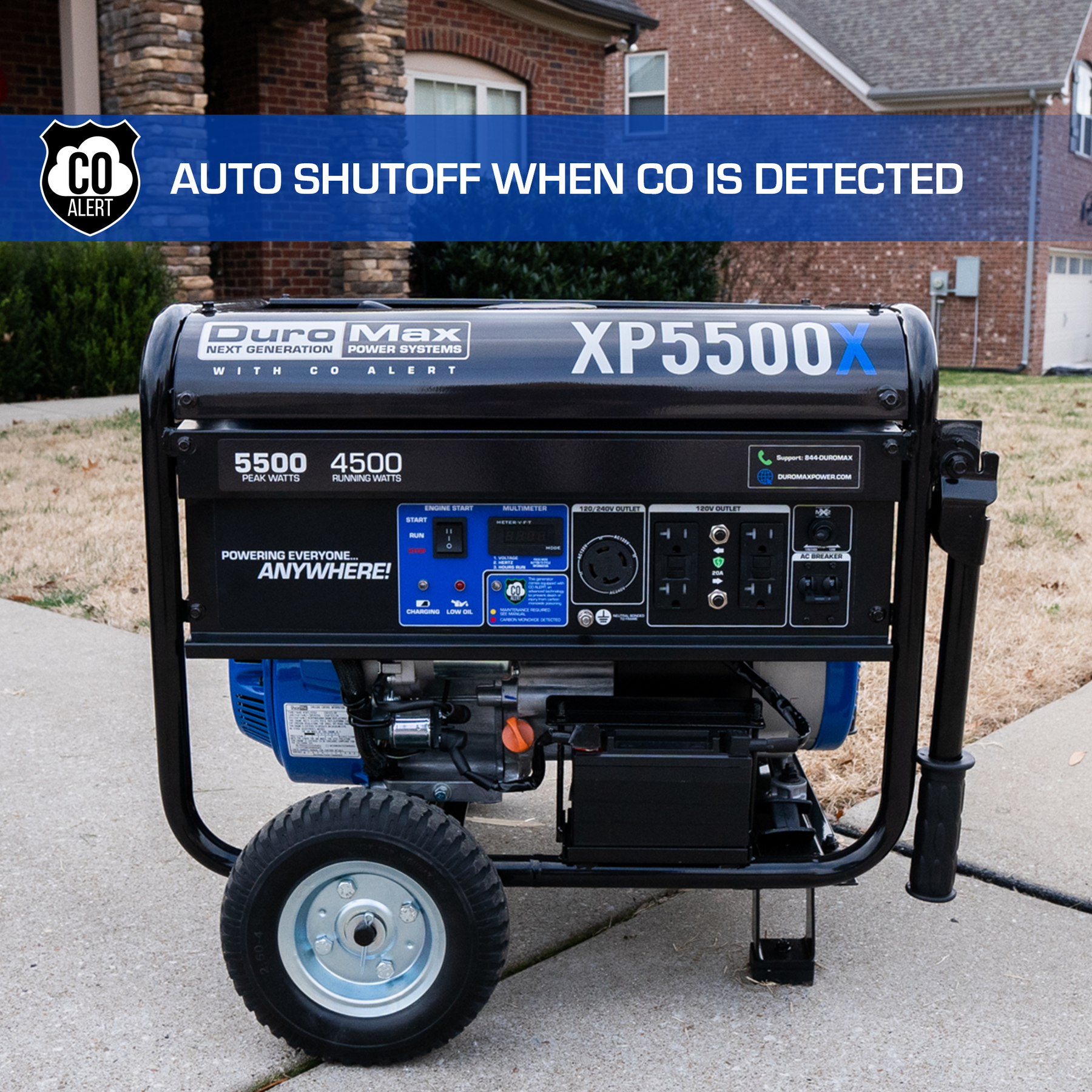

• EQUIPPED WITH CO ALERT: Protects you from harmful engine fumes by automatically shutting down the generator when an unsafe level of carbon monoxide is detected.

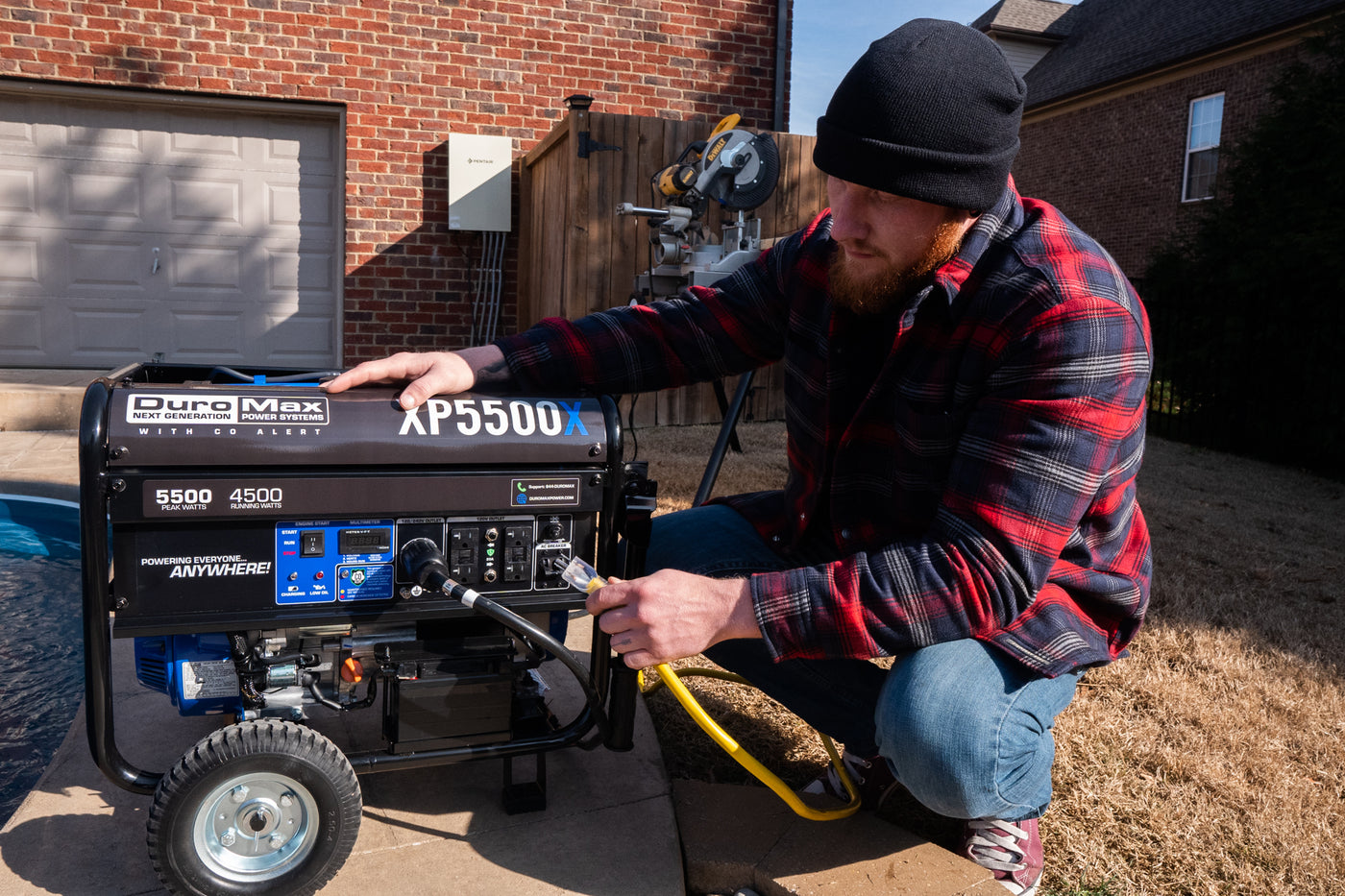

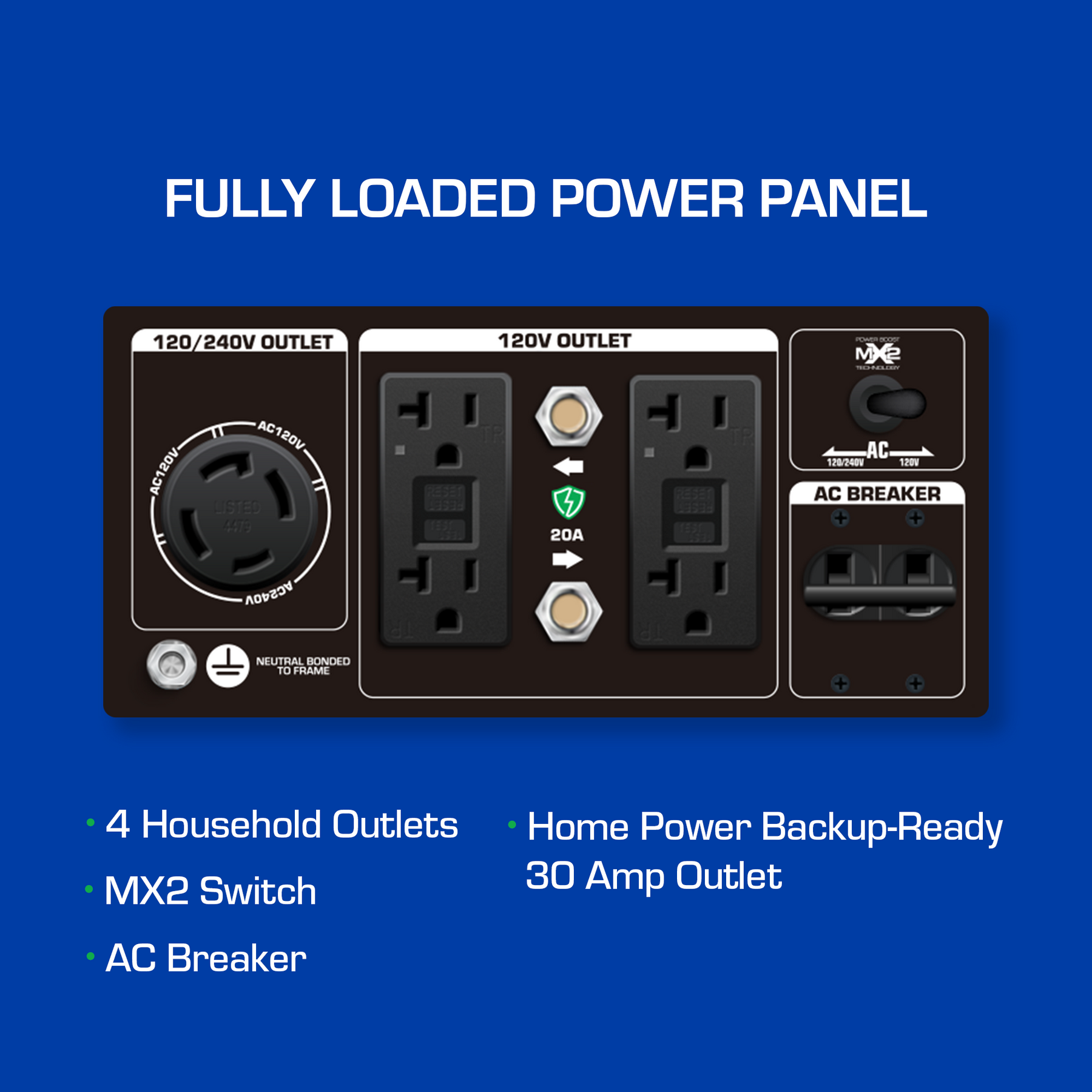

• FULLY LOADED POWER PANEL: This generator comes equipped with a fully loaded power panel with several outlets, including four 120 Volt 20 Amp GFCI outlets and one 120 / 240 Volt 30 Amp twist lock. The panel also includes individual circuit breakers, and low oil sensor.

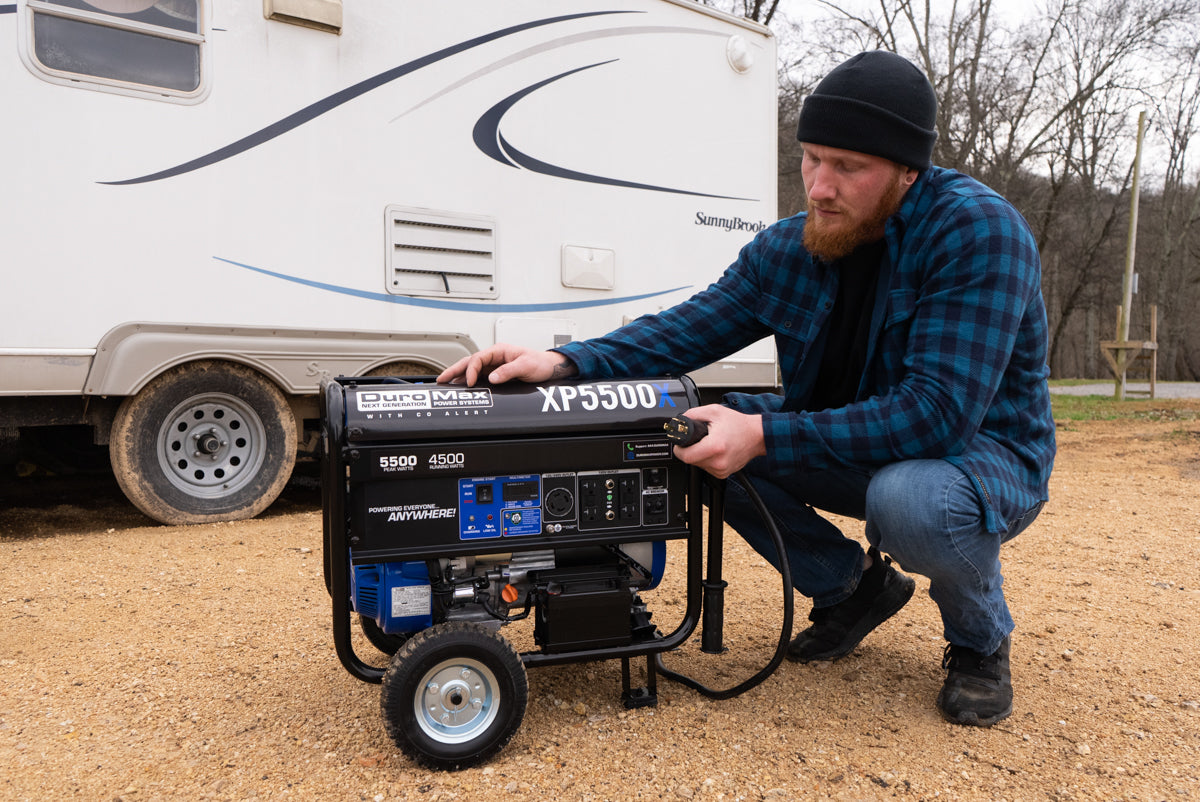

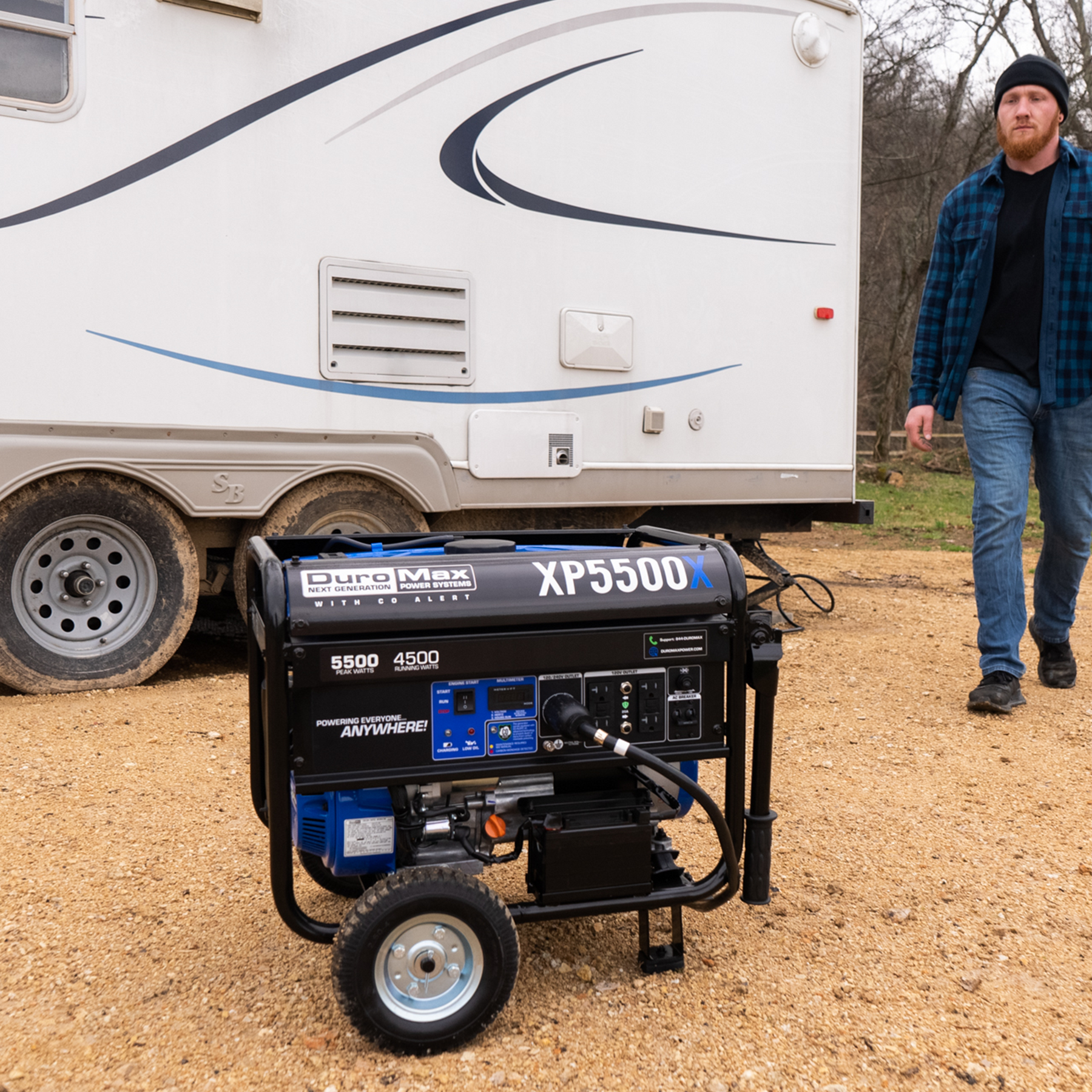

• MX2 SWITCH: Harness the generator's full power by combining the two 120-volt circuits into one powerhouse circuit. Perfect for RVs and on a job site.

• 100% COPPER WINDINGS & ALL-METAL CONSTRUCTION: Designed with high quality and durability in mind. Unlike aluminum windings, premium copper windings double the life of your generator, ensuring it lasts you for years.

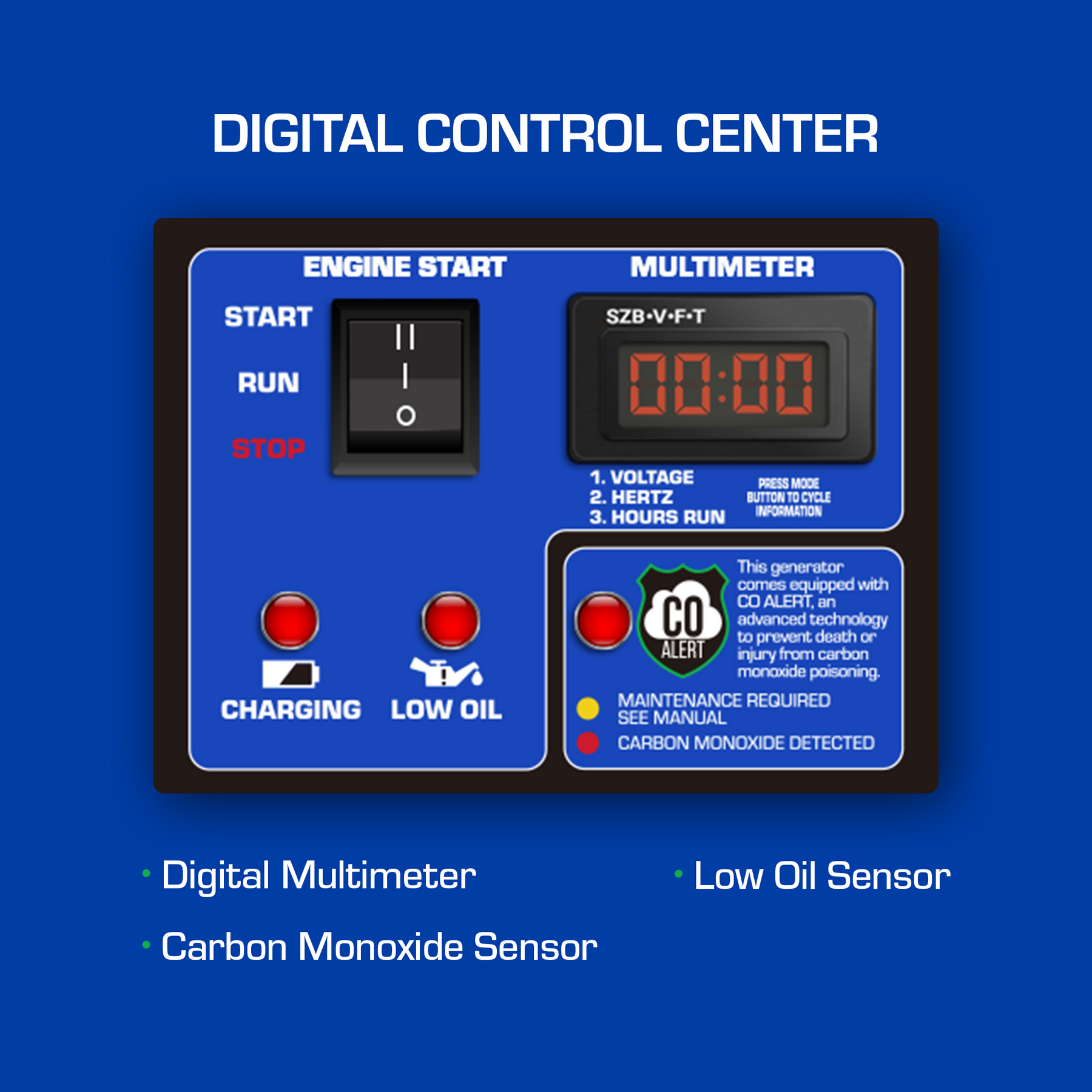

• DIGITAL CONTROL CENTER: Allows you to track voltage output, operating frequency, and maintenance hours at a glance.

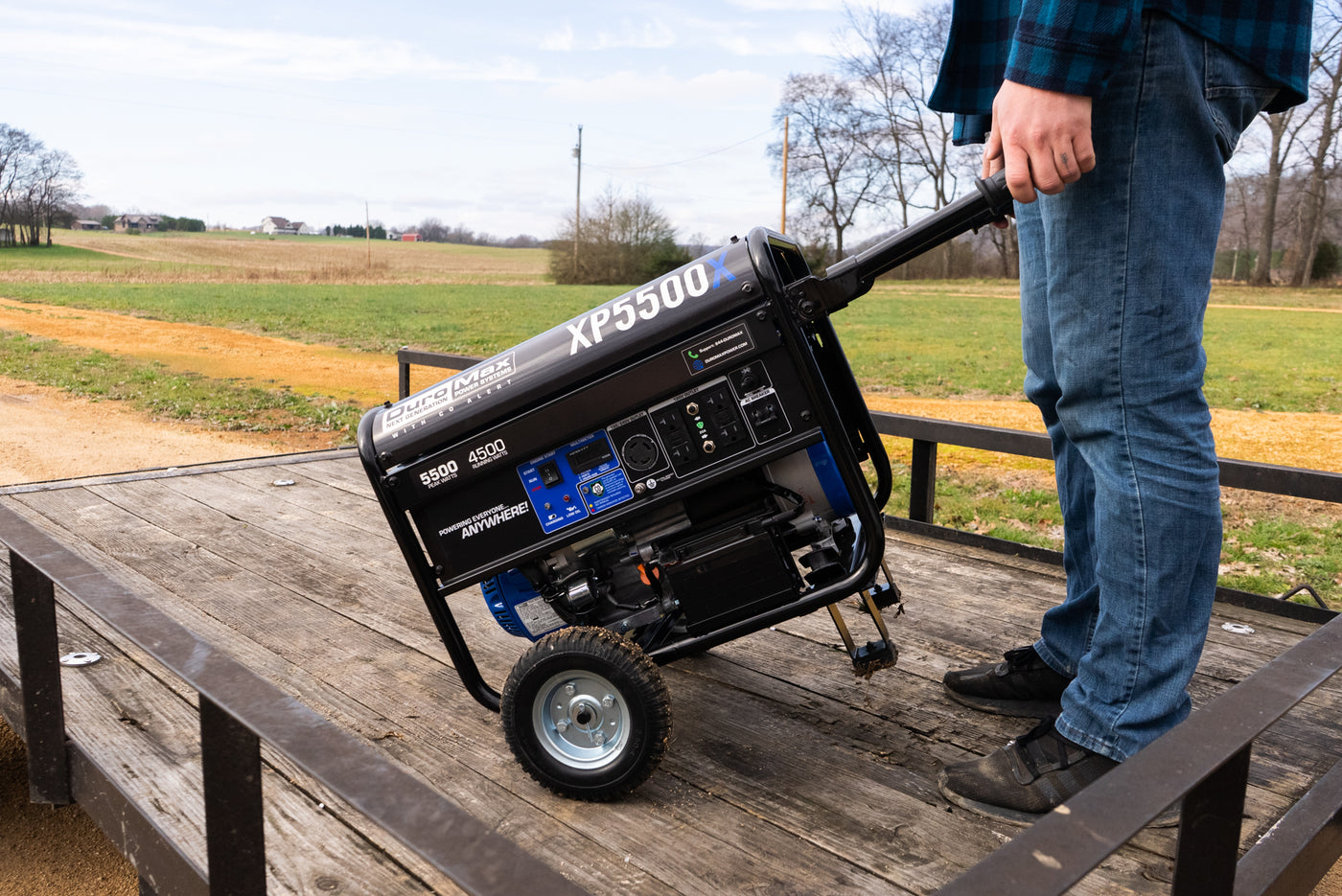

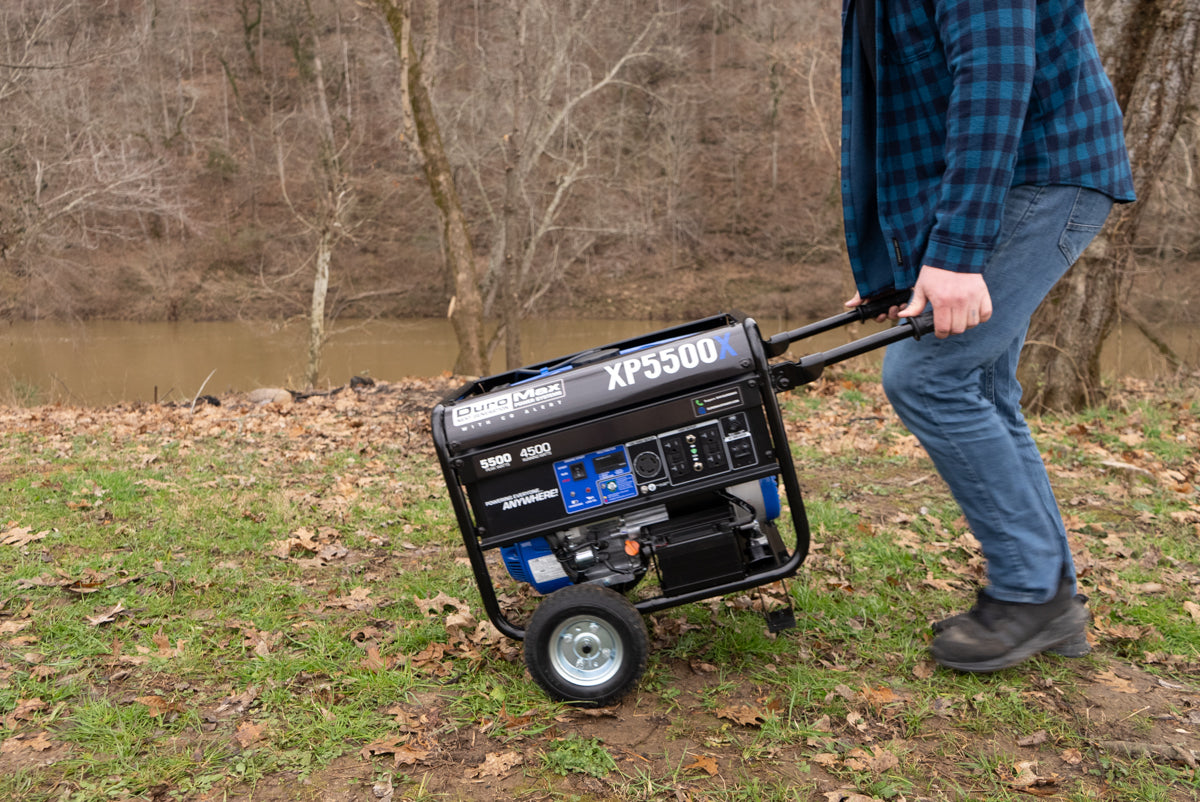

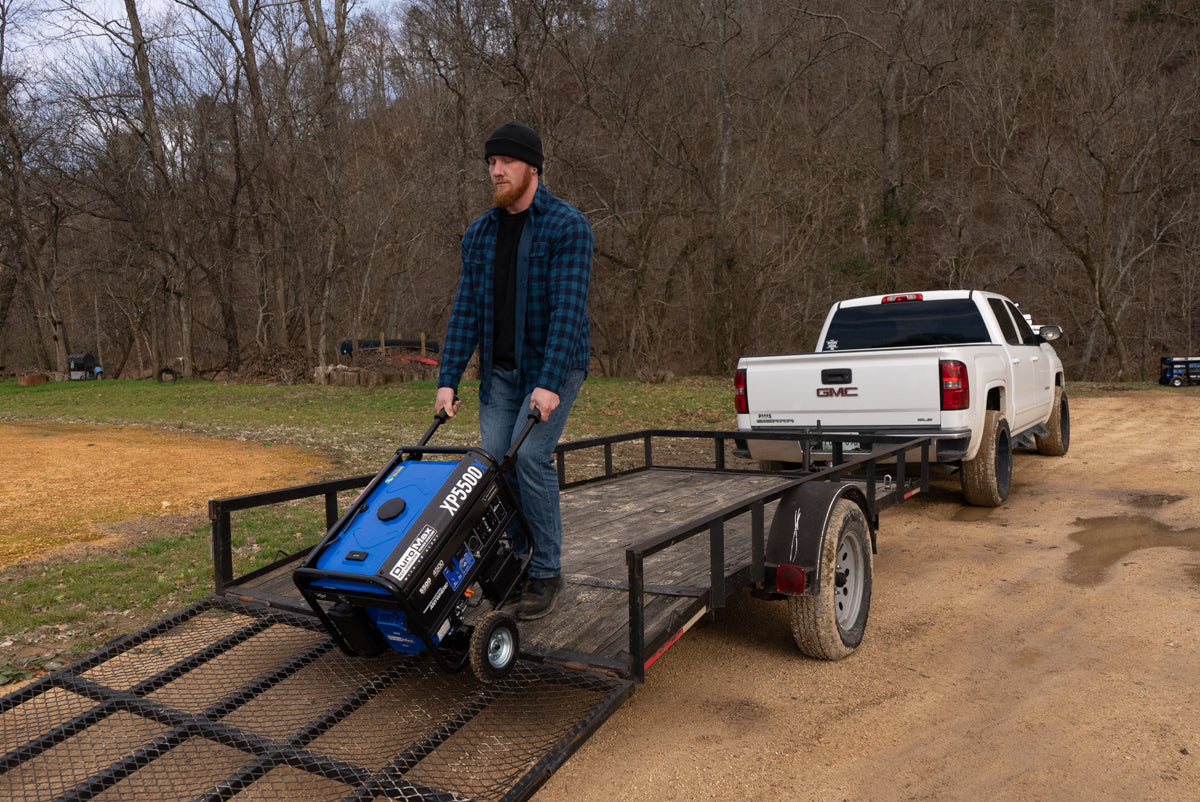

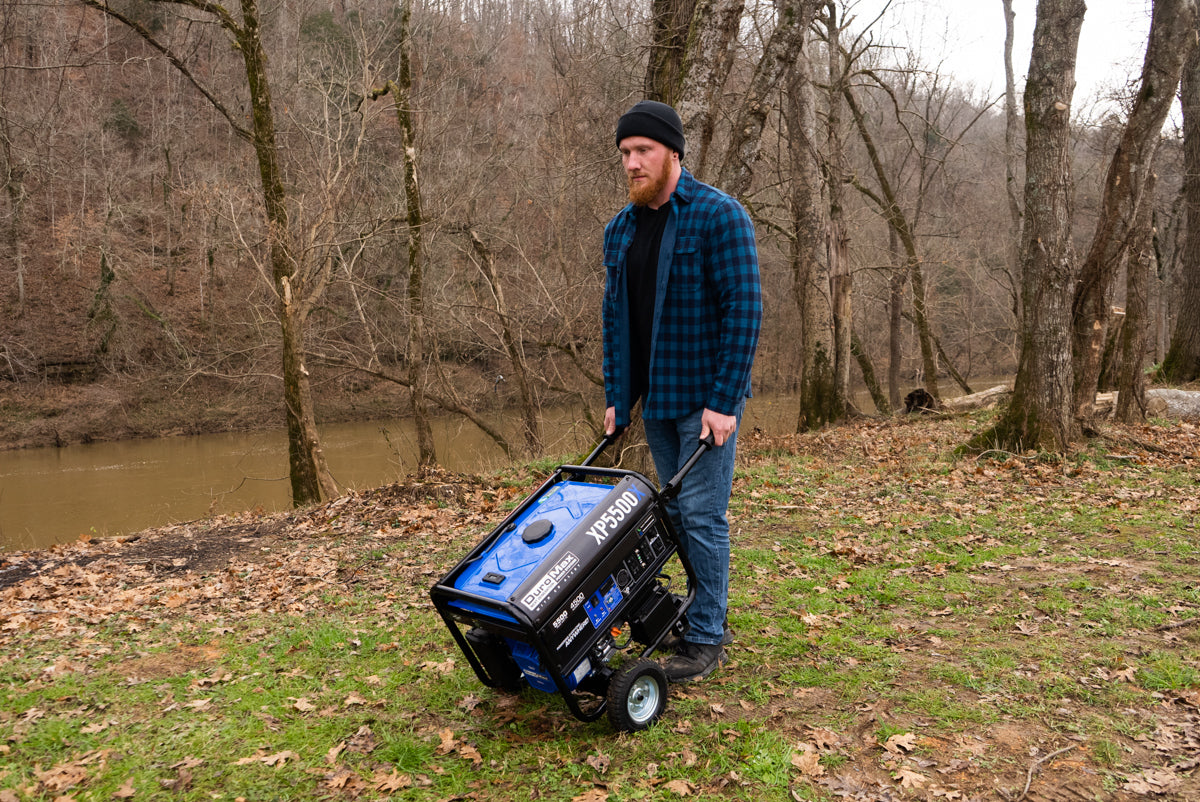

• WHEEL AND HANDLE KIT: This portable generator is easily transported over any terrain, providing power whenever and wherever you need it.

• EPA AND CARB CERTIFIED: Approved for use in all 50 states.

• 5 YEAR WARRANTY: DuroMax DX and X Series generators come with an industry-leading 5 Year Residential Warranty and lifetime customer support.

• INCLUDED IN THE BOX: Oil funnel, plug wrench, tool set, wheel kit, user manual.

OUTLETS

X4

120V 20A
GFCI Outlet

X1

120/240V 30A
Twist Lock

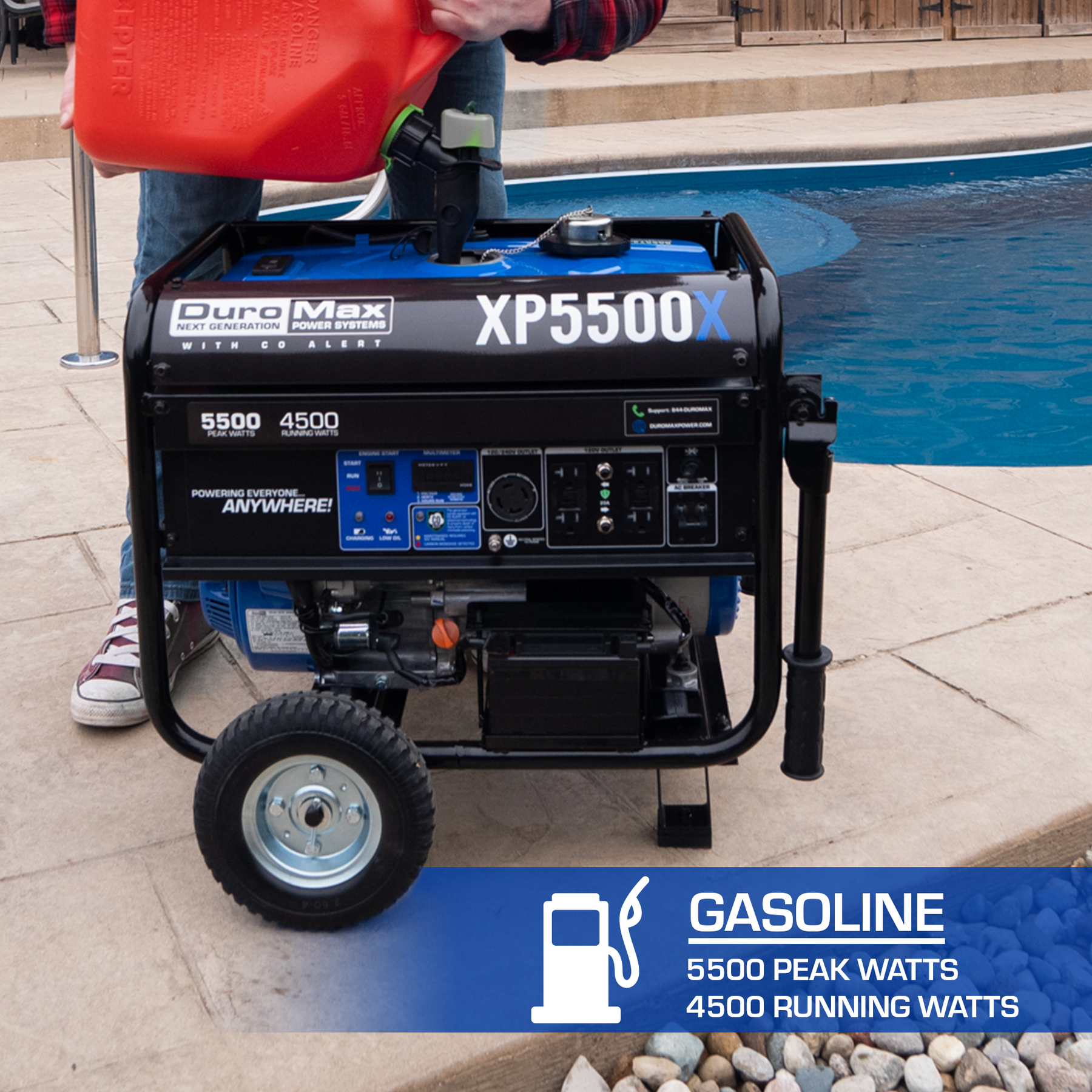

POWER SPECIFICATIONS
GASOLINE
Peak Watts
5,500
Running Watts
4,500
Peak Amps @ 120V
45.83
Running Amps @ 120V
37.50
Peak Amps @ 240V
22.92
Running Amps @ 240V
18.75

Not sure how much power you need or what these numbers mean? CLICK HERE to download our power calculator to determine your power needs

PRODUCT SPECIFICATIONS
Amperage
37.50A / 18.75A
Voltage
120V / 240VAC
Frequency
60 Hz
Engine Size
224 cc
Engine Type
4-Cycle Air-Cooled Spark-Ignition
Engine Speed
3600 rpm
Fuel Type
Gasoline
Fuel Tank Capacity (Gasoline)
4 gal
Runtime (Gasoline) at 50% Load
8.92 hrs
Start Type
Electric / Recoil
Volume Level
69 dB
EPA Certified
Yes
CARB Certified
Yes
Product Dimensions
27" L x 20" W x 19" H
Product Weight
135 lbs
UPC
811640016555
INCLUDED IN THE BOX

Oil Funnel

Spark Plug Wrench

Tool Set

Wheel & Handle Kit

Owner's Manual
DOWNLOAD PDF
