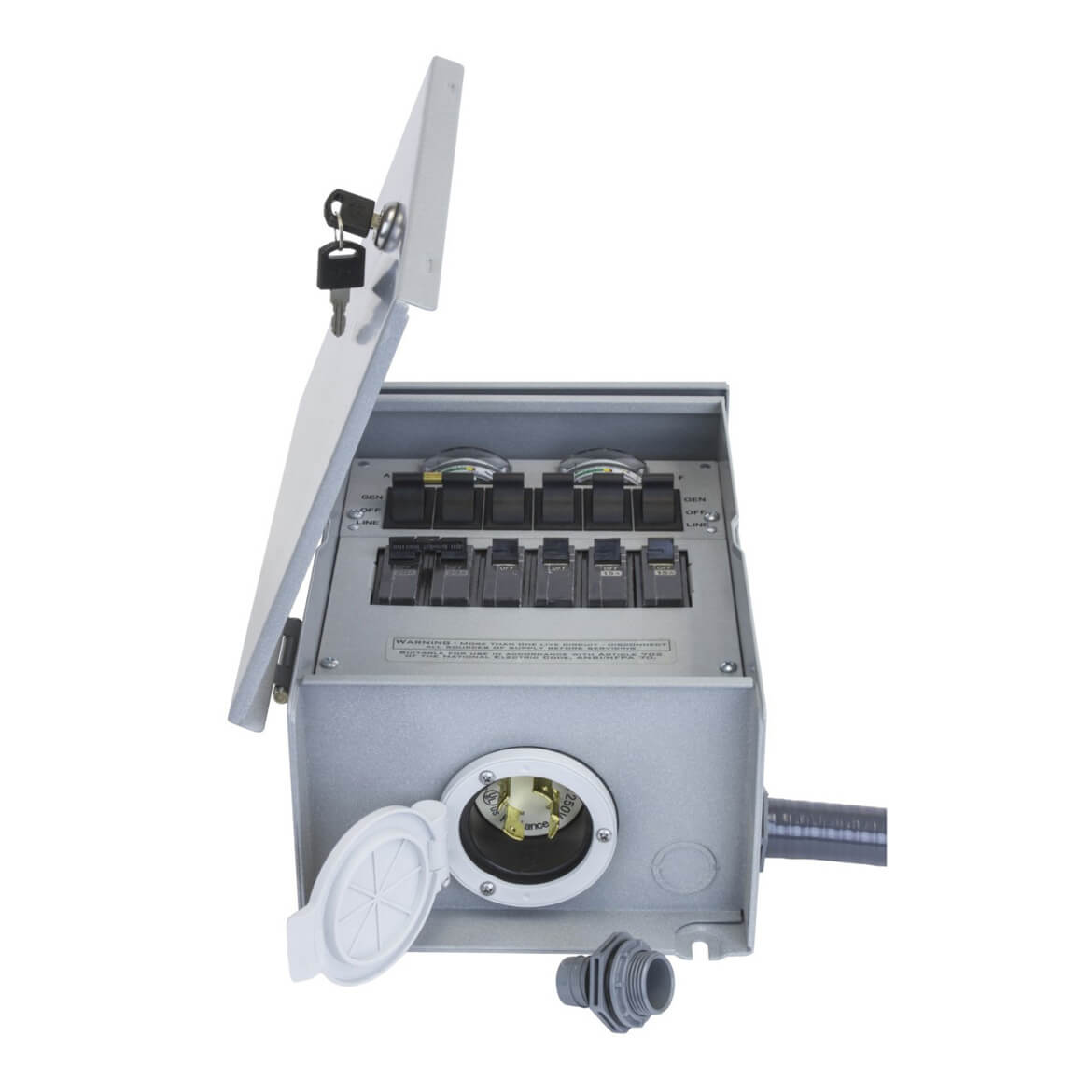

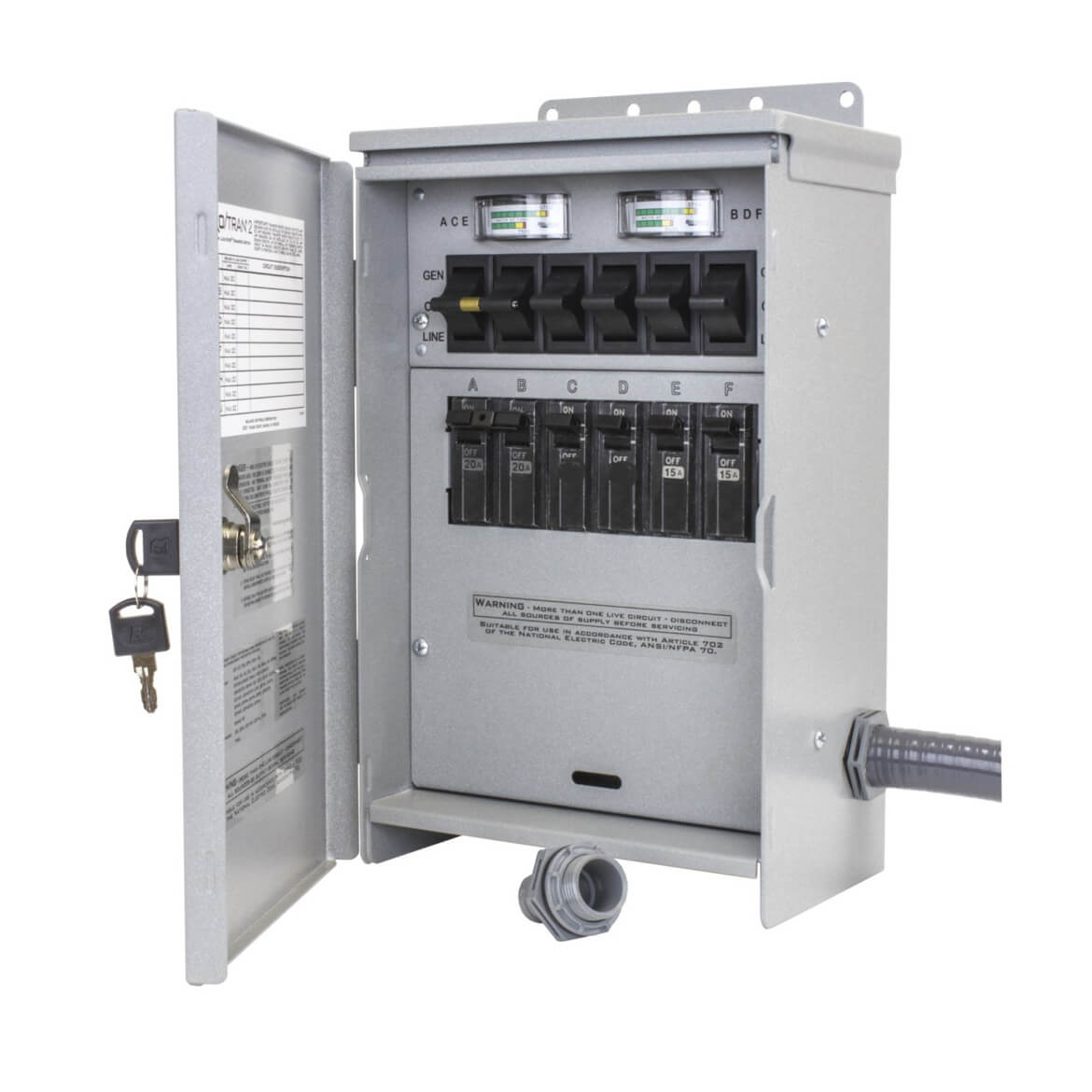

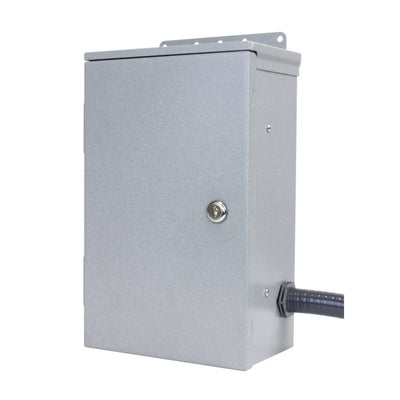

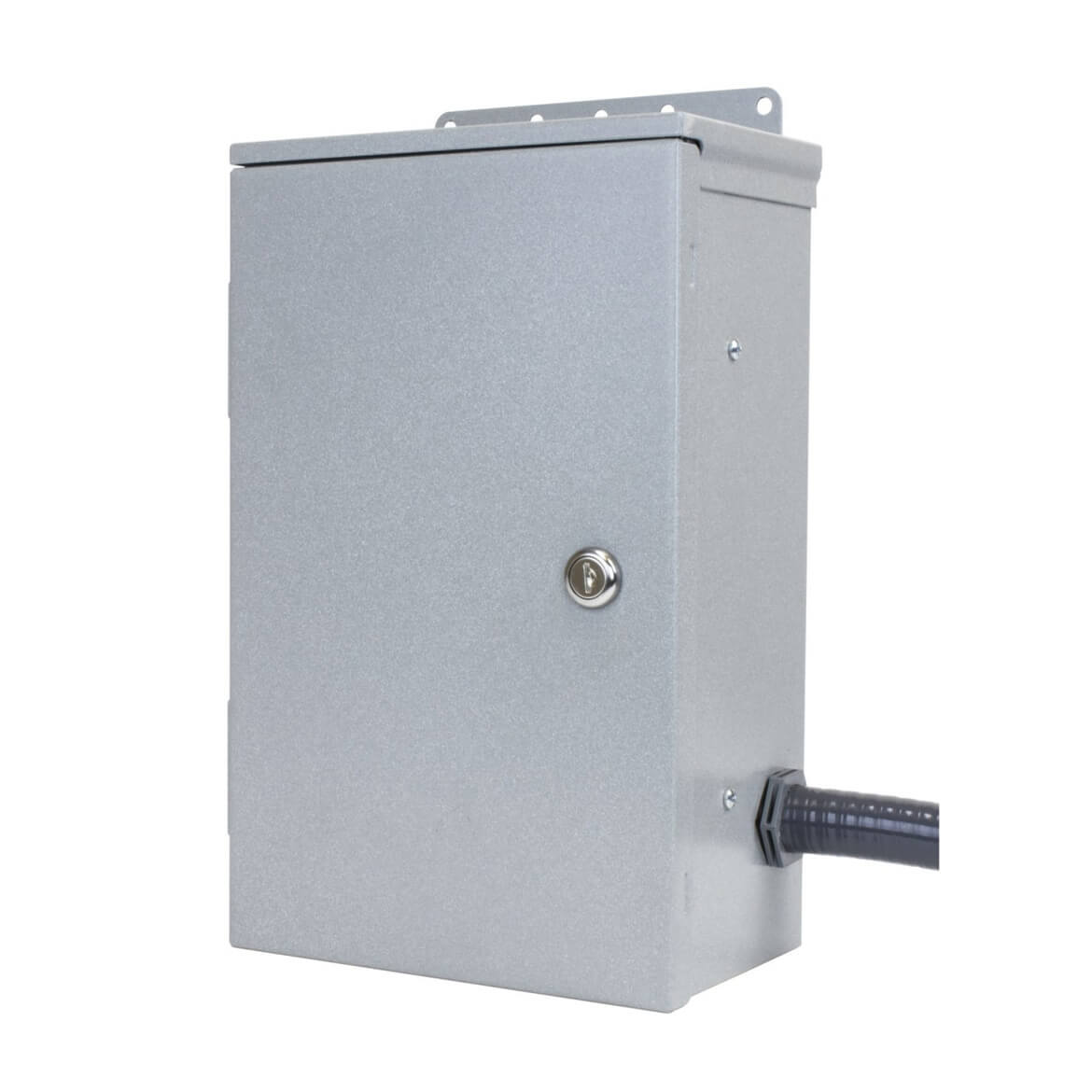

Reliance R206A 120/240-Volt 20-Amp 6-Circuit Pro/Tran Outdoor Transfer Switch
Videos and 360° View
Product Images
- Details
- Details
- Support
- Reviews
Features
- Pro/Tran 2 20A 6-Circuit 120/240V Outdoor Manual Transfer Switch
- The next generation of Loadside manual transfer switches
- Non-Defeatable (Break-Before-Make) Double-Throw Switch
- Eliminates dangerous backfeeds and electrical overloads
- (4) 15A 1-Pole and (1) 20A 2-Pole; Easily re-configured in the field
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manage generator load
- Factory Installed (L14-20) Power Inlet w/ Flip-Lid
- Easily connect your generator cord on bottom of switch
- NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
- Gasketed design, provides liquid tight protection in all seasons
- Key lockable door prevents tampering and unauthorized use
- 16 Flexible, Non-Metalic Liquid-Tight Conduit (1) w/ Fittings
- (5) Combination 1/2 and 3/4 knockouts for easier installation
- Factory-marked, color-coded wires simplifies installation
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box
- 120/240-Volt 20-Amp 6-Circuit Outdoor Transfer Switch - R206A
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | R206A |
| Brand | Reliance |
| Voltage | 120/240 |
| Max. Wattage | 5,000 |
| Frequency | 60 Hertz |
| Max. Generated Input (Amps) | 20 |
| Conduit Length (in.) | 16 |
| Circuits | 4 - 15A/120V
1 - 20A/240V |
| Circuit Breakers | 6 |
| Weight (lbs.) | 18 |
| Dimensions (LxWxH) (in.) | 13 x 8 x 5
(33.02 x 20.32 x 12.70 cm) |
R206A
$324.99
