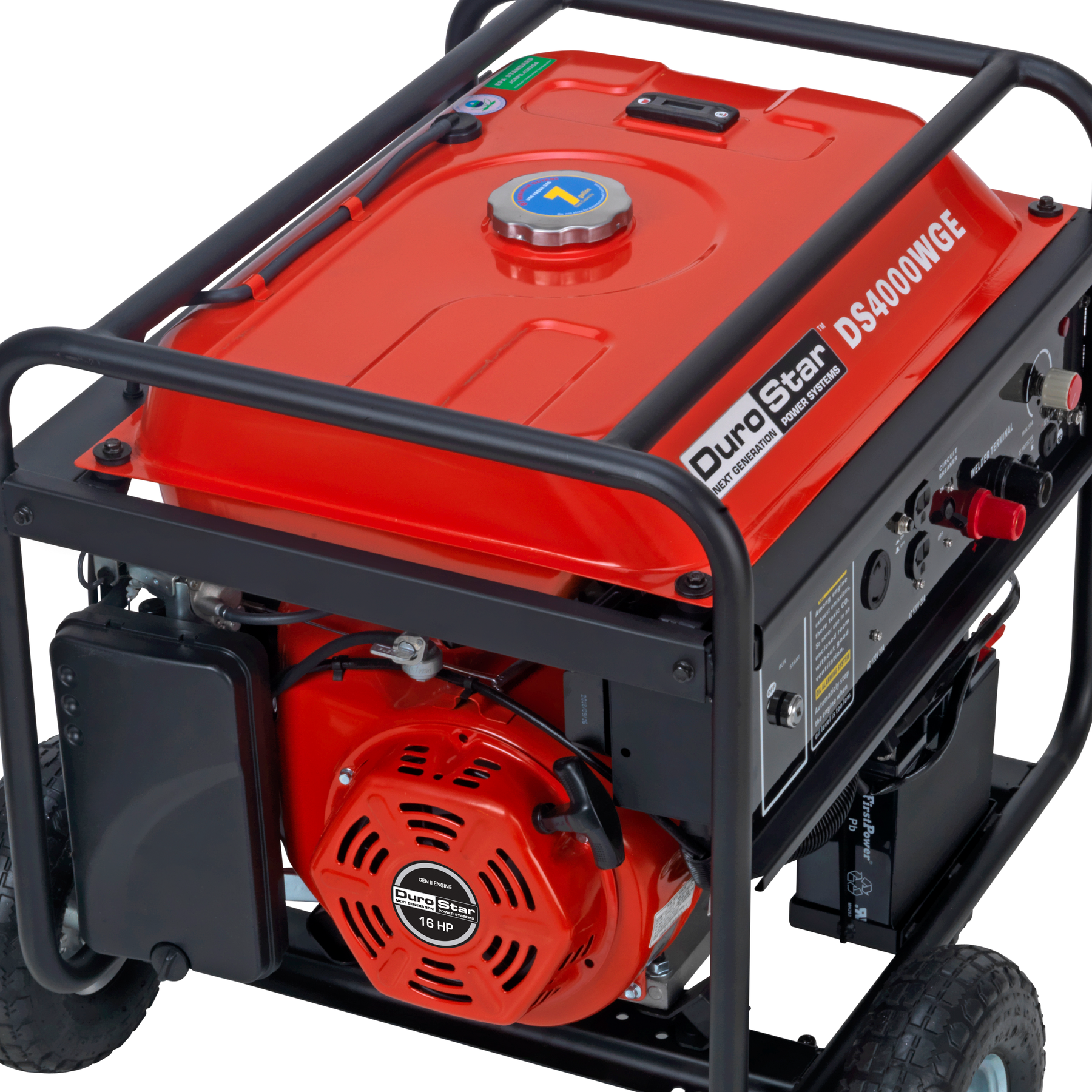

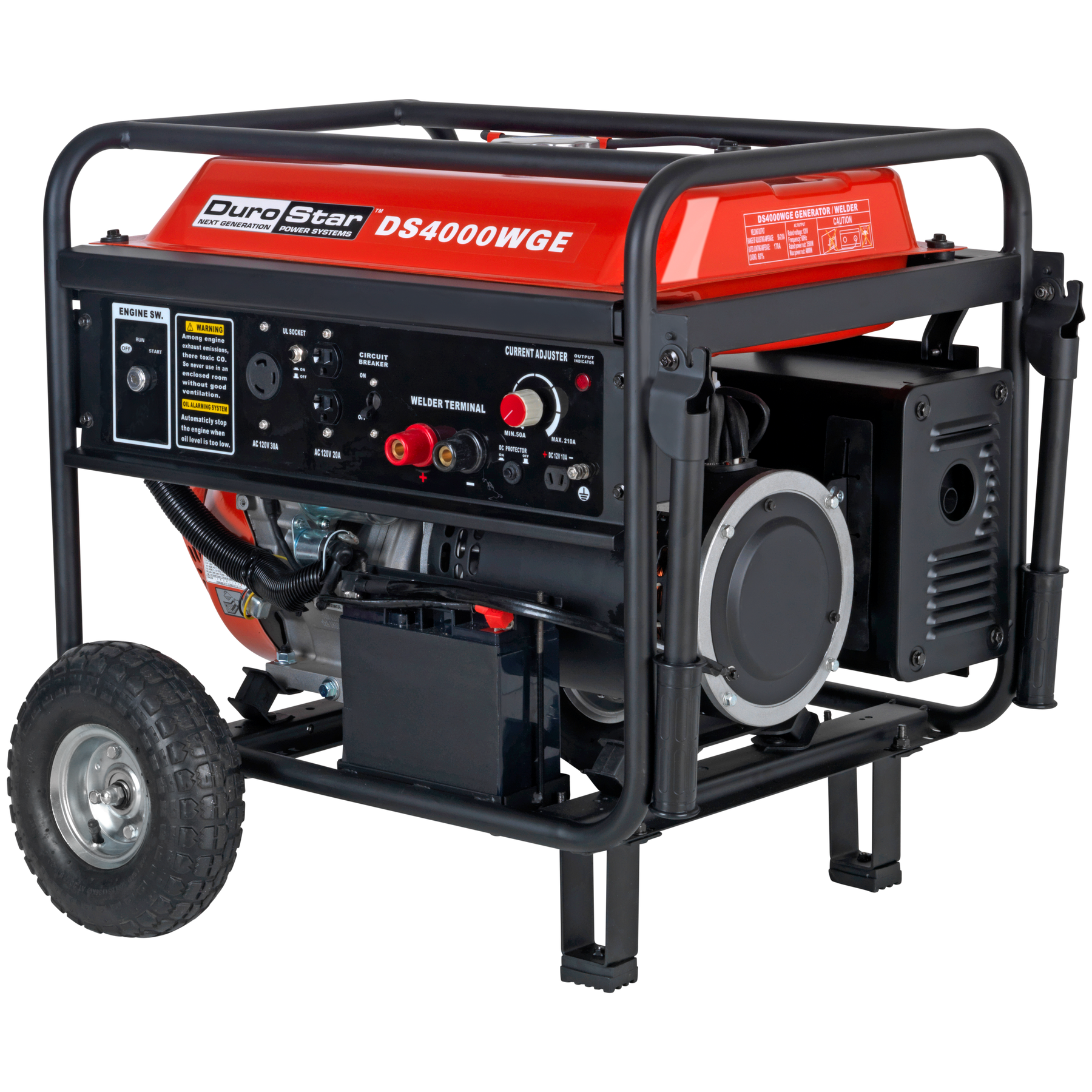

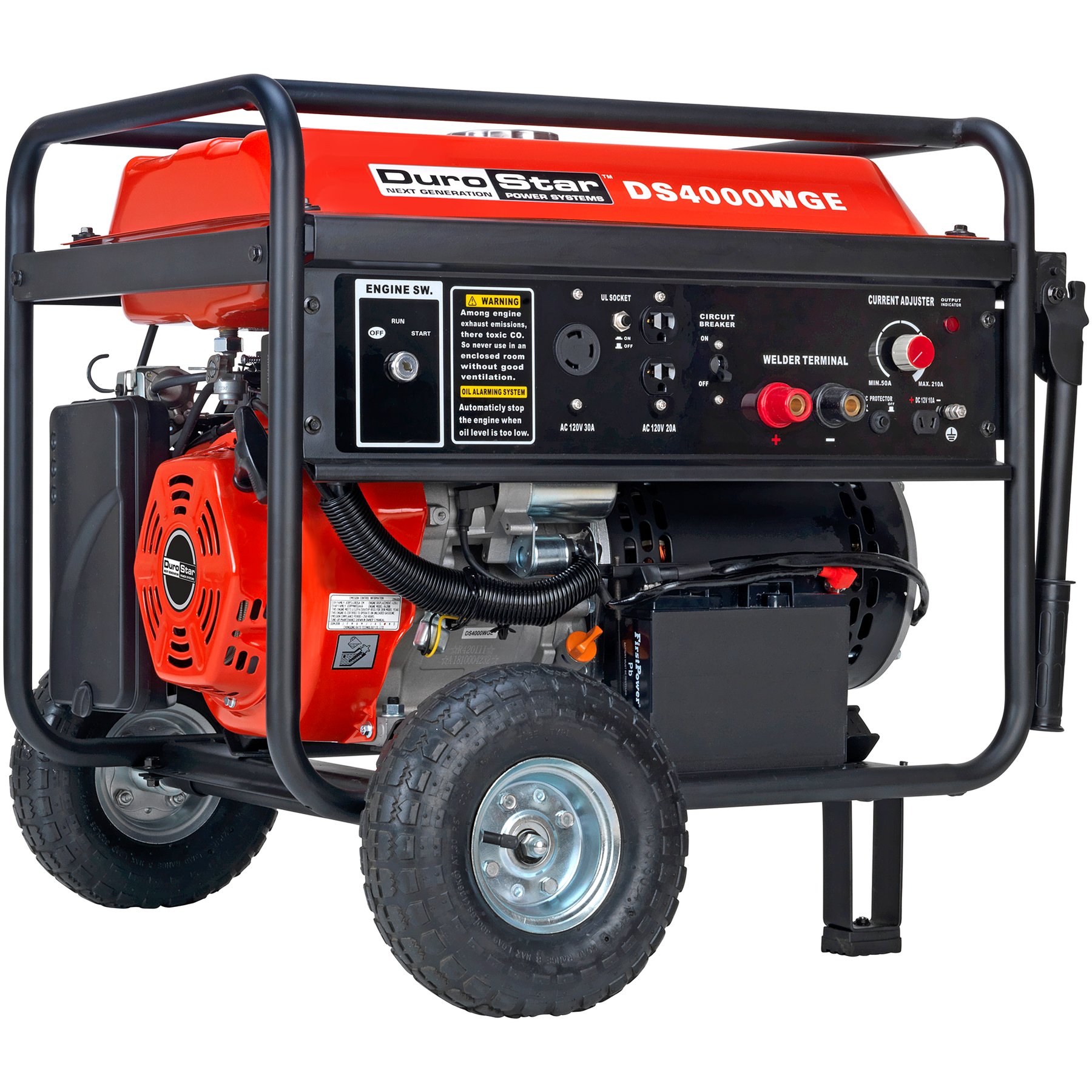

DuroStar DS4000WGE 420cc 210 Amp Portable Welding Generator

DS4000WGE

The power arc welder doubles as a 4000 watt Power Generator. It is designed for stick welding with quick and easy arc starts. Ideal farm/ranch, maintenance, construction, homeand even emergency power outages.

SURGE-ARREST
Protects your generator from power surges.

ALL METAL CONSTRUCTION
Built tough to last even on the roughest job sites.

EXTENDED RUNTIME
Up to 8 hours on a full tank of gasoline.

FEATURES

Plenty of Power – Powerful ARC Welder Doubles as a 4000 watt Power Generator.

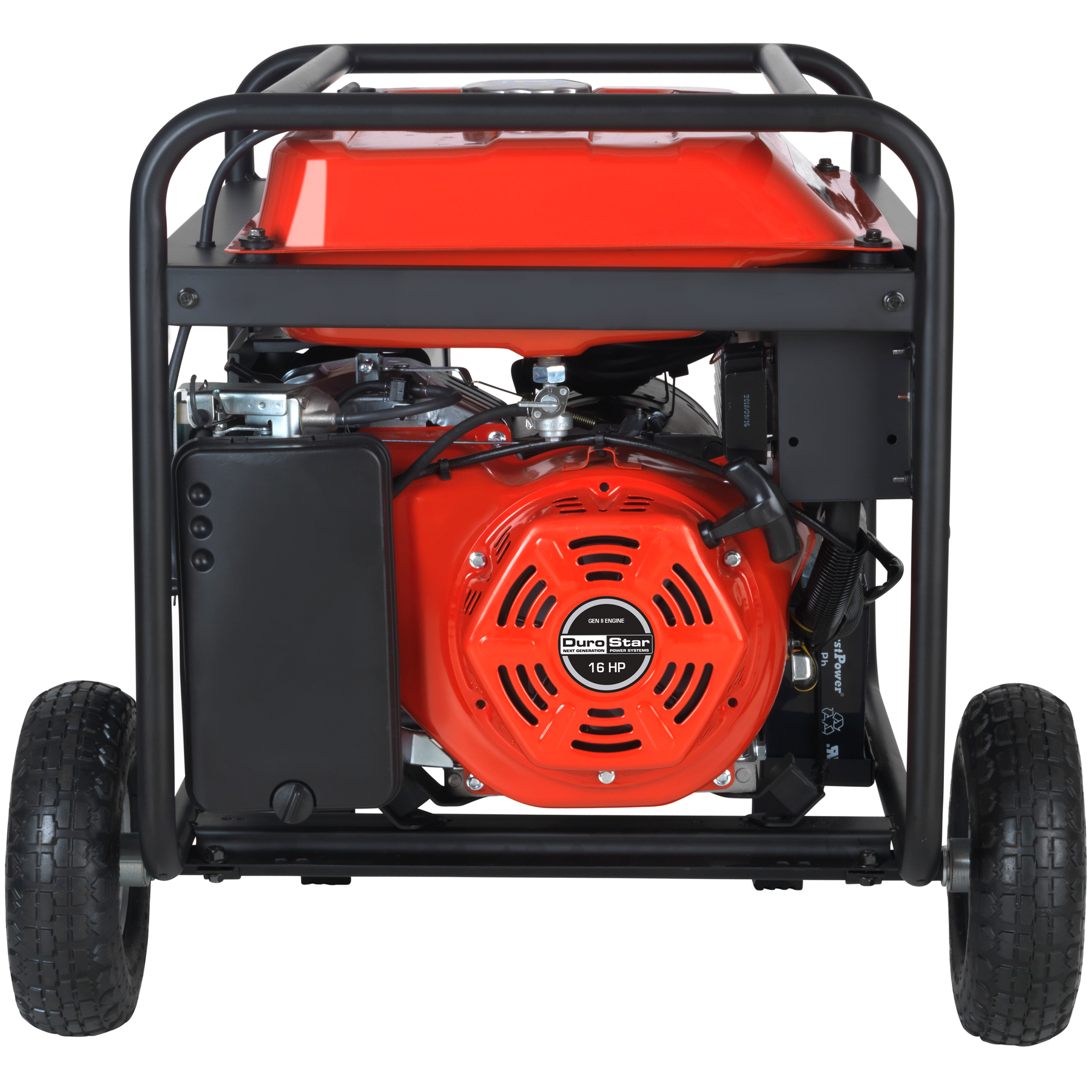

Powerful Engine – The DuroStar 420cc OHV engine is a workhorse that provides plenty of power to handle multiple jobs from powering high voltage appliances to heavy duty power tools.

Low Oil Shutoff – Protects your investment by automatically shutting the generator off when it senses that the oil is low.

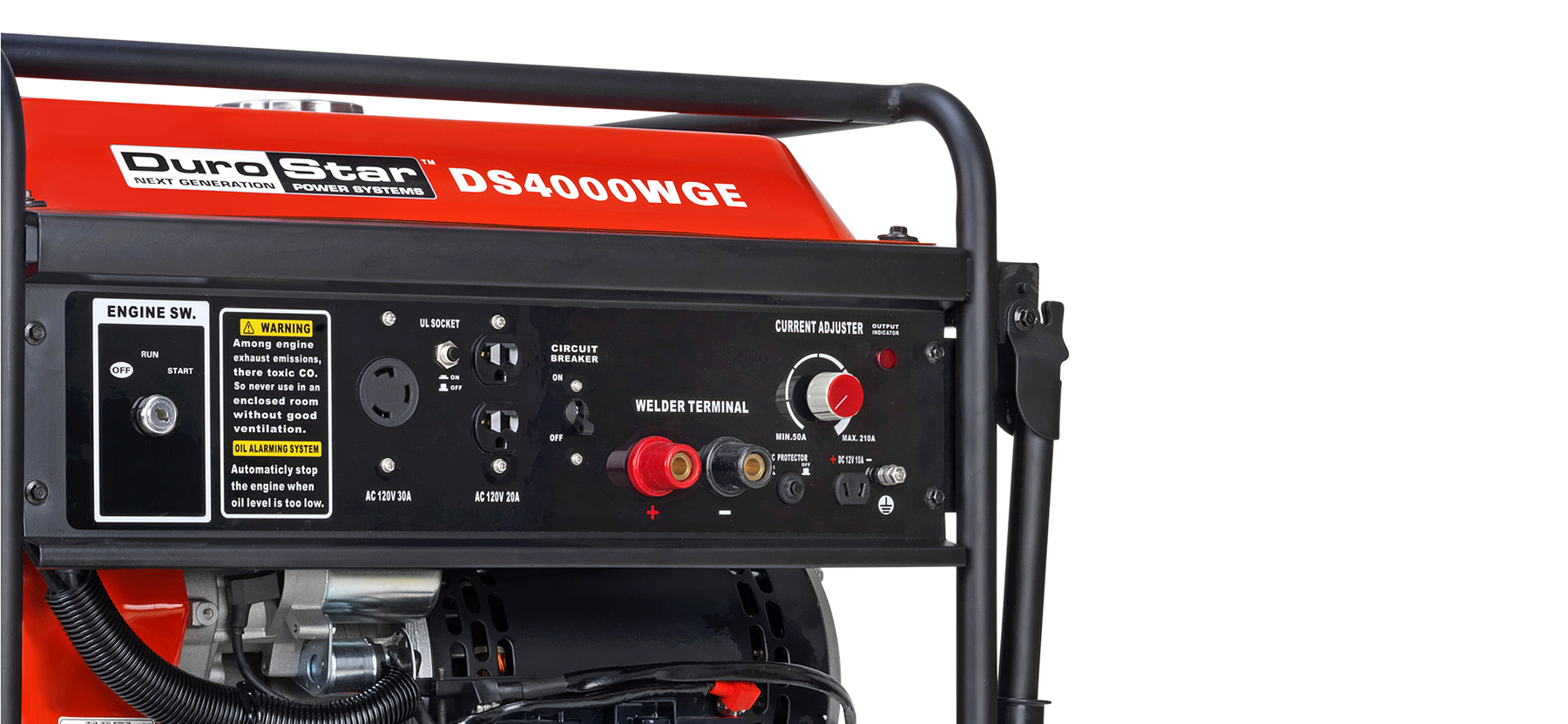

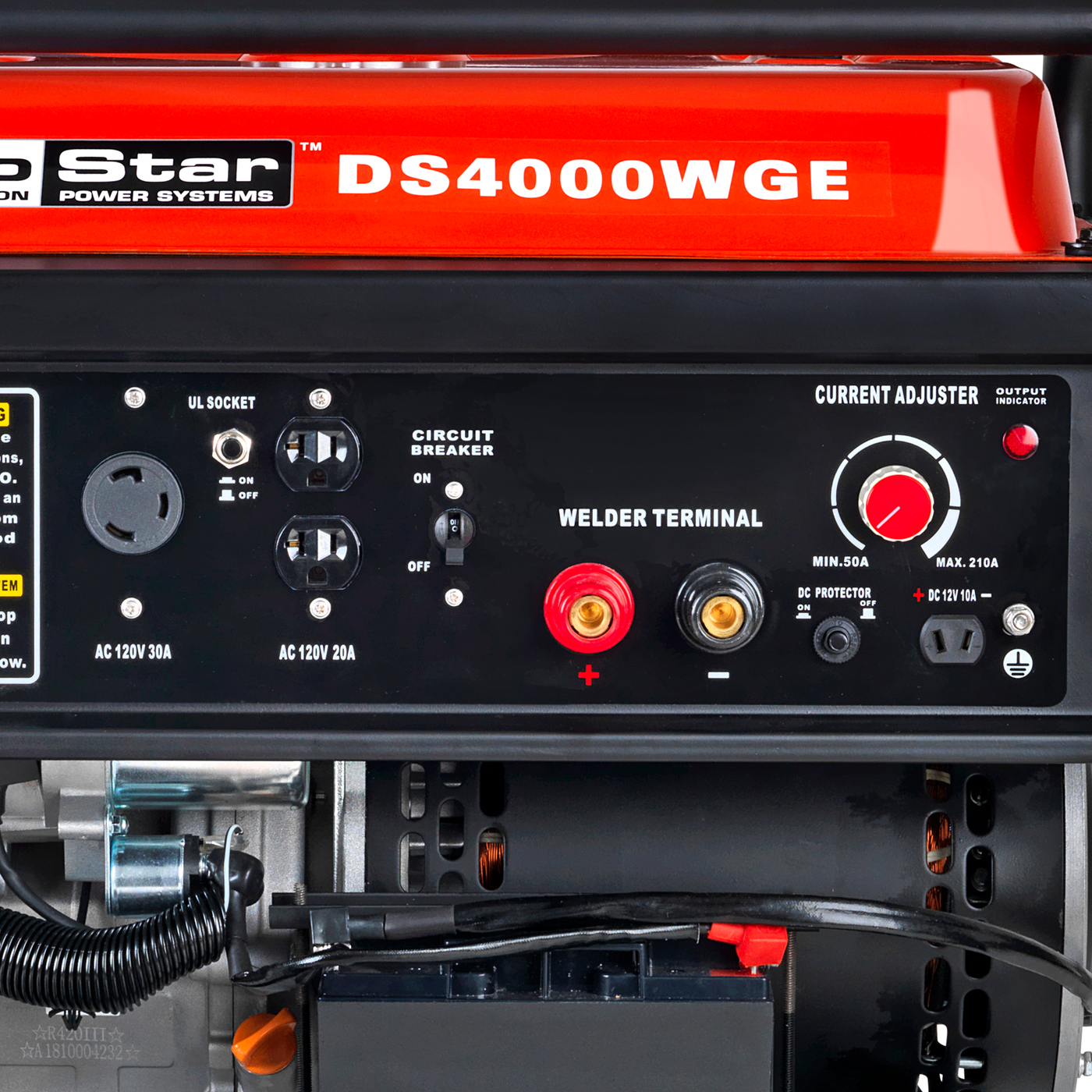

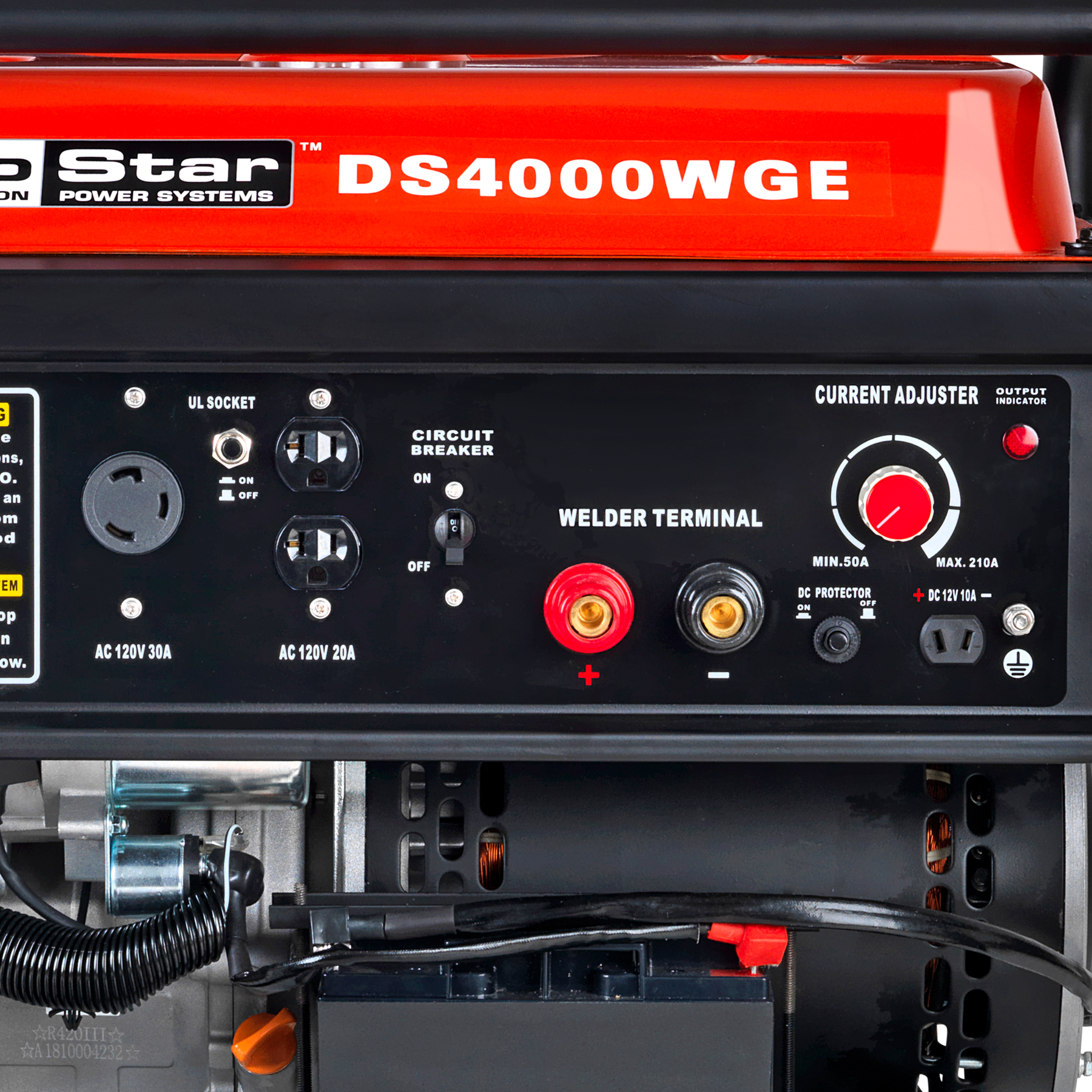

Fully Featured Power Panel – With 50 Amp to 210 Amp DC welding currant adjustment, three 120-Volt AC power outlets and 12-Volt DC battery charger

Complies with Emissions Standards – All DuroStar generators are both approved by the EPA (Environmental Protection Agency) and CARB (California Air Resources Board) and follow strict guidelines to ensure our generators are as environmentally friendly as possible.

OUTLETS

X2

120V 20A
GFCI Outlet

X1

120 30A
Twist Lock

POWER SPECIFICATIONS
GASOLINE
Peak Watts
4,000
Running Watts
3,500
Peak Amps @ 120V
33.33
Running Amps @ 120V
29.17

Not sure how much power you need or what these numbers mean? CLICK HERE to download our power calculator to determine your power needs

PRODUCT SPECIFICATIONS
Amperage29.17
Voltage120V
Frequency60 Hz
Engine Size
420 cc
Engine Type
4-Cycle Air-Cooled Spark-Ignition
Engine Speed
3600 rpm
Fuel Type
Gasoline
Fuel Tank Capacity (Gasoline)
3.96 gal
Runtime (Gasoline) at 50% Load
8 hrs
Start Type
Electric / Recoil
Volume Level
72 dB
EPA Certified
Yes
CARB Certified
Yes
Product Dimensions
29" L x 28" W x 26" H
Product Weight
232 lbs
UPC811640010621
INCLUDED IN THE BOX

Oil Funnel

Spark Plug Wrench

Tool Set

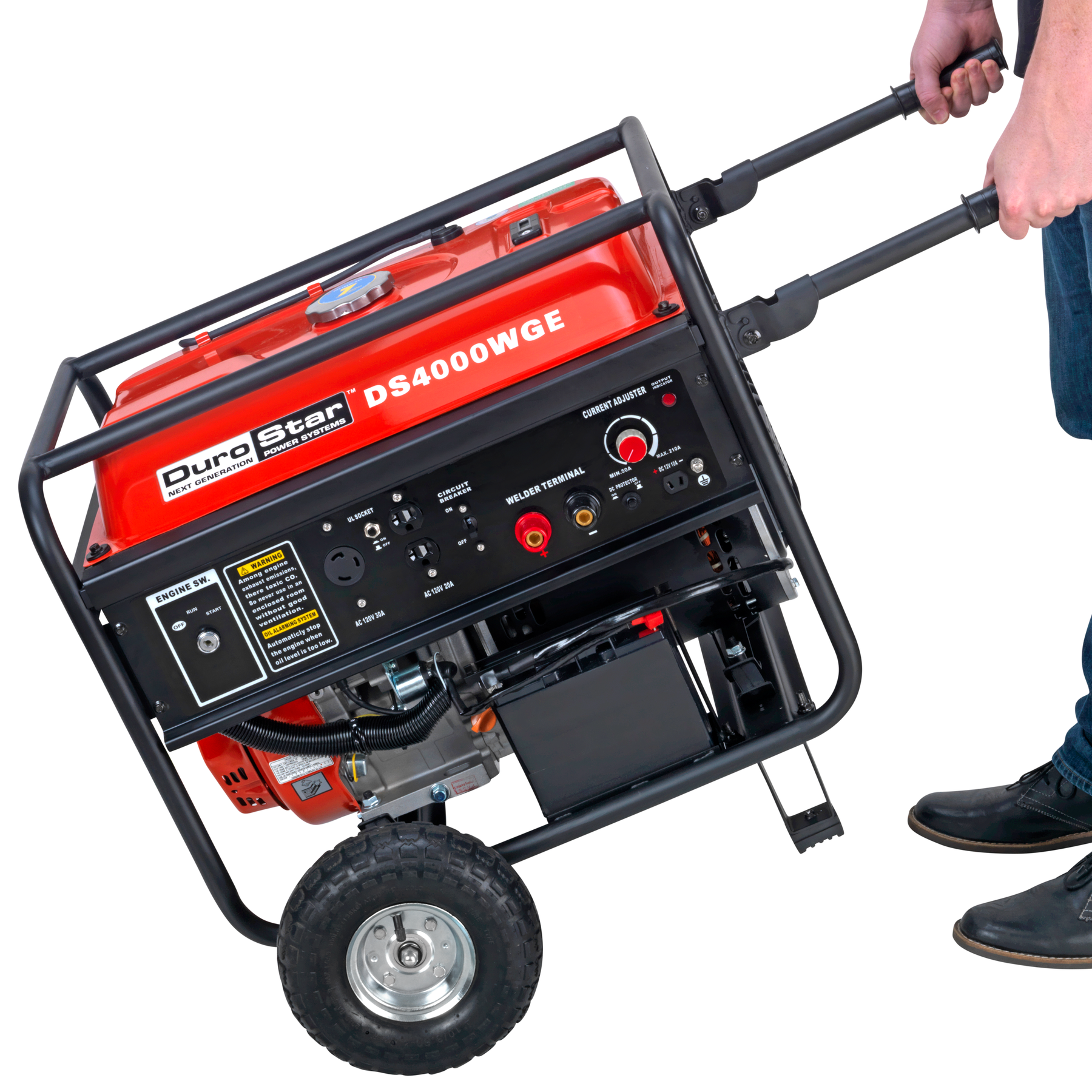

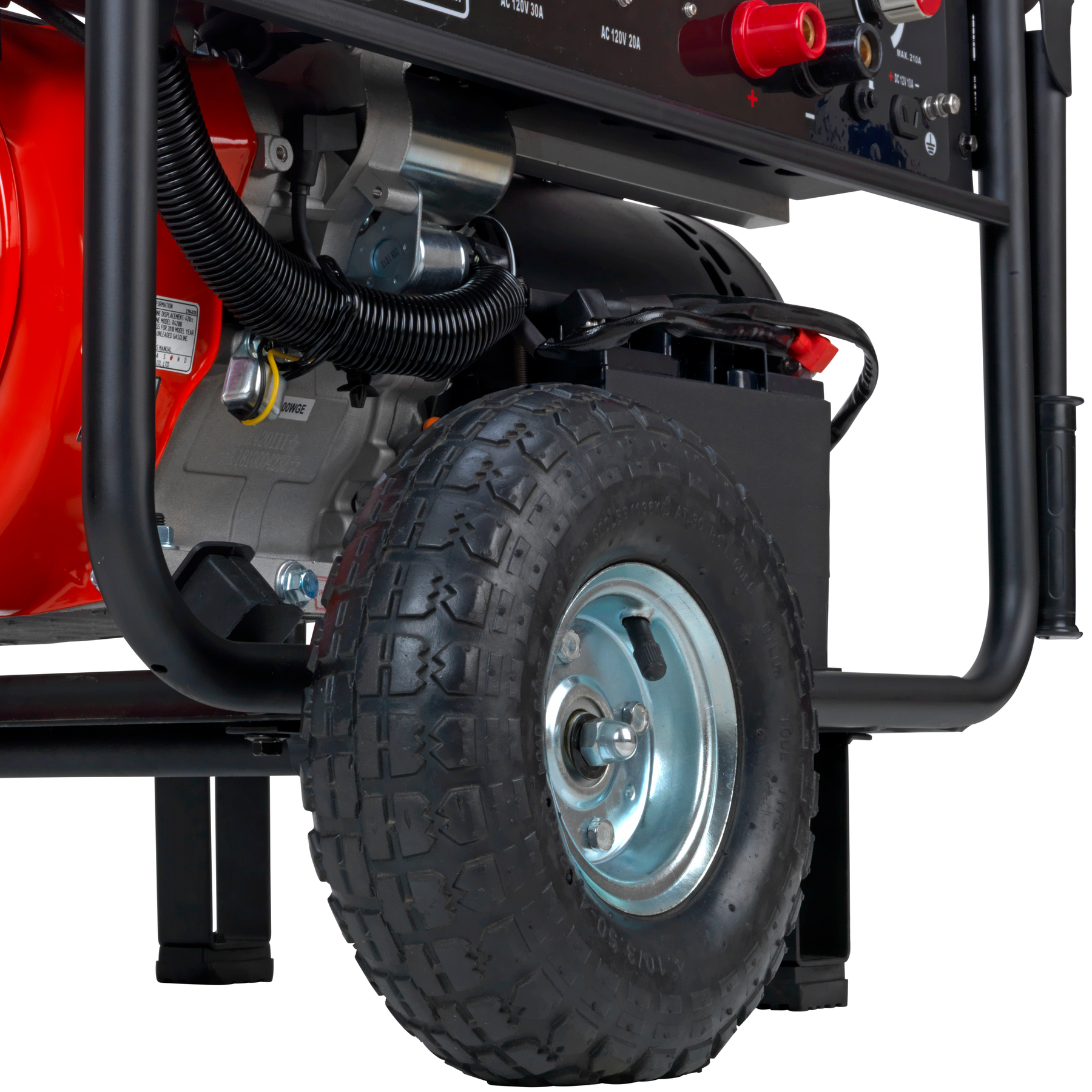

Wheel & Handle Kit

DC Charging Cables

Owner's Manual
