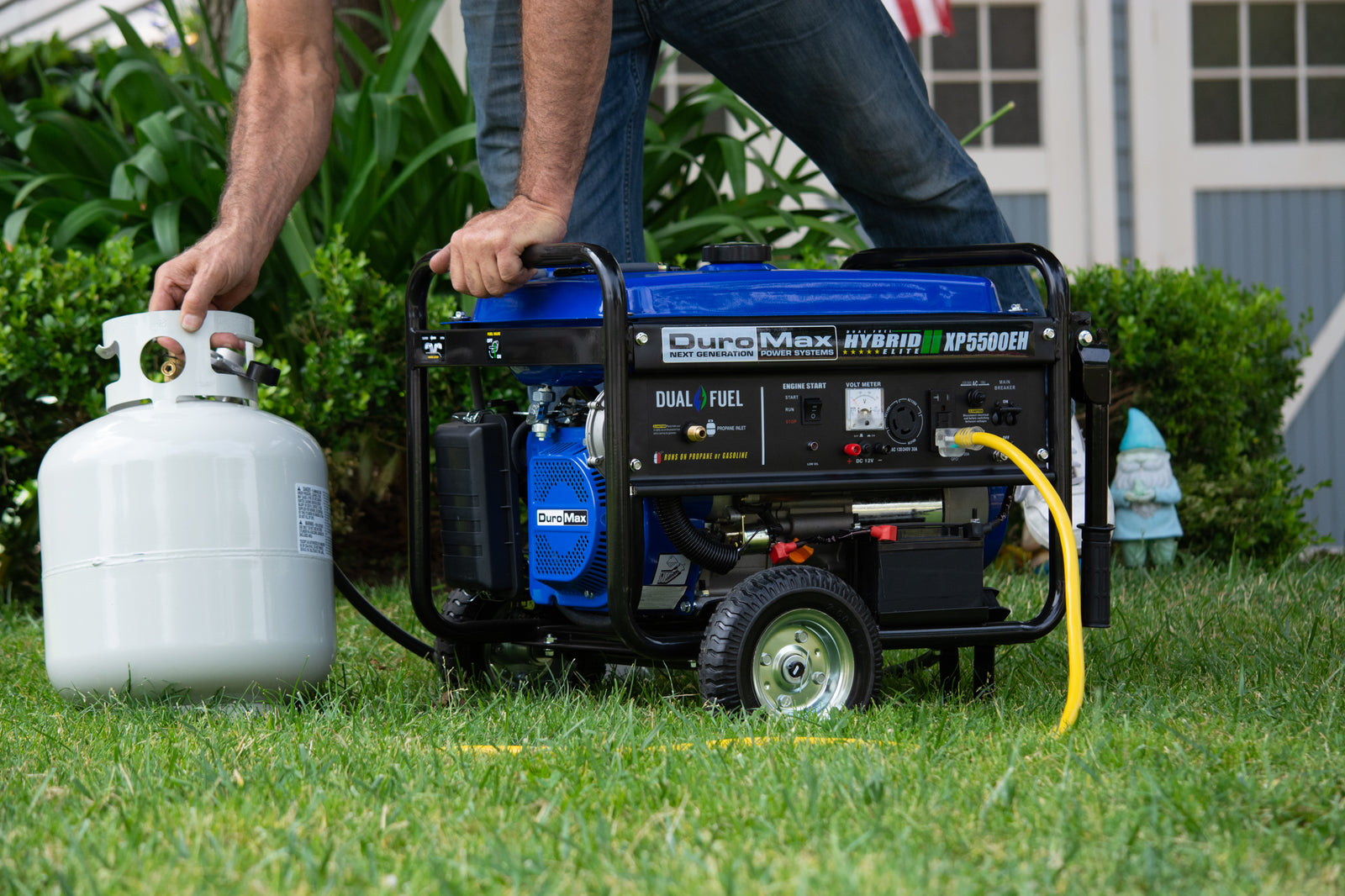

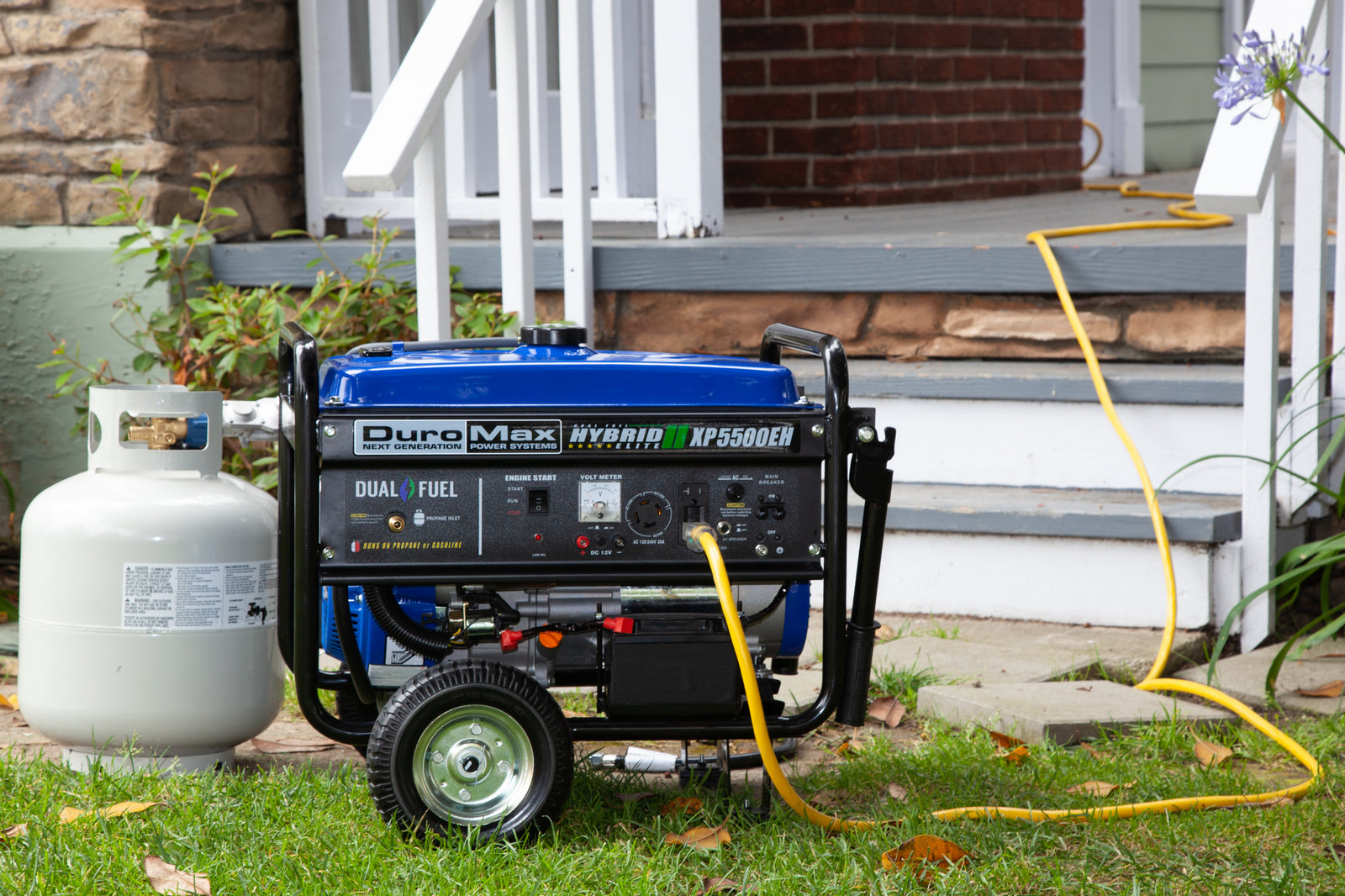

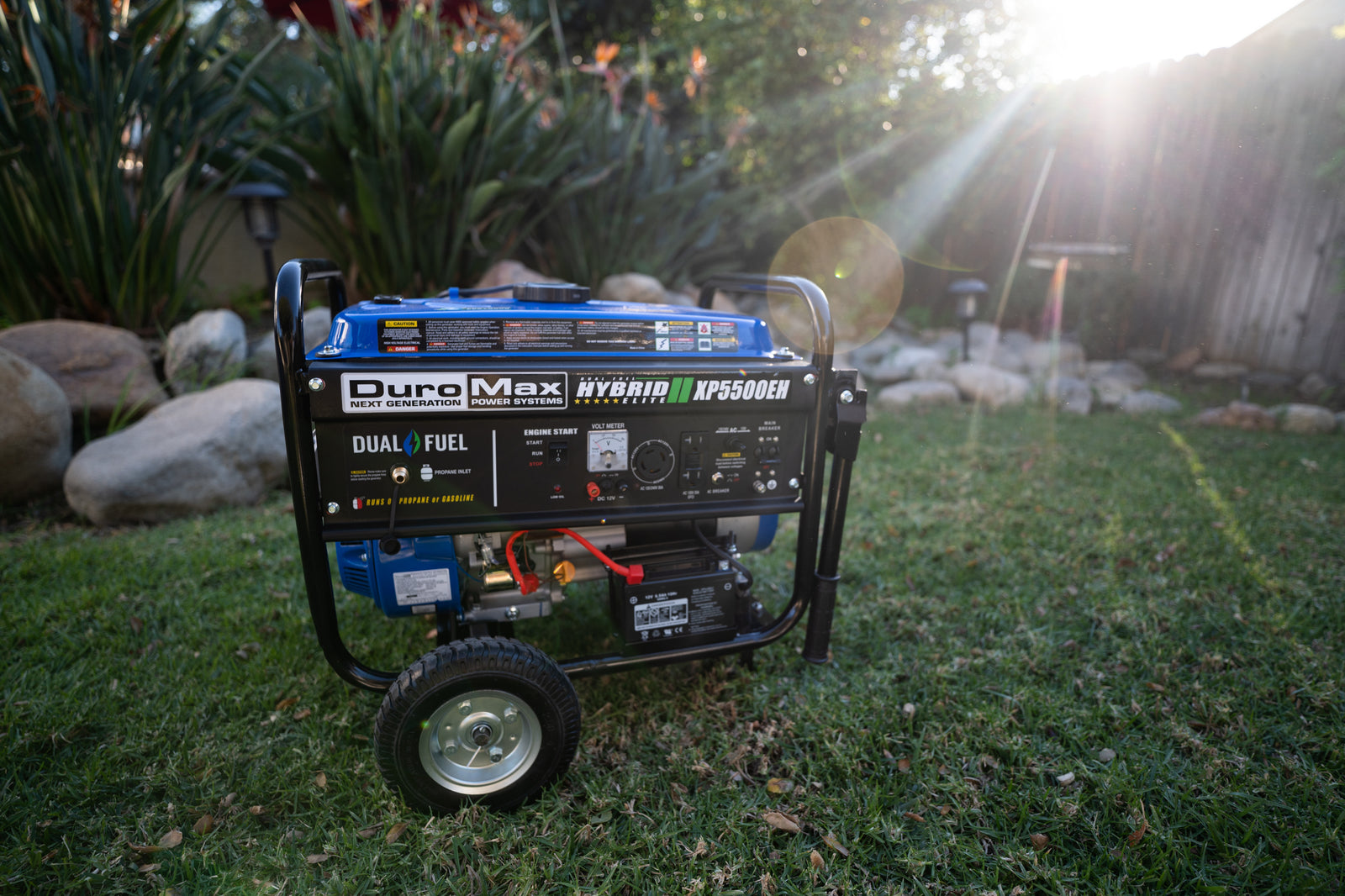

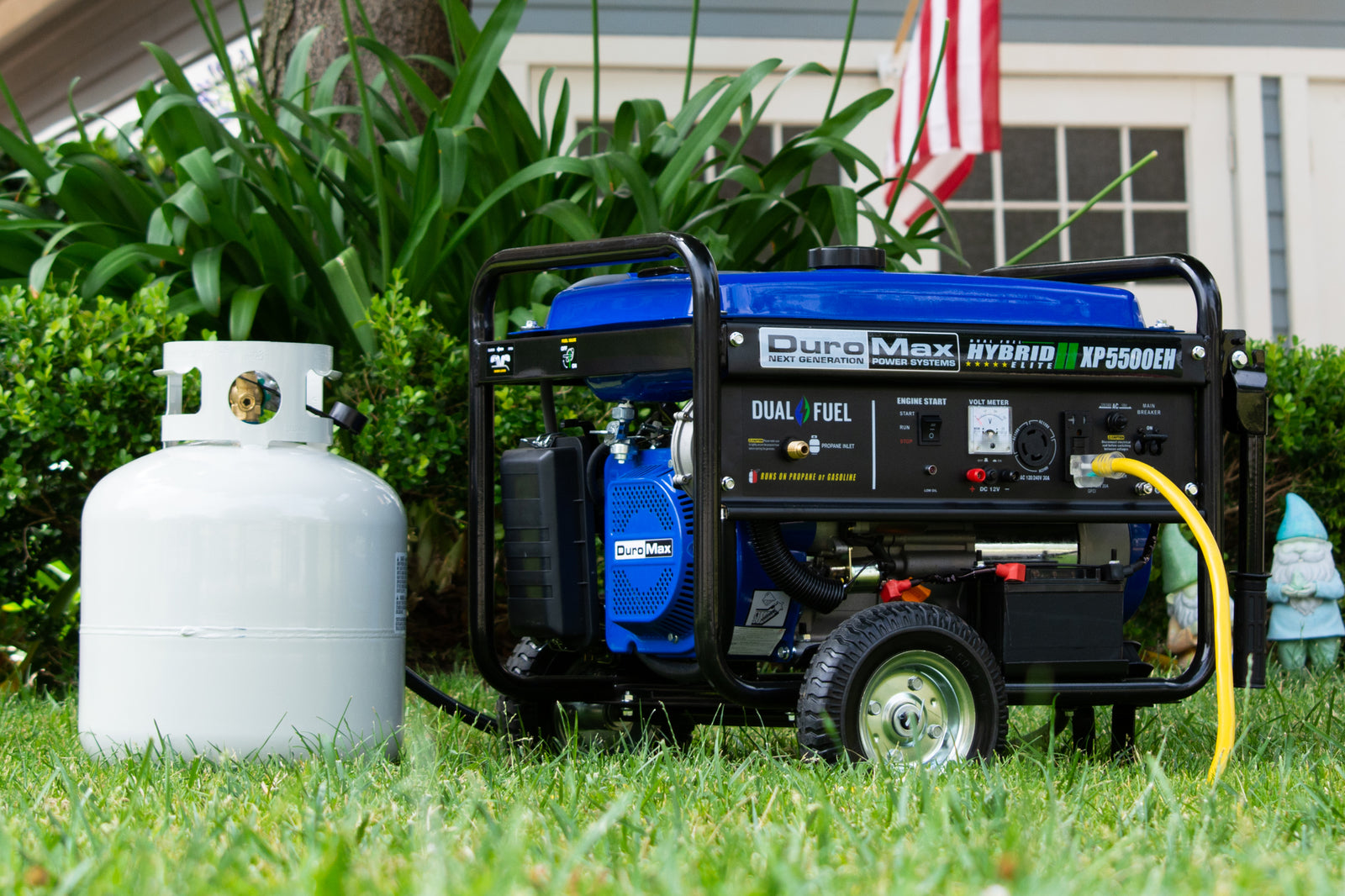

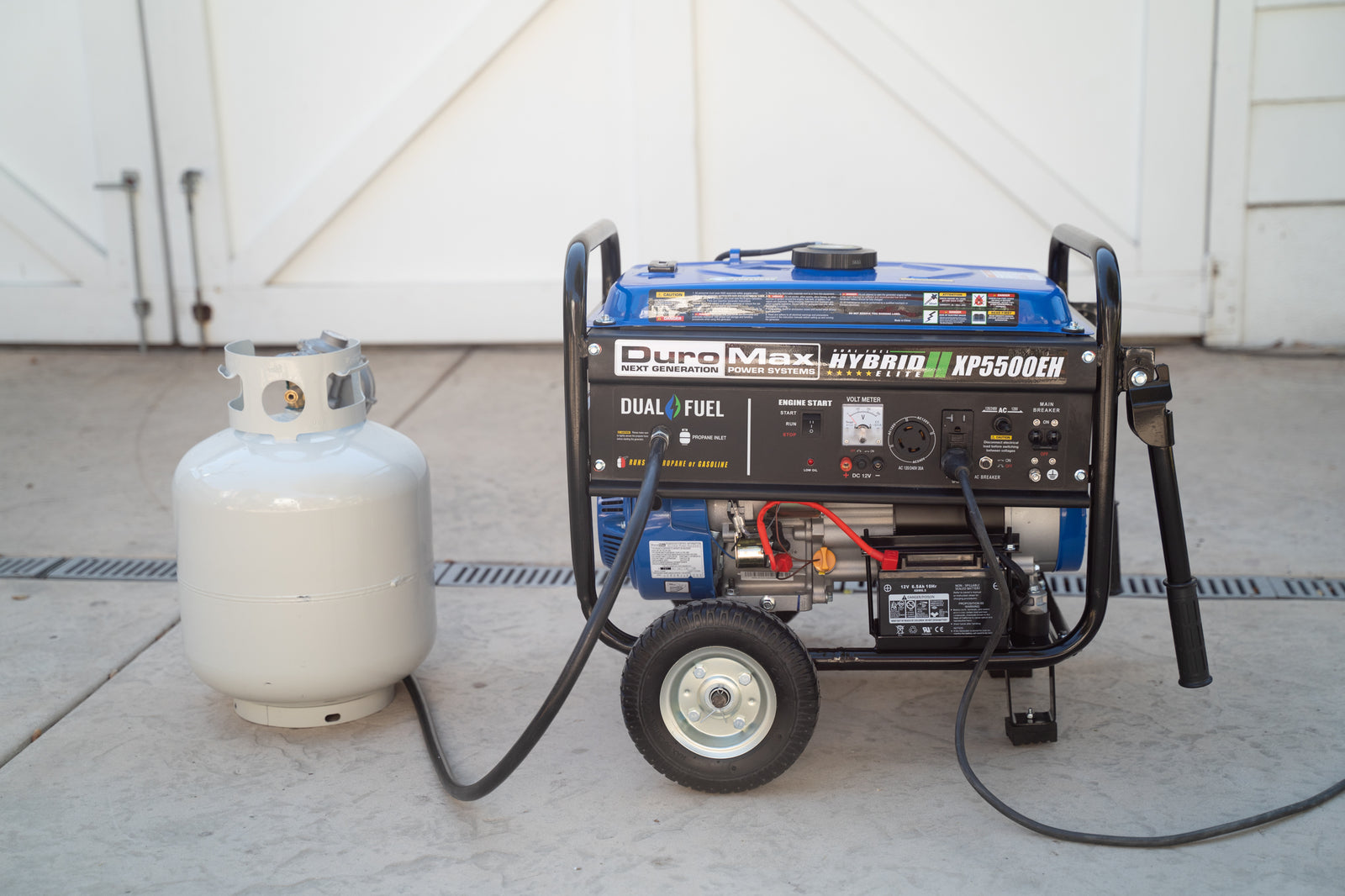

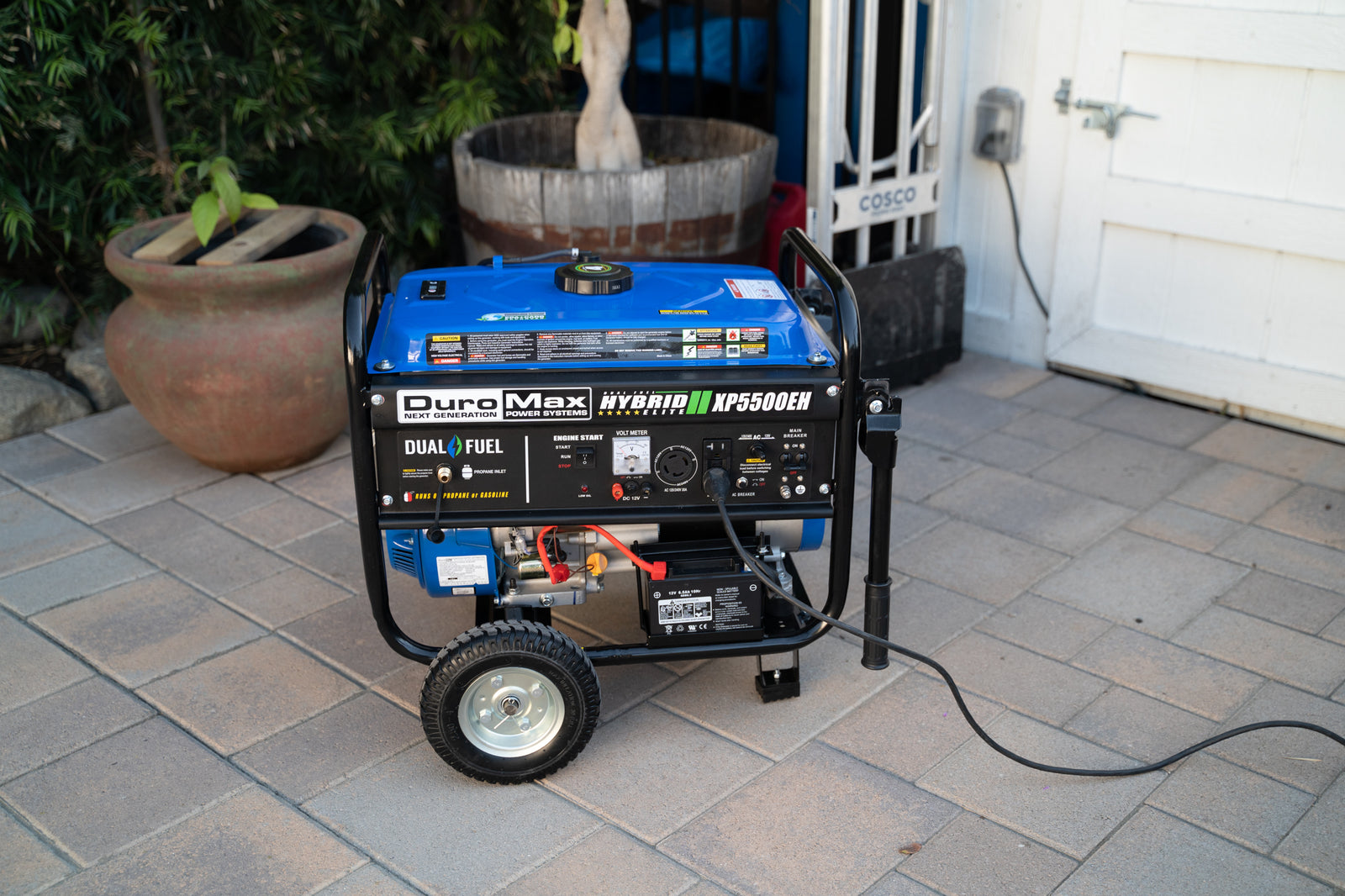

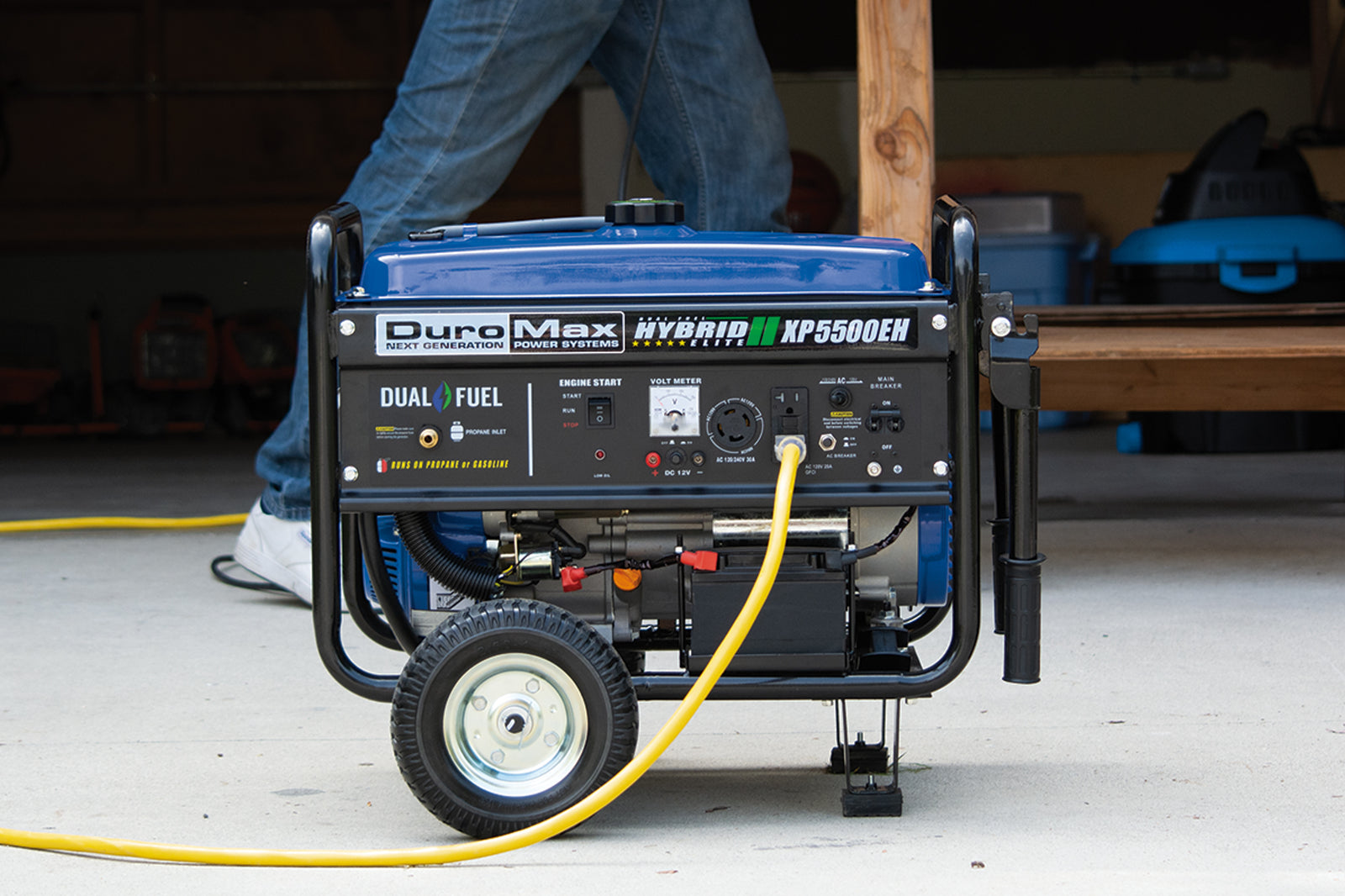

5,500 Watt Dual Fuel Portable Generator
Videos and 360° View
Product Images
- Features
- Specifications
- Specs
- Support
- Reviews
- FAQs
- Community
Power Wherever and Whenever You Need It
With 5,500 watts of power, the XP5500EH Dual Fuel generator will keep you powered at home or on the go.

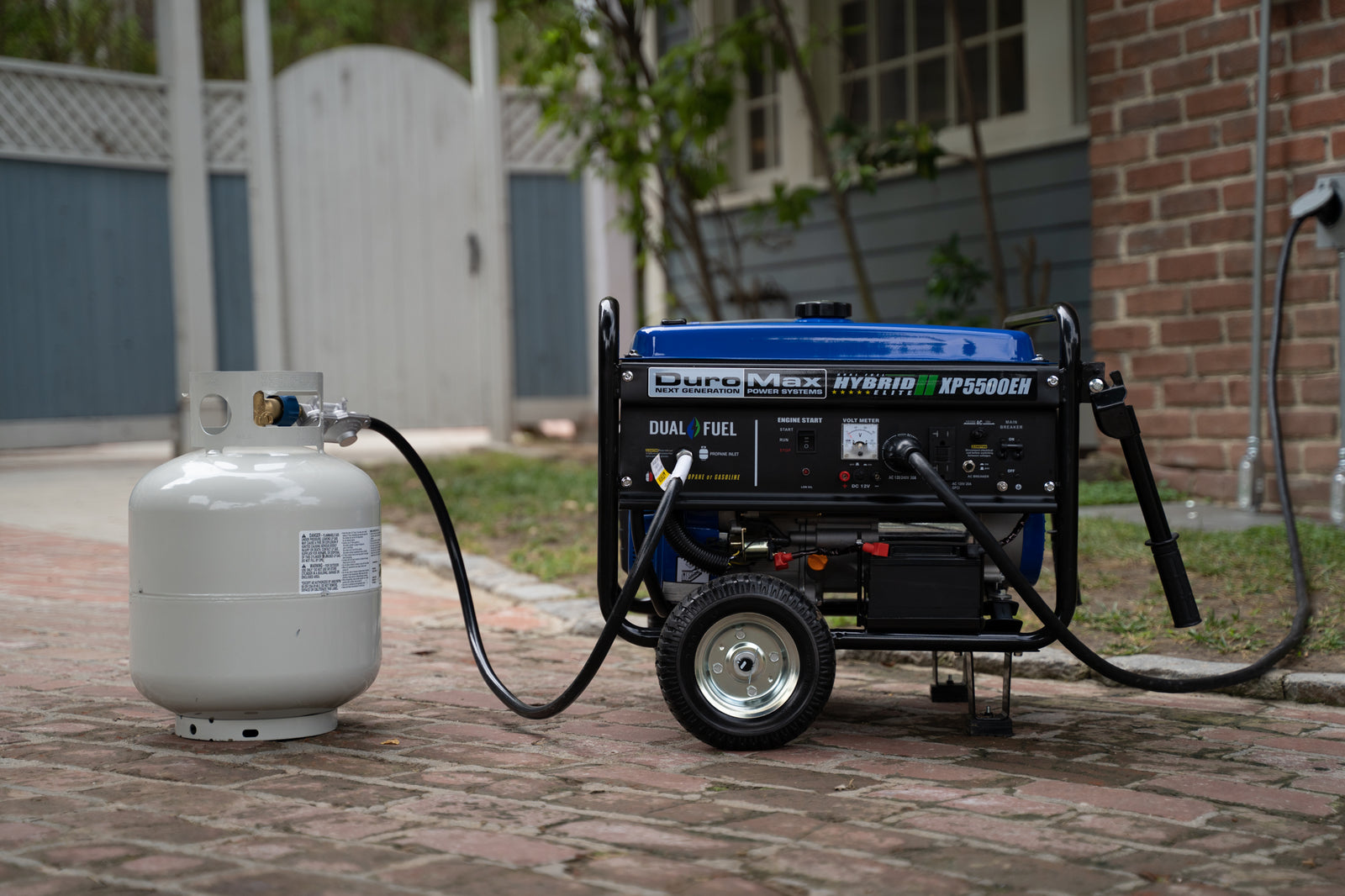

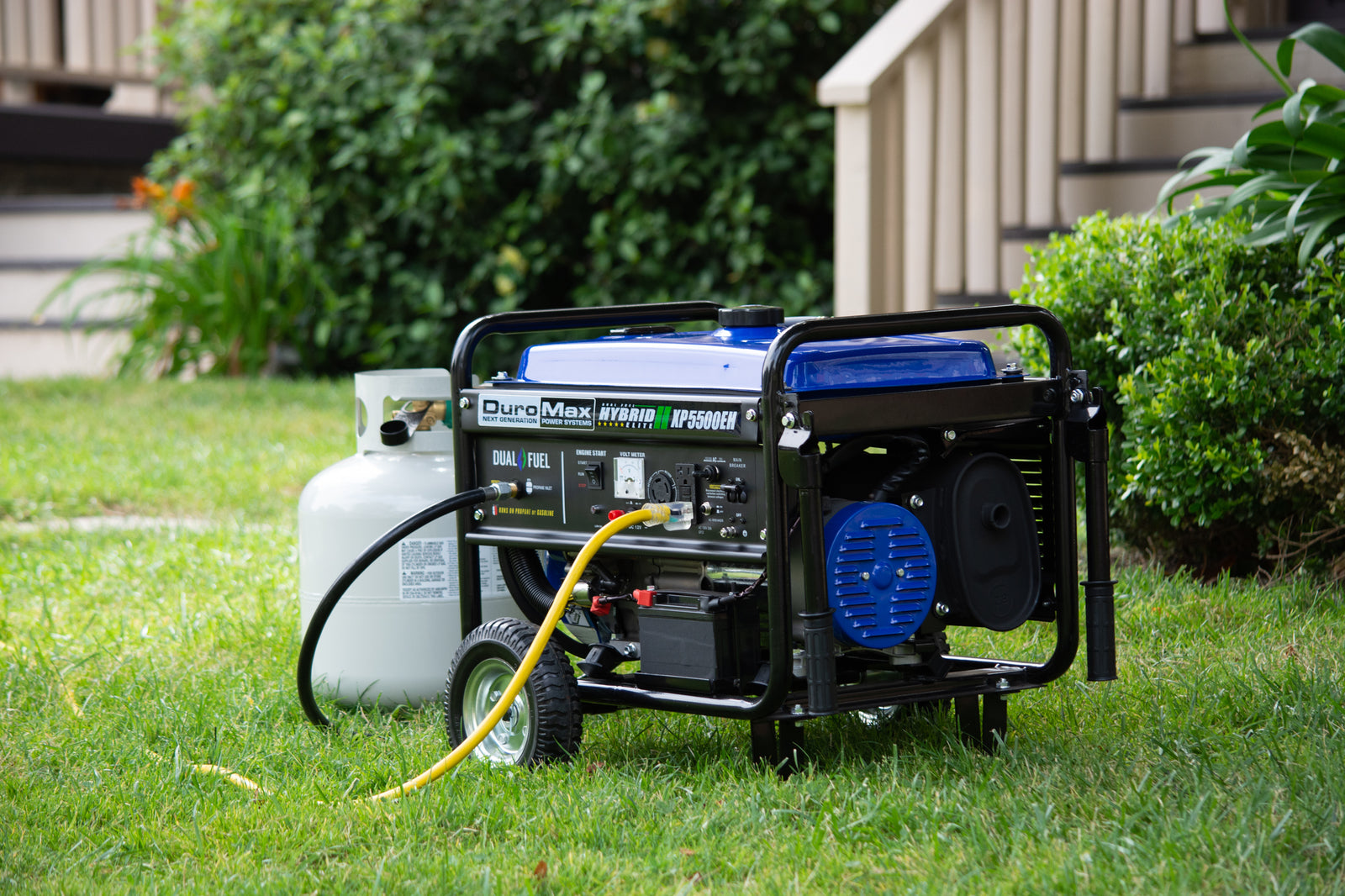

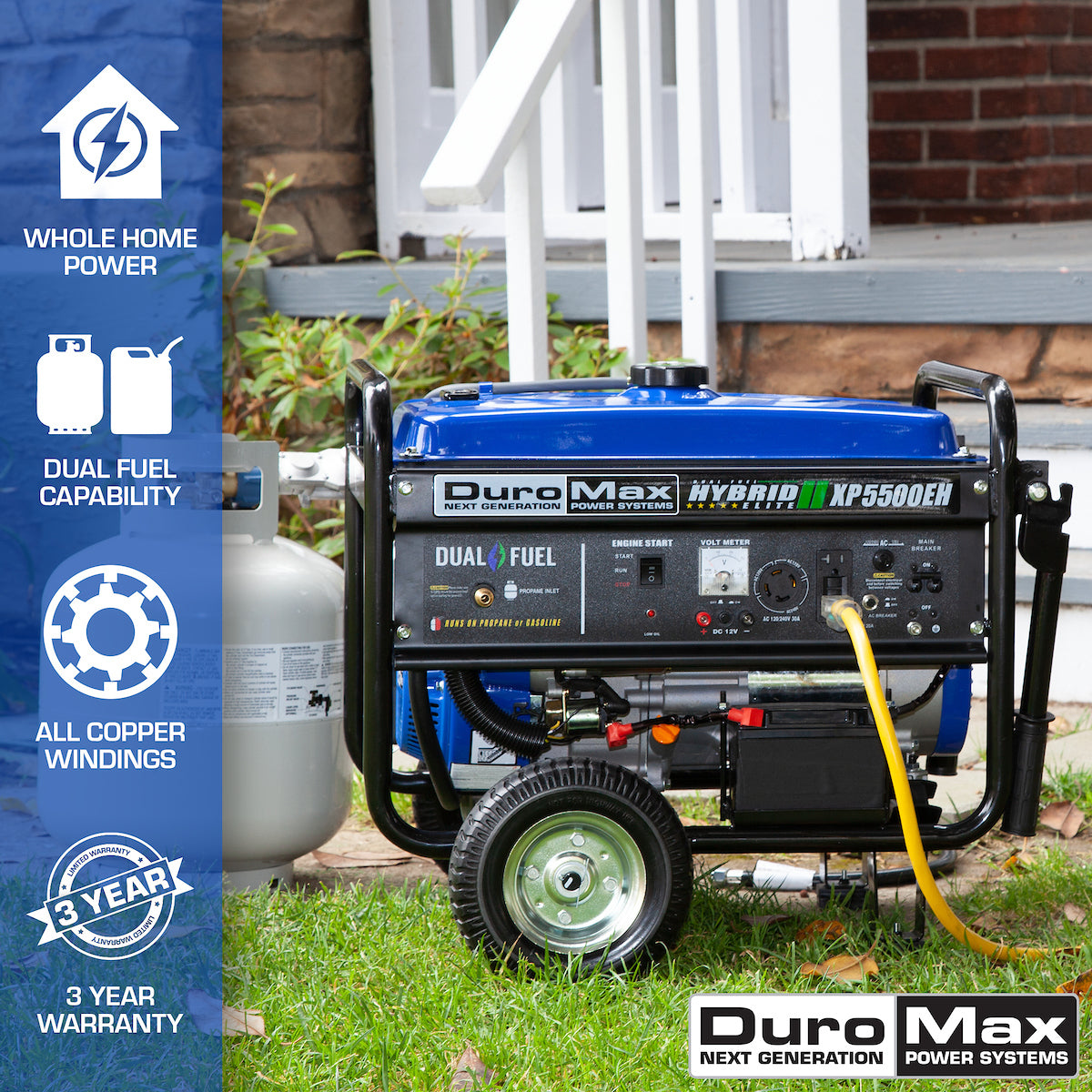

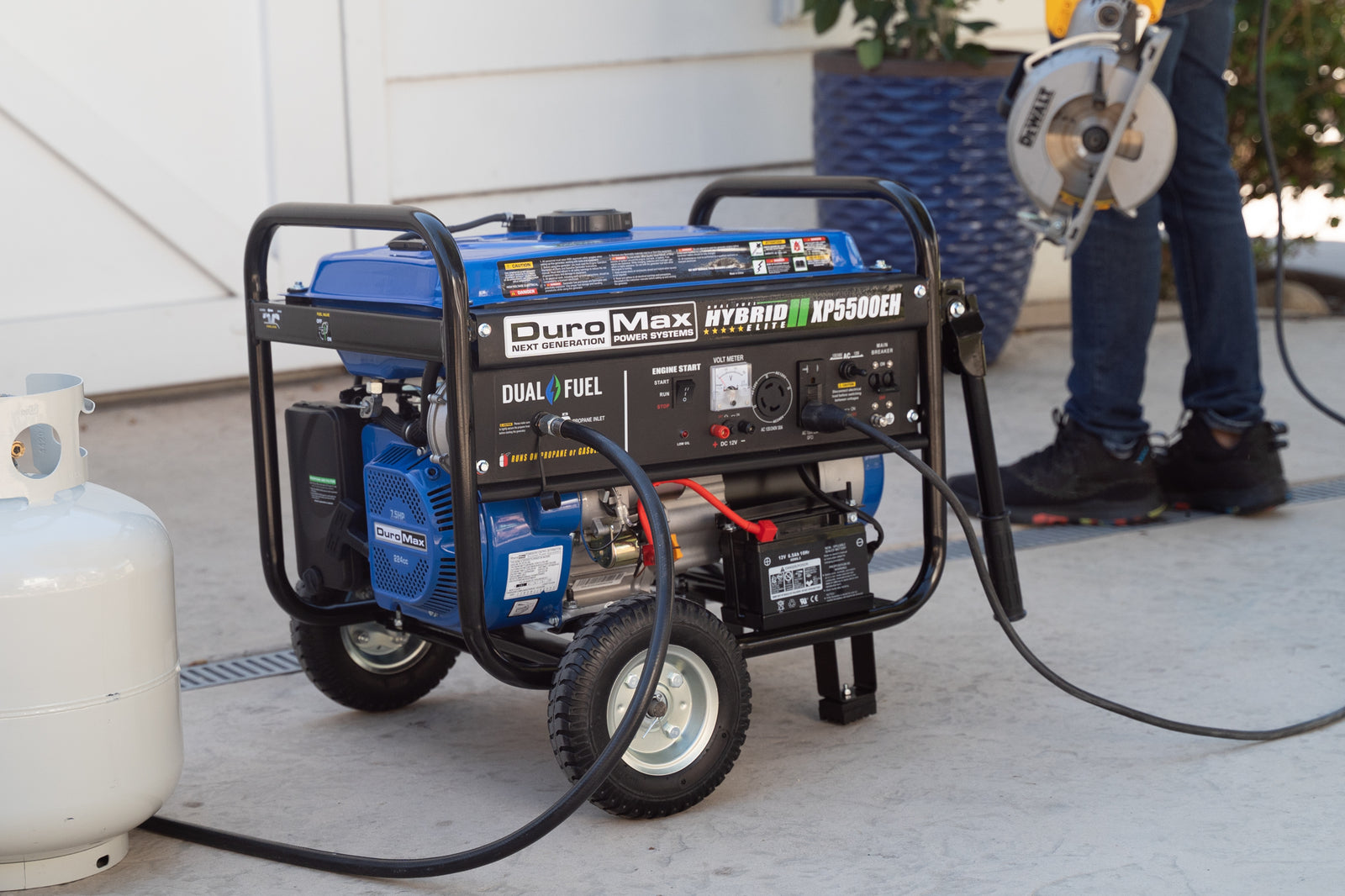

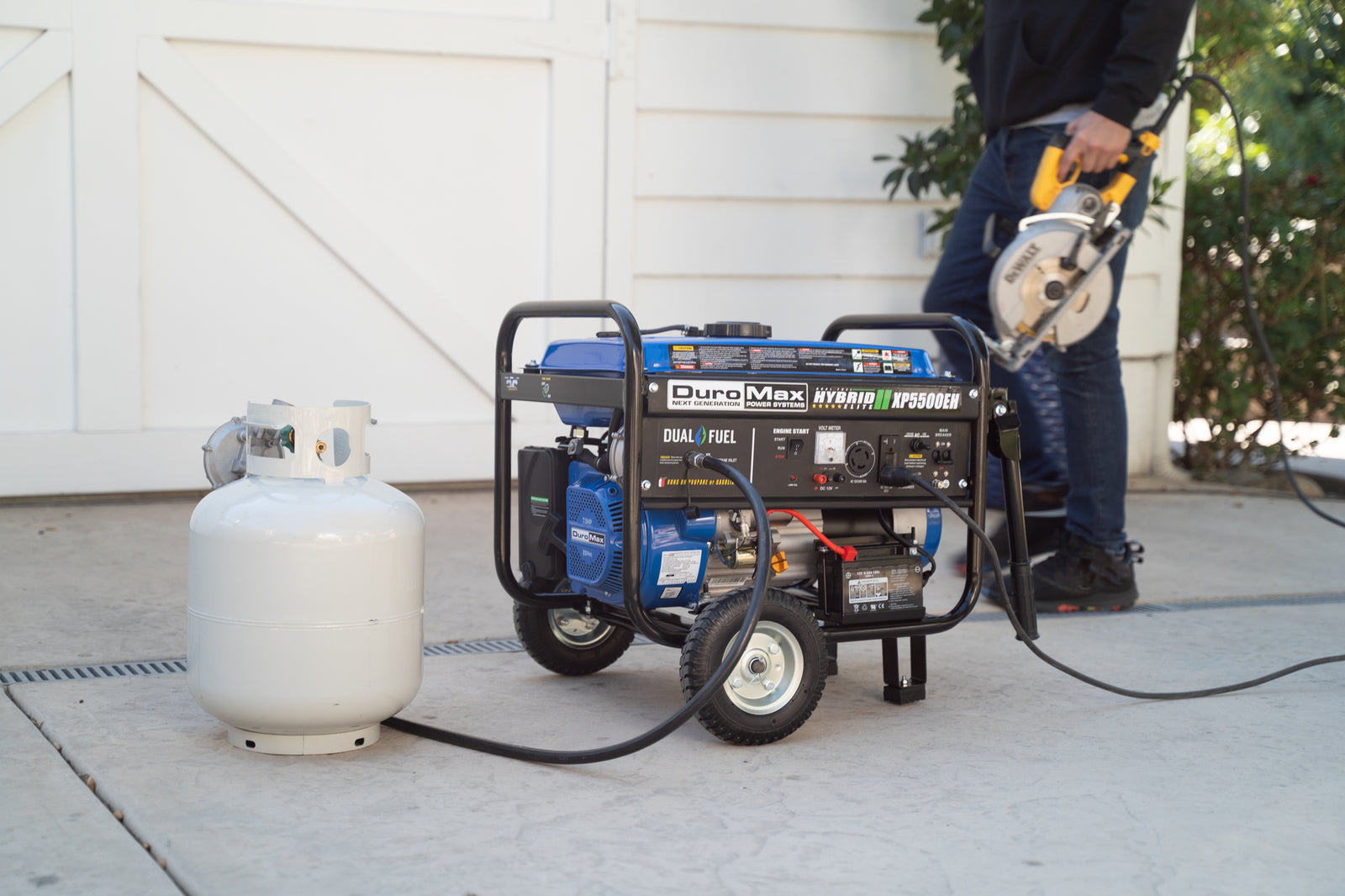

Dual Fuel Technology
DuroMax is the industry leader in Dual Fuel portable generator technology, with a full assortment ranging from digital inverters to generators that can power your entire home.

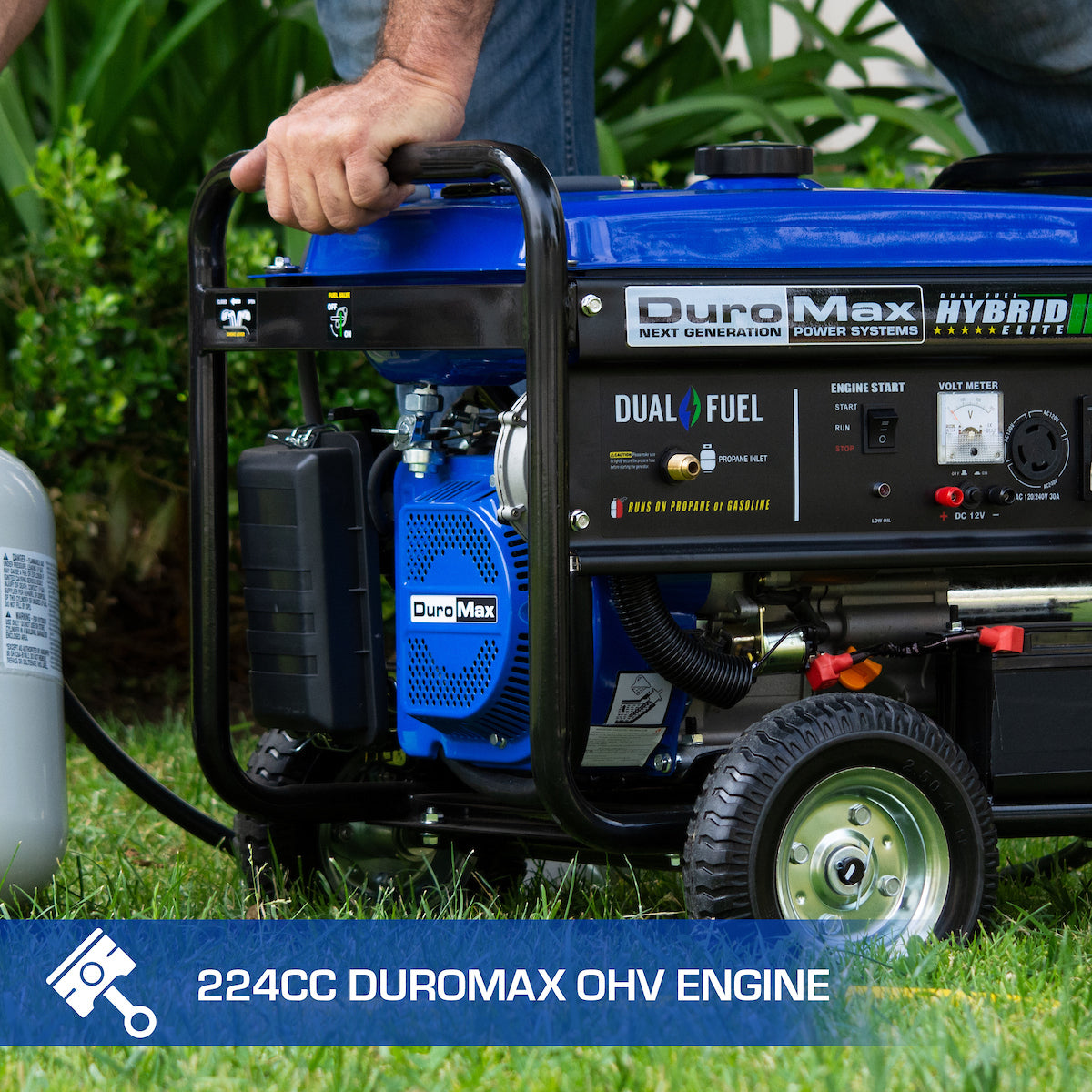

The Heart of a DuroMax
At the core of all our products resides a robust DuroMax engine. Designed for Power. Designed to Last.
Power Independence
Power Independence
The U.S. power grid is aging. Take control of your home.

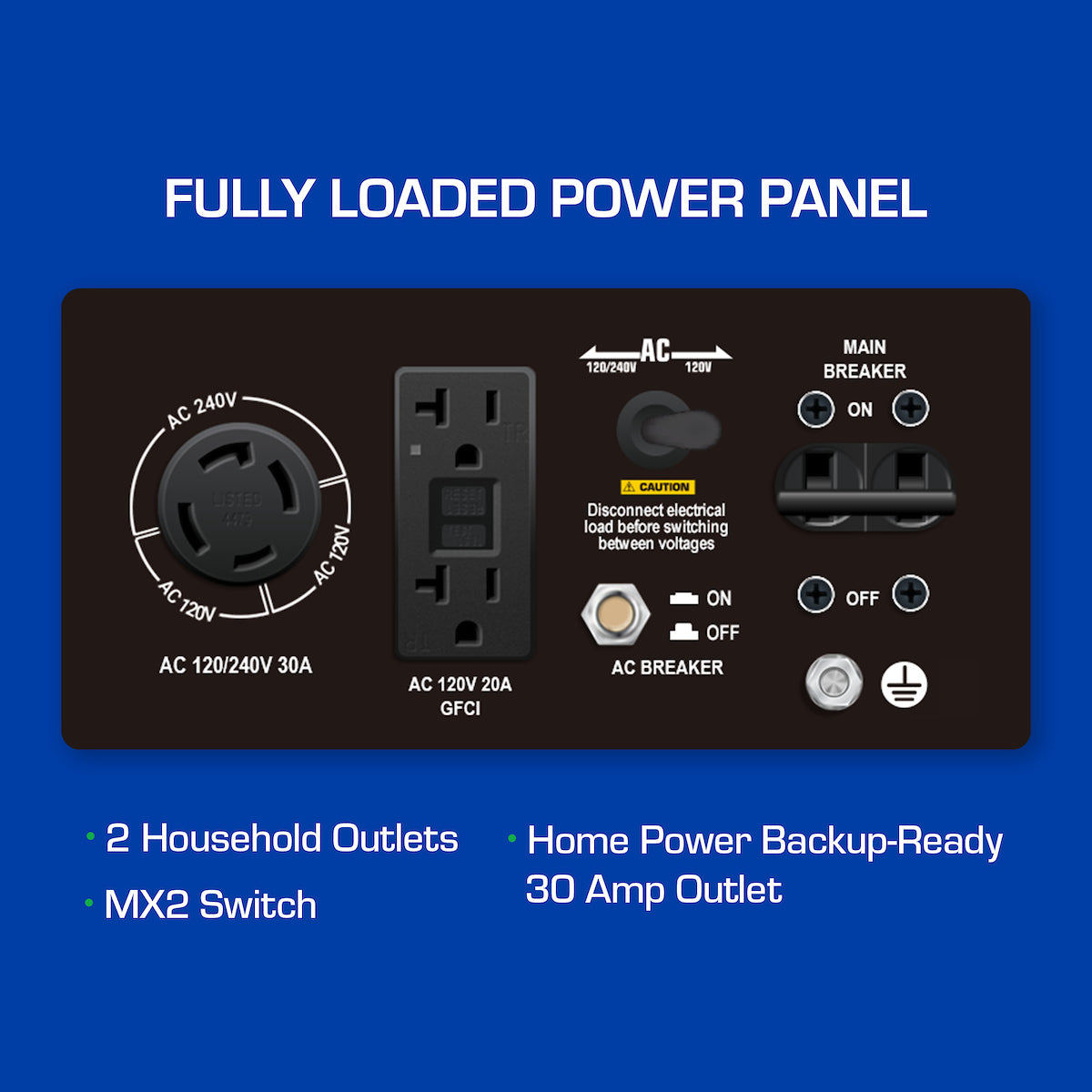

Fully Loaded

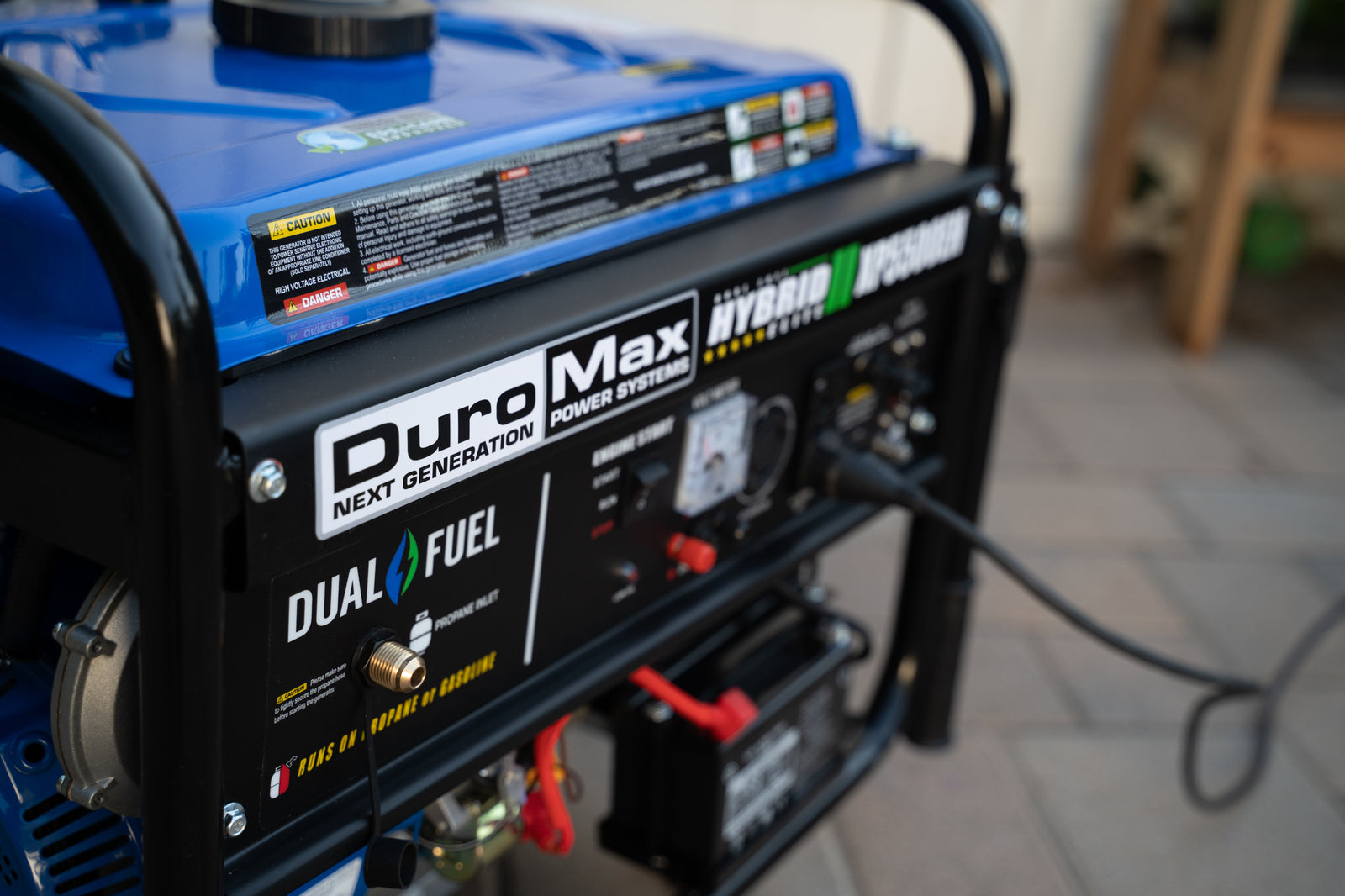

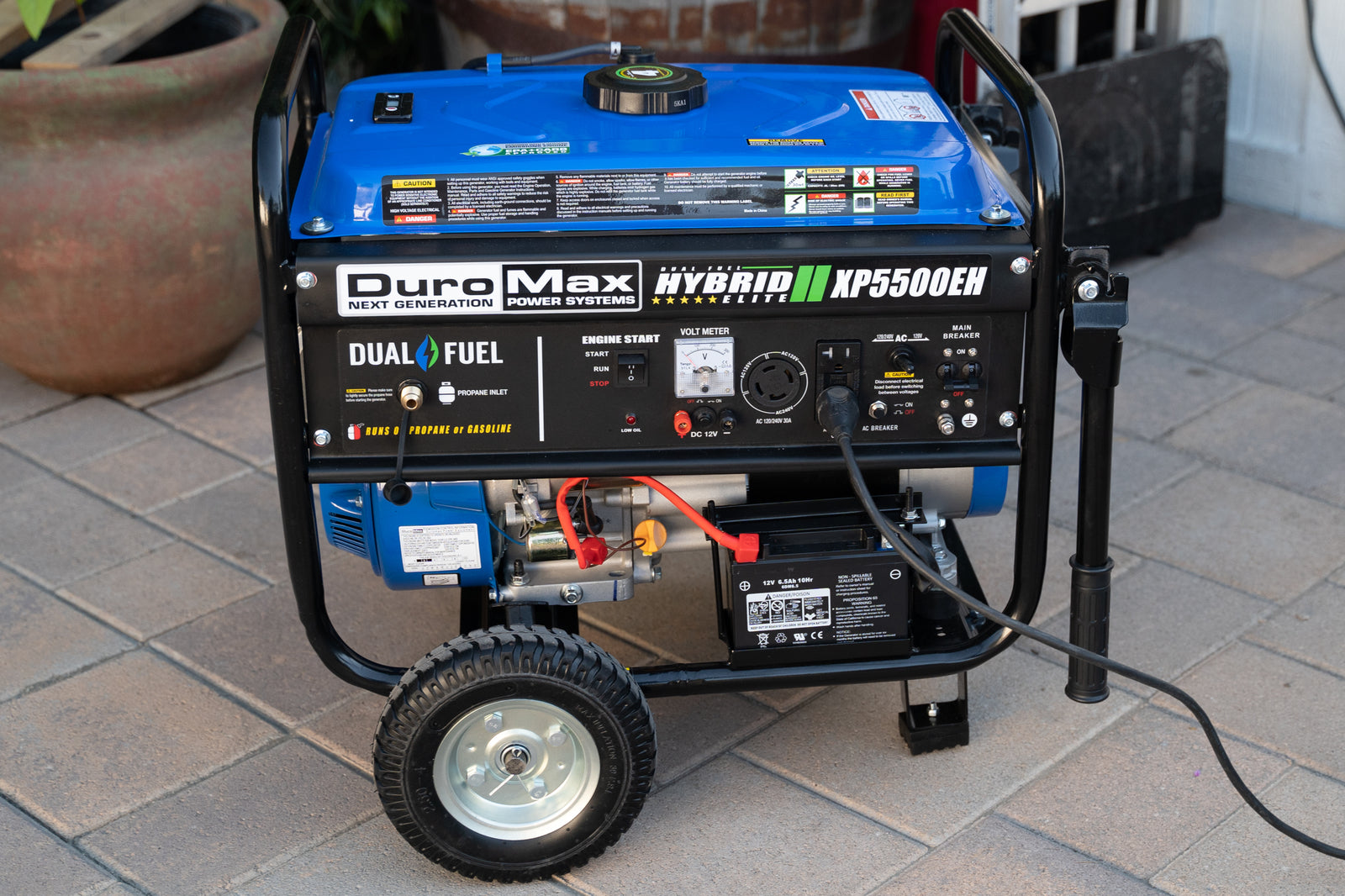

Power Panel

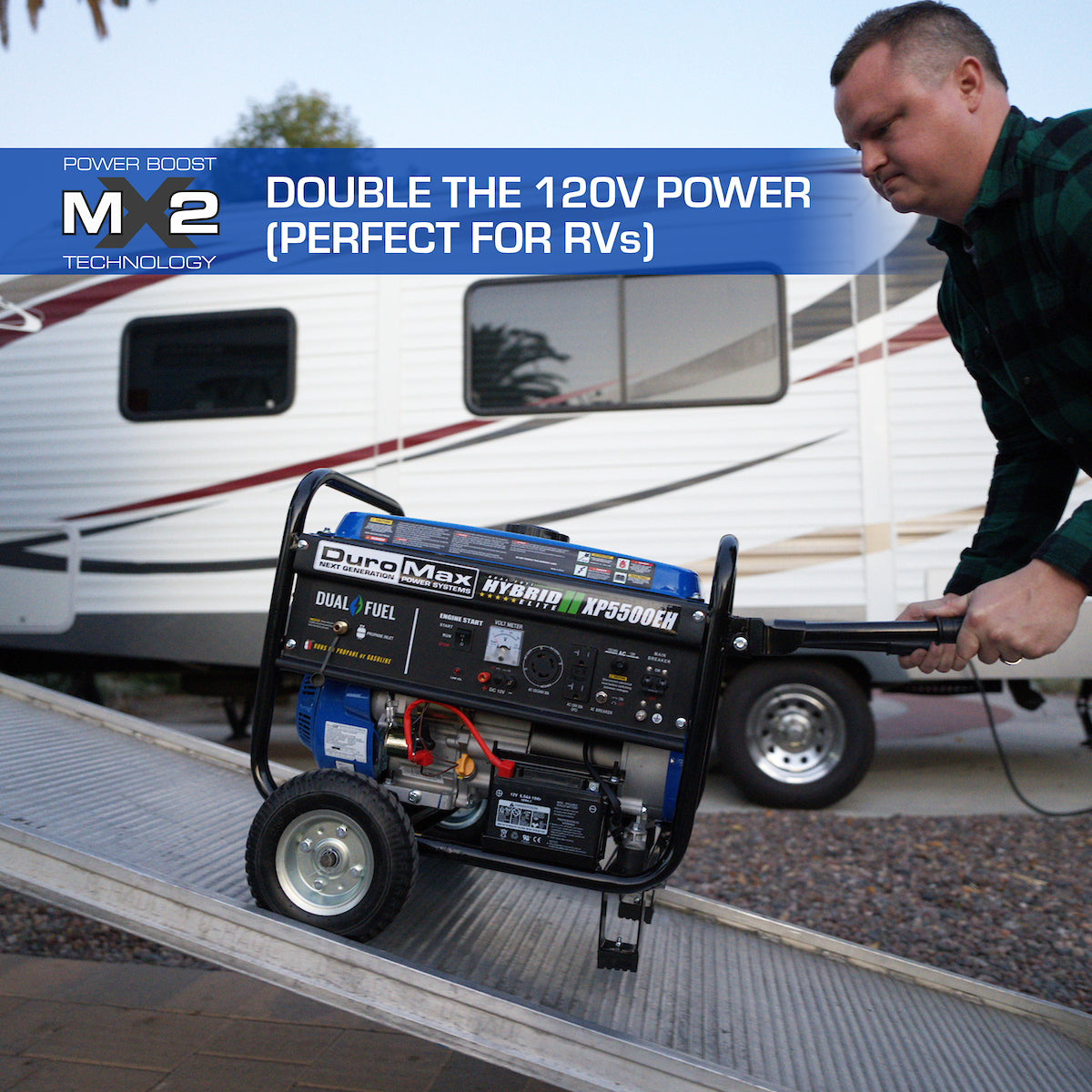

The XP5500EH comes equipped with a variety of outlets to suit your needs. This generator features our MX2 Power Boost, which doubles the 120V power for appliances and RVs.
Click Start For More Info

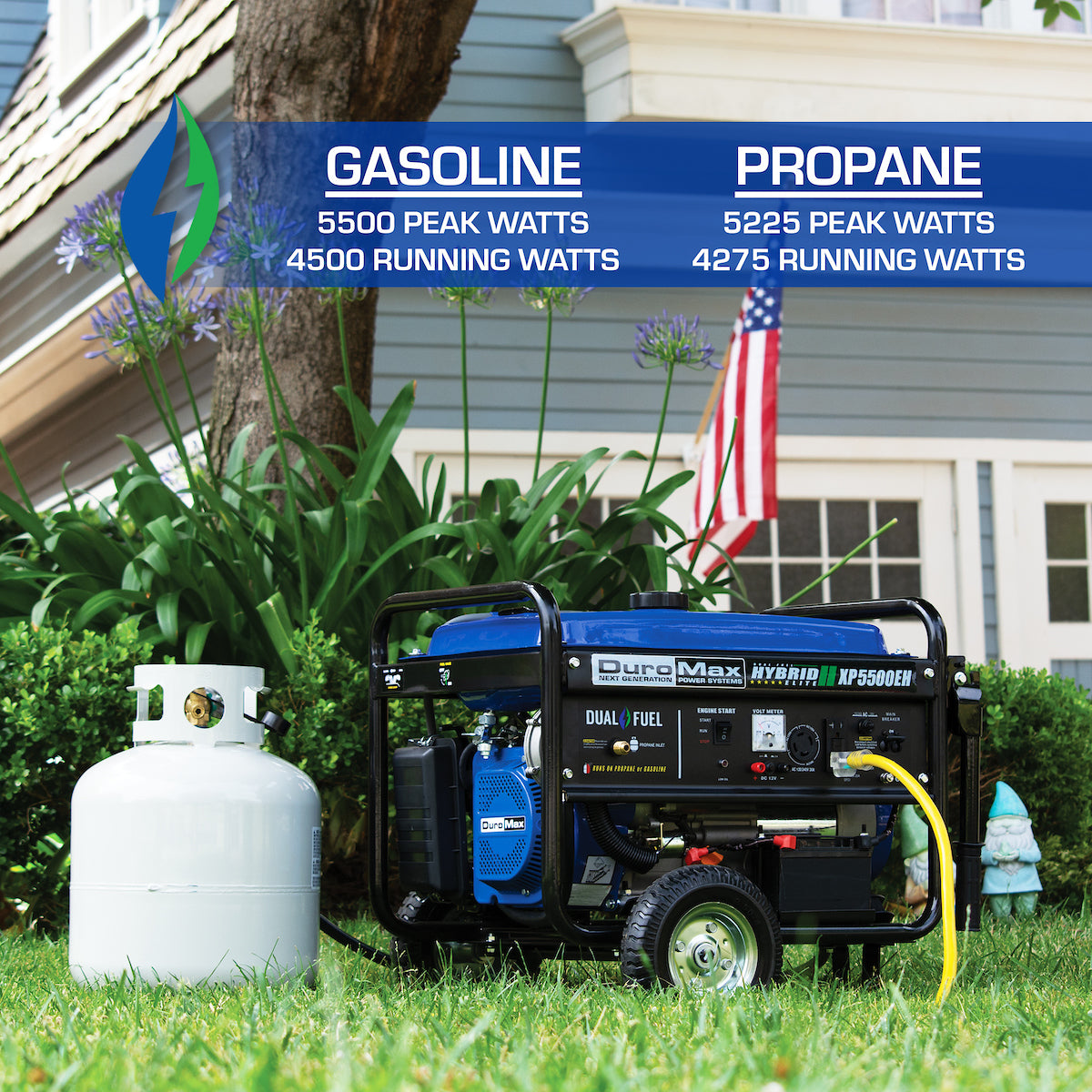

XP5500EH Specifications
| Gasoline | |
| Peak Wattage | 5,500 |
| Running Wattage | 4,500 |
| Running Amperage at 120V | 37.50 |
| Running Amperage at 240V | 18.75 |
| Runtime at 25% Load | 19 |
| Runtime at 50% Load | 9 |
| Propane | |
| Peak Wattage | 5,225 |
| Running Wattage | 4,275 |
| Running Amperage at 120V | 35.63 |
| Running Amperage at 240V | 17.81 |
| Runtime at 25% Load | 15 |
| Runtime at 50% Load | 8 |
| Engine & Emission Specifications | |
| Engine Manufacturer | DuroMax Power Equipment |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Engine Size | 224 cc |
| Engine Speed | 3600 RPM |
| Starting Type | Rocker Switch |
| Electric Start | Yes |
| Recoil Start | Yes |
| Fuel Delivery System | Carburetor |
| Fuel Types | Gasoline and Propane |
| Oil Cooling Type | Splash |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Oil Capacity | 20.3 fluid oz |
| Suggested Propane Tank Size | 20 lbs. minimum |
| Automatic Low Oil Shutdown | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Ball Bearing |
| EPA Certified | Yes |
| 50 State Emissions | No |
| Panel Specifications | |
| GFCI Outlets | Yes |
| Volt Meter | Analog |
| 5-20R | 2 |
| L14-30R | 1 |
| 12V Post | 1 |
| Generator Specifications | |
| Manufacturer | DuroMax Power Equipment |
| Part # | XP5500EH |
| Voltage | 120/240 Volts |
| Frequency | 60 Hertz |
| GFCI Outlets | Yes |
| Propane Hose & Regulator | Included |
| Winding Material | 100% Copper Windings |
| Automatic Voltage Regulator | Yes |
| Battery Type | 12V SLA |
| Battery Included | Yes |
| RV Ready | Yes |
| Home Backup Ready | Yes |
| Fuel Tank Capacity Gasoline | 4 Gallons |
| Fuel Gauge | Yes |
| All Metal Construction | Yes |
| Product Dimensions | 25"-Long x 22"-Wide x 22"-High |
| Product Dry Weight | 124-lbs |
| Product Weight | 136-lbs |
| Volume (db) | 69 dB |
| UPC | 811640014667 |
| Warranty | 3 Year |
| Wheel & Handle Kit | Included |
| Wheel Type | Metal Hub |
| Wheel Diameter | 8-Inches |
| What's in the Box? | XP5500EH, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, DC Charging Cables, Propane Regulator, and Owners Manual |

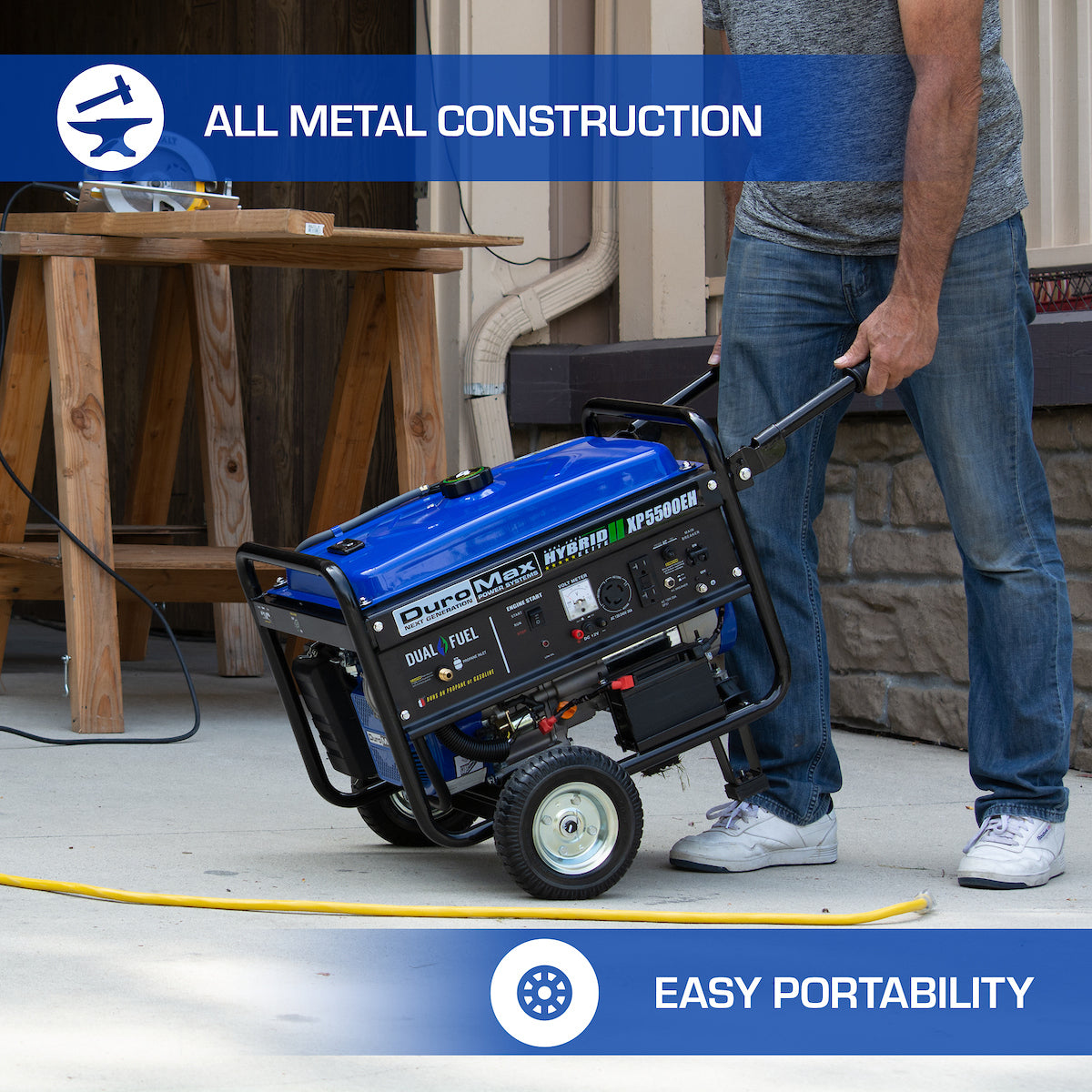

Constructed with a heavy-duty all metal frame and power panel – no plastic parts
Built to withstand severe weather and years of heavy wear-and-tear

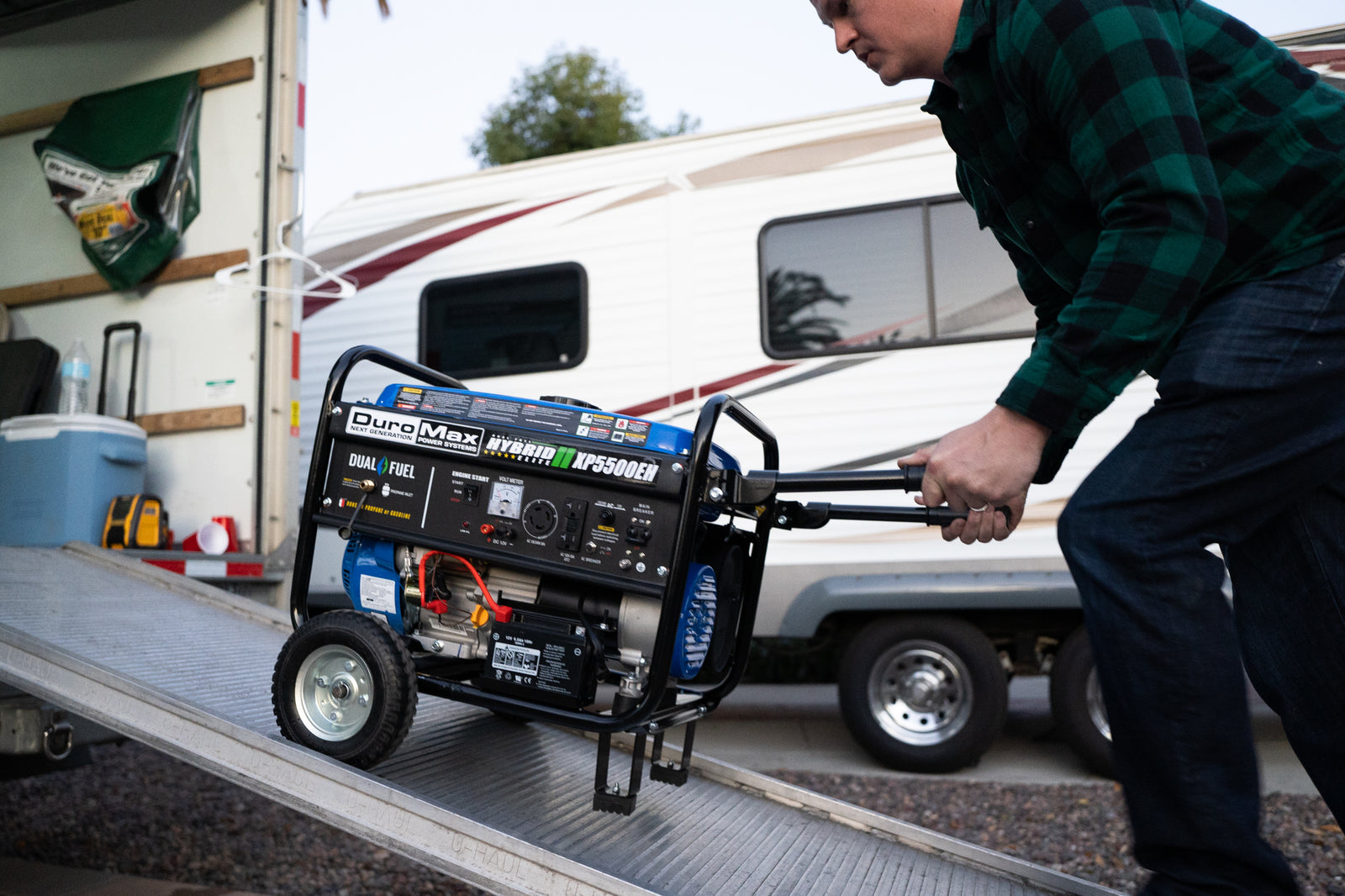

Power wherever and whenever you need it – no-flat tires roll easily over any terrain

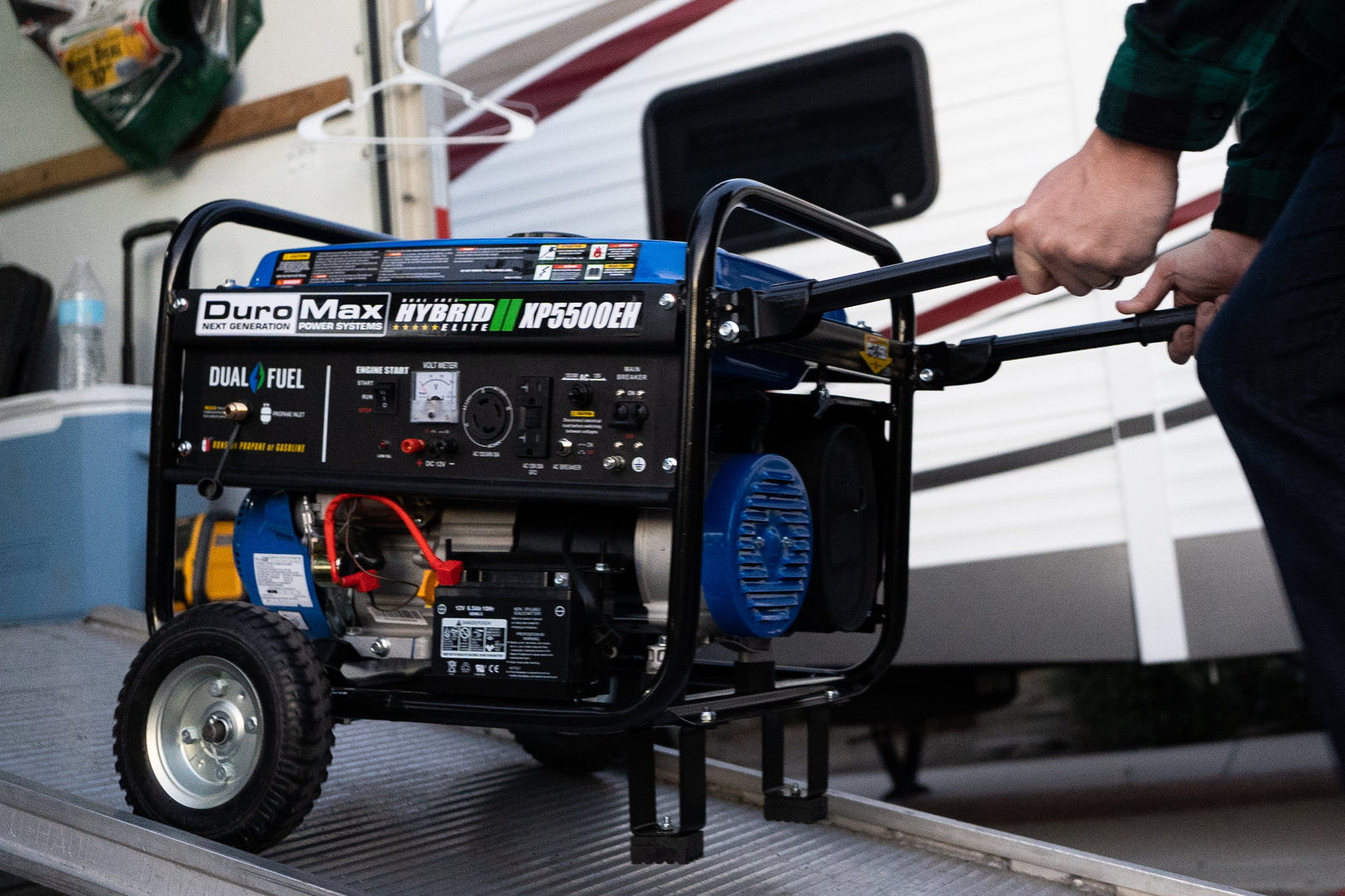

Power at Home... or On-The-Go
DuroMax portable generators are designed to be mobile and versatile, with the ability to provide power whenever and wherever you need it. Unlike traditional standby generators that are large, expensive, yet only serve one purpose, DuroMax generators will power you whether you’re at home, on an RV trip, or at the jobsite.

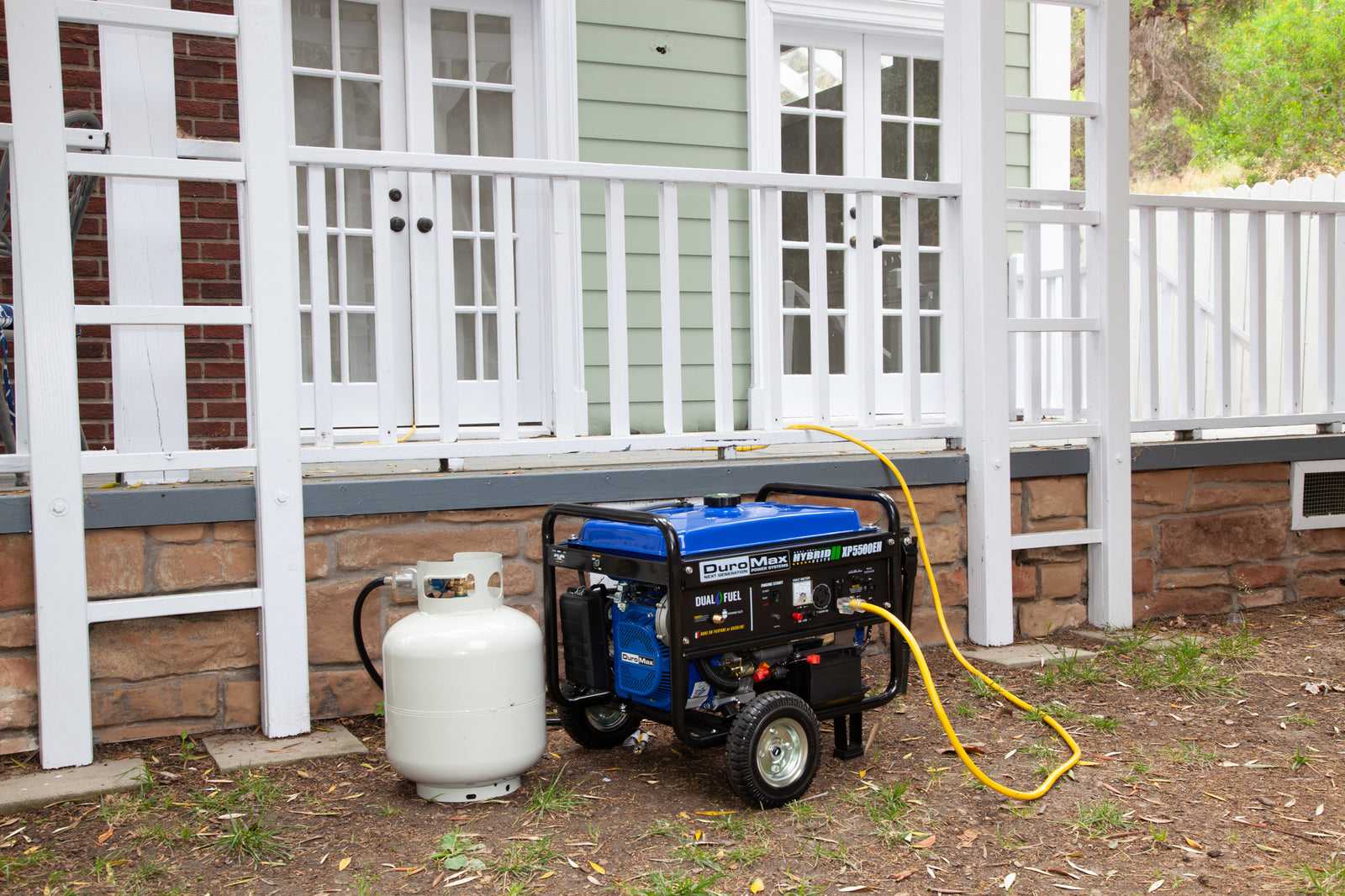

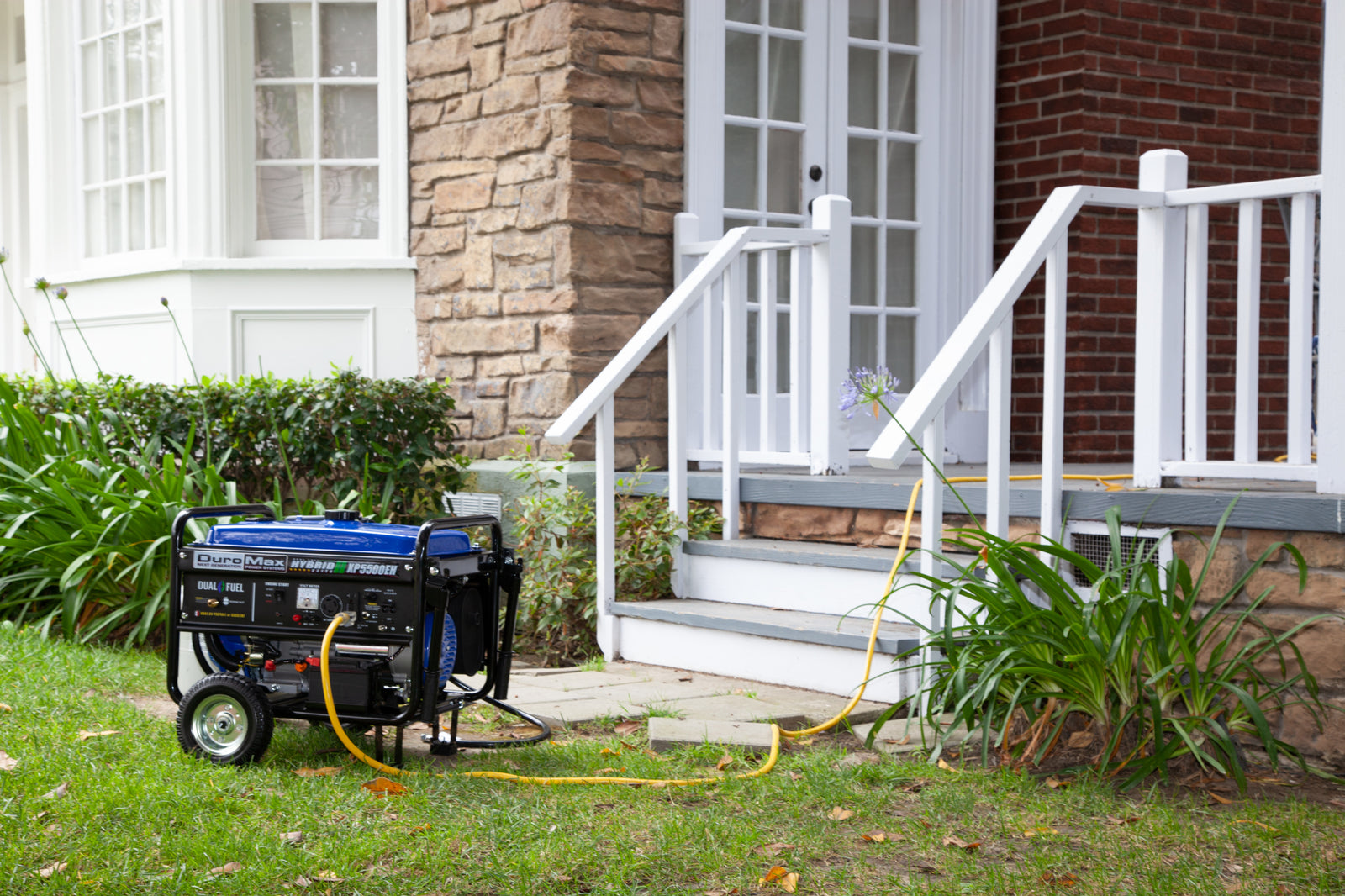

Home
Electricity in our home not only provides comfort, but safety as well. From keeping the heat of AC on to keeping out food fresh in the refrigerator, power is essential to our daily lives.

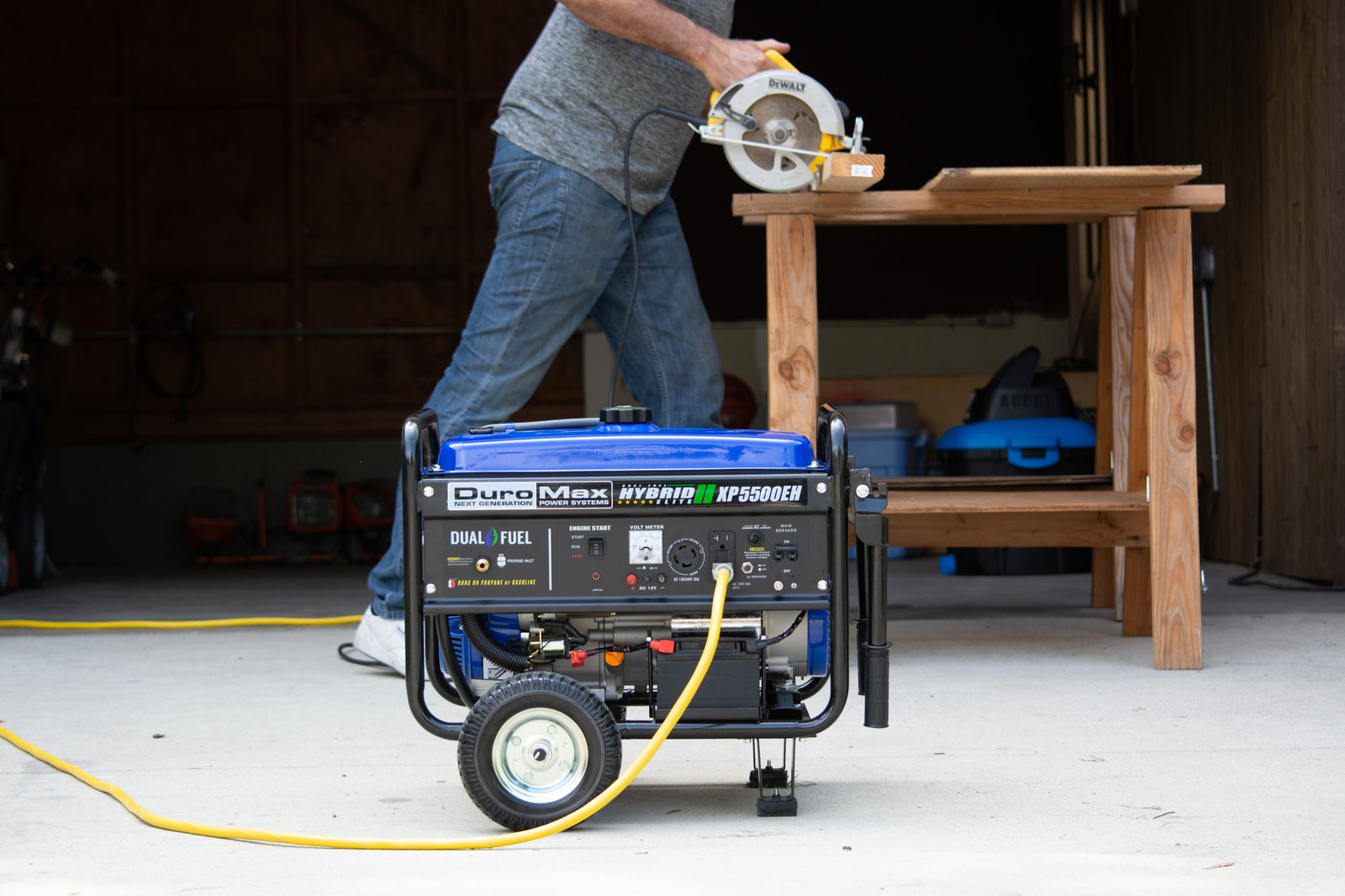

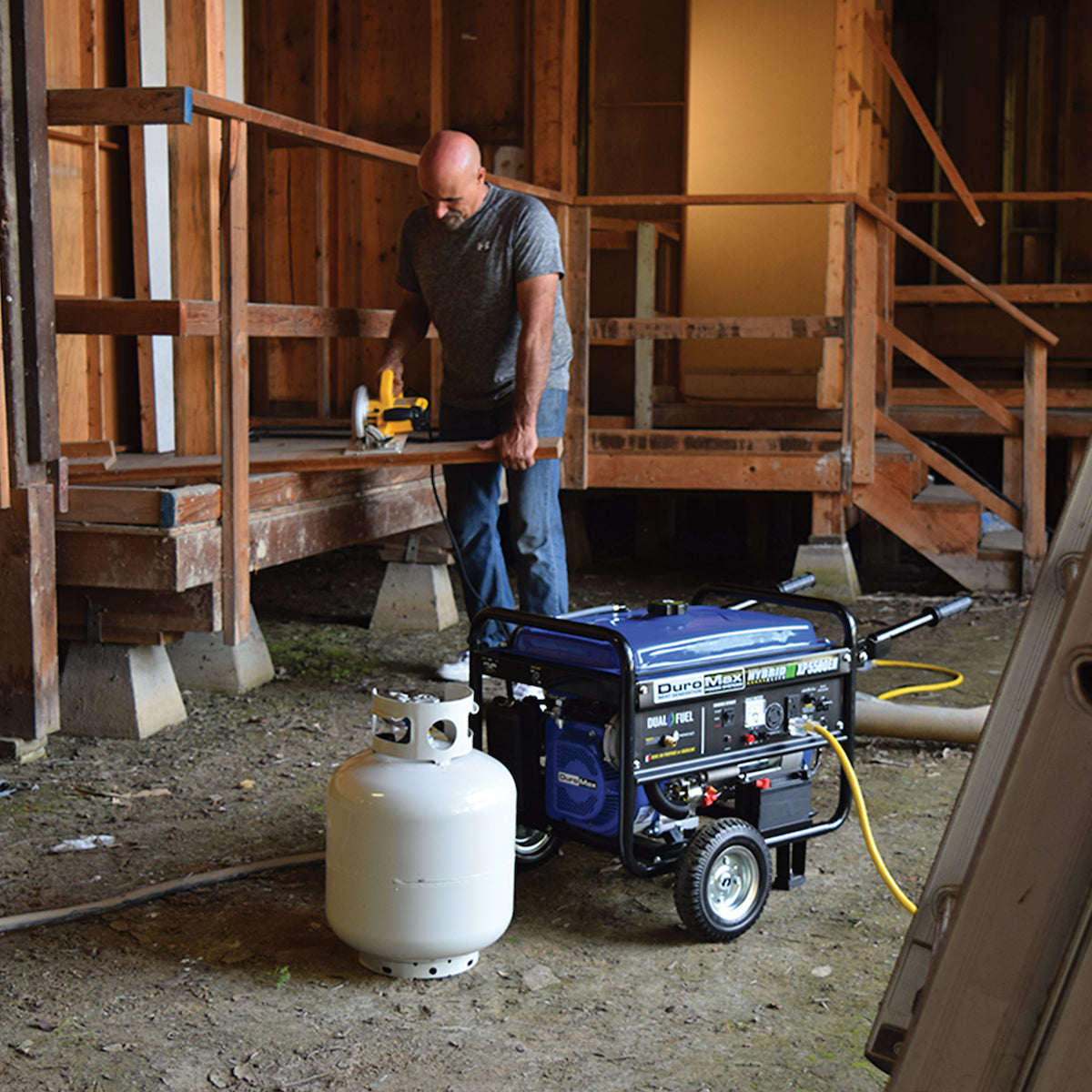

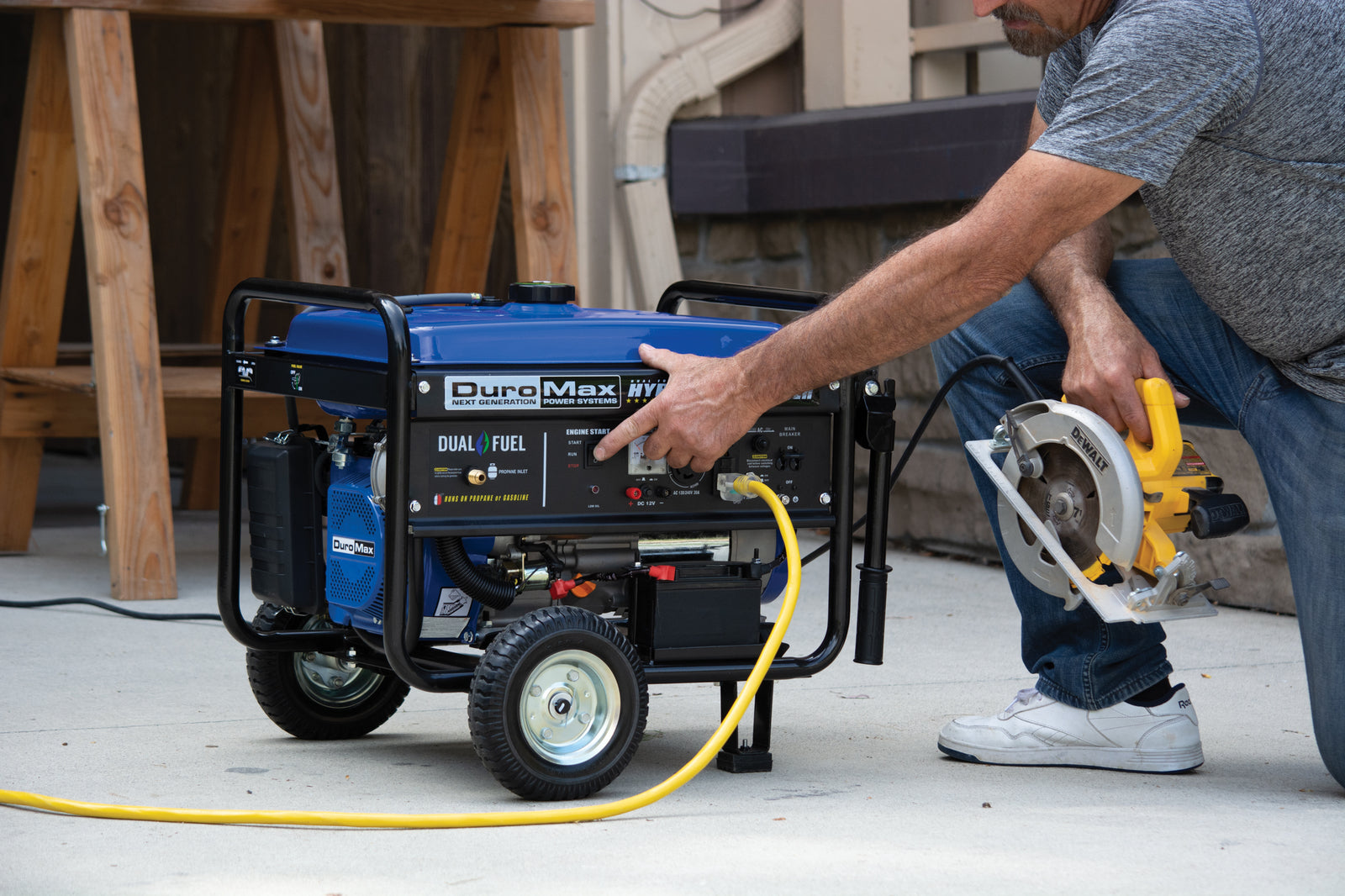

Home Backup GeneratorsWork

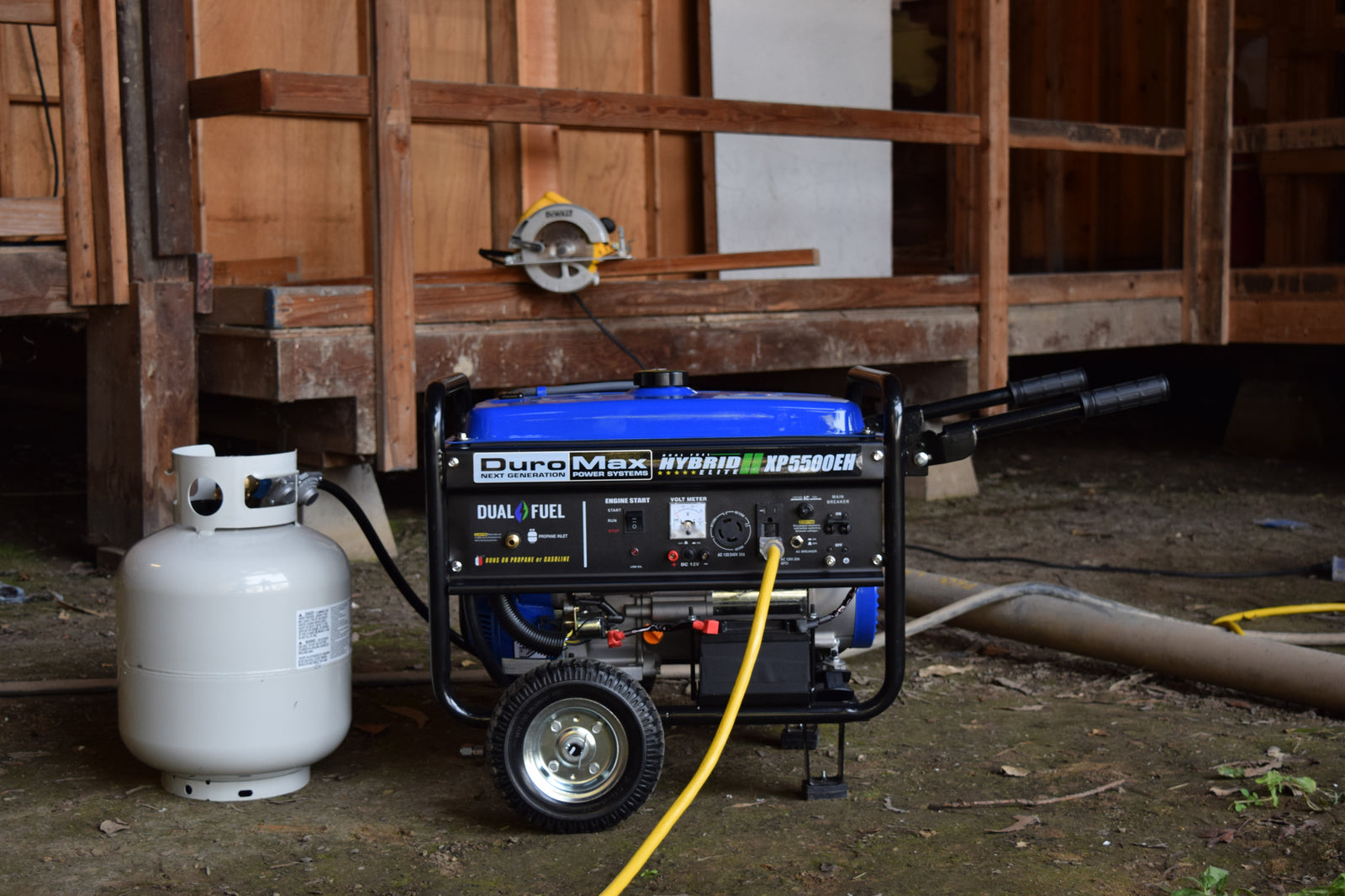

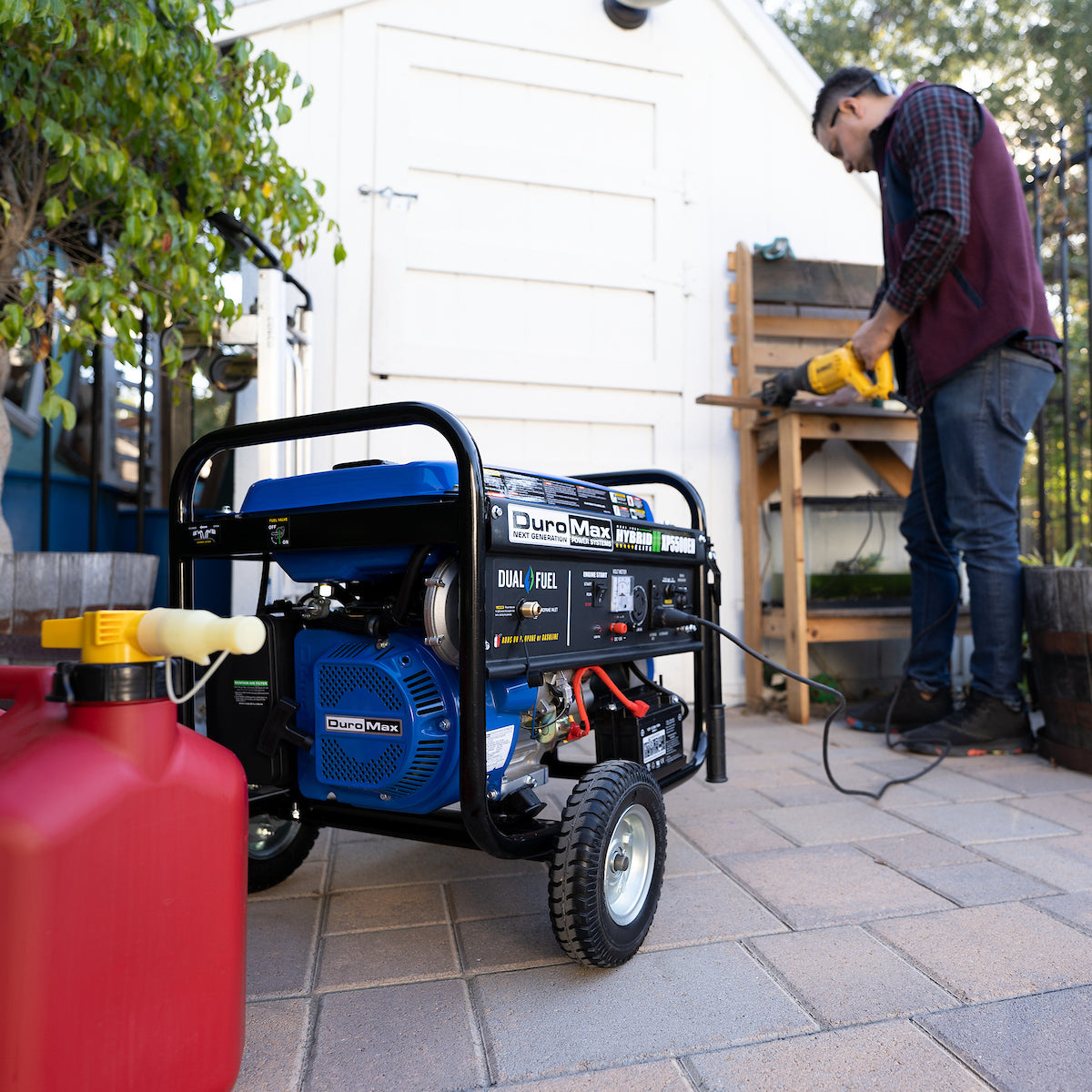

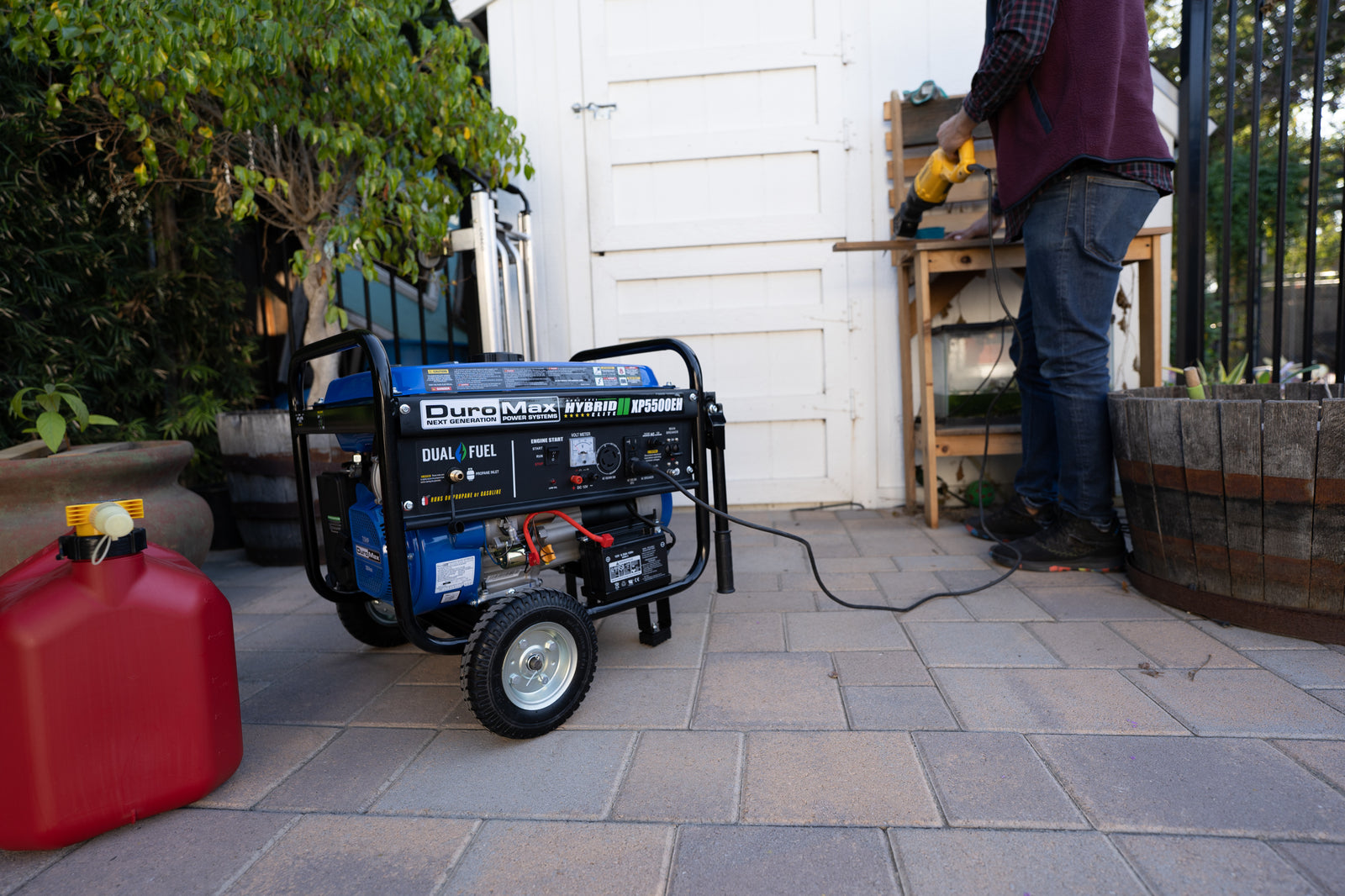

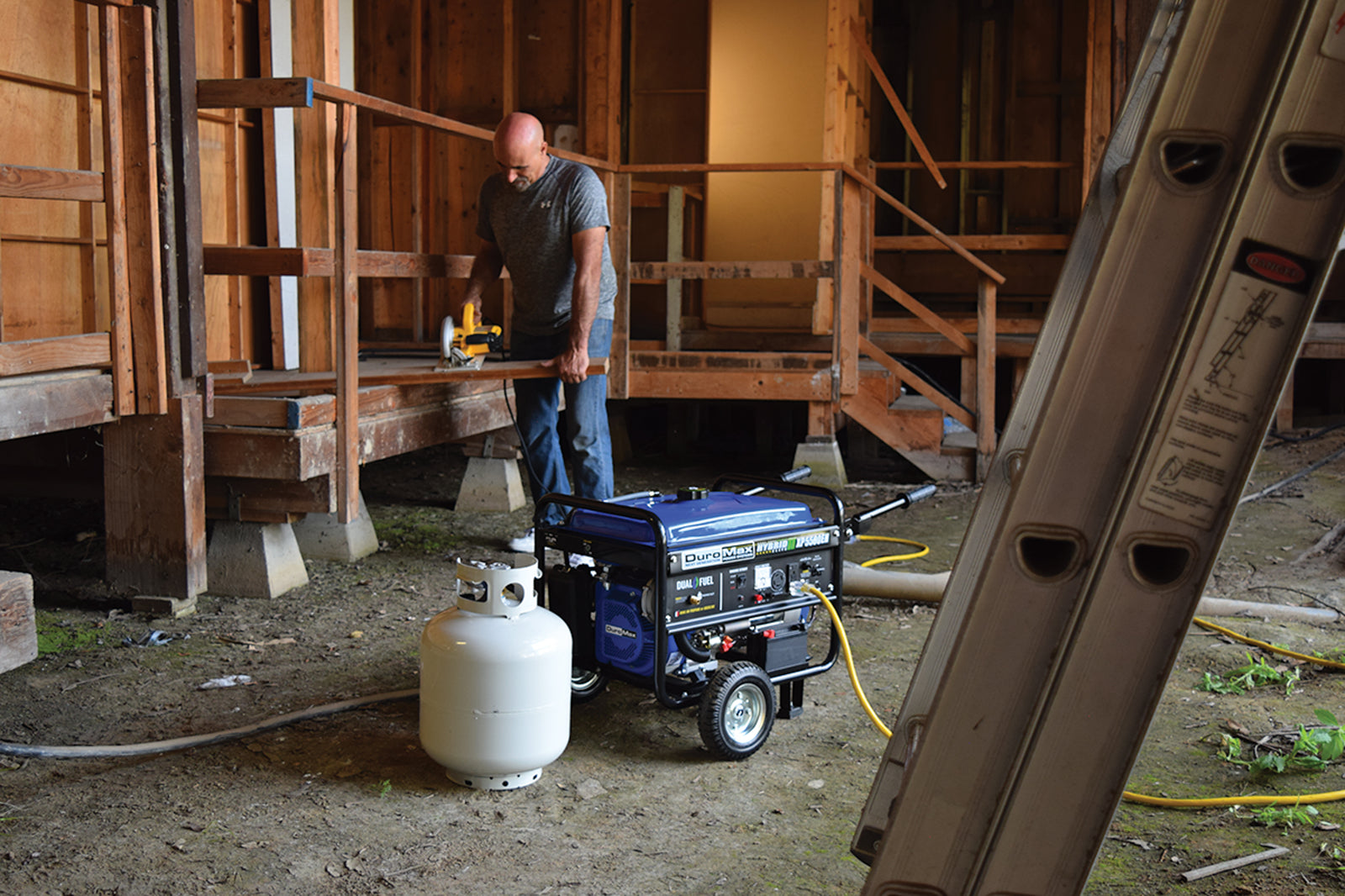

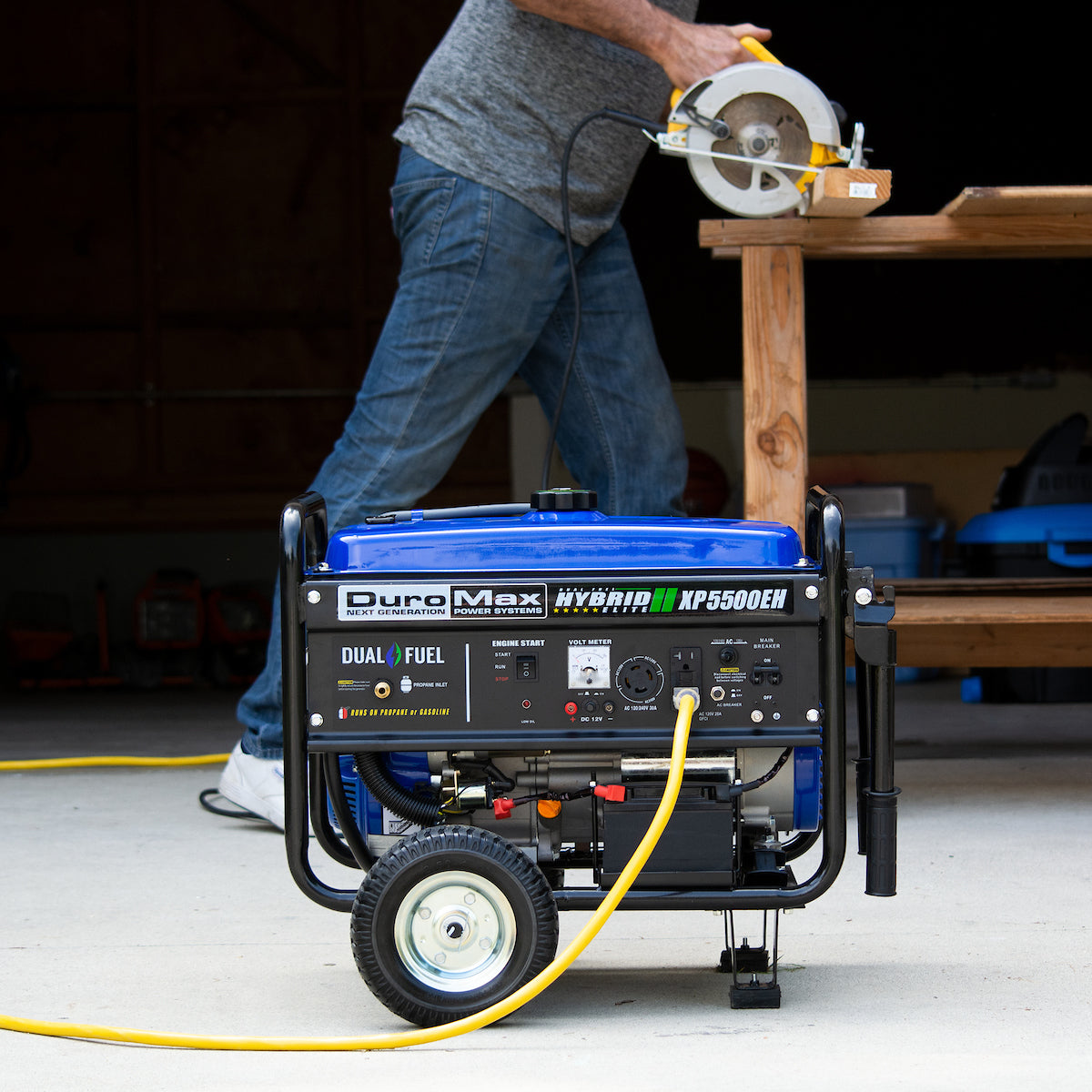

At the jobsite, portable power allows you to get work done in remote locations where traditional power sources are usually unavailable.
Jobsite GeneratorsPlay
Get in touch with nature, while staying comfortable and safe. With portable power, you can light up your campsite, keep your phone charged, and even brew a cup of coffee - all while being miles away from civilization.
Recreational Generators
Nationwide Service Centers
Part of our commitment to excellence means being able to support our customers beyond the initial purchase of their product.
Related Items
E/EH Series
XP5500EH Specifications
| Gasoline | |
| Peak Wattage | 5,500 |
| Running Wattage | 4,500 |
| Running Amperage at 120V | 37.50 |
| Running Amperage at 240V | 18.75 |
| Runtime at 25% Load | 19 |
| Runtime at 50% Load | 9 |
| Propane | |
| Peak Wattage | 5,225 |
| Running Wattage | 4,275 |
| Running Amperage at 120V | 35.63 |
| Running Amperage at 240V | 17.81 |
| Runtime at 25% Load | 15 |
| Runtime at 50% Load | 8 |
| Engine & Emission Specifications | |
| Engine Manufacturer | DuroMax Power Equipment |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Engine Size | 224 cc |
| Engine Speed | 3600 RPM |
| Starting Type | Rocker Switch |
| Electric Start | Yes |
| Recoil Start | Yes |
| Fuel Delivery System | Carburetor |
| Fuel Types | Gasoline and Propane |
| Oil Cooling Type | Splash |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Oil Capacity | 20.3 fluid oz |
| Suggested Propane Tank Size | 20 lbs. minimum |
| Automatic Low Oil Shutdown | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Ball Bearing |
| EPA Certified | Yes |
| 50 State Emissions | No |
| Panel Specifications | |
| GFCI Outlets | Yes |
| Volt Meter | Analog |
| 5-20R | 2 |
| L14-30R | 1 |
| 12V Post | 1 |
| Generator Specifications | |
| Manufacturer | DuroMax Power Equipment |
| Part # | XP5500EH |
| Voltage | 120/240 Volts |
| Frequency | 60 Hertz |
| GFCI Outlets | Yes |
| Propane Hose & Regulator | Included |
| Winding Material | 100% Copper Windings |
| Automatic Voltage Regulator | Yes |
| Battery Type | 12V SLA |
| Battery Included | Yes |
| RV Ready | Yes |
| Home Backup Ready | Yes |
| Fuel Tank Capacity Gasoline | 4 Gallons |
| Fuel Gauge | Yes |
| All Metal Construction | Yes |
| Product Dimensions | 25"-Long x 22"-Wide x 22"-High |
| Product Dry Weight | 124-lbs |
| Product Weight | 136-lbs |
| Volume (db) | 69 dB |
| UPC | 811640014667 |
| Warranty | 3 Year |
| Wheel & Handle Kit | Included |
| Wheel Type | Metal Hub |
| Wheel Diameter | 8-Inches |
| What's in the Box? | XP5500EH, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, DC Charging Cables, Propane Regulator, and Owners Manual |
Warranty Information
DuroMax stands behind this Generator with a 3 Year parts and technical service warranty. Our USA based teams are available to help walk-through, troubleshoot or diagnose. Nationwide service centers fix any issues - DuroMax has you covered!
DuroMax Power Product Support Files and Manuals
At DuroMax Power, we provide easy access to comprehensive support files and manuals to help you set up, maintain, and troubleshoot your equipment efficiently.
Available Resources:
- User Manuals: Download detailed user manuals for step-by-step instructions on setup, operation, and maintenance.
- Quick Start Guides: Get up and running quickly with our concise quick start guides.
- Product Specifications: Access detailed product specifications to understand the features and capabilities of your DuroMax Power equipment.
Product Manual
Sales Sheet
Warranty
