FEATURES

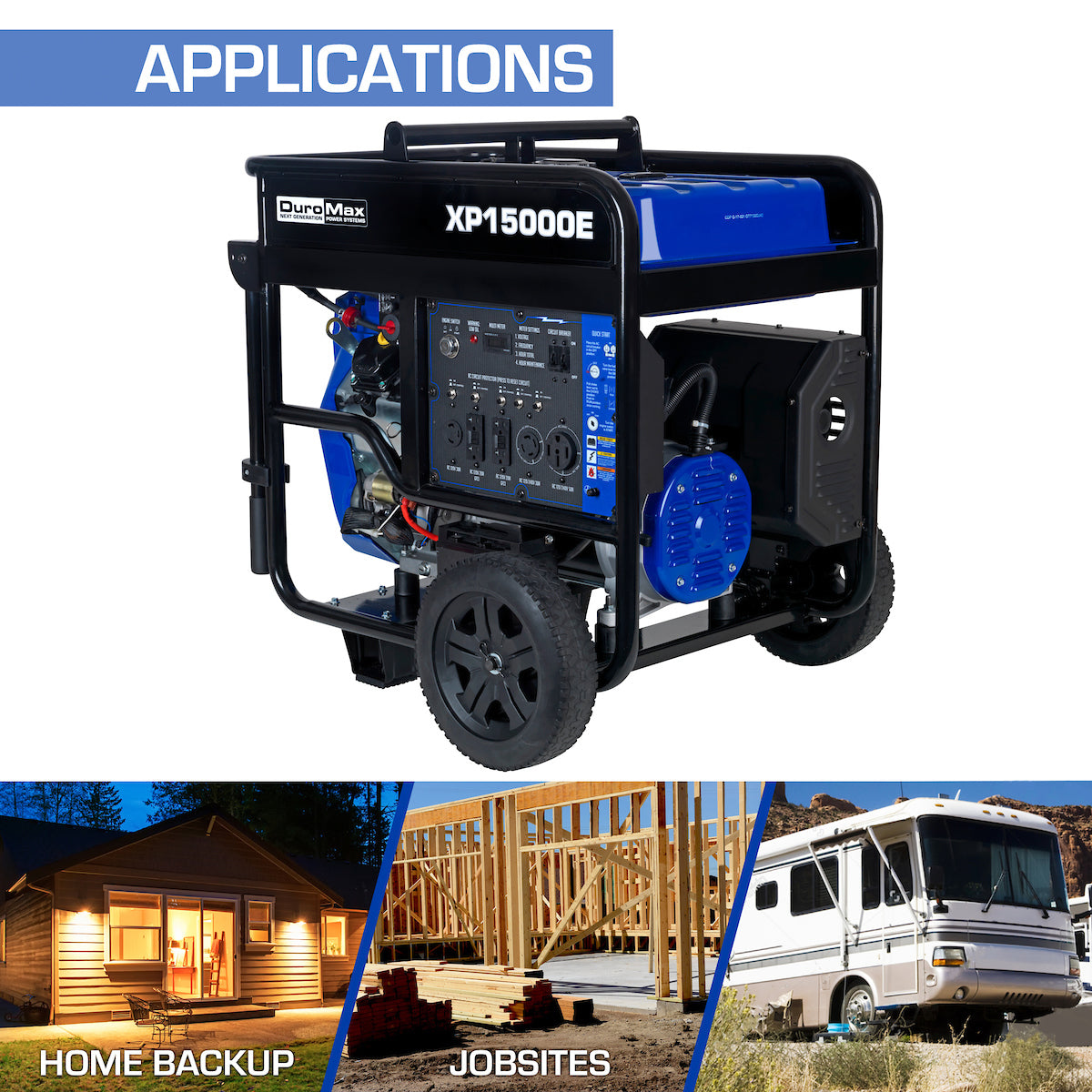

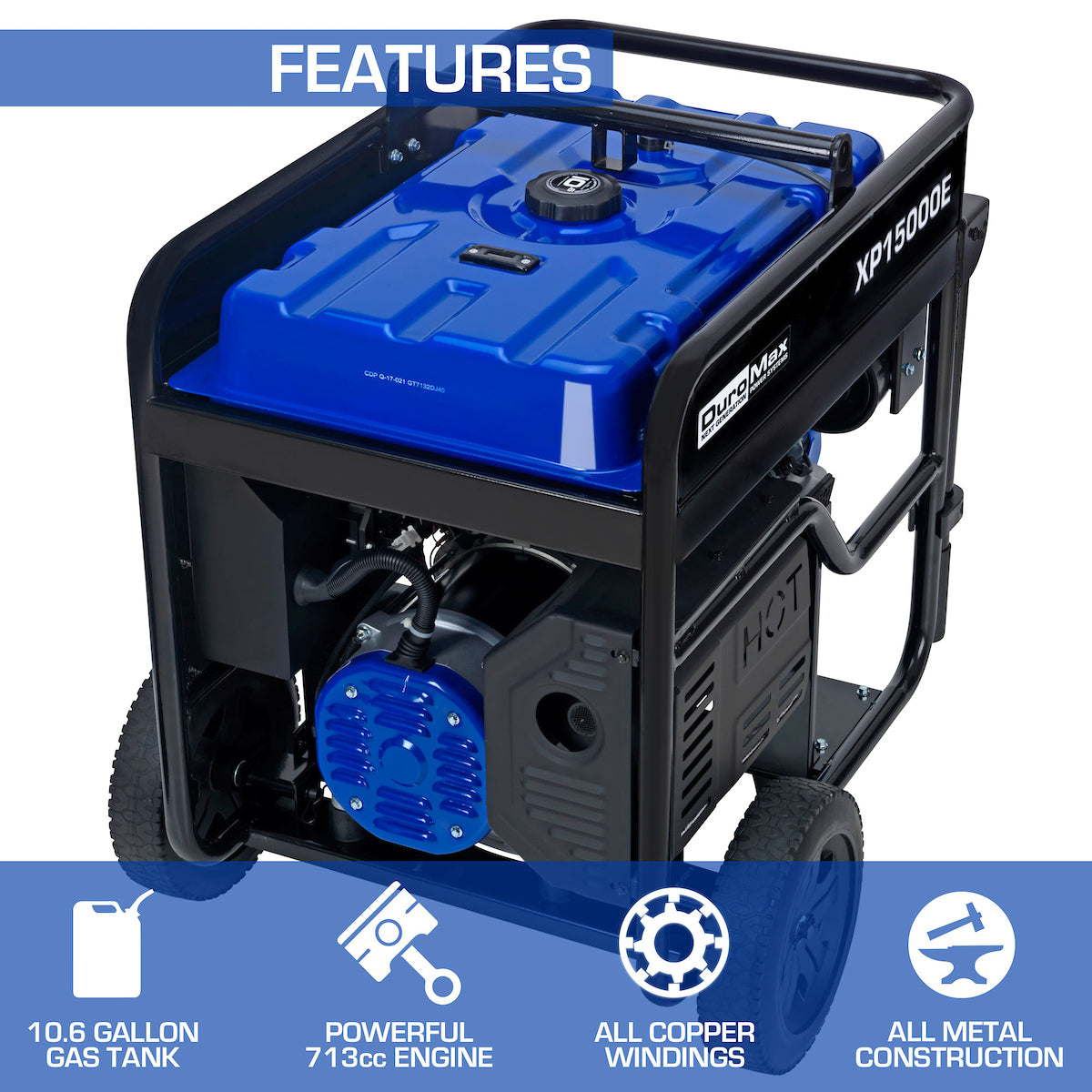

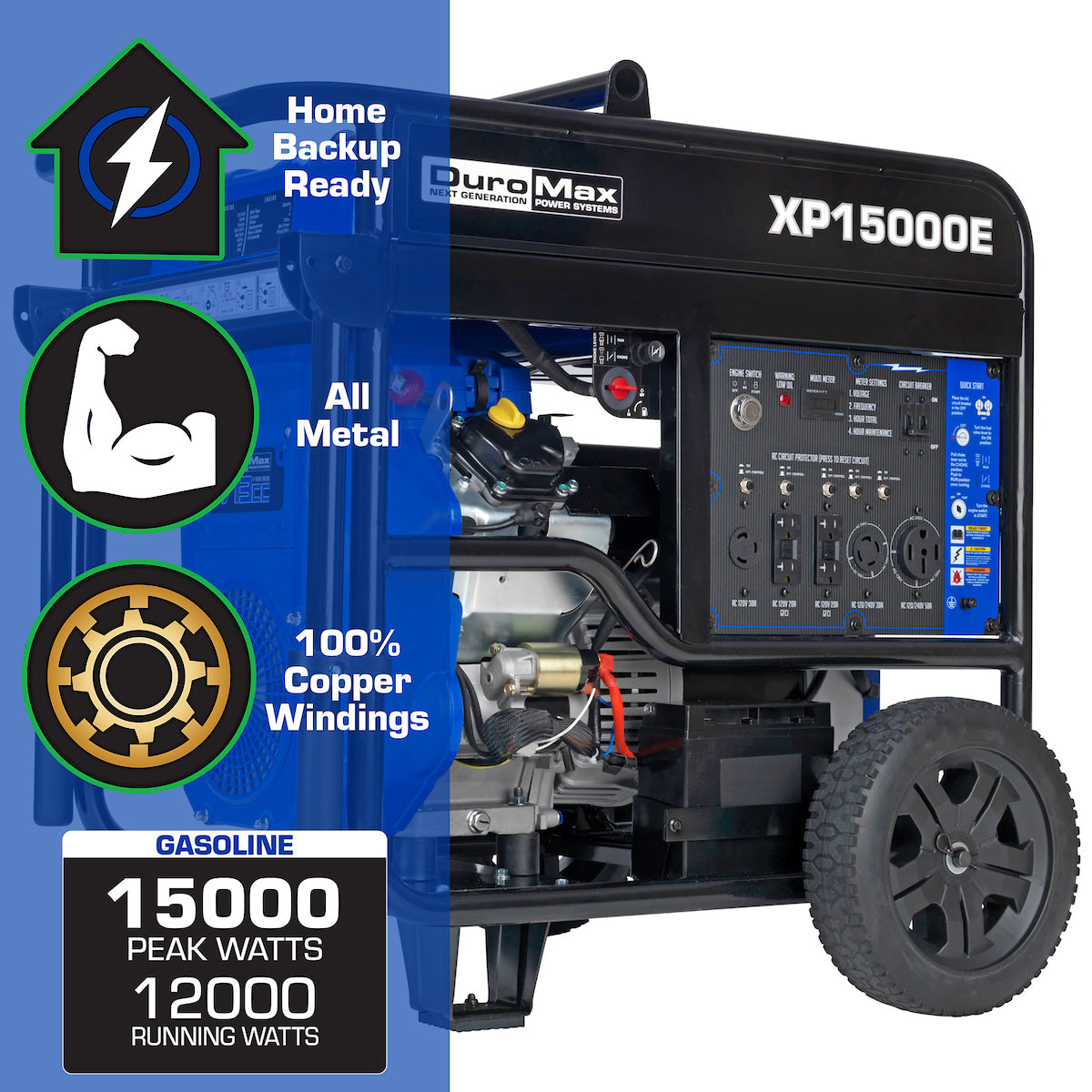

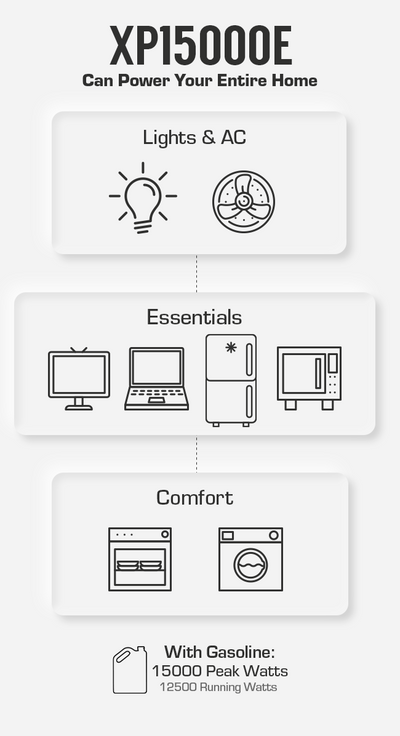

Plenty of Power – With 15,000 peak watts and 12,000 running watts, this unit can handle heavy loads, from lights and a refrigerator to a home air conditioner and high amperage power tools. Powerful 23HP V-Twin Engine – The DuroMax 713cc V-Twin engine is a workhorse, making it ideal for a portable home standby generator. Low Oil Shutoff – Protects your investment by automatically shutting the generator off when it senses that the oil is low.

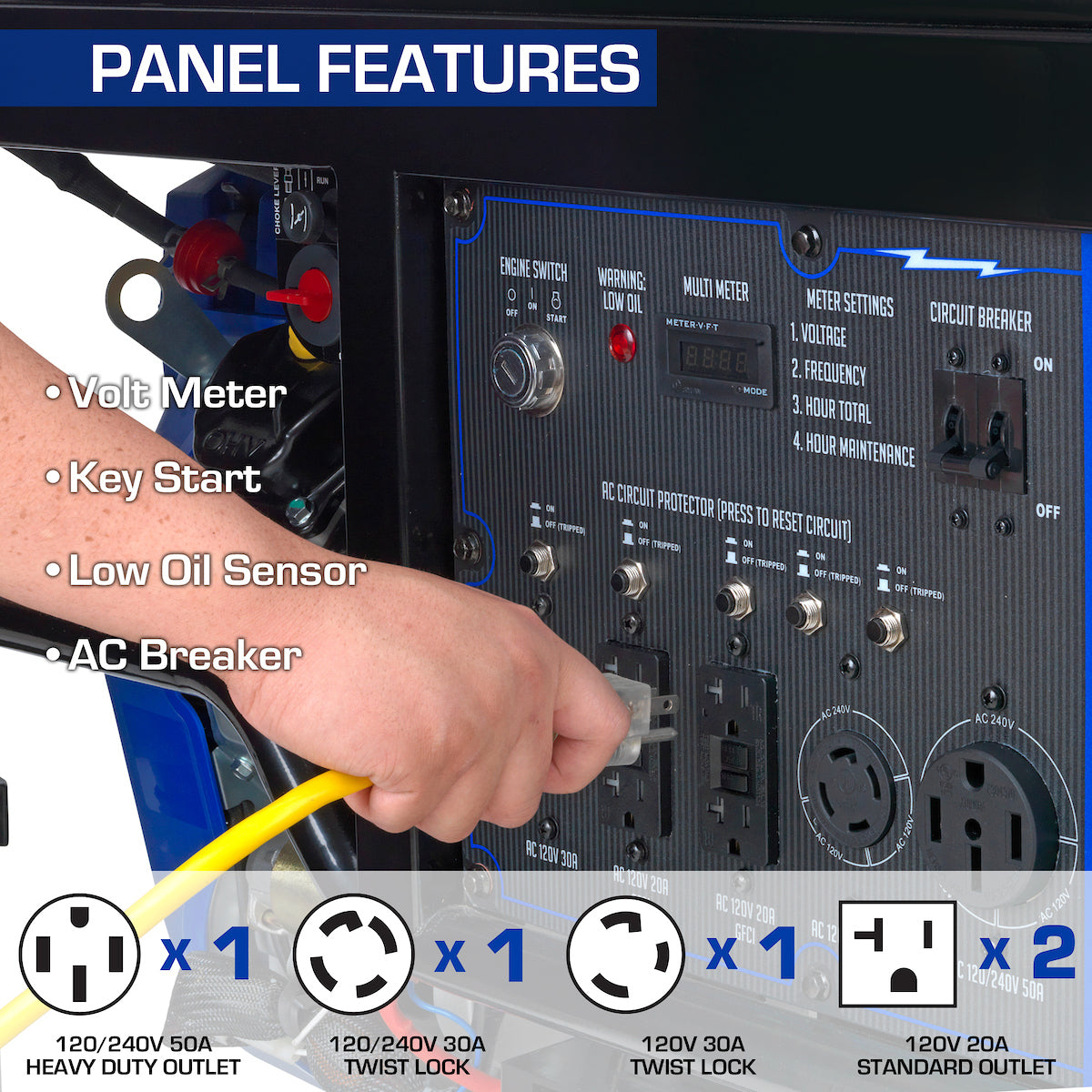

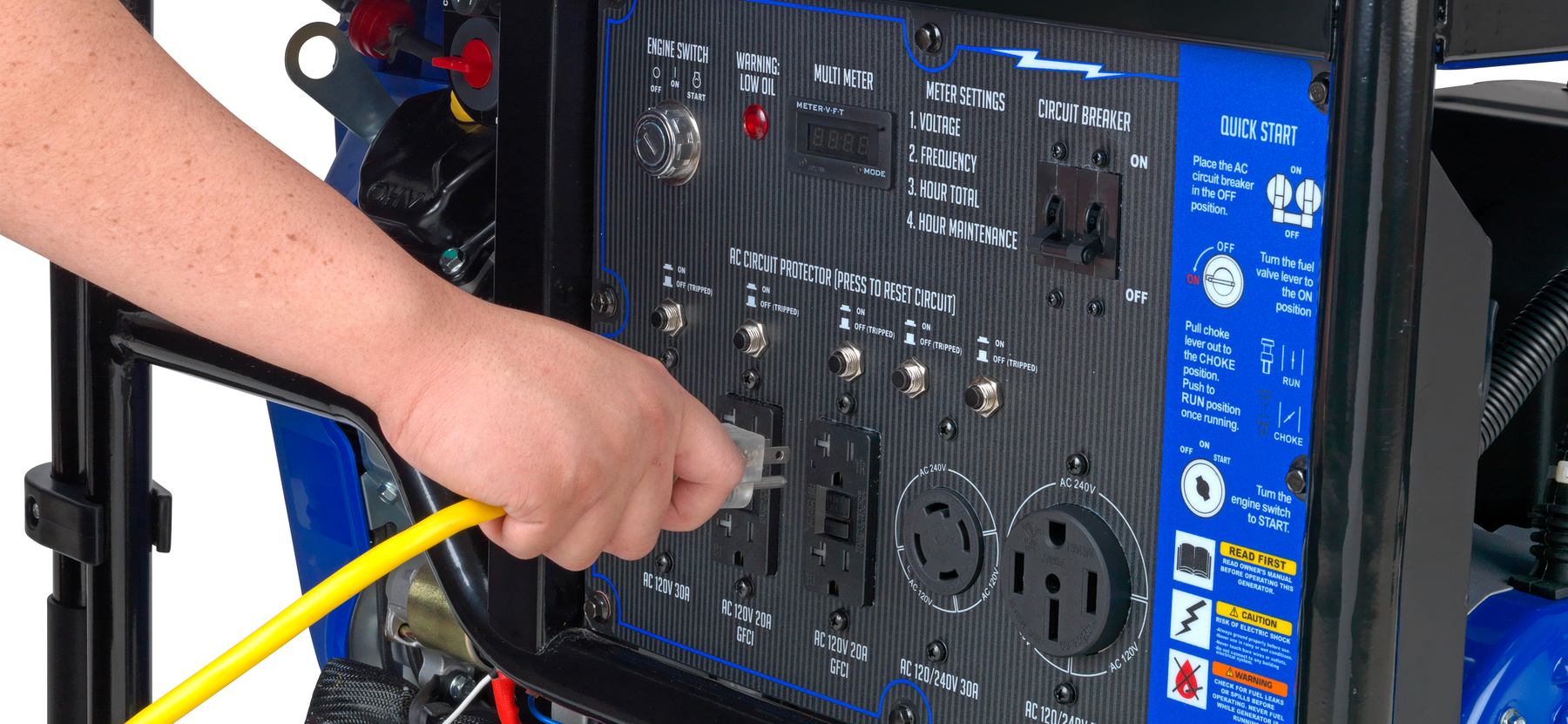

Fully Featured Power Panel – The power panel includes a wide selection of outlets for maximum compatibility in your applications including: 4 120V household GFCI outlets, 1 120V 30A twist lock outlet, 1 240V 30A outlet, and 1 240V 50A outlet. The panel also includes a digital voltmeter for tracking output and maintenance hours. Complies with Emissions Standards – All DuroMax generators are both approved by the EPA (Environmental Protection Agency) and CARB (California Air Resources Board) and follow strict guidelines to ensure our generators are as environmentally friendly as possible.
OUTLETS

X4
120V 20A
GFCI Outlet

X1
120V 30A
Twist Lock

X1
120/240V 30A
Twist Lock

X1
120/240V 50A
Heavy Duty Outlet


POWER SPECIFICATIONS
GASOLINE | |
---|---|
PEAK WATTS | 15,000 |
RUNNING WATTS | 12,000 |
PEAK AMPS @ 120V | 125.00 |
RUNNING AMPS @120V | 100.00 |
PEAK AMPS @ 240V | 62.50 |
RUNNING AMPS @ 240V | 50.00 |
Not sure how much power you need or what these numbers mean? CLICK HERE to download our power calculator to determine your power needs
PRODUCT SPECIFICATIONS
AMPERAGE | 100.00A / 50.00A |
VOLTAGE | 120V / 240VAC |
FREQUENCY | 60Hz |
HORSEPOWER | 23HP |
ENGINE SIZE | 713cc |
ENGINE TYPE | 4-CYCLE AIR-COOLED SPARK-IGNITION |
ENGINE SPEED | 3600RPM |
FUEL TYPE | GASOLINE |
FUEL TANK CAPACITY (GASOLINE) | 10.8 GALLONS |
RUNTIME (GASOLINE) AT 1/2 LOAD | 8.83 HOURS |
START TYPE | ELECTRIC |
VOLUME LEVEL | 84dB |
EPA CERTIFIED | YES |
CARB CERTIFIED | YES |
CSA CERTIFIED | NO |

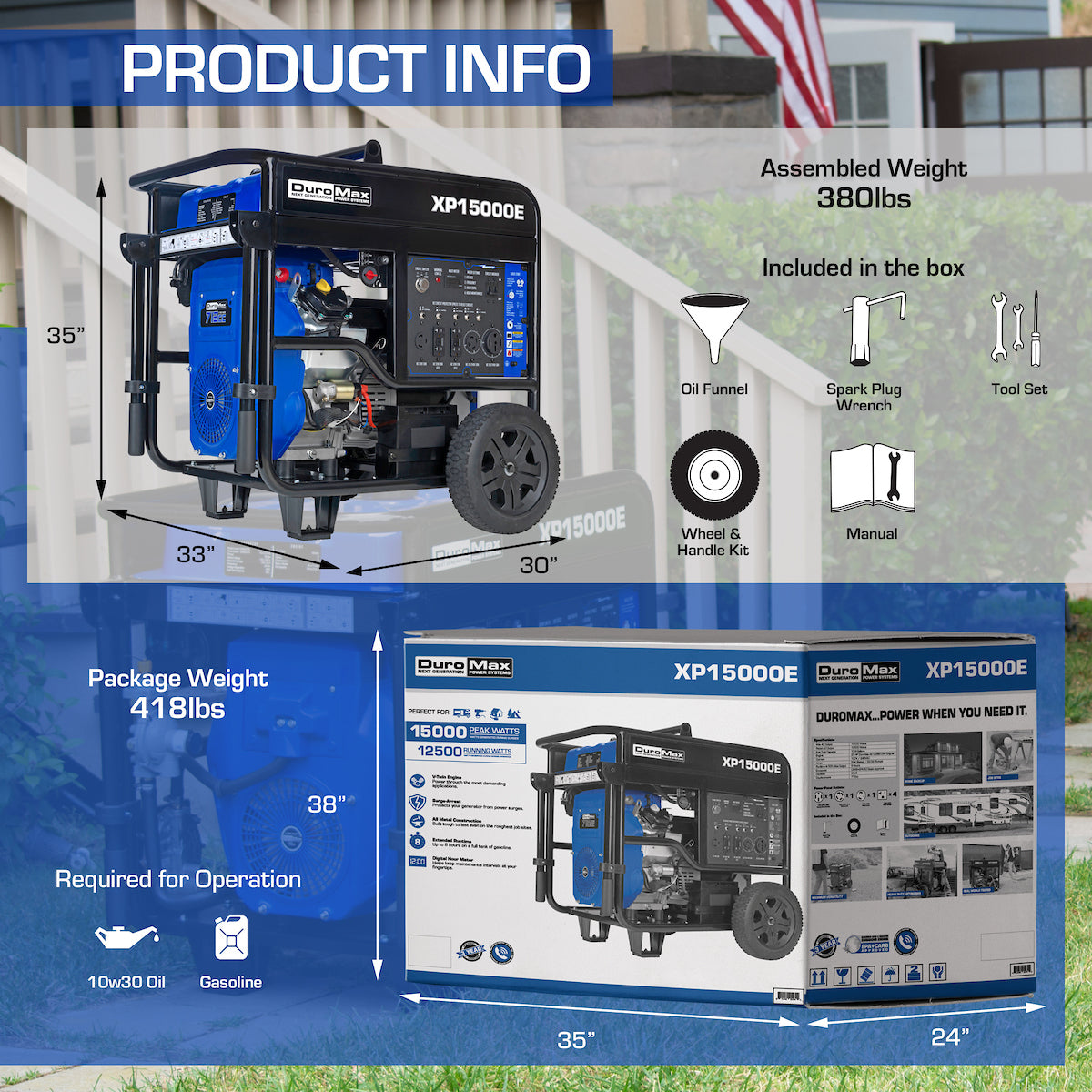

PRODUCT DIMENSIONS | 30" L x 33" W x 35" H |
PRODUCT WEIGHT | 380 LBS |
UPC | 811640014742 |
