Connecticut Electric EGS1012KG2K15KIT EmerGen G2 50 Amp 10-Circuit Transfer Switch Kit
Videos and 360° View
Product Images
Some images shown are illustrative to highlight features; actual product may vary.
- Features
- Specifications
- Specs
- Support
- Reviews
- See All Retailers
- Retailers
Use collapsible tabs for more detailed information that will help customers make a purchasing decision.
Ex: Shipping and return policies, size guides, and other common questions.
Features

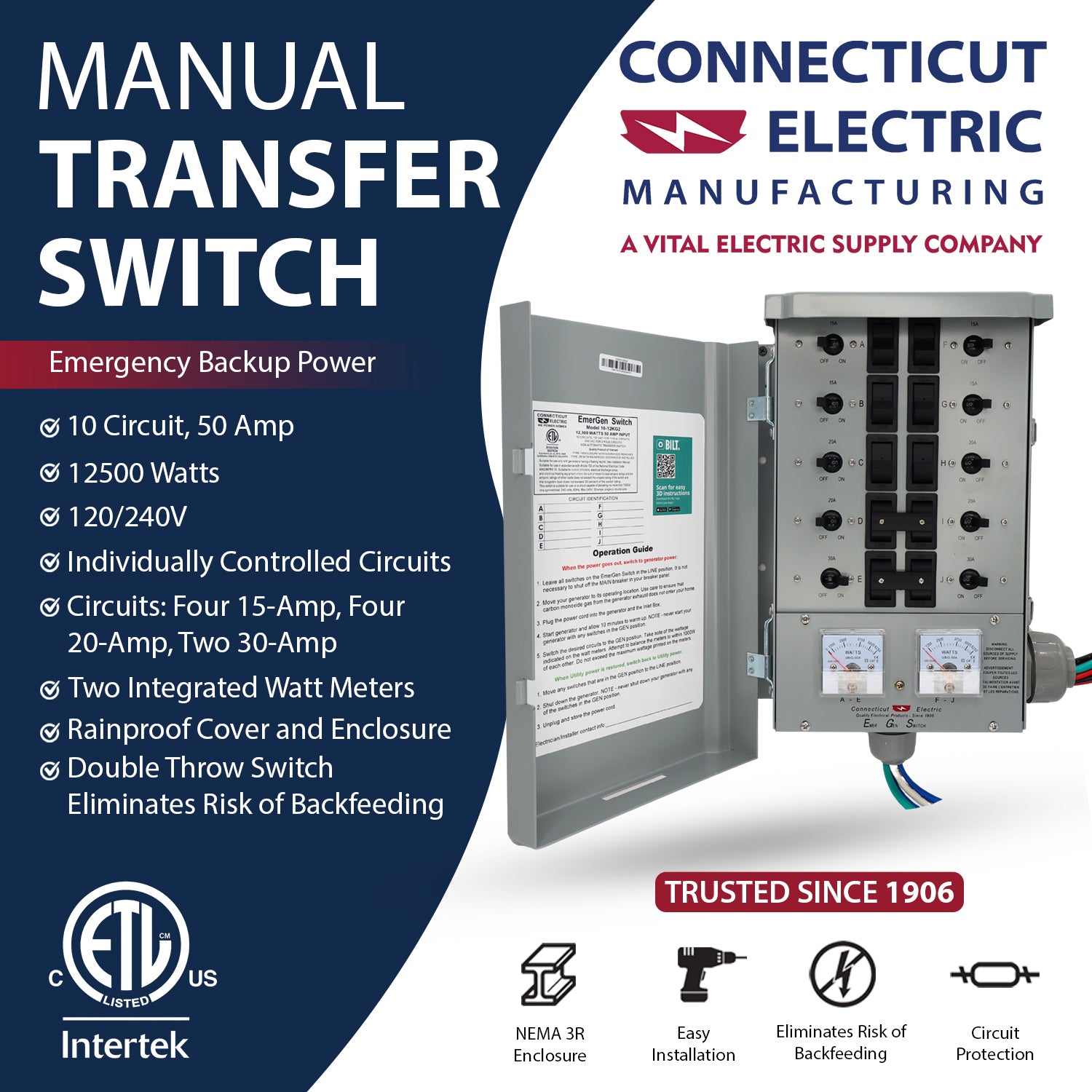

- 50 Amp manual transfer switch kit designed for safe portable generator connection to your home's electrical system.
- 10-circuit capacity allows you to select and power essential household circuits during an outage.
- Compatible with portable generators providing up to 50 Amps of output.
- Double-throw rocker switches help prevent dangerous power backfeeding.
- Supports up to 12,500 watts of generator power at 120/240 volts.
- Works with virtually all residential load centers for flexible installation.
- Built-in watt meters help monitor generator load and balance power between circuits.

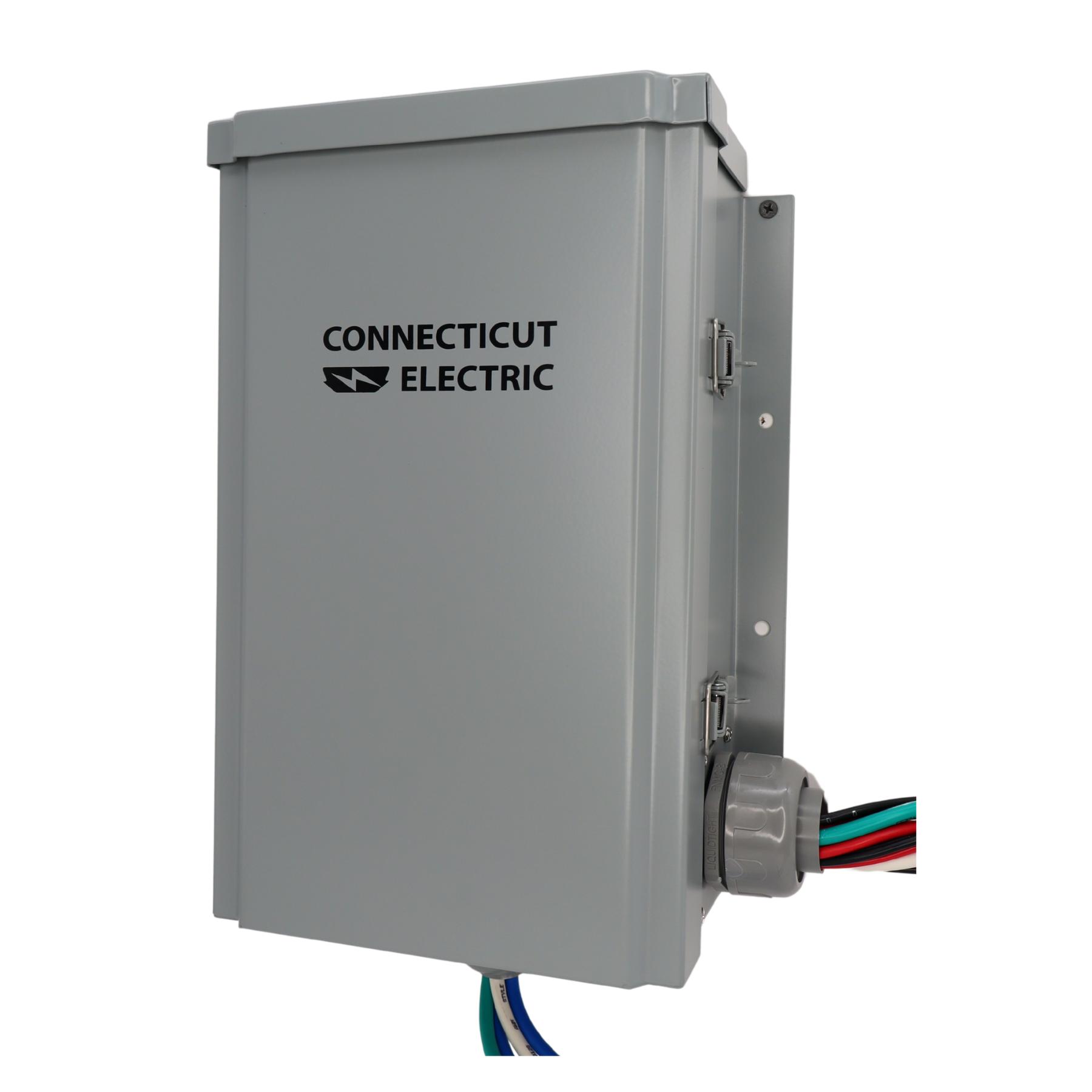

- NEMA 3R rated steel enclosure is designed for indoor or outdoor installation.
- Includes a 50 Amp power inlet and 25 ft. generator cord for a complete home backup connection solution.
What's in The Box

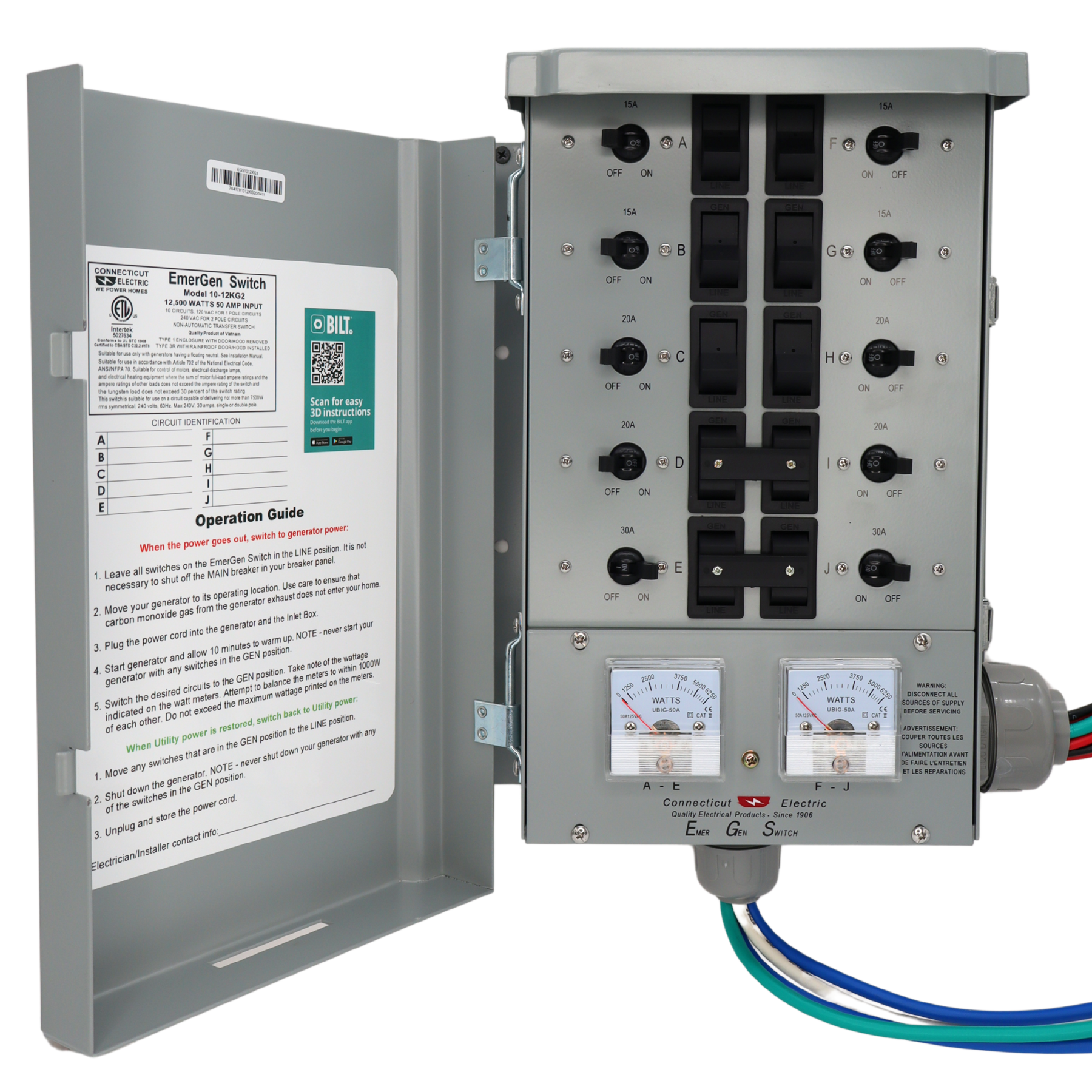

- Connecticut Electric EGS1012KG2 50 Amp 10-Circuit Manual Transfer Switch
- Connecticut Electric EGSPI50 50 Amp Power Inlet
- Connecticut Electric HEPC5025 50 Amp 25 ft. Power Cord
- Conduit
Warranty
- 5 Year Limited Warranty
Specifications
| Amperage | 50 Amps |
| Voltage | 120/240 Volts |
| Maximum Wattage | 12,500 Watts |
| Number of Circuits | 10 |
| Transfer Switch Type | Manual |
| Enclosure | Steel |
| NEMA Rating | NEMA 3R |
| Certification | ETL Listed |
| Power Inlet | 50 Amp CS6375 (SS2-50P) |
| Power Cord Length | 25 ft. |
| Power Cord Configuration | NEMA 14-50P to CS6364 |
| Transfer Switch Dimensions | 15.25 x 10.5 x 5 in. |
| Product Weight | 35 lbs. |
| Model Number | EGS1012KG2KIT |
